JBL TS600 Manuale utente

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance 6 Ohms

•Max Amp Power 150 Watts*

• Frequency Response 35Hz – 40kHz (–10dB)

44Hz – 38kHz (–3dB)

• Sensitivity 85dB (2.83V @ 1 meter)

• Crossover Frequency 700Hz, 12dB/Octave,

3.8kHz, 18dB/Octave

SYSTEM COMPONENTS:

• Cabinet TS600 (Not for Sale)

• Grille Ass’y 364508-001

• Low-Frequency Transducer 6-1/2" (165mm), shielded;

364528-001

DC Resistance 6.0 Ohms, ±10%

• Mid-Frequency Transducer 4" (101mm) Neodymium,

shielded; 364450-001

DC Resistance 4.1 Ohms, ±10%

•High-Frequency Transducer 1" (25mm) shielded; 364450-001

DC Resistance 3.4 Ohms, ±10%

• Crossover Network 013-7600-05583-E

AURAL SWEEP TEST SPECIFICATIONS:

• System Aural Sweep Test 6.0V Input 35Hz to 20kHz

• L.F. Aural Sweep Test 5.0V Input 35Hz to 1kHz

• M.F. Aural Sweep Test 4.0V Input 500Hz to 4kHz

• H.F. Aural Sweep Test 2.83V Input 3kHz to 10kHz

PHYSICAL SPECIFICATIONS:

• Dimensions 19-1/2" x 11-1/2" x 9-5/8"

(HxWxD) (495mm x 292mm x 244mm)

• Dimensions (with feet pad) 19-1/2" x 11-1/2" x 9-5/8"

(H x W x D) (495mm x 292mm x 244mm)

• Weight 27 lb/12.2kg (each)

WARRANTY:

• Refer to Warranty Statement packed with each product.

* The maximum recommended amplifier power rating will ensure

proper system headroom to allow for occasional peaks. We do not

recommend sustained operation at these maximum power levels.

PACKAGING

WIRING DIAGRAM

TS600 SCHEMATIC

Technical Manual

TS600

3/09

Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329

Release Date 2008

Discontinued Date XXXX

Legend on Page 2

M.F.

L.F.

H.F.

H.F. / M.F.

INPUT

L.F. INPUT

Yellow 10"

Green/Black 10"

Green 10"

Orange 10"

Orange/Black 10"

Yellow/Black 10"

0.15mH

3.9mF

100v

14.0mF

100v

.45mH

16mF

100v

20Ω

10W

1.3mH

12Ω

10W

12Ω

10W

0.01mF

100v

1.8mF

100v

0.01mF

100v

16mF

100v

.250

.205

1.0Ω

5.1mF

100v

56mF

100v R1

80Ω

10W

3.9mH

LOW-FREQUENCY

TRANSDUCER

364528-001

HIGH/MID-

FREQUENCY

TRANSDUCER

364450-001

HF and LF

CROSSOVER NETWORK

013-7600-05583-E

Red +

Black/White –

Red +

Black –

Green/Black –

Green +

Yellow/Black –

Yellow +

Orange/Black –

Orange +

M.F.

L.F.

H.F.

H.F. / M.F.

INPUT

L.F. INPUT

Yellow 10"

Green/Black 10"

Green 10"

Orange 10"

Orange/Black 10"

Yellow/Black 10"

0.15mH

3.9mF

100v

14.0mF

100v

.45mH

16mF

100v

20Ω

10W

1.3mH

12Ω

10W

12Ω

10W

0.01mF

100v

1.8mF

100v

0.01mF

100v

16mF

100v

.250

.205

1.0Ω

5.1mF

100v

56mF

100v R1

80Ω

10W

3.9mH

LOW-FREQUENCY

TRANSDUCER

364528-001

HIGH/MID-

FREQUENCY

TRANSDUCER

364450-001

HF and LF

CROSSOVER NETWORK

013-7600-05583-E

Red +

Black/White –

Red +

Black –

Green/Black –

Green +

Yellow/Black –

Yellow +

Orange/Black –

Orange +

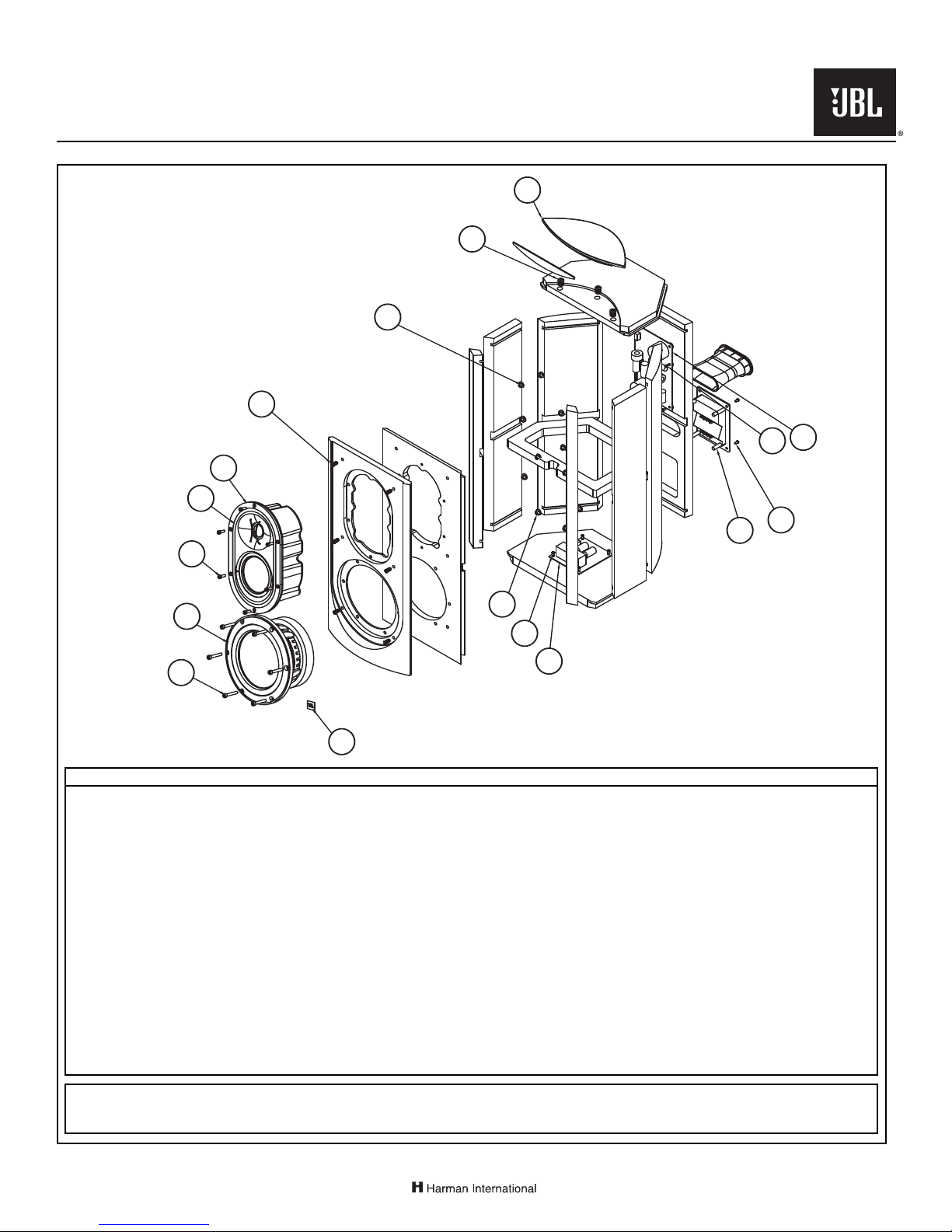

EXPLODED VIEW

Technical Manual

TS600

3/09

Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329

SERVICE NOTES

Note the midrange and tweeter cannot be ordered separately; order #364450-001 pod ass’y.

Shorting straps and binding posts from the terminal cup cannot be ordered separately; order #317-ABS-05154-0BAE terminal cup

ITEM PART NO. DESCRIPTION QTY.

1 364528-001 6 1/2” Woofer 1

2 364450-001 Pod Ass’y Containing Tweeter, Midrange, Wiring, Cup, Gaskets 1

3874-33114-16 SCR, 10-32 x 1 SCKT, CAP, HEX, BLK ZINC, WFR 6

4 013-7600-05583-E HF and LF Crossover Networks 1 set

5350305-001 Logo, JBL, AL,16.3mm x 20mm 1

6 61860 Insert, 8-32 x 4mm, HXS HF MODULE 6

7 364011-001 Ring, Trim, Oval, Mid/Twt Faceplate 1

8364508-001 Front Grille 1

9 315-BMC-05187-0BBE Top Bezel 1

10 337538-001 Grille Cup, Grille 6

11 333249-001 Grille Cup, Bezel 3

12 873-33114-12 SCR, 8-32 X 3/4", SCKT, CAP, HEX, BLK ZINC, HF MODULE 6

13 317-ABS-05154-0BAE Assy, Terminal Cup 1

14 882-41110-10 SCR, 6 X 5/8" PAN, PH, PB, BLK ZINC, LCS NETWORK 14

15 364510-001 Outer Carton 1

16 Visit www.jbl.com Owner’s Manual 1

17 364511-001 Top & Bottom End Pad 2

18 330104-001 Foot, Bumpon, 3M, Sj5744 4

19 61861 T-nut 10-32, Woofer 6

THE TS600 CABINET (NOT FOR SALE) DOES NOT COME APART

AND IS DEPICTED THIS WAY FOR ILLUSTRATIVE PURPOSES ONLY.
