JBL VP Series Manuale utente
Product User’s Guide
2Venue Performance Series User’s Guide
3
JBL Professional
Section 1. Safety Instructions .....................................................................................Page 4
Section 2. Before You Begin .......................................................................................Page 7
Section 3. Introduction to VP Series Powered Loudspeaker Systems ..................Page 8
Specifications by model
Section 4. VP Series Transducers ..............................................................................Page 11
Section 5. Enclosure Care and Maintenance ............................................................Page 12
Section 6. Rigging and Suspension ...........................................................................Page 13
Safety Precautions
Industry Resources
Section 7. JBL DrivePack® Technology .....................................................................Page 16
AC Power Module, Electrical Information
Input Modules (DPIP, DPAN, DPCN)
Protective Jackets & installation
Section 8. HiQnet System Architect™ Software Configuration Guide ...................Page 28
Configuring your PC
Ethernet Network connections
Appendix A: Configuring CobraNet devices
Appendix B: Setting Microsoft Windows to standard font size
Appendix C: Setting Regional Language Options to US English
Section 9. JBL Professional Warranty .......................................................................Page 39
Section 10. Factory Contact Information ....................................................................Page 40
TABLE OF CONTENTS
4Venue Performance Series User’s Guide
SECTION 1 : SAFETY INSTRUCTIONS
Important
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
16. Do not expose this equipment to dripping or splashing and ensure that no objects filled with
liquids, such as vases, are placed on the equipment.
17. To completely disconnect this apparatus from the AC Mains, disconnect the power supply
cord plug from the AC receptacle.
18. The mains plug of the power supply cord shall remain readily operable.
5
JBL Professional
THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR
HAZARD, DO NOT REMOVE DRIVEPACK CHASSIS, INPUT MODULE OR AC INPUT COVERS. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WATCH FOR THESE SYMBOLS
The lightning bolt triangle is used to alert the user to the risk of electric shock.
The exclamation point triangle is used to alert the user to important operating or
maintenance instructions.
FCC COMPLIANCE NOTICE
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
CSA COMPLIANCE NOTICE
CSA Certification Applies to Amplifier Module Only
6Venue Performance Series User’s Guide
JBL DRIVEPACK® DECLARATION OF CONFORMITY
Safety and EMC Compliance Specifications
EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-
Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions
EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M
EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE:
Radiated, Class B Limits; Conducted, Class A
EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-
Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity
EN 61000-4-2:1995 + A1:1999 & A2:2001 Electrostatic Discharge Immunity (Environment E2-criteria B, 4
kV Contact, 8 kV Air discharge)
EN 61000-4-3:2003 Radiated, Radio-frequency, Electromagnetic Immunity (Environment E2, criteria A)
EN61000-4-4:2005 Electrical Fast Transient/Burst Immunity (criteria B)
EN 61000-4-5:2001 Surge Immunity (criteria B)
EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (criteria A)
EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation
UL 60065:2003, 7th edition: Audio/Video and Musical Instrument Apparatus for Household, Commercial
and Similar General Use
IEC 60065, 2001: Audio, Video and Similar Electronic Apparatus - Safety Requirements
CAN/CSA E60065-03: Audio, Video and Similar Electronic Apparatus – Safety Requirements
7
JBL Professional
SECTION 2 : BEFORE YOU BEGIN
The VP Series loudspeakers covered by this manual are not intended for fixed installation in outdoor
or high moisture environments. Moisture can damage the speaker cone and surround and cause
corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct moisture.
Keep loudspeakers out of extended or intense direct sunlight. The driver suspension will prematurely
dry out and finished surfaces may be degraded by long-term exposure to intense ultra-violet (UV)
light.
The VP Series loudspeakers can generate considerable energy. When placed on a slippery surface
such as polished wood or linoleum, the speaker may move due to its acoustical energy output.
Precautions should be taken to assure that the speaker does not fall off a stage or table on which it
is placed.
Stand mounting safety precautions
Some VP Series models can be used with an optional stand mount accessory allowing mounting
on tripod stands or on a pole over subwoofers. When using stands or poles, be sure to observe the
following precautions:
Check the stand or pole specification to be certain the device is designed to support the
weight of the speaker. Observe all safety precautions specified by the manufacturer.
Always verify that the stand (or subwoofer / pole) is placed on a flat, level, and stable surface
and be sure to fully extend the legs of tripod type stands. Position the stand so that the legs
do not present a trip hazard.
Route cables so that performers, production crew, and audience will not trip over them and
pull the speaker over.
Inspect the stand (or pole and associated hardware) before each use and do not use
equipment with worn, damaged, or missing parts.
Do not attempt to place more than one VP Series loudspeaker on a stand or pole.
Always be cautious in windy, outdoor conditions. It may be necessary to place additional
weight (i.e. sandbags) on the base of the stand to improve stability. Avoid attaching banners
or similar items to any part of a speaker system. Such attachments could act as a sail and
topple the system.
Unless you are confident that you can handle the weight of the speaker, ask another person
to help you get it onto the tripod stand or pole.
Hearing damage, prolonged exposure to excessive SPL
VP Series loudspeakers are easily capable of generating sound pressure levels (SPL) sufficient to
cause permanent hearing damage to performers, production crew and audience members. Caution
should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
Package Contents
• Product User’s Guide (this document)
• DP compatible loudspeaker
• CD containing System Architect™ software, E.A.S.E. data, DXF files,
and spec sheets.
• A.C. Power North America/Europe Cord-Set
• Protective Jacket Set
• Warranty Card
8Venue Performance Series User’s Guide

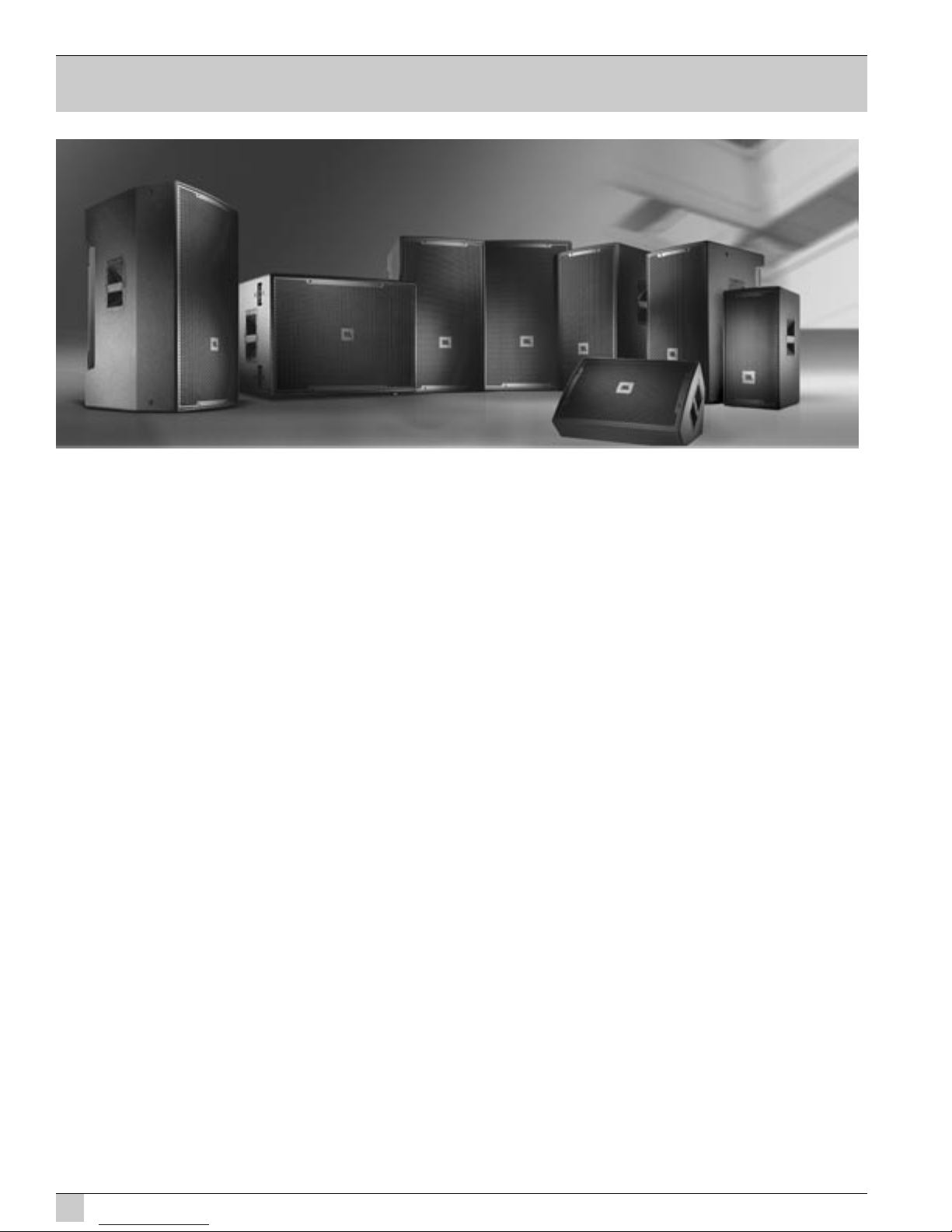

SECTION 3 : INTRODUCTION TO VP SERIES
POWERED LOUDSPEAKER SYSTEMS
VP (Venue Performance) Series
The VP Series is a family of powered integrated audio loudspeaker systems featuring the JBL DrivePack®
amplifier modules, designed in cooperation with Crown International. The JBL DrivePack features cutting-
edge technology such as patented high efficiency Class-I power amplifier circuitry. Loudspeaker components
include patented JBL Differential Drive®woofers. The full-range models feature the JBL 2452H-SL large
format 1.5” exit compression driver. This high frequency driver is coupled to a JBL Progressive Transition™
(PT) Waveguide for excellent pattern control, smooth frequency response, and low distortion. Waveguides
can be rotated for either a horizontal or vertical orientation.
This guide covers the following models:
VP7212/64DP - 12” two-way with 60 x 40-degree waveguide
VP7212/95DP - 12” two-way with 90 x 50-degree waveguide
VP7215/64DP - 15” two-way with 60 x 40-degree waveguide
VP7215/95DP - 15” two-way with 90 x 50-degree waveguide
VP7315/64DP - 15” three-way with 60 x 40 degree waveguide
VPSB7118DP - 18” subwoofer
VP7212/64DPDA - with optional AES/EBU input module
VP7212/95DPDA - with optional AES/EBU input module
VP7215/64DPDA - with optional AES/EBU input module
VP7215/95DPDA - with optional AES/EBU input module
VP7315/64DPDA - with optional AES/EBU input module
VPSB7118DPDA - with optional AES/EBU input module
VP7212/64DPAN - with optional Analog Audio/Network input module
VP7212/95DPAN - with optional Analog Audio/Network input module
VP7215/64DPAN - with optional Analog Audio/Network input module
VP7215/95DPAN - with optional Analog Audio/Network input module
VP7315/64DPAN - with optional Analog Audio/Network input module
VPSB7118DPAN - with optional Analog Audio/Network input module
VP7212/64DPCN – with optional CobraNet input module
VP7212/95DPCN – with optional CobraNet input module
VP7215/64DPCN – with optional CobraNet input module
VP7215/95DPCN – with optional CobraNet input module
VP7315/64DPCN – with optional CobraNet input module
VPSB7118DPCN – with optional CobraNet input module
9
JBL Professional
VP SERIES SYSTEMS SPECIFICATIONS
VP7215/64DP
Specifications:
Frequency Response (+/-3dB): 60 Hz - 18 kHz
Frequency Range (-10dB): 45 Hz - 20 kHz
Coverage Pattern: 60° x 40° rotatable waveguide
Directivity Factor (Q): 15.8
Directivity Index (DI): 12 dB
Max Peak Output: 137 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2265G, 381 mm (15 in) dia., 76 mm (3 in) Dual
Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output (at nominal load): 2200 Watts Peak (1100 Watts Continuous)
DP2 Output (Continuous IEC shaped pink noise
into rated load impedance):
750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-Thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch.
Internally braced. Black DuraFlex™ finish.
Suspension System: 6 standard air-cargo 3 in. track and 14 M10 fittings.
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 765.3 x 447.6 x 523.5 mm
30.13 x 17.62 x 20.61 in.
Net Weight: 38.6 kg (85 lb)
VP7215/95DP
Specifications:
Frequency Response (+/-3dB): 60 Hz - 18 kHz
Frequency Range (-10dB): 45 Hz - 20 kHz
Coverage Pattern: 90° x 50° rotatable waveguide
Directivity Factor (Q): 12.6
Directivity Index (DI): 11 dB
Max Peak Output: 137 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2265G, 381 mm (15 in) dia., 76 mm (3 in) Dual
Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output (at nominal load): 2200 Watts Peak (1100 Watts Continuous)
DP2 Output (Continuous IEC shaped pink noise
into rated load impedance):
750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-Thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch.
Internally braced. Black DuraFlex™ finish
Suspension System: 6 standard air-cargo 3 in. track and 14 M10 fittings
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 765.3 x 447.6 x 523.5 mm
30.13 x 17.62 x 20.61 in.
Net Weight: 38.6 kg (85 lb)
VP7212/64DP
Specifications:
Frequency Response (+/-3dB): 63 Hz - 18 kHz
Frequency Range (-10dB): 47 Hz - 20 kHz
Coverage Pattern: 60° x 40° rotatable waveguide
Directivity Factor (Q): 15.8
Directivity Index (DI): 12 dB
Max Peak Output: 136 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2262G, 304 mm (12 in) dia., 76 mm (3 in) Dual
Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output (at nominal load): 2200 Watts Peak (1100 Watts Continuous)
DP2 Output (Continuous IEC shaped pink noise
into rated load impedance):
750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-Thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch. Inter-
nally braced. Black DuraFlex™ finish
Suspension System: 6 standard air-cargo 3 in. track and 14 M10 fittings.
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 701.8 x 383.8 x 523.5 mm
27.63 x 15.11 x 20.61 in.
Net Weight: 35.4 kg (78 lb)
VP7212/95DP
Specifications:
Frequency Response (+/-3dB): 63 Hz - 18 kHz
Frequency Range (-10dB): 47 Hz - 20 kHz
Coverage Pattern: 90° x 50° rotatable waveguide
Directivity Factor (Q): 12.6
Directivity Index (DI): 11 dB
Max Peak Output: 136 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2262G, 304 mm (12 in) dia., 76 mm (3 in) Dual
Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output (at nominal load): 2200 Watts Peak (1100 Watts Continuous)
DP2 Output (Continuous IEC shaped pink noise
into rated load impedance):
750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-Thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch.
Internally braced. Black DuraFlex™ finish
Suspension System: 6 standard air-cargo 3 in. track and 14 M10 fittings.
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 701.8 x 383.8 x 523.5 mm
27.63 x 15.11 x 20.61 in.
Net Weight: 35.4 kg (78 lb)
10 Venue Performance Series User’s Guide
VPSB7118DP
Specifications:
Frequency Response (+/-3dB): 39 Hz - 145 Hz
Frequency Range (-10dB): 29 Hz - 165 Hz
Max Peak Output: 129 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2268G, 457 mm (18 in) dia., 76 mm (3 in) Dual
Coil, Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
System:
DP2 Internal Amplification Output (at nominal load): 3600 Watts Peak (1800 Watts Continuous)
DP1 Output Section: 1-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60 Hz
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon (NAC 3MPA)
AC Loop-Thru: Neutrik PowerCon (NAC 3MPB)
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch.
Internally braced. Black DuraFlex™ finish
Suspension System: 8 standard air-cargo 3 in. track and 24 M10 fittings.
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 514.4 x 701.8 x 812.8 mm
20.25 x 27.63 x 32 in.
Net Weight: 54 kg (129 lb)
VP SERIES SYSTEMS SPECIFICATIONS
VP7315/64DP
Specifications:
Frequency Response (+/-3dB): 43 Hz - 18 kHz
Frequency Range (-10dB): 34 Hz - 20 kHz
Coverage Pattern: 60° x 40° rotatable waveguide
Directivity Factor (Q): 15.85
Directivity Index (DI): 12 dB
Max Peak Output: 138 dB SPL 1m
Transducer Section:
Low Frequency Section: JBL 2265G, 381 mm (15 in) dia., 76 mm (3 in) Dual
Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 4 ohms
Mid Frequency: JBL CMCD-82H, 200 mm (8 in) Dual Coil
Differential Drive®transducer
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Waveguide: JBL PT-K64-MHF
Bandpass Nominal Impedance: 8 ohms
System:
DP2 Internal Amplification Output (at nominal load): 2200 Watts Peak (1100 Watts Continuous)
DP2 Output (Continuous IEC shaped pink noise
into rated load impedance):
750LF/350HF Watts
DP2 Output Section: 2-Channel, Class I
Audio Input Connector: XLR with loop-through
Network Control Connector: Ethernet, RJ45 (DPAN, DPCN options)
Signal Processing: DSP based, resident in Input Module.
System Management: DSP based limiters for mechanical and thermal
protection
AC Power Operating Range: Auto Select 90-132VAC/216-264VAC, 50/60
AC Line Voltage: 50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector: Neutrik PowerCon
AC Loop-Thru: Neutrik PowerCon
AC Current Requirement: 6A per system at 120V, 3A per system at 240V
Enclosure:
Box Construction: 5/8 in. multi-ply exterior grade Baltic birch.
Internally braced. Black DuraFlex™ finish.
Suspension System: 6 standard air-cargo 3 in. track and 12 M10 fittings.
Grille: 14 Gauge Black, powder-coated perforated steel
with foam backing.
Dimensions (H x W x D): 914.4 x 528.3 x 624.8 mm
36 x 20.8 x 24.6 in.
Net Weight: 44 kg (97 lb)
Questo manuale è adatto per i seguenti modelli
24
Indice
Altri manuali JBL Altoparlanti
JBL
JBL 4312C Manuale utente
JBL
JBL STUDIO L8400P Manuale utente
JBL
JBL L166 Horizon Manuale utente
JBL
JBL CSS-15C-VA Manuale utente
JBL
JBL SCS 135 Manuale utente
JBL
JBL L150 Manuale utente
JBL
JBL CONTROL CONTRACTOR 200 Series Manuale utente
JBL
JBL S3900 Manuale utente
JBL
JBL SCS 138 Subwoofer Manuale utente
JBL
JBL On Air Control 2.4G Manuale utente
JBL
JBL Playlist Manuale utente
JBL
JBL D38 Manuale utente
JBL
JBL Charge 2 Manuale utente
JBL
JBL Harman PARTYBOX 110 Manuale utente
JBL
JBL Harman Charge 2 Manuale utente
JBL
JBL Control 28T-60 Manuale utente
JBL
JBL AW595 Manuale utente
JBL
JBL VP7215 Scheda tecnica
JBL
JBL S4700 Manuale utente
JBL
JBL CS68 Manuale utente
