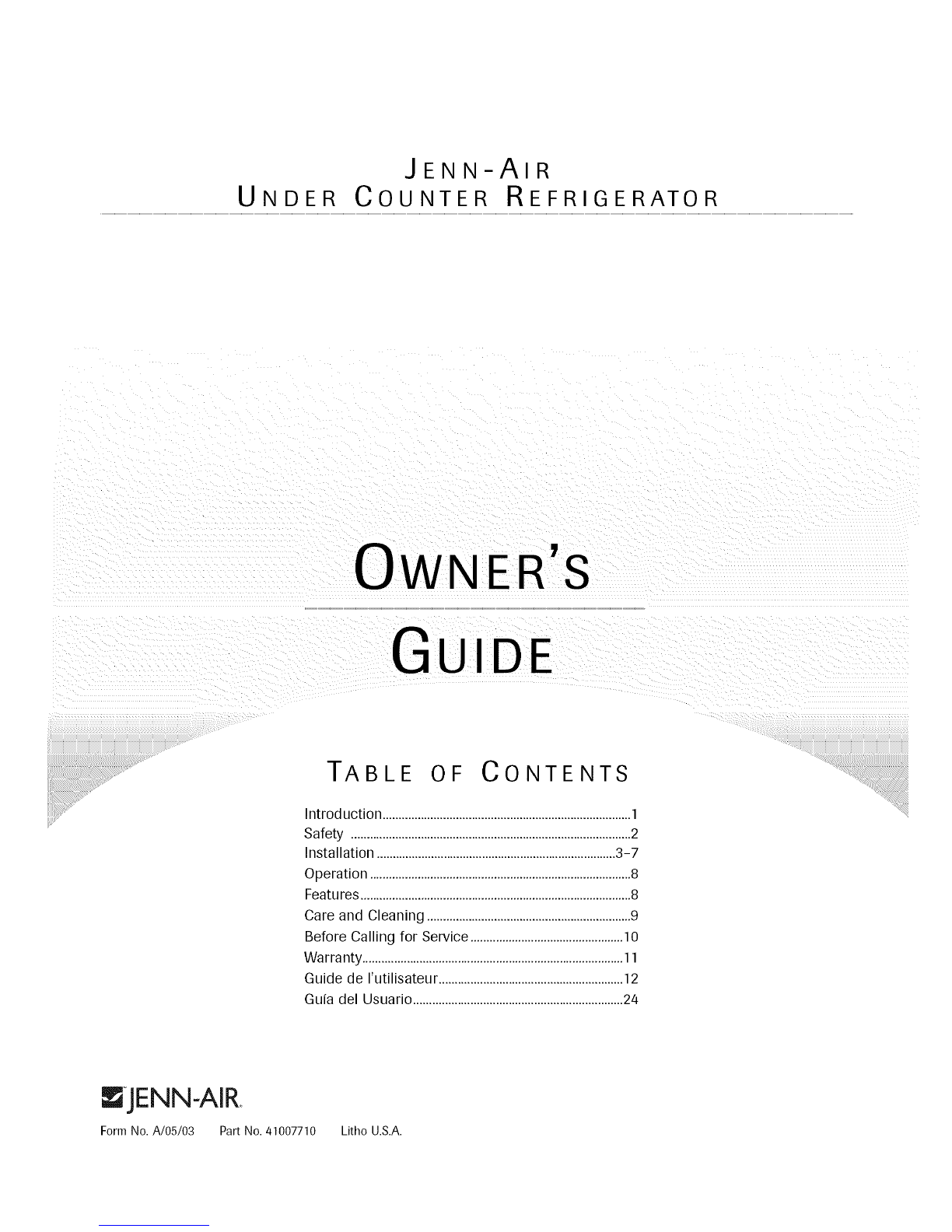

JENN-AIR

UNDER COUNTER REFRIGERATOR

OWNER'S

GUIDE

TABLE OF CONTENTS

Introduction ..............................................................................1

Safety ........................................................................................2

Installation ...........................................................................3-7

Operation ..................................................................................8

Features .....................................................................................8

Care and Cleaning ................................................................9

Before Calling for Service ................................................10

Warranty ..................................................................................11

Guide de I'utilisateur ..........................................................12

Guia del Usuario ..................................................................2/4

_JENN-AIR

FormNo.A/05/03 PartNo.41007710 LithoU.S.A.

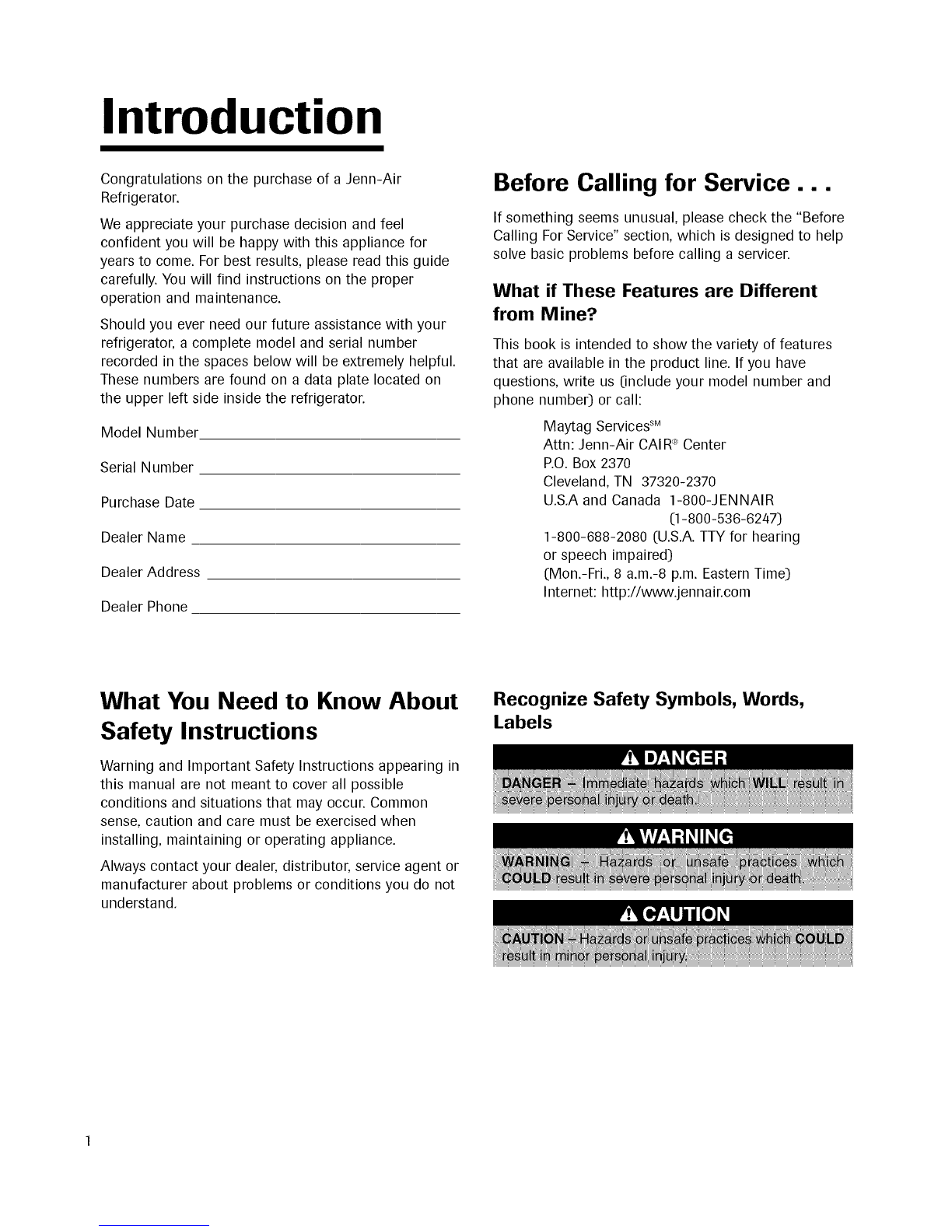

Introduction

Congratulations on the purchase of a Jenn-Air

Refrigerator.

We appreciate your purchase decision and feel

confident you will be happy with this appliance for

years to come. For best results, please read this guide

carefully. You will find instructions on the proper

operation and maintenance.

Should you ever need our future assistance with your

refrigerator, a complete model and serial number

recorded in the spaces below will be extremely helpful.

These numbers are found on a data plate located on

the upper left side inside the refrigerator.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Before Calling for Service...

If something seems unusual, please check the "Before

Calling For Service" section, which is designed to help

solve basic problems before calling a servicer.

What if These Features are Different

from Mine?

This book is intended to show the variety of features

that are available in the product line. If you have

questions, write us (include your model number and

phone number) or call:

Maytag Services sM

Attn: Jenn-Air CAIR" Center

P.O. Box 2370

Cleveland, TN 37320-2370

U.S.A and Canada 1-800-JENNAIR

(1-800-536-62/47)

1-800-688-2080 (U.S.A. TTY for hearing

or speech impaired)

(Mon.-Fri., 8 a.m.-8 p.m. Eastern Time)

Internet: http://www.jen nair.com

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact your dealer, distributor, service agent or

manufacturer about problems or conditions you do not

understand.

Recognize Safety Symbols, Words,

Labels

Safety stru "

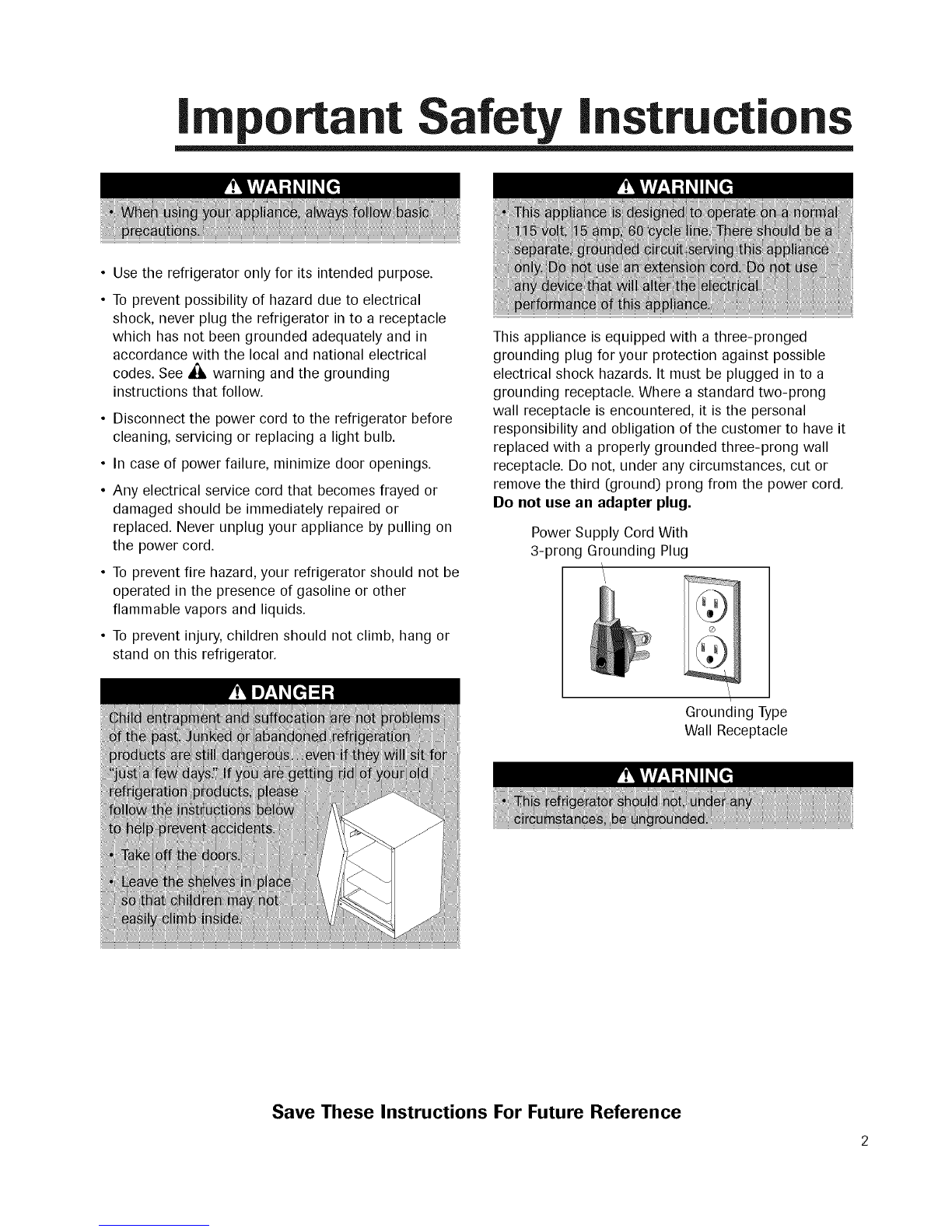

• Use the refrigerator only for its intended purpose.

• To prevent possibility of hazard due to electrical

shock, never plug the refrigerator in to a receptacle

which has not been grounded adequately and in

accordance with the local and national electrical

codes. See _k warning and the grounding

instructions that follow.

• Disconnect the power cord to the refrigerator before

cleaning, servicing or replacing a light bulb.

• In case of power failure, minimize door openings.

• Any electrical service cord that becomes frayed or

damaged should be immediately repaired or

replaced. Never unplug your appliance by pulling on

the power cord.

• To prevent fire hazard, your refrigerator should not be

operated in the presence of gasoline or other

flammable vapors and liquids.

• To prevent injury, children should not climb, hang or

stand on this refrigerator.

This appliance is equipped with a three-pronged

grounding plug for your protection against possible

electrical shock hazards. It must be plugged in to a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not, under any circumstances, cut or

remove the third (ground} prong from the power cord.

Do not use an adapter plug.

Power Supply Cord With

3-prong Grounding Plug

Grounding Type

Wall Receptacle

Save These Instructions For Future Reference

nstall "

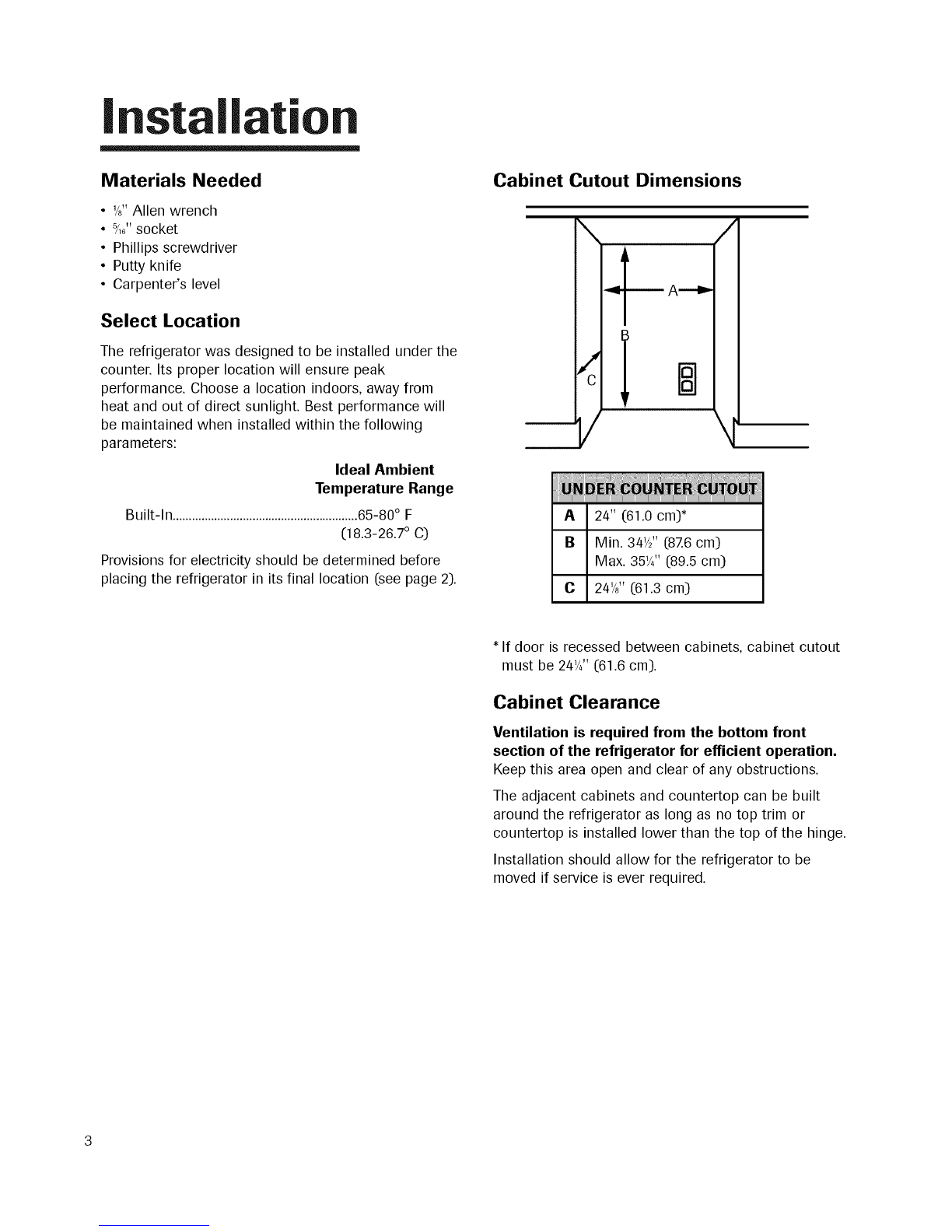

Materials Needed

•Vs"Allen wrench

• 5/,6"socket

• Phillips screwdriver

• Putty knife

• Carpenter's level

Select Location

The refrigerator was designed to be installed under the

counter. Its proper location will ensure peak

performance. Choose a location indoors, away from

heat and out of direct sunlight. Best performance will

be maintained when installed within the following

parameters:

Ideal Ambient

Temperature Range

Built-In ..........................................................65-80 ° F

(18.3-26.7 ° C)

Provisions for electricity should be determined before

placing the refrigerator in its final location (see page 2).

Cabinet Cutout Dimensions

/¢

A 24" (61,0 cm)*

BMin. 34'/2" (8Z6 cm)

Max. 35V4"(89,5 cm)

C24'/8" (61,3 cm)

* If door is recessed between cabinets, cabinet cutout

must be 24V4"(61.6 cm).

Cabinet Clearance

Ventilation is required from the bottom front

section of the refrigerator for efficient operation.

Keep this area open and clear of any obstructions.

The adjacent cabinets and countertop can be built

around the refrigerator as long as no top trim or

countertop is installed lower than the top of the hinge.

Installation should allow for the refrigerator to be

moved if service is ever required.

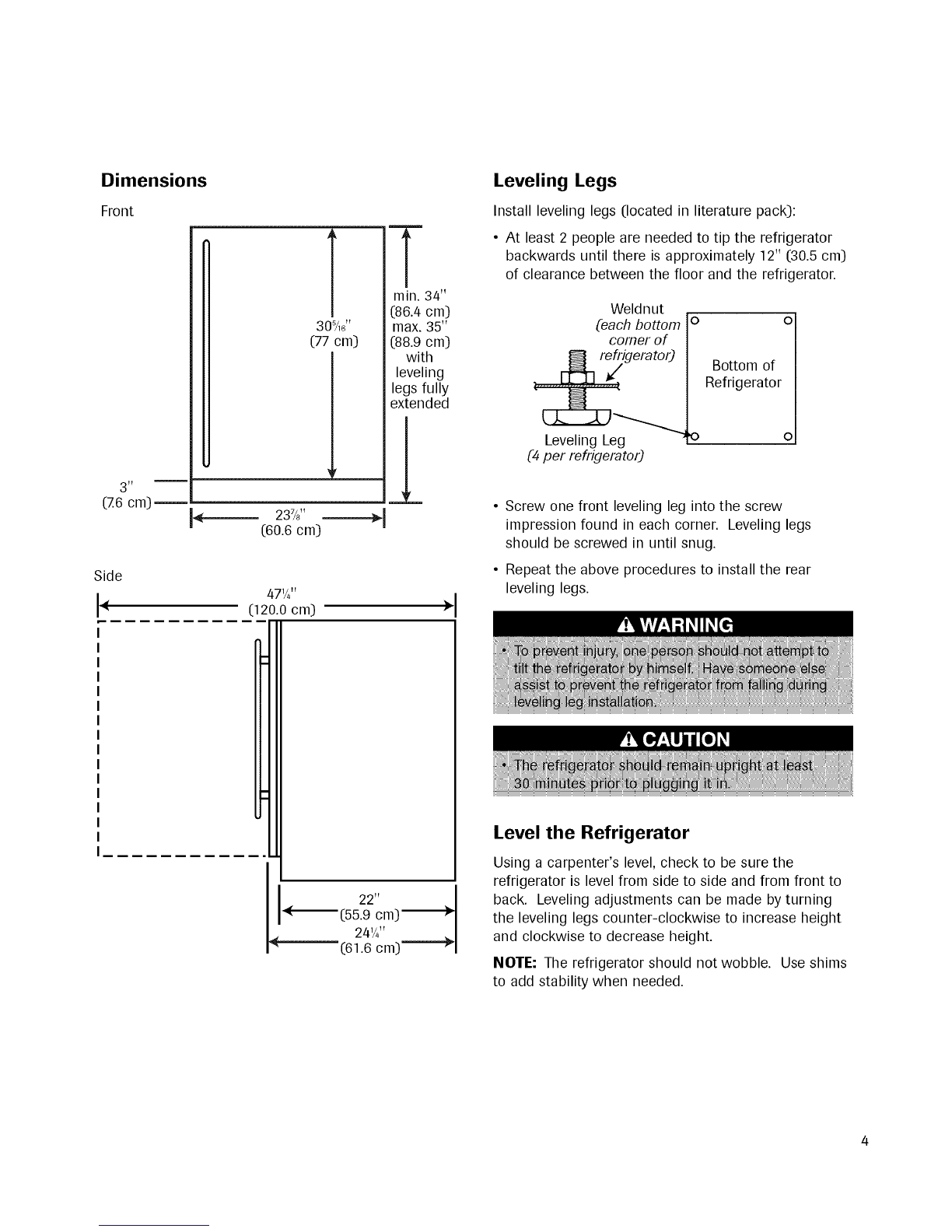

Dimensions

Front

(76 cm)

237/8"

(60.6 cm)

min. 34"

(86.4 cm)

max. 35"

(88.9 cm)

with

leveling

legs fully

extended

Side 47Y4"

(120.0 cm)

22"

_'_ (55.9 cm) _

24'/2'

<_ (61.6 cm) ======_

Leveling Legs

Install leveling legs (located in literature pack):

• At least 2 people are needed to tip the refrigerator

backwards until there is approximately 12" (30.5 cm)

of clearance between the floor and the refrigerator.

Weldnut

(each bottom

comer of

refrigerator)

Leveling Leg

(4 per refrigerator)

o o

Bottom of

Refrigerator

o o

• Screw one front leveling leg into the screw

impression found in each corner. Leveling legs

should be screwed in until snug.

• Repeat the above procedures to install the rear

leveling legs.

Level the Refrigerator

Using a carpenter's level, check to be sure the

refrigerator is level from side to side and from front to

back. Leveling adjustments can be made by turning

the leveling legs counter-clockwise to increase height

and clockwise to decrease height.

NOTE: The refrigerator should not wobble. Use shims

to add stability when needed.

nstaJJ " ,cont.

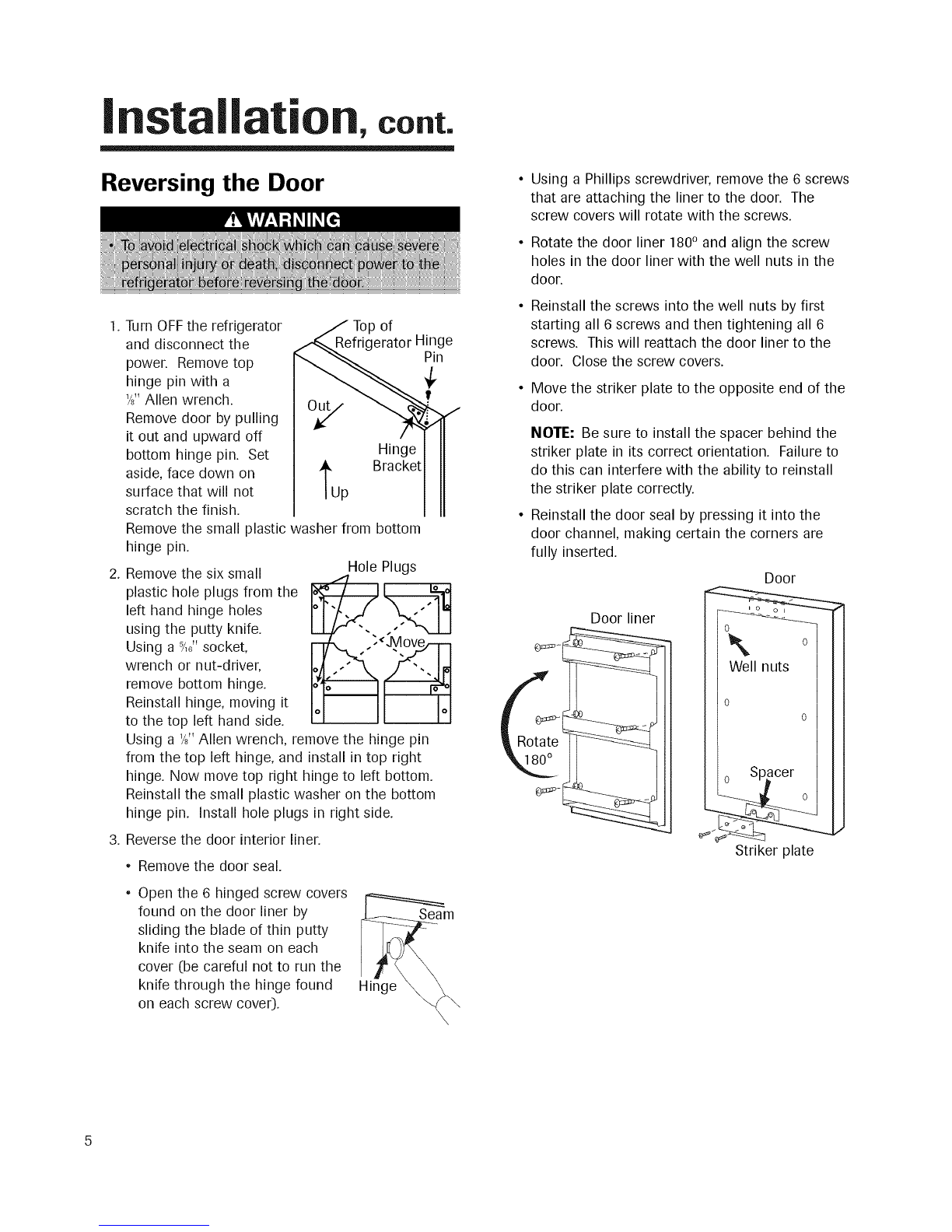

Reversing the Door

Turn OFF the refrigerator

and disconnect the

power. Remove top

hinge pin with a

Vo"Allen wrench.

Remove door by pulling

it out and upward off

bottom hinge pin. Set

aside, face down on

surface that will not

scratch the finish.

Top of

./-_Refrigerator Hinge

Hinge

tUp Bracket

Remove the small plastic washer from bottom

hinge pin.

Remove the six small

plastic hole plugs from the

left hand hinge holes

using the putty knife.

Using a 5/,,, socket,

wrench or nut-driver,

remove bottom hinge.

Reinstall hinge, moving it

to the top left hand side.

Hole Plugs

. S-J

Using a '/_"Allen wrench, remove the hinge pin

from the top left hinge, and install in top right

hinge. Now move top right hinge to left bottom.

Reinstall the small plastic washer on the bottom

hinge pin. Install hole plugs in right side.

3. Reverse the door interior liner.

* Remove the door seal.

•Open the 6 hinged screw covers

found on the door liner by

sliding the blade of thin putty

knife into the seam on each

cover (be careful not to run the

knife through the hinge found

on each screw cover). Hinge

Seam

Using a Phillips screwdriver, remove the 6 screws

that are attaching the liner to the door. The

screw covers will rotate with the screws.

Rotate the door liner 180° and align the screw

holes in the door liner with the well nuts in the

door.

Reinstall the screws into the well nuts by first

starting all 6 screws and then tightening all 6

screws. This will reattach the door liner to the

door. Close the screw covers.

Move the striker plate to the opposite end of the

door.

NOTE: Be sure to install the spacer behind the

striker plate in its correct orientation. Failure to

do this can interfere with the ability to reinstall

the striker plate correctly.

Reinstall the door seal by pressing it into the

door channel, making certain the corners are

fully inserted.

Door

Door liner 0

Well nuts

3acer

Striker plate

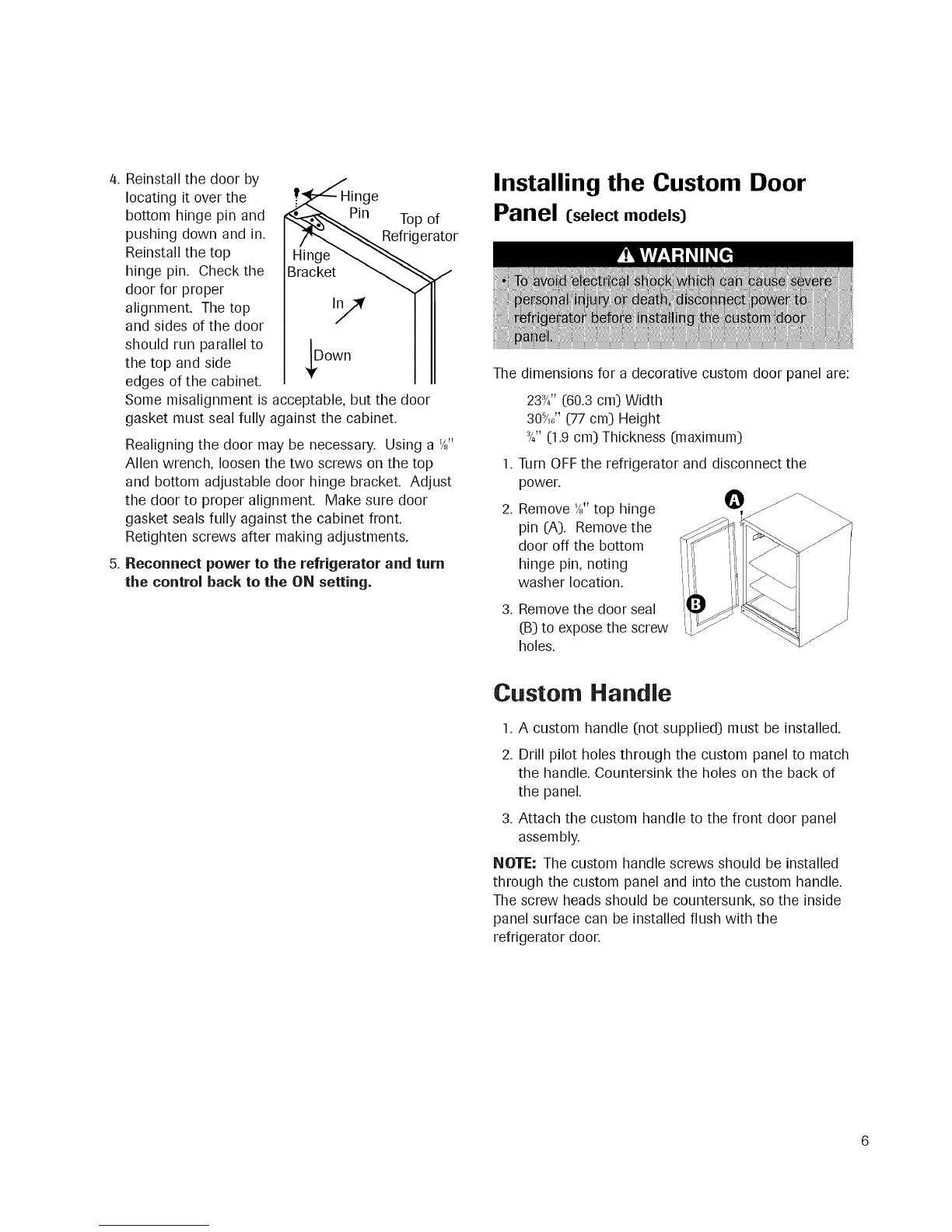

/4. Reinstall the door by

locating it over the

bottom hinge pin and

pushing down and in.

Reinstall the top

hinge pin. Check the

door for proper

alignment. The top

and sides of the door

should run parallel to

the top and side

edges of the cabinet.

inge

Top of

rigerator

Down

Some misalignment is acceptable, but the door

gasket must seal fully against the cabinet.

Realigning the door may be necessary. Using a '/8"

Allen wrench, loosen the two screws on the top

and bottom adjustable door hinge bracket. Adjust

the door to proper alignment. Make sure door

gasket seals fully against the cabinet front.

Retighten screws after making adjustments.

5. Reconnect power to the refrigerator and turn

the control back to the ON setting.

Installing the Custom Door

Panel ([select models)

The dimensions for a decorative custom door panel are:

23-_4"(60.3 cm) Width

30Y,6"(77 cm) Height

3/4"(1.9 cm) Thickness (maximum)

1. Turn OFF the refrigerator and disconnect the

power.

Remove '/8"top hinge

pin (A). Remove the

door off the bottom

hinge pin, noting

washer location.

Remove the door seal

(B) to expose the screw

holes.

Custom Handle

1. A custom handle (not supplied) must be installed.

2. Drill pilot holes through the custom panel to match

the handle. Countersink the holes on the back of

the panel.

3. Attach the custom handle to the front door panel

assembly.

NOTE: The custom handle screws should be installed

through the custom panel and into the custom handle.

The screw heads should be countersunk, so the inside

panel surface can be installed flush with the

refrigerator door.

nstaJJ " ,cont.

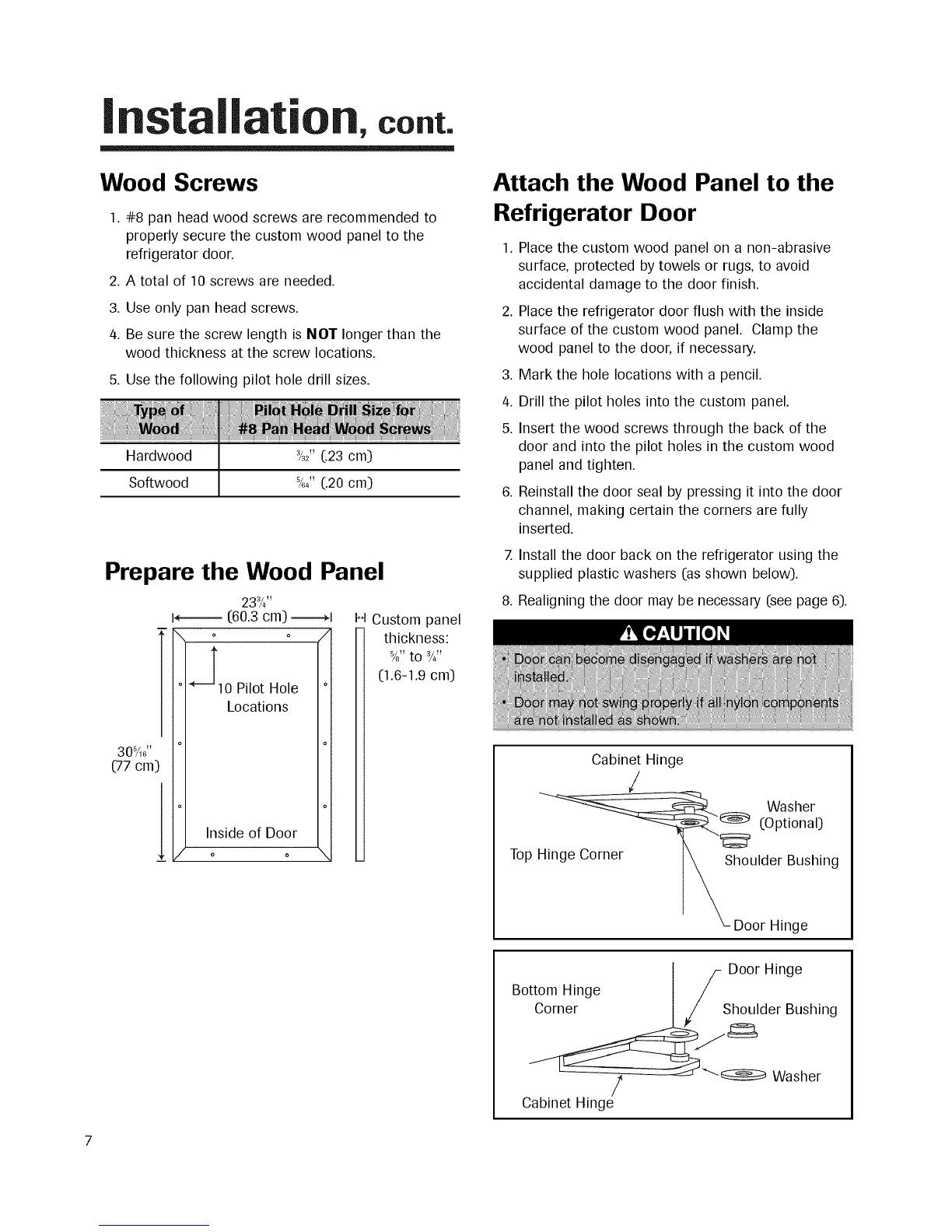

Wood Screws

1. #8 pan head wood screws are recommended to

properly secure the custom wood panel to the

refrigerator door.

2. Atotal of 10 screws are needed.

3. Use only pan head screws.

4. Be sure the screw length is NOT longer than the

wood thickness at the screw locations.

5. Use the following pilot hole drill sizes.

Hardwood 3/32"(23 cm)

Softwood 5/64"(20 cm)

Prepare the Wood Panel

305/_6''

(77 cm)

233/4''

(60.3 cm) ------+l

JlO Pilot Hole o

Locations

Inside of Door

o o

H Custom panel

thickness:

%" to 3/4"

(1.6-1.9 cm)

Attach the Wood Panel to the

Refrigerator Door

1. Place the custom wood panel on a non-abrasive

surface, protected by towels or rugs, to avoid

accidental damage to the door finish.

2. Place the refrigerator door flush with the inside

surface of the custom wood panel. Clamp the

wood panel to the door, if necessary.

3. Mark the hole locations with a pencil.

4. Drill the pilot holes into the custom panel.

5. Insert the wood screws through the back of the

door and into the pilot holes in the custom wood

panel and tighten.

6. Reinstall the door seal by pressing it into the door

channel, making certain the corners are fully

inserted.

7. Install the door back on the refrigerator using the

supplied plastic washers (as shown below).

8. Realigning the door may be necessary (see page 6).

Cabinet Hinge

Top Hinge Corner

o t,Sho%

Shoulder Bushing

Door Hinge

I/- Door Hinge

Bottom Hinge [ /

Corner I /Shoulder Bushing

_'_'- _;;;_ Washer

Cabinet Hinge

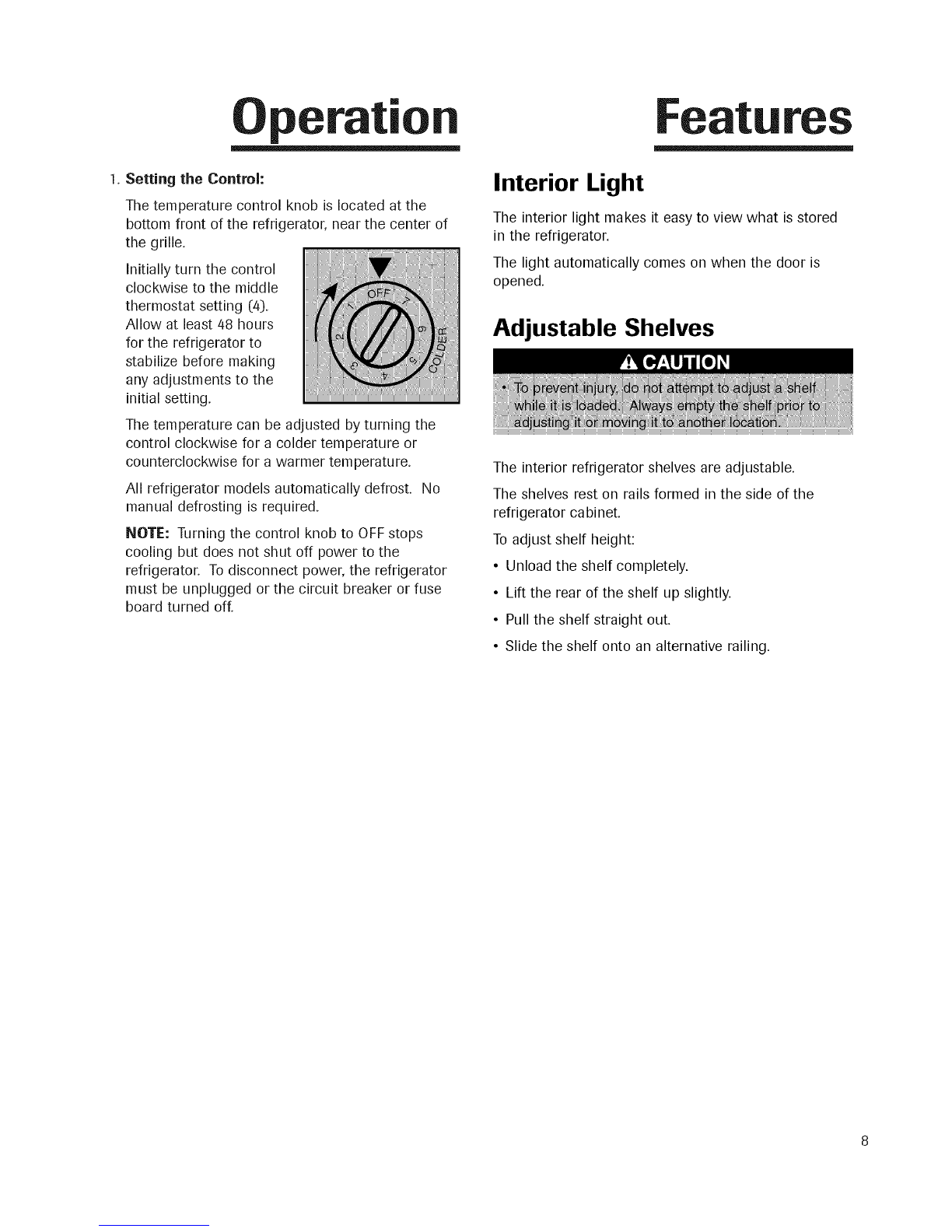

Operation

1. Setting the Control:

The temperature control knob is located at the

bottom front of the refrigerator, near the center of

the grille.

Initially turn the control

clockwise to the middle

thermostat setting (4).

Allow at least 48 hours

for the refrigerator to

stabilize before making

any adjustments to the

initial setting.

The temperature can be adjusted by turning the

control clockwise for a colder temperature or

counterclockwise for a warmer temperature.

All refrigerator models automatically defrost. No

manual defrosting is required.

NOTE: Turning the control knob to OFF stops

cooling but does not shut off power to the

refrigerator. To disconnect power, the refrigerator

must be unplugged or the circuit breaker or fuse

board turned off.

Featu

Interior Light

The interior light makes it easy to view what is stored

in the refrigerator.

The light automatically comes on when the door is

opened.

Adjustable Shelves

The interior refrigerator shelves are adjustable.

The shelves rest on rails formed in the side of the

refrigerator cabinet.

To adjust shelf height:

• Unload the shelf completely.

• Lift the rear of the shelf up slightly.

• Pull the shelf straight out.

• Slide the shelf onto an alternative railing.

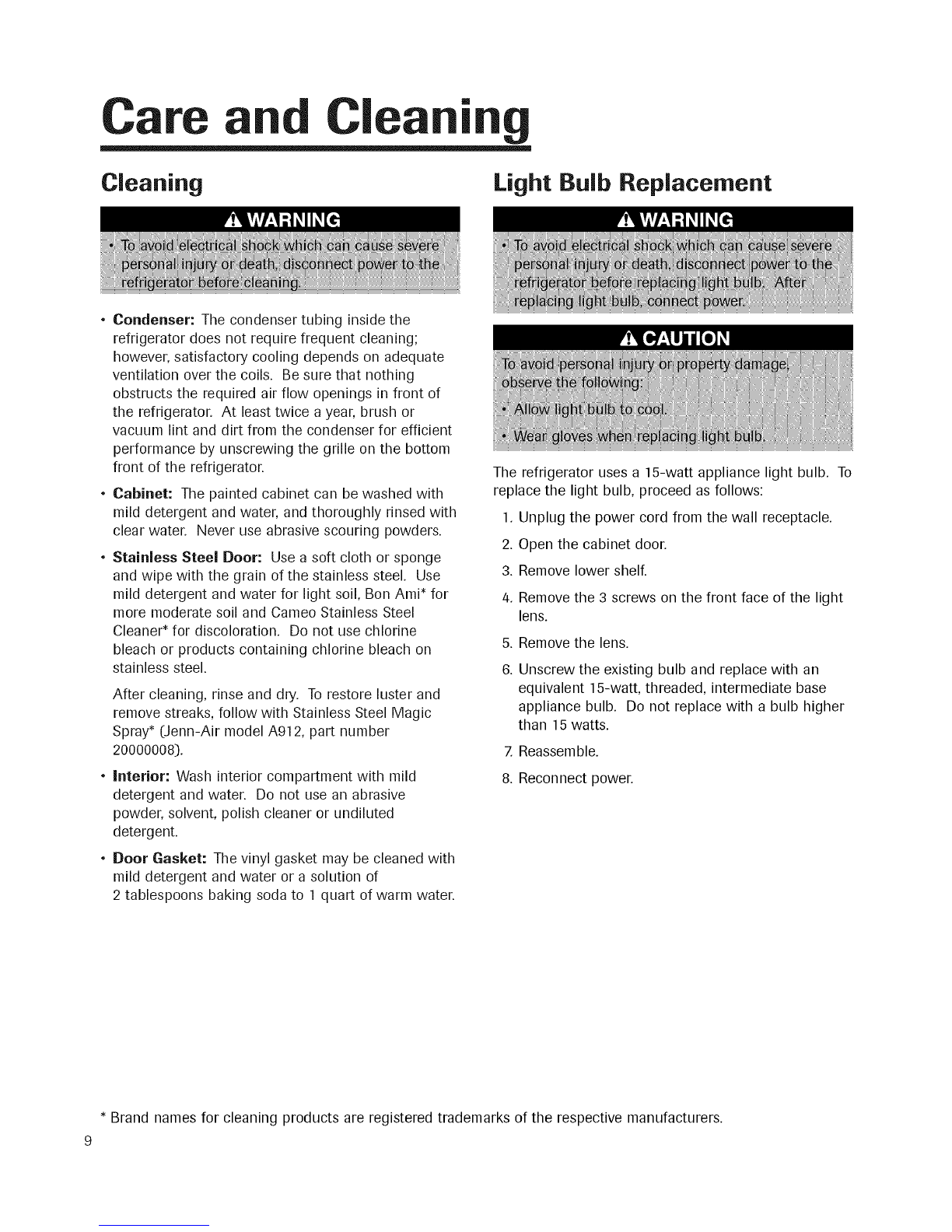

Care leani

Cleaning Light Bulb Replacement

• Condenser: The condenser tubing inside the

refrigerator does not require frequent cleaning;

however, satisfactory cooling depends on adequate

ventilation over the coils. Be sure that nothing

obstructs the required air flow openings in front of

the refrigerator. At least twice a year, brush or

vacuum lint and dirt from the condenser for efficient

performance by unscrewing the grille on the bottom

front of the refrigerator.

• Cabinet: The painted cabinet can be washed with

mild detergent and water, and thoroughly rinsed with

clear water. Never use abrasive scouring powders.

• Stainless Steel Door: Use a soft cloth or sponge

and wipe with the grain of the stainless steel. Use

mild detergent and water for light soil, Bon AmP for

more moderate soil and Cameo Stainless Steel

Cleaner* for discoloration. Do not use chlorine

bleach or products containing chlorine bleach on

stainless steel.

After cleaning, rinse and dry. To restore luster and

remove streaks, follow with Stainless Steel Magic

Spray _ (Jenn-Air model A912, part number

20000008).

• Interior: Wash interior compartment with mild

detergent and water. Do not use an abrasive

powder, solvent, polish cleaner or undiluted

detergent.

• Door Gasket: The vinyl gasket may be cleaned with

mild detergent and water or a solution of

2 tablespoons baking soda to 1 quart of warm water.

The refrigerator uses a 15-watt appliance light bulb.

replace the light bulb, proceed as follows:

1. Unplug the power cord from the wall receptacle.

2. Open the cabinet door.

3. Remove lower shelf.

4. Remove the 3 screws on the front face of the light

lens.

5. Remove the lens.

.Unscrew the existing bulb and replace with an

equivalent 15-watt, threaded, intermediate base

appliance bulb. Do not replace with a bulb higher

than 15 watts.

7. Reassemble.

8. Reconnect power.

* Brand names for cleaning products are registered trademarks of the respective manufacturers.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Jenn-Air Frigorifero

Jenn-Air

Jenn-Air W10379136B Manuale utente

Jenn-Air

Jenn-Air JFX2897DRM Manuale utente

Jenn-Air

Jenn-Air JS42PPDUDB00 Manuale utente

Jenn-Air

Jenn-Air JFC2290VEP5 Manuale utente

Jenn-Air

Jenn-Air JSC24C8EAM00 Manuale utente

Jenn-Air

Jenn-Air JS42SEFXDA Manuale utente

Jenn-Air

Jenn-Air JS42SEFXDB Manuale utente

Jenn-Air

Jenn-Air ALOVE30RRC Manuale utente

Jenn-Air

Jenn-Air 12642718 Manuale utente

Jenn-Air

Jenn-Air JUR248RBES Manuale utente

Jenn-Air

Jenn-Air JFI2089ATS2 Manuale utente

Jenn-Air

Jenn-Air JS42SEDUDB01 Manuale utente

Jenn-Air

Jenn-Air BOTTOM FREEZER REFRIGERATOR Manuale utente

Jenn-Air

Jenn-Air jb36ssfxra Manuale utente

Jenn-Air

Jenn-Air W10130023A Scheda informativa del prodotto

Jenn-Air

Jenn-Air JUD248CCCX00 Istruzioni per l’uso

Jenn-Air

Jenn-Air JS42NXFXDE Istruzioni utente

Jenn-Air

Jenn-Air JS42PPDUDB00 Manuale utente

Jenn-Air

Jenn-Air JS48SEDUDB01 Manuale utente

Jenn-Air

Jenn-Air JS42NXFXDW00 Manuale utente

Jenn-Air

Jenn-Air JFC2290VEM Manuale utente

Jenn-Air

Jenn-Air JFI2089AEP6 Manuale utente

Jenn-Air

Jenn-Air JS42NXFXDE Manuale utente

Jenn-Air

Jenn-Air JCD2591WES00 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
