JFM Engineering MasterCharger LXC Istruzioni operative
Tutorial
MasterCharger LXC
Battery Charger-Analyzer
Preliminary –V0.1
1MasterCharger Tutorial
Warnings (general)
1. This tutorial is intended for professional personnel
experienced in the testing of aircraft batteries
2. Refer to the Operator’s Manual for complete details
on the operation of the instrument
3. Information provided on battery testing is solely as
an operational reference - Refer to the
manufacturer’s battery manual and/or CMM for
battery specific information
MasterCharger Tutorial 2
Warnings (specific)
1. Observe precautions when handling batteries
1. Batteries are heavy
2. Batteries will generate extremely high currents if shorted
•Tools can easily be dropped shorting several cells
2. Follow battery test procedures as outlined in the
CMMs and OMMs provided by the manufacturers.
3. The Operator is ultimately responsible for the
correct and proper analysis of the batteries under
test.
MasterCharger Tutorial 3
Receiving –Inspection
Unpacking the unit
1. Caution! Heavy equipment.
2. Verify that the following are in the package:
•Charger-Analyzer
•Accessory Kit containing:
•Battery Cable
•Temp-Plate
•Single Cell Adaptor
•Spare Parts
•Operator Manual and various certificates
3. Inspect the equipment
4. Save the carton –It will be needed if the equipment has
to be sent out for calibration/repair.
4MasterCharger Tutorial
Installation
1. Place the Charger-Analyzer on a suitably strong bench
1. Caution! Heavy equipment (175 lb. –79.3 Kg)
2. Connect to a dedicated (not shared) outlet with
208V/230V/240V with 30A capability (with motor load
rated circuit breaker)

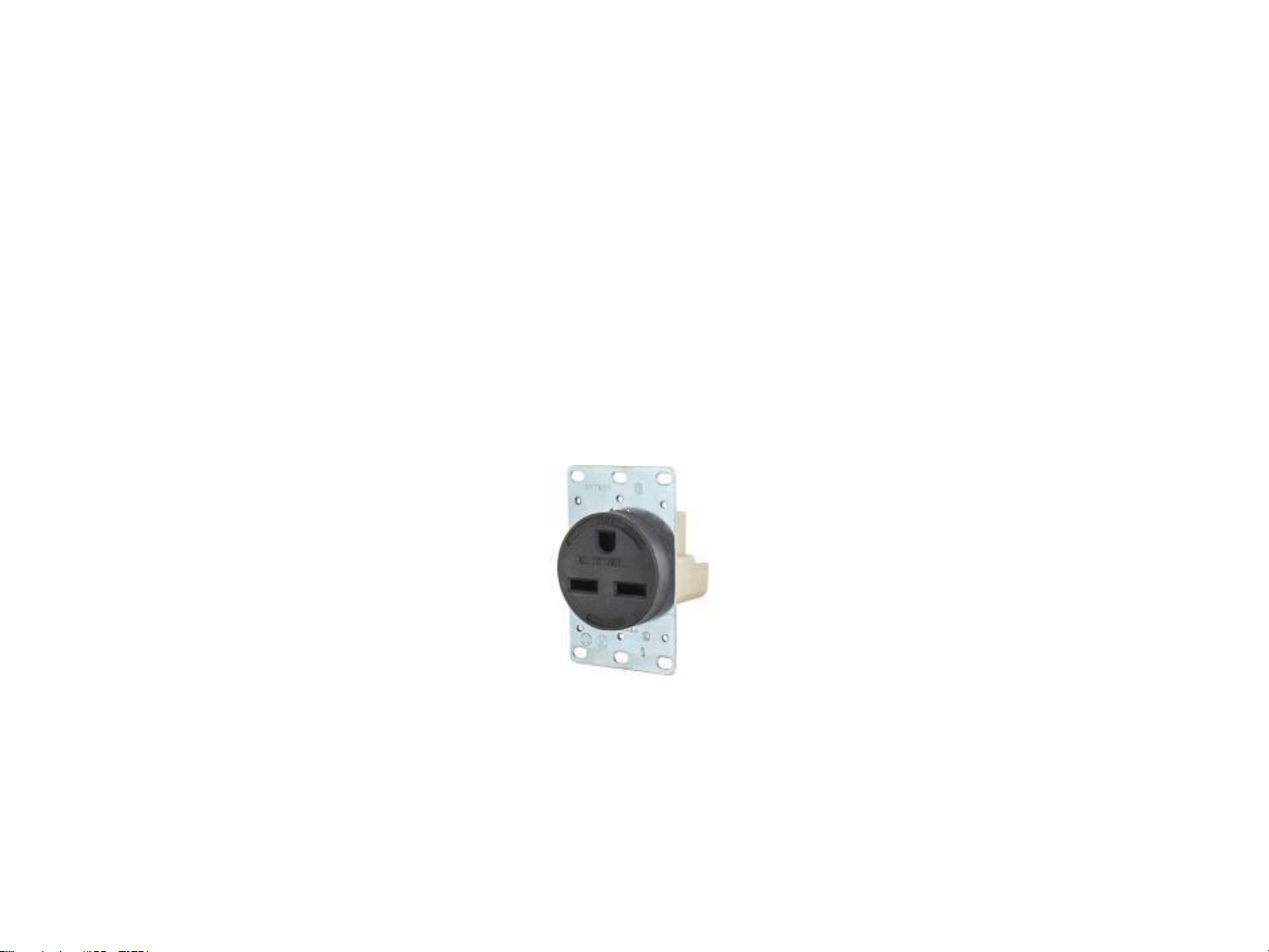

1. In the US, use a NEMA-630R receptacle
2. Verify that the unit is wired for the proper line
(mains) voltage (see manual for wiring diagrams)
5MasterCharger Tutorial
Installation (continued)
2. Connect the Battery Cable to the Front Panel and connect
the Temp-Plate sensing pig tail cable to the temp-plate
•Note that there are two DB9 cables in the Temp-Plate.
Connect to either one (the other one is used by the
BTAS-16)
6MasterCharger Tutorial
Installation (continued)
3. Turn Power ON
4. Observe the following:
•Meters and Timer indicators are ON
•Ammeter reads zero and Voltmeter reads about 0.2V
•Status indicators show RESET (green)
5. Place a battery on the Temp-plate
6. Connect a battery to battery cable and note that the
Voltmeter now reads the battery voltage.
7MasterCharger Tutorial
Ideal Installation Configuration
*SuperMasterCharger Shown
8MasterCharger Tutorial
BTAS Connection
1. BTAS connections are on the rear of the unit.
2. One port for “CONTROL”
3. One port for “SHUNT”
4. Connected to associated C Scan
5. Further Details on Setting up the BTAS system can be found
in the BTAS manual
9MasterCharger Tutorial
Operating Introduction
1. These slide are meant to be a brief tutorial for the operation
of the MasterCharger Battery Charger-Analyzer
2. For more complete information refer to the Operator’s
Manual
3. Sections describing operation include:
•Section 2 –Condensed Operation Instructions
•Section 4 –Controls and Displays
•Section 6 –Modes of Operation
•Section 7 –Operating Instructions
4. Documentation available on our website: www.jfmeng.com
in the documentation section.
10MasterCharger Tutorial
