Unisab III panel mounting kit

Fig. 1

•Unisab III display mounted on a pan-

el door

• Complete kit:

Johnson Controls part no.: 1571-115

Fig. 2

•Unisab III controller mounted inside

the panel with vibration dampers on

the panel mounting plate.

Unisab III panel mounting kit

Mounting instruction - Unisab III

006093 - en 2009.02. 1/6

Parts overview

Fig. 3

1. Controller mounted on a frame

2. Vibration dampers

3. Connecters

4. Ground and support rail

5. Screws and washers for ground rail

Fig. 4

• Unisab III display

•Display cable (200 cm) for Unisab III

is connected to the front.

Fig. 5

• Jumper set for the controller.

Unisab III panel mounting kit

2/6 Mounting instruction - Unisab III

006093 - en 2009.02.

Mounting the Unisab III controller frame and the ground rail to the panel

mounting plate

253 mm

250 mm

126.5 mm

Fig. 6

Distance between fixing points

Unisab III panel mounting kit

Mounting instruction - Unisab III

006093 - en 2009.02. 3/6

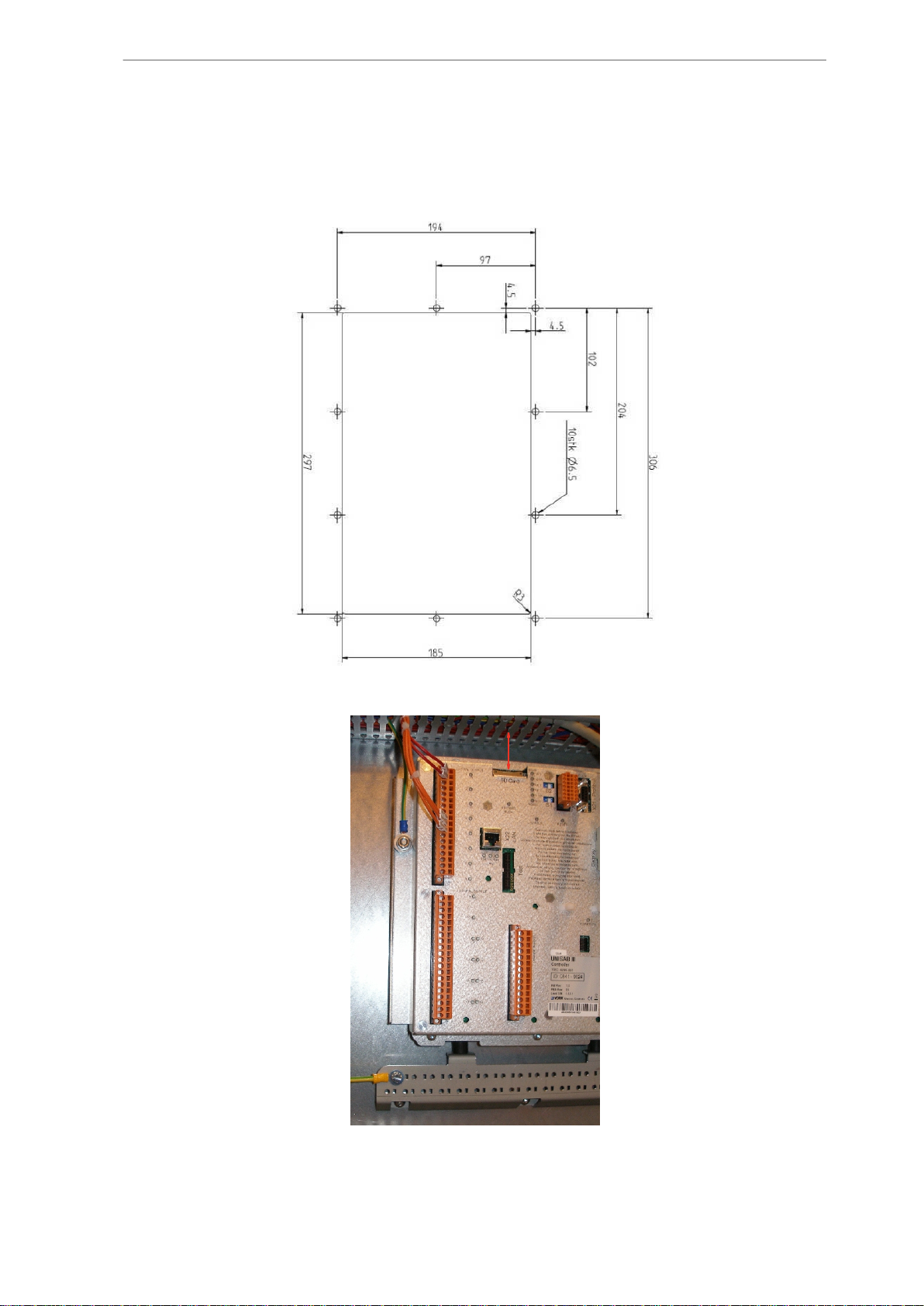

Cut-out and fixing points for mounting of Unisab III display in a panel door

Fig. 7

Fig. 8

• Minimum 40 mm free space for removal of SD-card.

Unisab III panel mounting kit

4/6 Mounting instruction - Unisab III

006093 - en 2009.02.

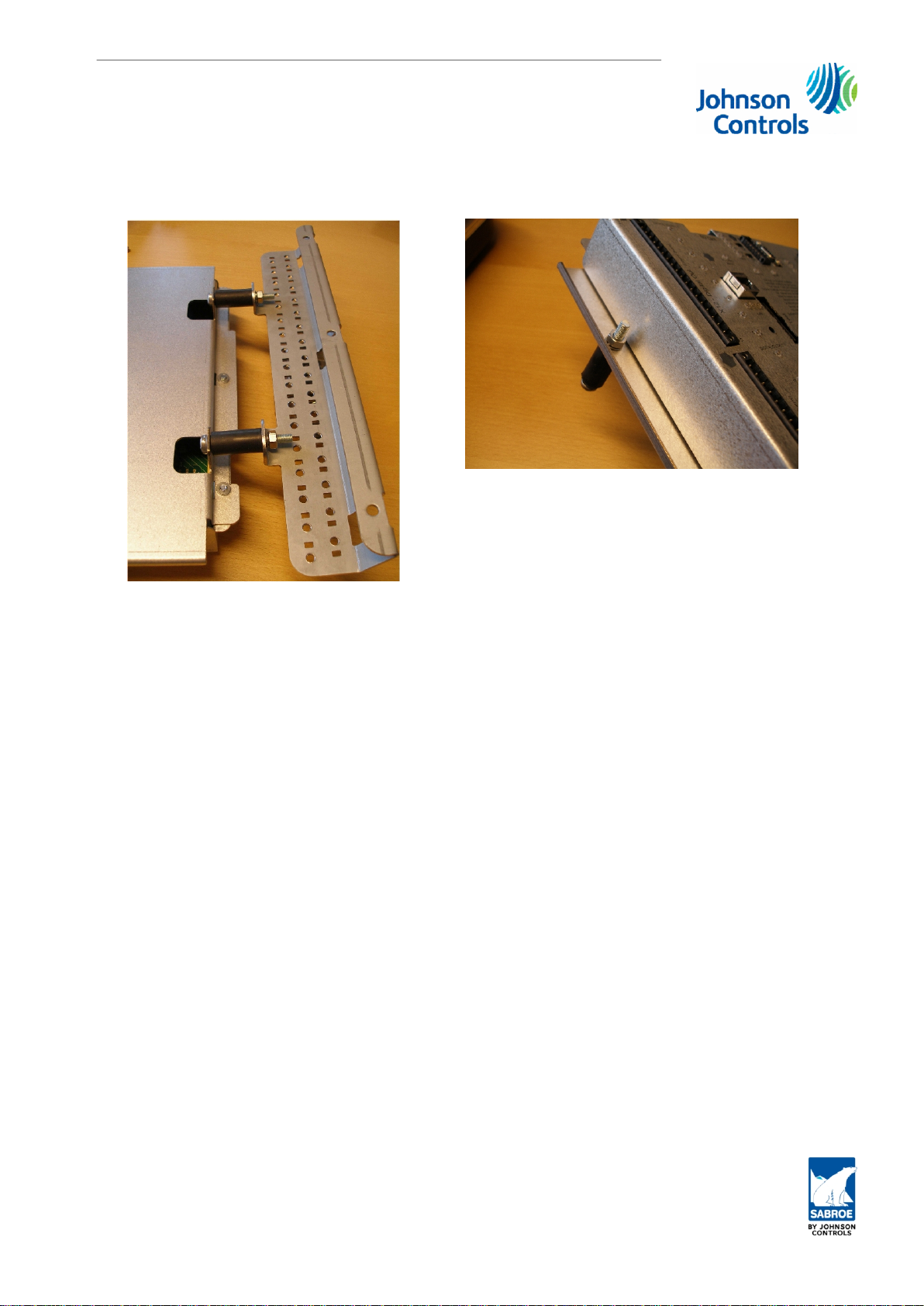

Mounting of vibration dampers

Fig. 9

•Connect the ground rail with the con-

troller frame using the vibration

dampers

•For each vibration damper, use one

M6x8 screw torx, one M6 lock washer

and one M6 nut

•Use a screwdriver torx T30 and a

spanner no. 10 to fasten the vibration

damper

Fig. 10

•The upper part of the controller frame

is connected to the panel mounting

plate also using vibration dampers.

Unisab III panel mounting kit

Mounting instruction - Unisab III

006093 - en 2009.02. 5/6

Cable mounting on the ground rail

Fig. 11

•Ground wire connected to the ground

rail.

Fig. 12

•Cable screen must be connected to

the ground rail

•Cable screen must be as short as pos-

sible

•Cable screen must be connected

within a distance of 100 mm from the

controller.

Unisab III panel mounting kit

6/6 Mounting instruction - Unisab III

006093 - en 2009.02.
