Digital voltmeter 5 digits
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you how
to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
2. TECHNICAL SPECIFICATIONS

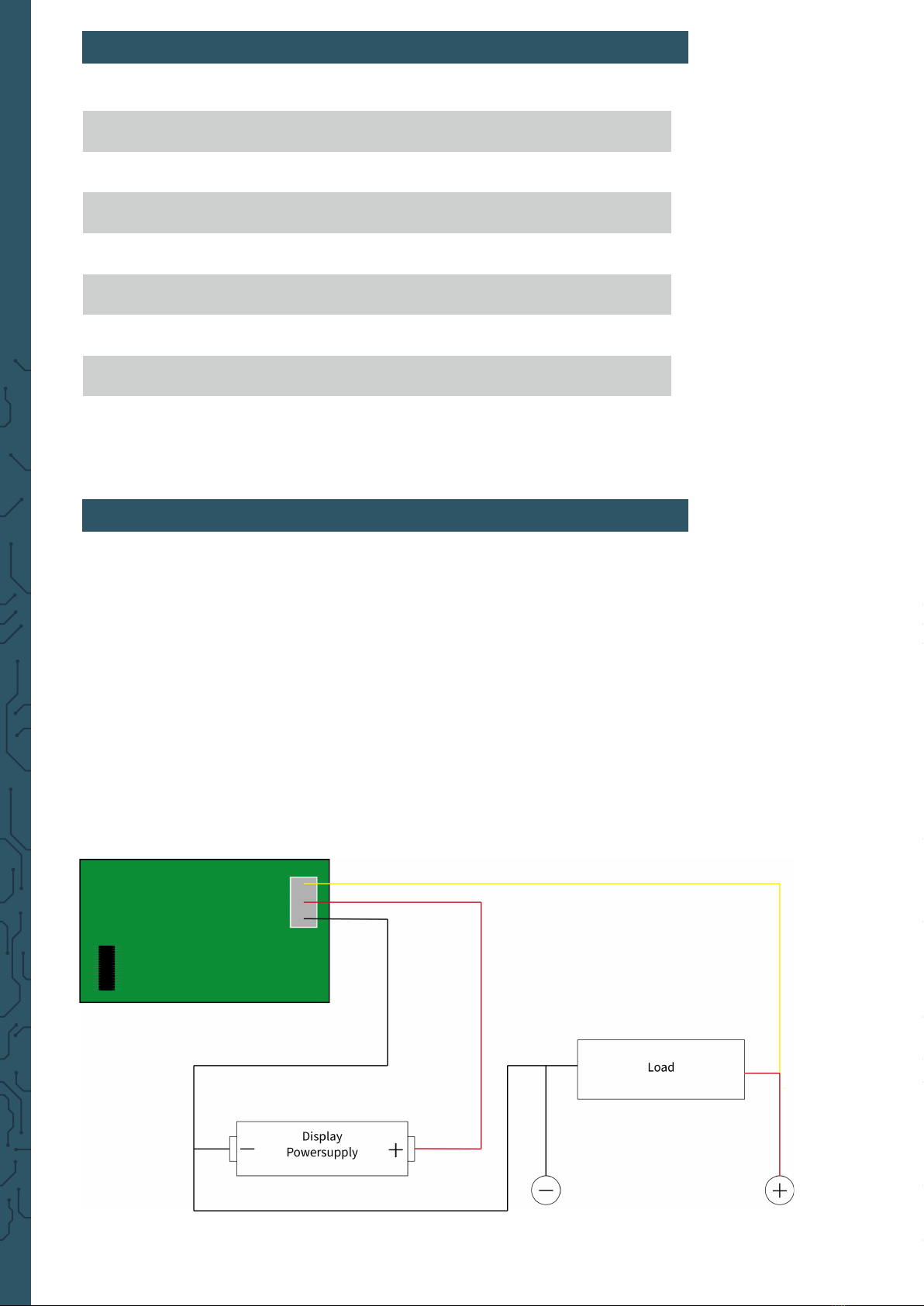

The provided plug of the digital voltmeter has 3 cables.
The red cable is the positive pole for the power supply of the display.
The black cable is the negative pole for the power supply of your display.
The yellow cable is used for the measuring voltage.
Connect the red cable to the positive pole of your operating voltage.
Connect the black cable to the negative pole of your operating voltage.
The yellow cable is connected with the voltage source which is being
measured.
The display shows you now the electric voltage.
3. CONNECTION
Operating voltage 3.5 - 30 V
Current at 3.6 V
Current at 12 V
Measuring range
Operating
temperature
measurement
accuracy
Dimensions
Weight
approx. 8 mA
approx. 9.5 mA
0- 33 V
-10 − 65 °C
± 0,3 %
48 x 29 x 22 mm
16 g
4. TECHNICAL DRAWING
www.joy-it.net
SIMAC Electronics GmbH
Pascalstr. 8 47506 Neukirchen-Vluyn
Published: 16.03.2021
5. SUPPORT
If any questions remain open or problems arise aer your purchase, we are
available by e-mail, telephone and with a ticket support system to answer
these.
E-Mail: servic[email protected]
Ticket-System: http://support.joy-it.net
Telephone: +49 (0)2845 98469 – 66 (10 - 17 o‘clock)
For further information visit our website:
www.joy-it.net
