Light Management Tronic switching insert

Ref.-no.:1254TSE

Operating Instructions

Tronic switching insert

1. Function

The Tronic switching insert is a device provided with an electronic switch

and serving for switching light installations or electrical consumers:

•230 V incandescent lamps.

•230 V halogen lamps.

•LV halogen lamps in conjunction with Tronic transformers.

Events are caused by switching commands from the covers such a

automatic switch or presence detector attachment. Switching commands

given through an extension or a radio transmitter lead to well-directed

turning on or off. The lamps are turned on by a gentle soft start. This

Operating Instructions leaflet describes the functionality in combination

with the presence detector attachment. For the exact functionalities in

conjunction with the use of other attachments or of the remote control

unit, please refer to the corresponding Operating Instructions leaflets.

2. Safety instructions

Attention: Electrical equipment must be installed and fitted by qualified

electricians only. Not suitable for safety disconnection. Shutting off does

not disconnect the load electrically from the mains. Non-observance of

the installation instructions may cause fire or other hazards.

Do not connect any electronic lamps, e.g. switchable or dimmable

compact fluorescent lamps or LED lamps.

Device can be damaged.

Important

Not suitable for disconnecting. Not suitable for operation in conjunction

with conventional transformers. Do not change the attachment while

mains voltage is applied, as this will entail malfunctioning.

Stand: Feb-10 325 335 13

Light Management Tronic switching insert

Ref.-no.:1254TSE

3. Installation Instructions

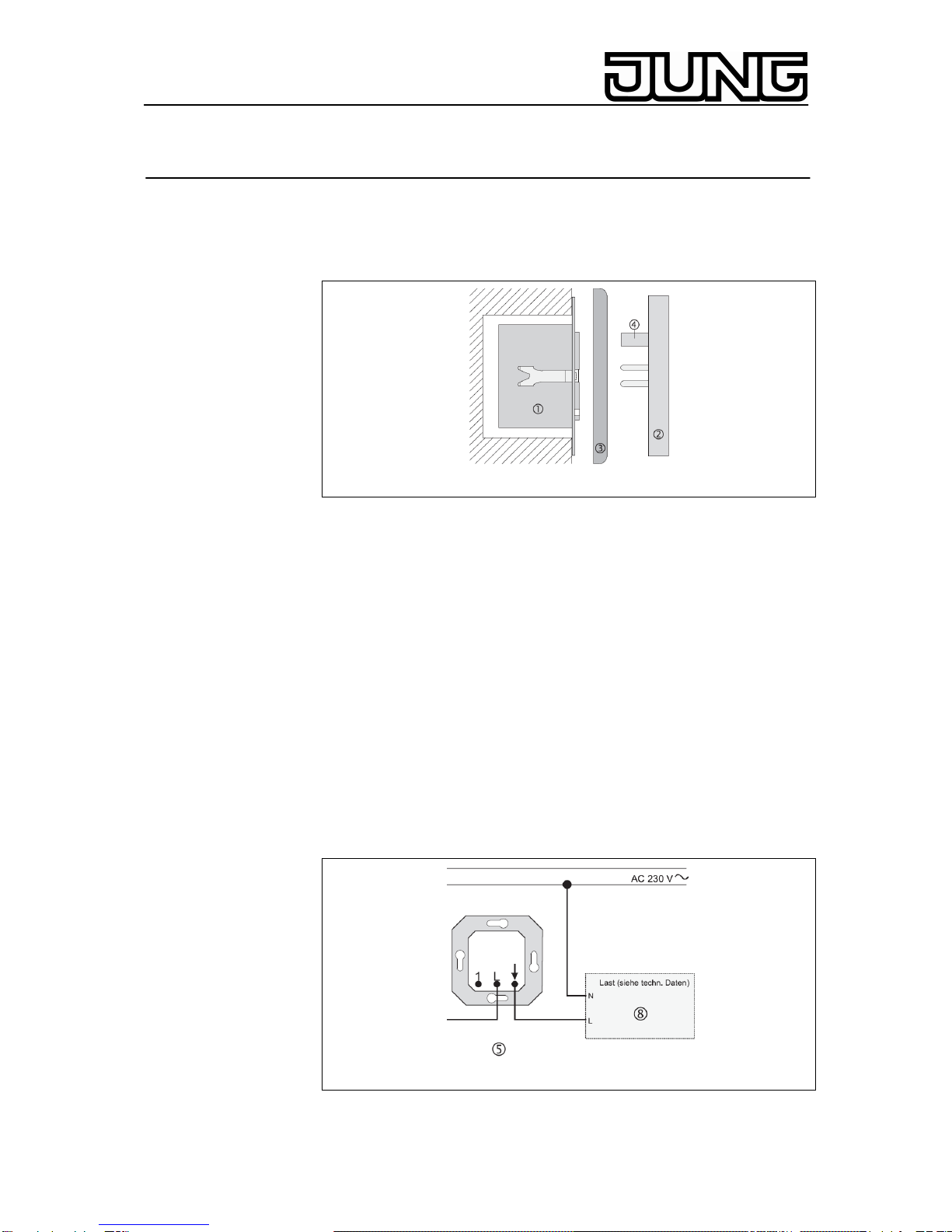

Install Tronic switching insert (1) in a connection box as per DIN 49073

(Fig. A).).

Fig. A

The terminals of the Tronic switching insert must be down. Use the Tronic

switching insert only in combination with an attachment. Plug attachment

(2)onto Tronic switching insert (3)together with frame (1). The electrical

contact is established through plug contacts (4). Mains failures of longer

than 1 sec. will lead to turning off the Tronic switching insert.

4. Short-Circuit Protection

Switching off with automatic restarting after short-circuit elimination within

7 sec. For longer short-circuits, permanent switching off until a manual

restart is triggered when a shortstroke key is used.

5. Overtemperature Protection

Switching off in case of excessively high ambient temperature. After

cooling down, the device must be restarted.

6. Connection

Connect as shown in Fig. B.

Tronic switching insert g

Load j

Fig. B

Observe the maximum connected load and the load

details as set out in the Technical Specifications.

Light Management Tronic switching insert

Ref.-no.:1254TSE

Depending upon the type of installation, the maximum connected load

must be reduced by:

- 6.5 % per 5 °C exceeding of the ambient temperature of 25°C.

- 15% for installation in wooden, gypsum plaster or hollow walls.

- 20% for installation in multiple combinations.

Note the technical connection conditions of the power stations.

7. The Use of Extensions

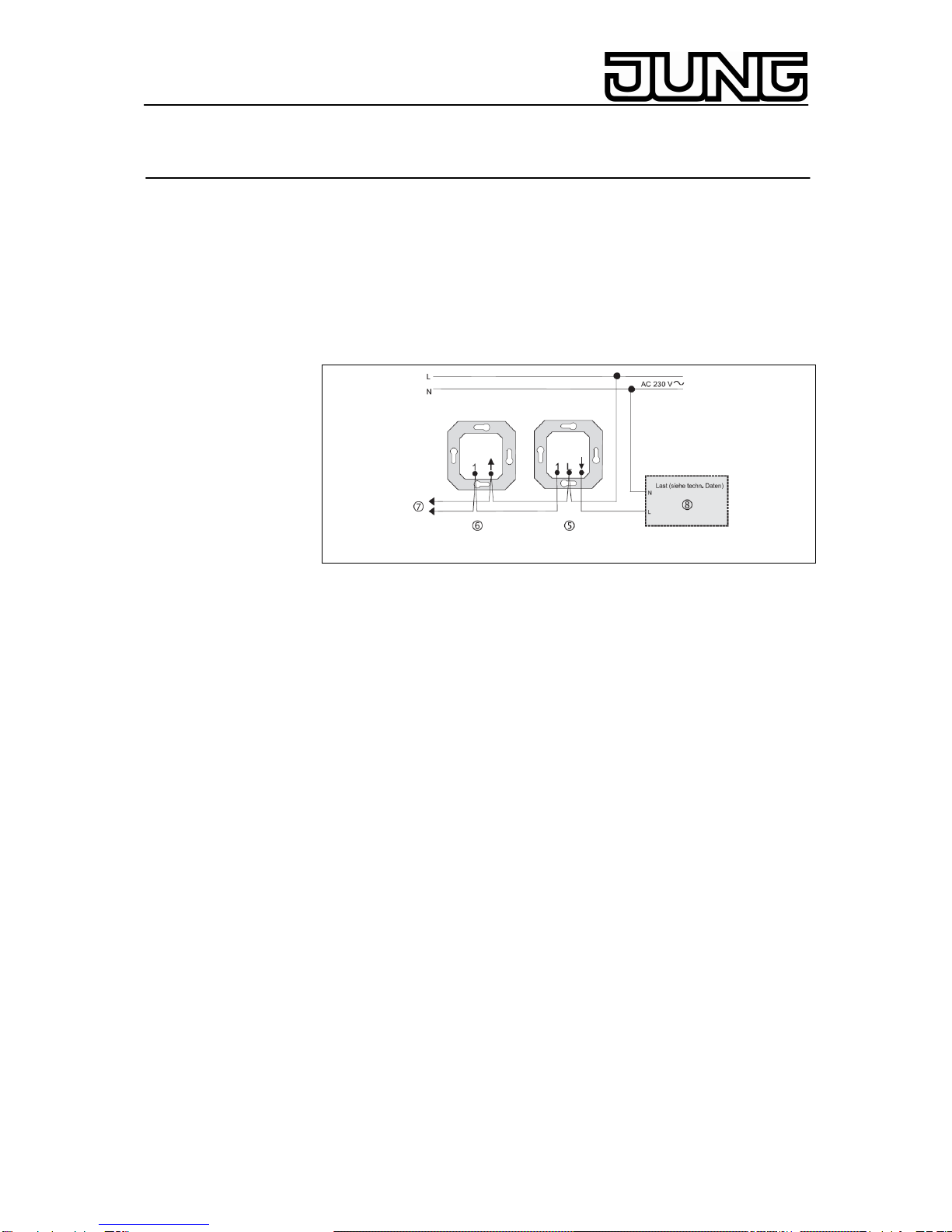

Connect several extensions as shown in Fig. C.

Fig. C

Connect several extensions as shown in Fig. C.

Control from an extension unit is possible only if the attachment on the

main unit is in place.

Tronic switching insert g

"2-wire" extension insert h

Connection of further extensions i

Load j

"2-wire" extension insert: Using the short-stroke key leads to

the same functionality as on the

Tronic switching insert.

Mechanical push-button (n. o. contact): ON/OFF (toggling)

Illuminated mechanical pushbuttons must have a separate N terminal.

8. Technical specifications

Nominal voltage: AC 230 V ~, 50 / 60 Hz

Operating temperature: -20 °C ... +45 °C

Connected load: 50 - 420 W/VA

- Incandescent lamps

- HV halogen lamps

- Tronic transformers

Number of Extensions:

"2-wire" extension insert,

mechanical push-button: unlimited

"3-wire" extension insert: 10

Different types of extension units can be combined

Total length of extension connecting cable: max. 100 m

Light Management Tronic switching insert

Ref.-no.:1254TSE

9. Guarantee

Our products are under guarantee within the scope of the statutory

provisions.

Please return the unit postage paid to our central service

department giving a brief description of the fault:

ALBRECHT JUNG GMBH & CO. KG

Service-Center

Kupferstr. 17-19

D-44532 Lünen

Service-Line: +(49) 23 55 . 80 65 51

Telefax: +(49) 23 55 . 80 61 65

E-Mail: [email protected]

General equipment

Service-Line: +(49) 23 55 . 80 65 55

Telefax: +(49) 23 55 . 80 62 55

E-Mail: [email protected]

KNX equipment

Service-Line: +(49) 23 55 . 80 65 56

Telefax: +(49) 23 55 . 80 62 55

E-Mail: [email protected]

The -Sign is a free trade sign addressed exclusively to the

authorities and does not include any warranty of any properties.
