Kargo Master 48132 Manuale
Instruction Guide
48132
Kargo Master
Rancho Cordova, CA 95742
800-343-7486
CustomerService@KargoMaster.com
20190730R2
DATE: ______________
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 2
*PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING,
INSTALLING, AND USING THIS PRODUCT*
Warning
Always check for wires, fuel tanks and lines, brake lines and other important vehicle
functionality items prior to drilling and installing all products.
Tools Needed
Phillips Driver
Table of Contents
Parts List ..........................................................................................................................................3
Hardware ........................................................................................................................................3
Step 1 –Determine Location ...........................................................................................................4
Step 2 –Attach Drawer Mounts .....................................................................................................5
Step 3 –Install Divider ....................................................................................................................6
Step 4 –Install Drawer ....................................................................................................................7
Drawer Removal .............................................................................................................................8
Before You Begin
•Read all instructions.
•DO NOT OVERLOAD THE DRAWER UNIT. MAXIMUM CAPACITY IS 75lbs.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 3
Parts
Hardware
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 4

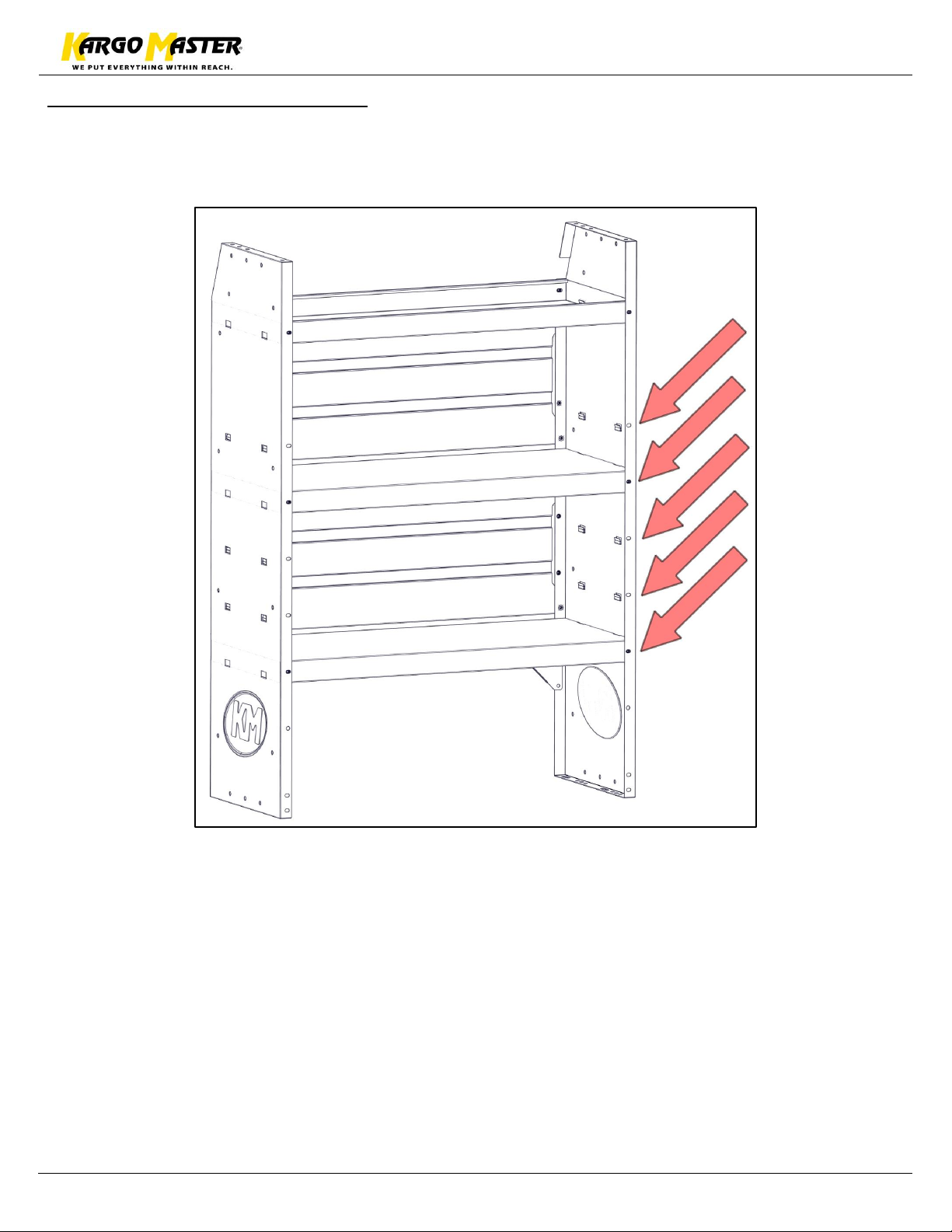

Step 1 –Determine Location
•Determine the location for the drawer to be mounted.
Note: If only one drawer unit is being installed, it is recommended to install directly under a shelf. This provides an
enclosed area when drawer is closed.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 5

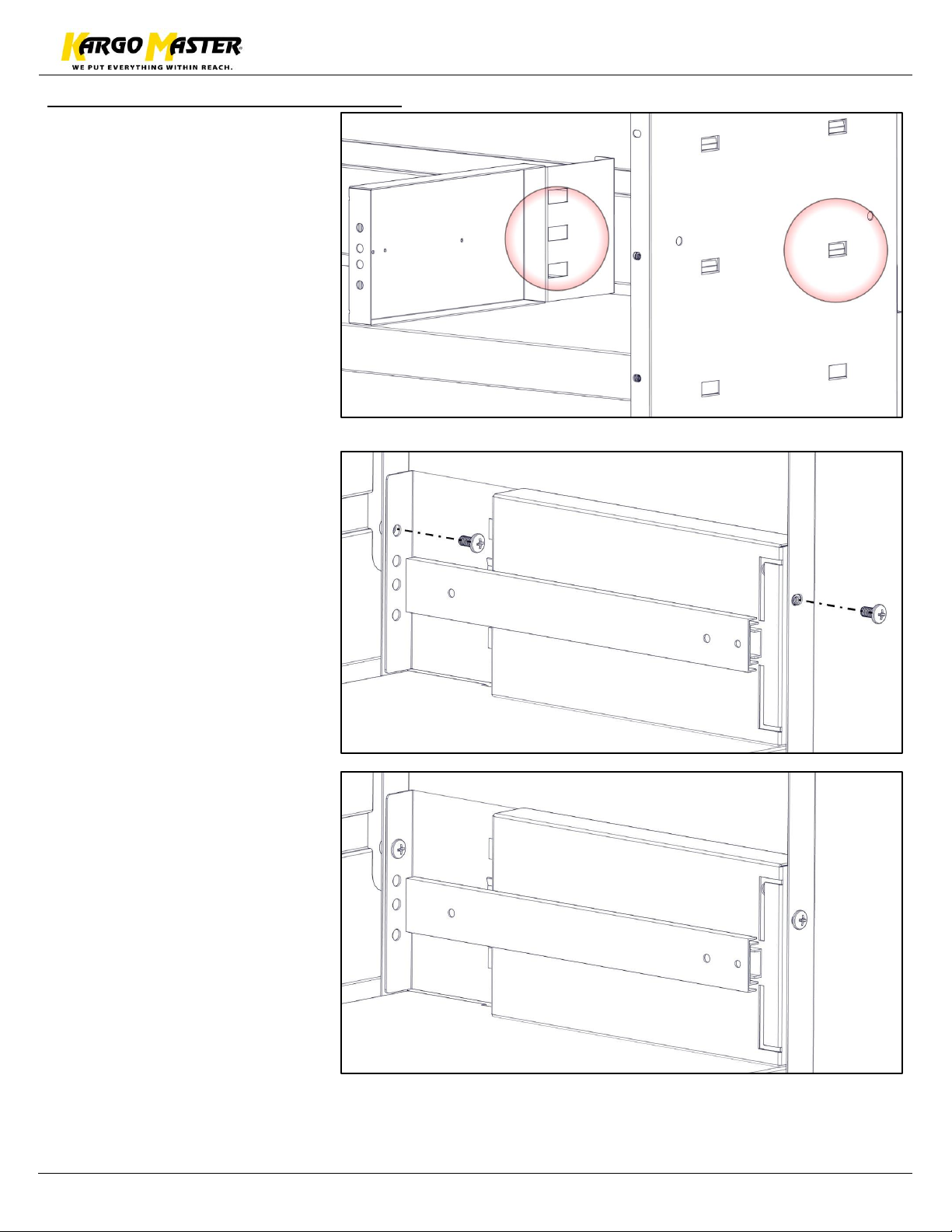

Step 2 –Attach Drawer Mounts
•Place the drawer mount
into the shelf unit in the
orientation shown.
•Hook the drawer mounts
onto the rear tab in the
shelf side panel.
•Using two 1/4" x 1/2”
pan head screws, attach
the drawer mount to the
threaded emboss at the
rear and through the
hole in the front of the
shelf side panel.
•TIGHTEN the rear screw.
•Snug tighten the front
screw.
•Repeat on both sides.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 6
Step 3 –Install Divider
•If desired, install the divider into the shelf assembly. There are three locations to choose
from.
•Bolt into place using 1/4" x 1/2” pan head screw. Be sure the front of the divider sits in the
slot at the front of the drawer assembly.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 7

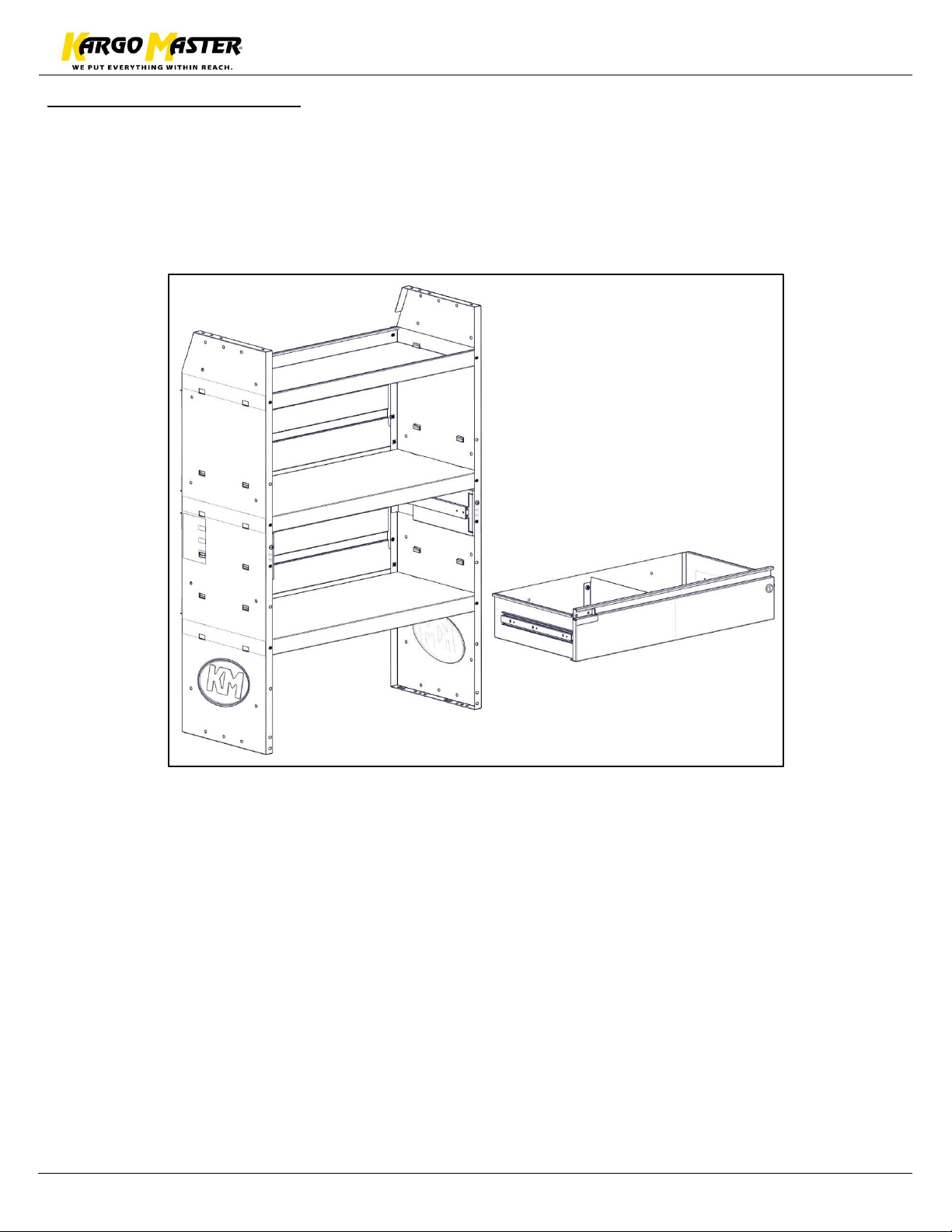

Step 4 –Install Drawer
•Align the slider rails on the previously installed side mounts with the slides on the drawer
unit.
•Slide the drawer assembly in place. The drawer should move freely in and out of place. Be
sure the drawer can NOT pull out from sliders when fully opened.
•Tighten the front screws from Step 2.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 8

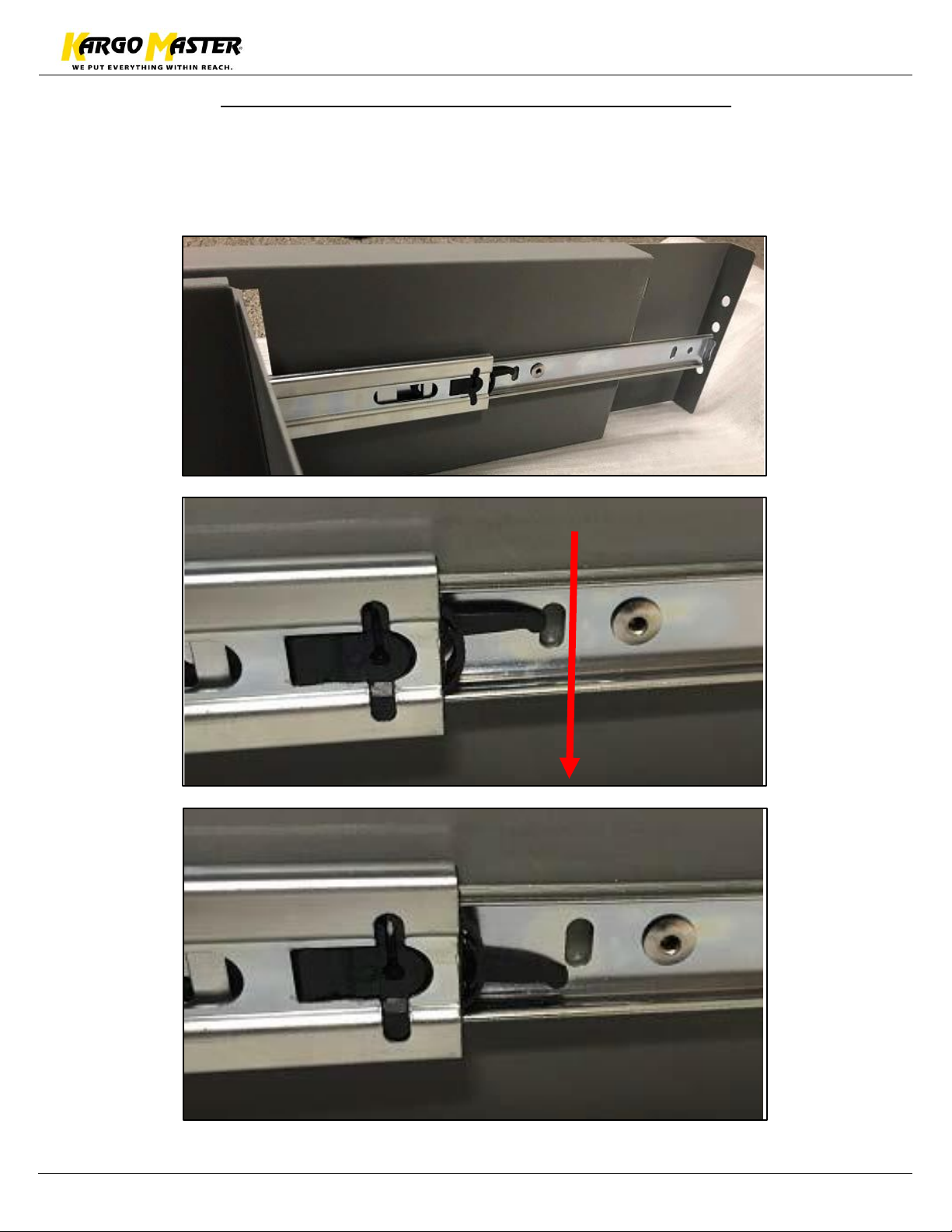

Steps to remove drawer from drawer mounts
•Extend the drawer all the way out to view the latch.
•Gently click the latch to disengage the rail.
Note: If the latch's original position is up, clip down to disengage and vice versa.
•Disengage rail on both sides and pull drawer unit out.
Instructions –48132
For Technical Support Call: 800-343-7486 Monday-Friday 7AM - 4 PM (PST) Page 9

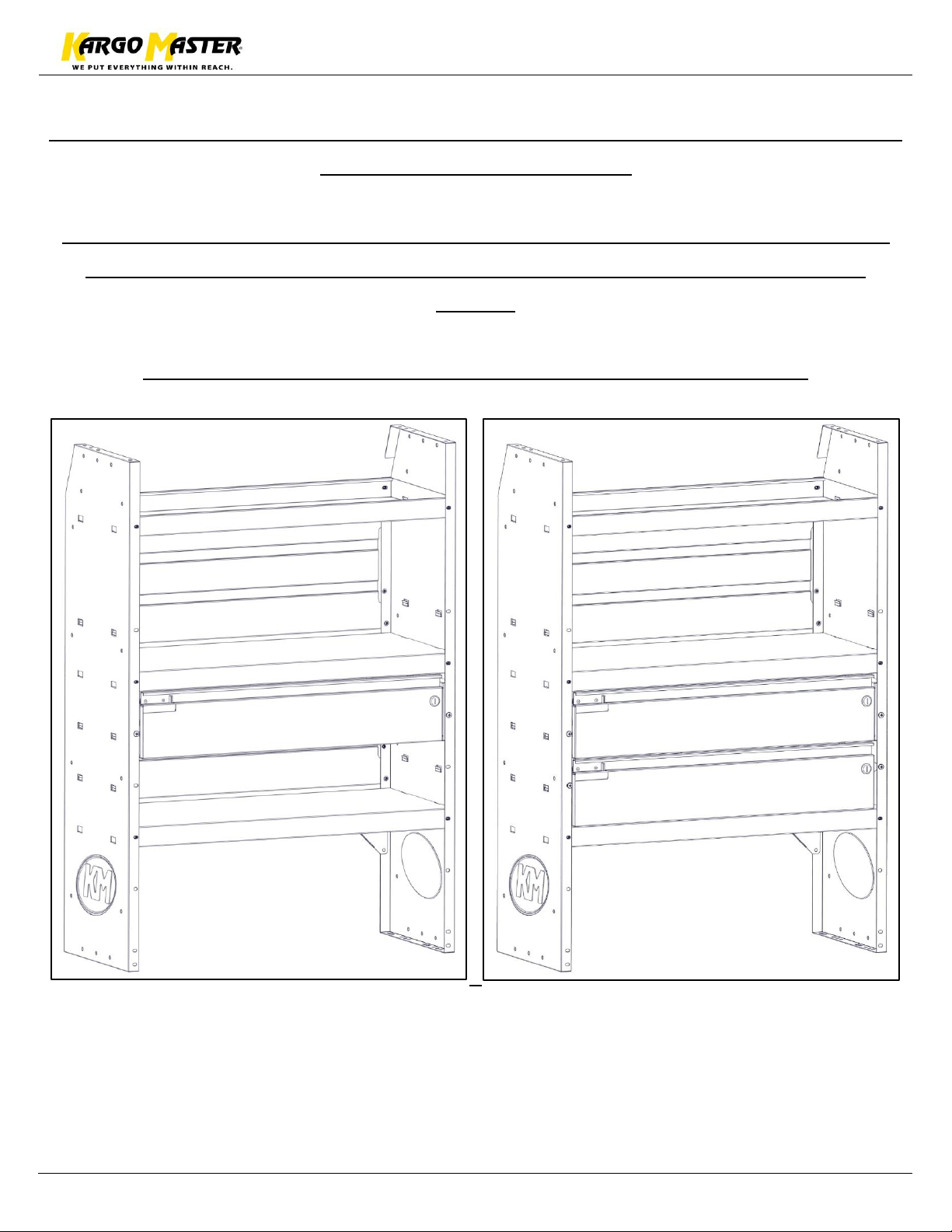

Multiple shelf units may be installed in a variety of different locations. Some
examples are shown below.
When only one drawer unit is being installed, it is recommended to install
directly below a shelf to provide an enclosed area when the drawer is
closed.
Ensure all bolts are tight. Your Installation is now complete.
