Kele KDP2M Series Manuale utente

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

Product Identication

Dimensions

Product Overview

The KDP2M transducer can measure either air pressure or velocity with the ip of a

switch. The KDP2M is available in three installation congurations: duct, panel or

universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC /

0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four eld-selectable sub-ranges.

The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-6,000 ft/

min with seven eld-selectable sub-ranges. All variants are available with and without

display. The KDP2M has an IP65/NEMA 4 environmental rating and a 5-year limited

warranty.

KDP2M Series

Diﬀerential Pressure / Air Velocity Transducer

KDP2M

Enclosure Local Display

D = Duct

P = Panel

Range

1 = Pressure: 0 to 1 in. WC / 0 to 250 Pa

Velocity: 0 to 3,000 ft/min / 0 to 15 m/s

10 = Pressure: 1 to 10 in. WC/250 to 2,500 Pa

Velocity: 0 to 6,000 ft/min / 0 to 30 m/s

Local DisplayRange

010 = Pressure: 0 to 10 in. WC / 0 to 2,500 Pa

Velocity: 0 to 7,000 ft/min / 0 to 35 m/s

in. (mm)

KDP2M

Patent Pending

Specications

Installation, Wiring

& Conguration

FILTER

LOW HIGH

AIR FLOW

Static Pressure

Panel Installations

Duct Installations

Dierential Pressure

1. Plan the installation. Panel or duct mount?

2. For duct mount applications, thread the probe into the back of the device housing, as

shown in the dimensional drawing.

3. Congure the internal tubing for the selected installation method as described below.

Duct mount tubing conguration:

a. Connect the right-side tube to the rear brass barb marked as “-” on the

underside of the device housing.

b. Connect the left-side tube to the probe in the back of the device housing.

Panel mount tubing conguration:

a. Connect the right-side tube to the rear brass barb marked as “-” on the

underside of the device housing.

b. Connect the left-side tube to the front brass barb marked as “+” on the

underside of the device housing.

Installation, Wiring

& Conguration (cont.)

4. Mount the transducer (see the screw hole diagram below).

5. For applications using conduit, remove the cable gland nut on the bottom of the unit.

Thread a standard 1/2-inch NPT female threaded coupler onto the body of the cable

gland. Connect the opposite end of the coupler to the conduit.

Tubing for Duct Mount Tubing for Panel Mount

2.3

(59)

CTR-CTR

3.3

(83)

CTR-CT

2.5

(62)

To Pickup

Tube

1.4

(35)

To Pickup Tube

0.5

(13)

3.2

(81)

in. (mm)

NOTICE

•

This product is not intended for life or

safety applications.

• Do not install this product in hazardous

or classied locations.

•

Read and understand the instructions

before installing this product.

• Turn o all power supplying equipment

before working on it.

•

The installer is responsible for

conformance to all applicable codes.

If this product is used in a manner not specied

by the manufacturer, the protection provided

by the product may be impaired. No

responsibility is assumed by the manufacturer

for any consequences arising out of the use of

this material.

KDP2MU - --

- -

LCD = LCD Display

X = No Display

N = NIST

X = None

N = NIST

X = None

LCD = LCD Display

X = No Display

For velocity applications, use the FXP Series air velocity/measurement probe or AA18,

AA19 or AA20 velocity pitot tubes. For use with the PX3P (panel) and PX3U (universal)

models in Velocity mode only. Sold separately.

AIR FLOW

Velocity with FXP Probe Velocity with AA18/AA19/AA20 Pitot Tube

AIR FLOW

1.6

(42)

1.6

(42)

3.5

(88)

3.5

(88)

4.4

(112)

7.4

(188)

)

3.1

(78)

Media Compatibility Dry air or inert gas

Input Power Three-wire Volt mode: 24 Vac or 12-30 Vdc*

Two-wire mA mode: 12-30 Vdc*

Output Power Field-selectable: 2-wire, loop-powered 4-20 mA

Minimum input voltage for 4 to 20 mA operation: 250 Ω loop = 12 Vdc; 500 Ω loop = 19 Vdc

(DC only, clipped and capped), 24 Vac/dc or 3-wire 0-5V/0-10V

Minimum load resistance for Volt operation: 5 kΩ

Pressure

Range 1

Pressure

Mode

Unidirectional: 0.1/0.25/0.5/1 in. WC FS, switch selectable

Bidirectional: ±0.1/±0.25/±0.5/±1 in. WC FS, switch selectable

Unidirectional: 25/50/100/250 Pa FS, switch selectable

Bidirectional: ±25/±50/±100/±250 Pa FS, switch selectable

Velocity

Mode

500/1,000/2,000/3,000 ft/min

2.5/5/10/15 m/s

Pressure

Range 10

Pressure

Mode

Unidirectional: 1.0/2.5/5/10 in. WC FS, switch selectable

Bidirectional: ±1.0/±2.5/±5/±10 in. WC FS, switch selectable

Unidirectional: 250/500/1,000/2500 Pa FS, switch selectable

Bidirectional: ±250/±500/±1,000/±2500 Pa FS, switch selectable

Velocity

Mode

3,000/4,000/5,000/6,000 ft/min

15/20/25/30 m/s

Pressure

Range 010

Pressure

Mode

Unidirectional: 0.1/0.25/0.5/1/2.5/5/10 in. WC FS, switch selectable

Bidirectional: ±0.1/±0.25/±0.5/±1/±2.5/±5/±10 in. WC FS, switch selectable

Unidirectional: 25/50/100/250/500/1,000/2500 Pa FS, switch selectable

Bidirectional: ±25/±50/±100/±250/±500/±1,000/±2500 Pa FS, switch selectable

Velocity

Mode

500/1,000/2,000/3,000/4,000/5,000/6,000/7,000 ft/min

2.5/5/10/15/20/25/30/35 m/s

Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, DIP switch selectable

Mode Unidirectional or bidirectional, DIP switch selectable

Display (Option) Pressure mode: Signed 3-1/2 digit LCD, indicates pressure, overrange indicator

Velocity mode: Signed 4-1/2 digit LCD, indicates velocity, overrange indicator

Proof Pressure 3 psid (20, 600 Pa)

Burst Pressure 5 psid (34, 500 Pa)

Pressure Mode Accuracy ±1% FS (combined linearity and hysteresis)

Velocity Mode Accuracy ±90 ft/min (±0.45 m/s) plus 5% of measured value**

Temperature Eect 1” (250 Pa) models: 0.05%/°C; 10” (2,500 Pa) models: 0.01%/°C

(Relative to 25 °C) 0 to 50 °C (32 to 122 °F)

Zero Drift (1-year) 1” (250 Pa) models: 2.0% max.; 10” (2,500 Pa) models: 0.5% max.

Zero Adjust Pushbutton auto-zero and digital input (2-position terminal block)

Operating Environment 0 to 60 °C (32 to 140 °F)

Altitude of Operation 0 to 3,000 m

Pollution Degree 2

Humidity Range 100% RH, non-condensing

Mounting Location For indoor use only.

Fittings Brass barb; 0.24” (6.1 mm) o.d.

Suggested Cable Shielded:

Belden #9939 (22 AWG) 3-wire multi-conductor (or similar)

Belden #9940 (22 AWG) 4-wire multi-conductor (or similar)

Belden #9939 (22 AWG) 5-wire multi-conductor (or similar)

Unshielded:

Belden #8443 (22 AWG) 3-wire multi-conductor (or similar)

Belden #8444 (22 AWG) 4-wire multi-conductor (or similar)

Belden #8445 (22 AWG) 5-wire multi-conductor (or similar)

Environmental Rating IP65, NEMA 4

Flammability Rating UL 94 5VA re retardant ABS, plenum rated

Limited Warranty 5 years

EMC Conformance: EN 61000-6-3 and A1 Class B, EN 61000-6-1. * Class 2/II power source. ** For measured values between 200 and 7000 ft/min (1 and 35 m/s).

1/2-inch NPT female threaded coupler

NIST

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

Installation Guide

Pressure Monitoring

2-wire, 4-20 mA Current Loop Output

3-wire, 0-5 V/0-10 V Voltage Output

DIGITAL CONTROL

Digital

Output

Return

V+

1.000

PWR

mA RTN{

RMT.

ZERO

1.000

{

RMT. ZERO

ZERO

DIGITAL CONTROL

Digital

Output

V IN

POWER SOURCE

24 Vac/dc

V+/PWR

V-/GND

VOUT

Installation, Wiring

& Conguration (cont.)

Installation, Wiring

& Conguration (cont.)

Installation, Wiring

& Conguration (cont.)

Operation

9. Wait ve seconds, then press and hold the ZERO pushbutton for two

seconds or provide contact closure on the AUX ZERO terminal. This will reset

the output and display to zero pressure. For best accuracy, press the ZERO

button while both ports are open to atmospheric pressure. To protect the unit

from accidental zero, this feature is enabled only when the detected pressure

is within about 0.1 in. WC (25 Pa) of factory calibration.

10. Connect desired external tubing to the KDP2M.

The KDP2M Series devices employ high performance sensors and sophisticated

temperature compensation circuitry. The sensor achieves its best accuracy after

an initial warm-up period. During the rst few minutes of operation, readings at

zero pressure and the lowest pressure ranges appear erroneous. Following this

initial warm-up period, the KPDM2 device maintains its specied accuracy and

stability.

The LCD momentarily indicates range ‘SET’ when a selection is made. Pressure

is normally indicated on the display. Units are in inches water column (in. WC),

Pascals (Pa) or kilopascals (kPa) as indicated on the display. The display shows

‘OVER’ when the pressure is over range.

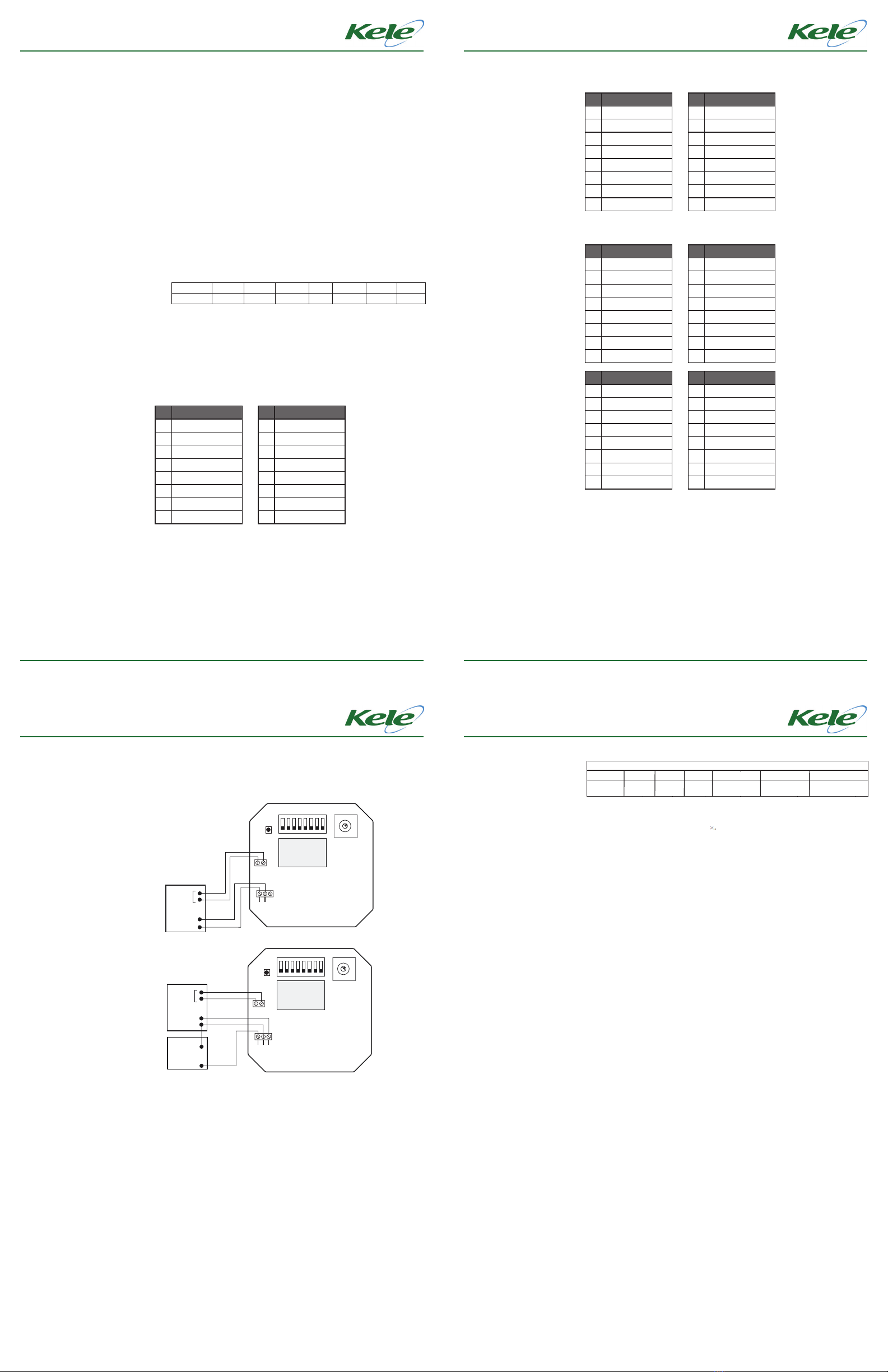

8. Connect the transmitter to the control system and power supply as indicated

below. Optional: Connect the ZERO terminals to the digital output (contact

closure) of the control system.

Rotary Switch Settings

Range 01 Model, Field Selectable (WC / ft/min or Pa / m/s)

WC / ft/min Pa / m/s

0 0 to 0.1 in. WC 0 0 to 25 Pa

1 0 to 0.25 in. WC 1 0 to 50 Pa

2 0 to 0.5 in. WC 2 0 to 100 Pa

3 0 to 1 in. WC 3 0 to 250 Pa

4 0 to 500 ft/min 4 0 to 2.5 m/s

5 0 to 1,000 ft/min 5 0 to 5 m/s

6 0 to 2,000 ft/min 6 0 to 10 m/s

7 0 to 3,000 ft/min 7 0 to 15 m/s

Rotary Switch Settings (cont.)

Environment-Friendly Use Period (EFUP) Table

China RoHS Compliance

Information

本表格依据SJ/T11364的规定编制。

O: 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572规定的限量要求以下。

X: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572规定的限量要求。

（企业可在此处，根据实际情况对上表中打的技术原因进行进一步说明。）

This table is made according to SJ/T 11364.

O: indicates that the concentraon of hazardous substance in all of the homogeneous materials

for this part is below the limit as spulated in GB/T 26572.

X: indicates that concentraon of hazardous substance in at least one of the homogeneous

X O O O O O

materials used for this part is above the limit as spulated in GB/T 26572

Z000057-0B

部件名称

Part Name

有害物质-Hazardous Substances

铅(Pb) 汞(Hg) 镉(Cd) 六价铬(Cr (VI)) 多溴联苯 (PBB) 多溴二苯醚(PBDE)

电子件

Electronic

DIP Switch 1: Scale

ON = Pascal (m/s)

OFF = In. WC (ft/min)

DIP Switch 2: Mode

ON = Velocity

OFF = Pressure

DIP Switch 3: Direction*

ON = Unidirectional

OFF = Bidirectional

DIP Switch 4: Response

ON = Slow

OFF = Fast

*Velocity mode is unidirectional regardless of DIP switch setting.

DIP Switch 5: Output

ON = 4-20 mA

OFF = Voltage

DIP Switch 6: Volt Scale

ON = 0-5 Vdc

OFF = 0-10 Vdc

DIP Switch 7: Unused

DIP Switch 8: Unused

DIP Switch Settings

Scale Mode Direction Response Output Volt Scale

ON Pascal/MPS VelocityUni Slow mA 5V

OFF

In. WC/FPM PressureBiFast Volt 10V

123456

Unused

7. Set rotary switch to the desired setting. Align the arrow (not the slot) on the

rotary switch to the desired full-scale range. LCD models momentarily indicate

the selected range.

6. Set DIP switches to desired settings.

Range 02 Model, Field Selectable (WC / ft/min or Pa / m/s)

WC / ft/min Pa / m/s

0 0 to 1 in. WC 0 0 to 250 Pa

1 0 to 2.5 in. WC 1 0 to 500 Pa

2 0 to 5 in. WC 2 0 to 1,000 Pa

3 0 to 10 in. WC 3 0 to 2,500 Pa

4 0 to 3,000 ft/min 4 0 to 15 m/s

5 0 to 4,000 ft/min 5 0 to 20 m/s

6 0 to 5,000 ft/min 6 0 to 25 m/s

7 0 to 6,000 ft/min 7 0 to 30 m/s

Range 05 Model, Field Selectable (P) Pressure or (V) Velocity Mode,

Field Selectable (WC / ft/min or Pa / m/s)

(P) Pressure Mode (V) Velocity Mode

0 0 to 0.1 in. WC 0 0 to 500 ft/min

1 0 to 0.25 in. WC 1 0 to 1,000 ft/min

2 0 to 0.5 in. WC 2 0 to 2,000 ft/min

3 0 to 1 in. WC 3 0 to 3,000 ft/min

4 0 to 2.5 in. WC 4 0 to 4,000 ft/min

5 0 to 5 in. WC 5 0 to 5,000 ft/min

6 0 to 10 in. WC 6 0 to 6,000 ft/min

7 0 to 10 in. WC 7 0 to 7,000 ft/min

(P) Pressure Mode (V) Velocity Mode

0 0 to 25 Pa 0 0 to 2.5 m/s

1 0 to 50 Pa 1 0 to 5 m/s

2 0 to 100 Pa 2 0 to 10 m/s

3 0 to 250 Pa 3 0 to 15 m/s

4 0 to 500 Pa 4 0 to 20 m/s

5 0 to 1,000 Pa 5 0 to 25 m/s

6 0 to 2,500 Pa 6 0 to 30 m/s

7 0 to 2,500 Pa 7 0 to 35 m/s

Questo manuale è adatto per i seguenti modelli

Altri manuali Kele Strumento di misura

Kele

Kele PowerTrak Series Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
