N9020A Signal Analyzer

Analog Baseband IQ Inputs (Option BBA) Retrofit Kit

Installation Note

Notices

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Manual Part Number

N9020-90189

Supersedes N9020-90167

Edition

Edition 1, May 2015

Printed in USA/Malaysia

Published by:

Keysight Technologies, Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Installation Note N9020-90189 3

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Products Affected: N9020A, MXA Signal Analyzer

Serial Numbers: All

Option BBA

To Be Performed By: (X) Keysight Service Center

(X) Personnel Qualified by Keysighta

( ) Customer

a.To ensure that this newly installed option is functioning properly, the procedure that follows includes the

requirement of performing certain adjustments and performance verification tests. However, the completion of

these tests does not guarantee that the instrument meets all advertised specifications.

Software and test equipment is required for making adjustments and for performance verification testing.

Information on how to obtain this software can be found at:

www.keysight.com/find/calibrationsoftware

While Keysight does recommend that a full calibration be performed after the installation of this upgrade, the

end user must ultimately determine whether they want this service or not. If a full calibration is required,

arrangements regarding the level of calibration must be made between the end user and the calibration

provider.

Estimated Installation Time:

Estimated Adjustment Time:

Estimated Verification Time:

2.0 Hours

0.5 Hours

1.25 Hours

4Installation Note N9020-90189

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Introduction

You may have received a front frame replacement kit and a memory upgrade kit in addition to this

Option BBA upgrade kit. If so, it is recommended that you first verify the amount of RAM in the

analyzer by performing the following steps:

1. Turn the instrument on.

2. Verify that the Operating System can be found and that the Keysight Spectrum Analyzer

measurement application starts up and is sweeping.

3. Connect a USB mouse.

4. Verify the RAM size by going to the Start menu, right click on “My Computer”, and select

“Properties”. A window will pop up showing the computer properties. Under the General

information tab the RAM size will be listed.

If the analyzer has 1 GB of RAM, the memory upgrade must be performed. This upgrade should be

installed during the BBA upgrade when there is access to the processor board. Installing the

memory upgrade now will cause extra assembly time that is not necessary. The BBA upgrade

procedure below will identify the appropriate time to perform the memory upgrade.

If the analyzer identifies as having 1 GB of memory and you did not receive the memory upgrade kit

(N9020-60035), stop and send an email to [email protected] with the following details:

— Subject: “1 GB Memory Upgrade Kit (BBA Upgrade)”

— Instrument serial number that is being upgraded

— Complete ship to address, so we priority ship the memory upgrade

If the analyzer already has 2 GB of RAM, you do not need to perform the memory upgrade and can

begin converting the installation of the new front frame. Instructions for the front frame

replacement kit are located inside that kit.

This procedure is used to retrofit Option BBA into the N9020A Signal Analyzer.

Earlier vintages of analyzers had an LCD which uses slightly different mechanical parts. This

installation note addresses both the LCD and LED displays.

Installation Note N9020-90189 5

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Installation Kit Parts List

Quantity Description Keysight Part Number

1 BBIQ Main Board N9020-60093

1 LED Board N9020-63095

1 BBIQ Interface Board N9020-60094

1 LED Board Overlay, Bottom N9020-80013

1 LED Board Overlay, Top N9020-80014

1 Cable, Flex Ribbon 8121-1683

1 Cable, Small Coaxial 8121-1401

1 Fan Bracket W1312-00133

1 Cable, Semi-Rigid N9020-20155

1 Cable, Semi-Rigid N9020-20156

1Inverter Top Shielda

a.These items are only used if the analyzer has an LCD display. LCD’s were used on serial prefix < MY or

SG5124 for the N9020A.

N9020-00010

1Inverter Bottom ShieldaN9020-00011

1 Core Bracket N9020-00012

2Grommeta0400-0385

60 Screws, M3 X 0.5 (8 mm long) 0515-0372

1 Vibration Mount 0460-2725

9 Screws, M3 X 0.5 (6 mm long) 0515-1227

9 Screws, M3 X 0.5 (8 mm long) 0515-1035

2 Screws, Hex Shoulder N9020-20017

4 Screws, M5 X 0.8 (14 mm long) 0515-5209

8 Fan Rivets 0361-1272

2 Main Board Warning Labels N9020-80036

1 Entitlement Certificate 5964-5178

1 Entitlement Certificate Envelope 5967-7169

2 #1 Cable Label 7121-5601

2 #7 Cable Label 7121-5607

2 #0 Cable Label 7121-5610

1Channel Grommet (edge protector)a0400-0018

5 Tie Wrap 1400-0249

1 Installation Note This note

1 Probe tip BNC adapter 5063-2143

1 Cable 8120-2682

6Installation Note N9020-90189

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Tools Required

— T-10 Torx Driver

— T-20 Torx Driver

— 5/16-inch torque wrench

— 1/4-inch socket on 4 lb torque wrench

—scissorsorknife

—diagonalcutters

— USB storage device with > 2 GB free memory

Keysight Service Center

The following kit items will not be installed in the analyzer upgrade and need to be shipped back to

the end user for their use:

— 5063-2143, Probe tip BNC adapter

— 8120-2682, cable

— Entitlement Certificate

Before you disassemble the instrument, turn the power switch to Standby and

unplug the instrument. Failure to unplug the instrument can result in personal

injury.

Electrostatic discharge (ESD) can damage or destroy electronic

components. All work on electronic assemblies should be performed at a

static-safe workstation. Refer to the documentation that pertains to your

instrument for information about static-safe workstations and ordering

static-safe accessories.

Installation Note N9020-90189 7

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Installation Procedure

Standard Instrument (Benchtop Configuration)

1. Disconnect the instrument from ac power.

2. Refer to Figure 1. Using the T-20 driver, remove the 4 screws (1) (two on each side) that

attach the strap handles (2) on each side of the instrument.

3. Remove the four key locks from the instrument four bottom feet.

4. Remove the four instrument bottom feet.

5. Using the T-20 driver, remove the four screws (including washers) (3) that hold the rear feet

(4)in place.

6. Pull the instrument cover (5) off towards the rear of the instrument.

If the instrument is placed on its face during any of the following procedures, be

sure to use a soft surface or soft cloth to avoid damage to the front panel, keys, or

input connector.

Make sure any adapters on the front panel are removed.

If the analyzer has Option PRC, Portable Configuration, go to the “Portable

Instrument (Option PRC)” section to remove the outer case.

8Installation Note N9020-90189

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

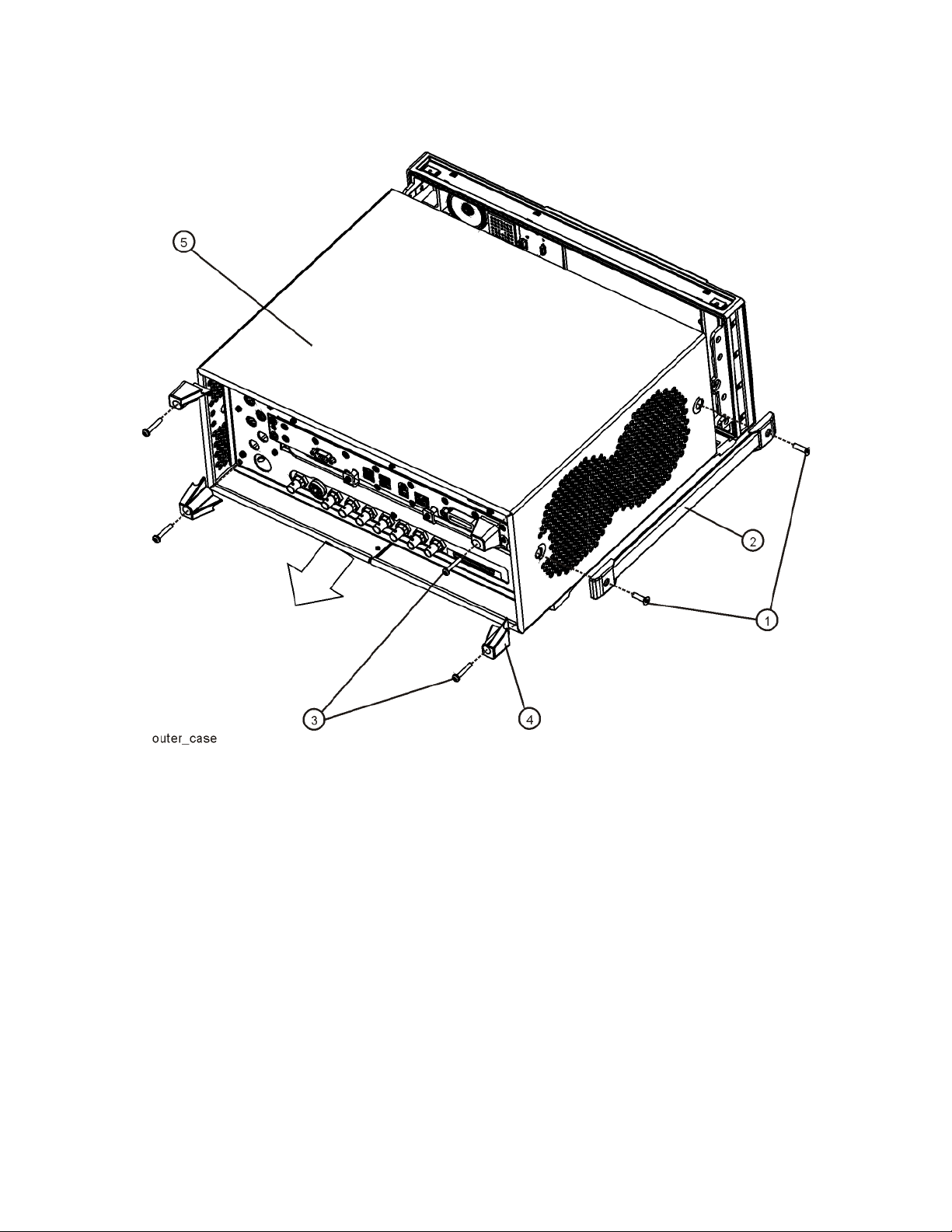

Figure 1 Benchtop Configuration Outer Case Removal

7. Proceed to the Front Frame Assembly Removal section to remove the front frame.

Installation Note N9020-90189 9

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

Portable Instrument (Option PRC)

1. Disconnect the instrument from ac power.

2. Refer to Figure 2. Using the T-20 driver, remove the four screws (1), two on each side, to

detach the Bail Handle Assembly (2) from the front frame.

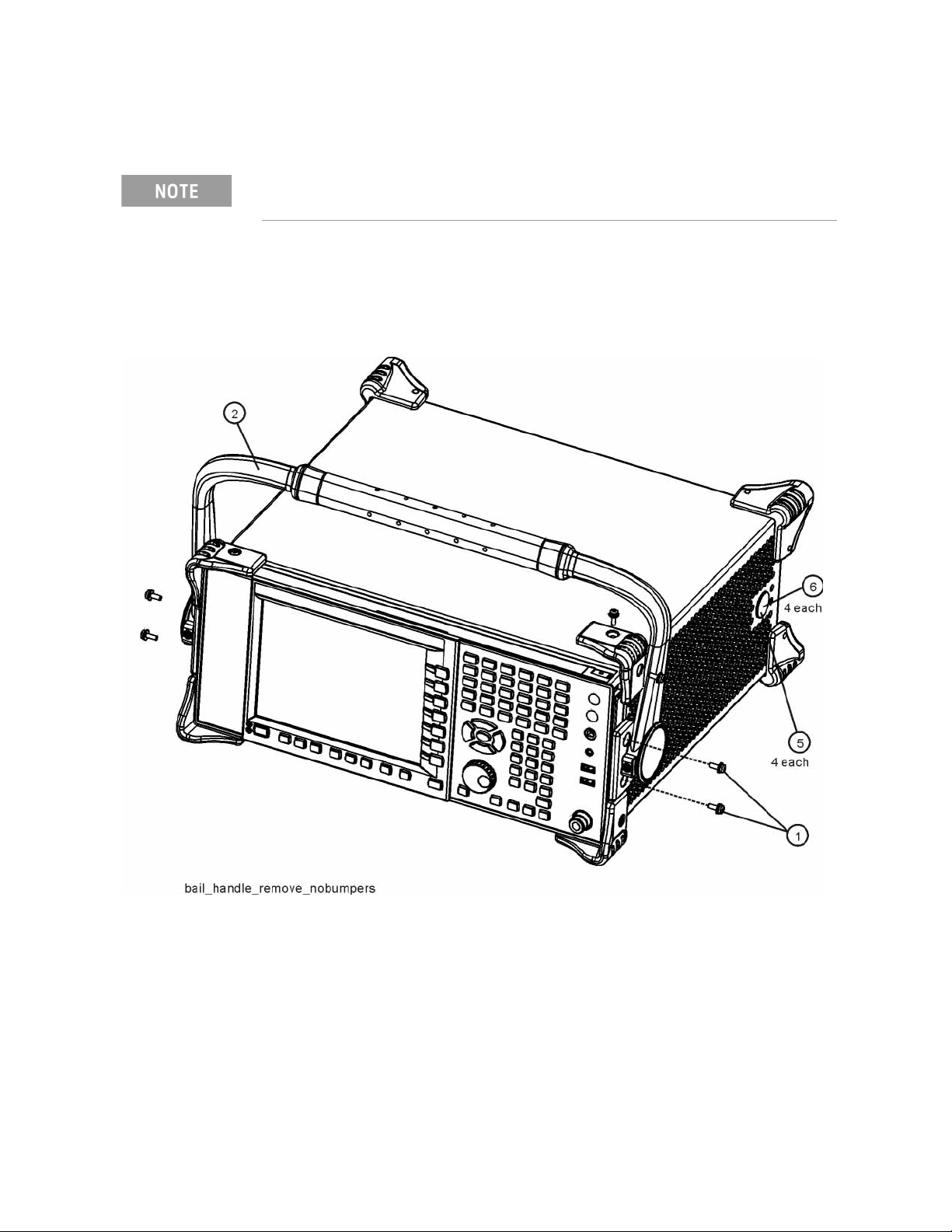

Figure 2 Bail Handle and Front Bumpers Removal (Option PRC)

3. Using the T-20 driver, remove the four screws (6) (two on each side) that attach the four strap

handle plugs (5) from both sides of the instrument. Discard these screws as they must be

replaced with the 0515-5209 screws supplied in this kit. Otherwise damage to the BBIQ

Interface Board will occur.

4. Refer to Figure 3. Using the T-20 driver, remove the four screws including washers (1) that

hold the rear bumpers (2) in place.

5. Pull the instrument cover (3) off towards the rear of the instrument.

Make sure any adapters on the front panel are removed.

10 Installation Note N9020-90189

Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

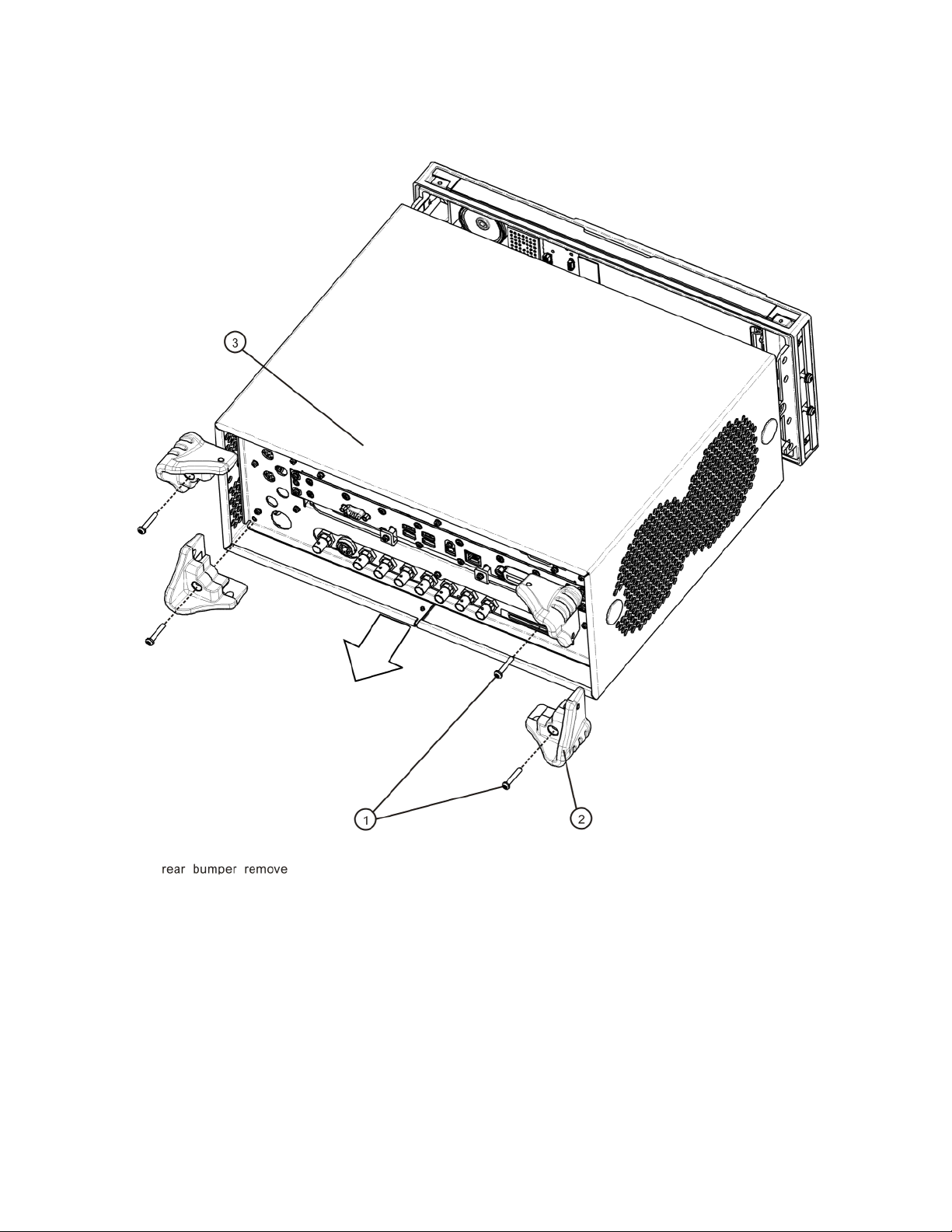

Figure 3 Portable Instrument Outer Case Removal (Option PRC)
