kincrome K7308 Manuale utente
1
TOOLS & ASSISTANCE NEEDED
Parts List
12 x EVA Liners
MAINTENANCE
• Periodically tighten all hardware
• Lubricate the slides twice a year
• Lubricate the lock with graphite annually
• Use a damp Microfibre cloth to clean all surfaces
1 2

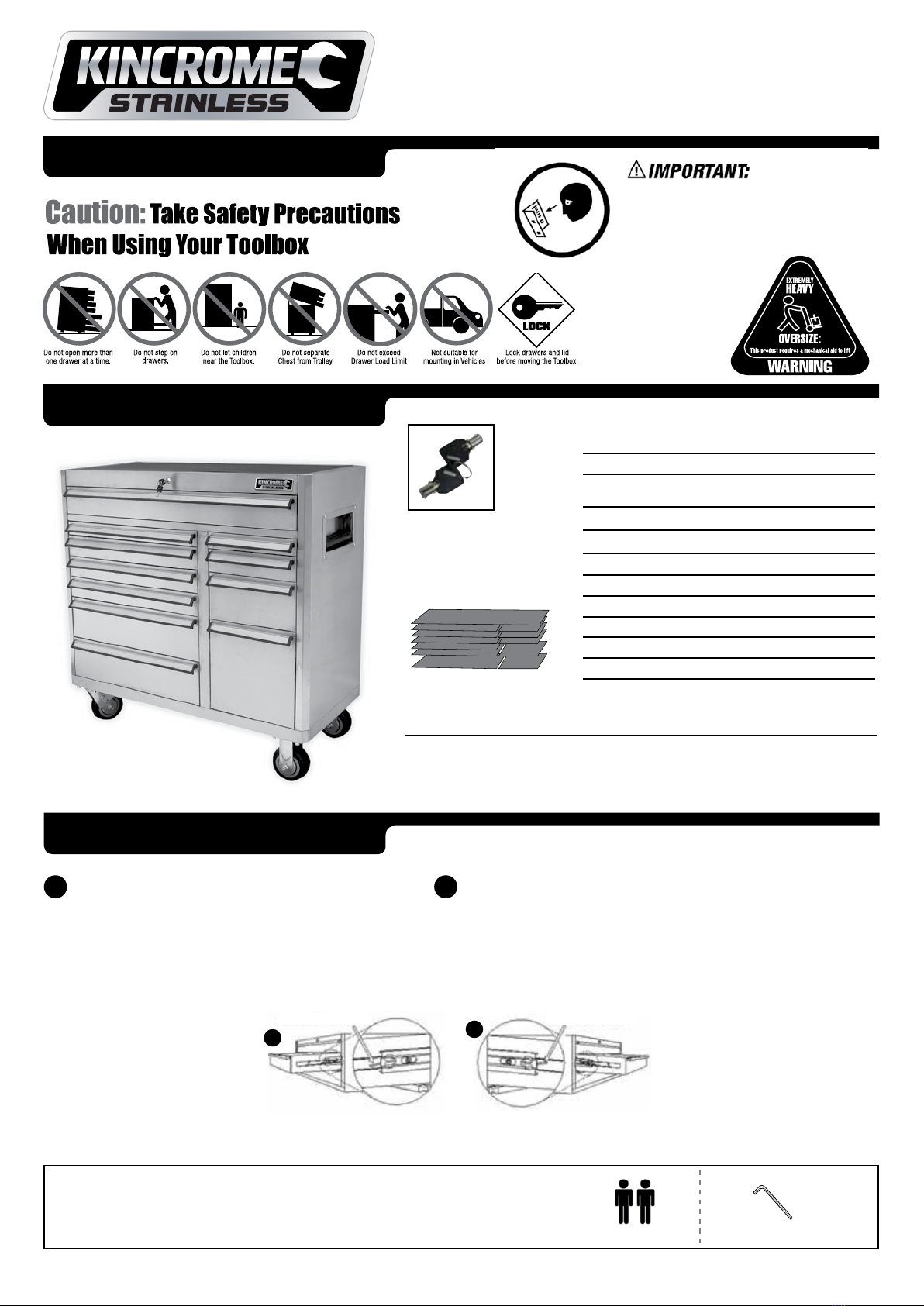

Assembly Instructions
Operation Manual
K7308
TOOL TROLLEY
11 DRAWER
TOOL TROLLEY SPECIFICATIONS
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING TOOL TROLLEY.
SAVE THIS MANUAL FOR FUTURE USE
Keys x 2
Washers x 16
Bolts x 16
11
TO REMOVE & REPLACE DRAWERS
DRAWER REMOVAL
Pull drawer out until fully extended. Press down right
hand side to realease lever. At the same time, pull up left
hand side release lever.
Pull the drawer outward until it releases from the
drawer slide.
DRAWER REPLACEMENT
Extend the drawer slides from the tool chest. Insert the brackets
on each side of the drawer into the slots in the drawer slides,
being careful that they are properly positioned.
Once properly inserted, completely close te drawer to set in the
slides in the proper positions.
CAUTION
For your safety, DO NOT lift the chest by yourself. Failure to follow this warning may result in personal injury and
damage to the tool chest.
Pull up (Left hand side)Push down (Right hand side)
Width Depth Height
Overall 1040mm 460mm 1045mm
Super Wide
Drawer
925mm 415mm 83mm
Large Shallow 560mm 415mm 28mm
Large Medium 560mm 415mm 55mm
Large Deep 560mm 415mm 138mm
Small Shallow 288mm 415mm 28mm
Small Medium 288mm 415mm 55mm
Small Deep 288mm 415mm 138mm
Small X-Deep 288mm 415mm 300mm
Castors 5” x 2” Heavy Duty Lockable
Weight 66Kg
2 People Lift Hex Key
Castors
Assembly Instructions
1
1
3
5
4
3
2
4
5

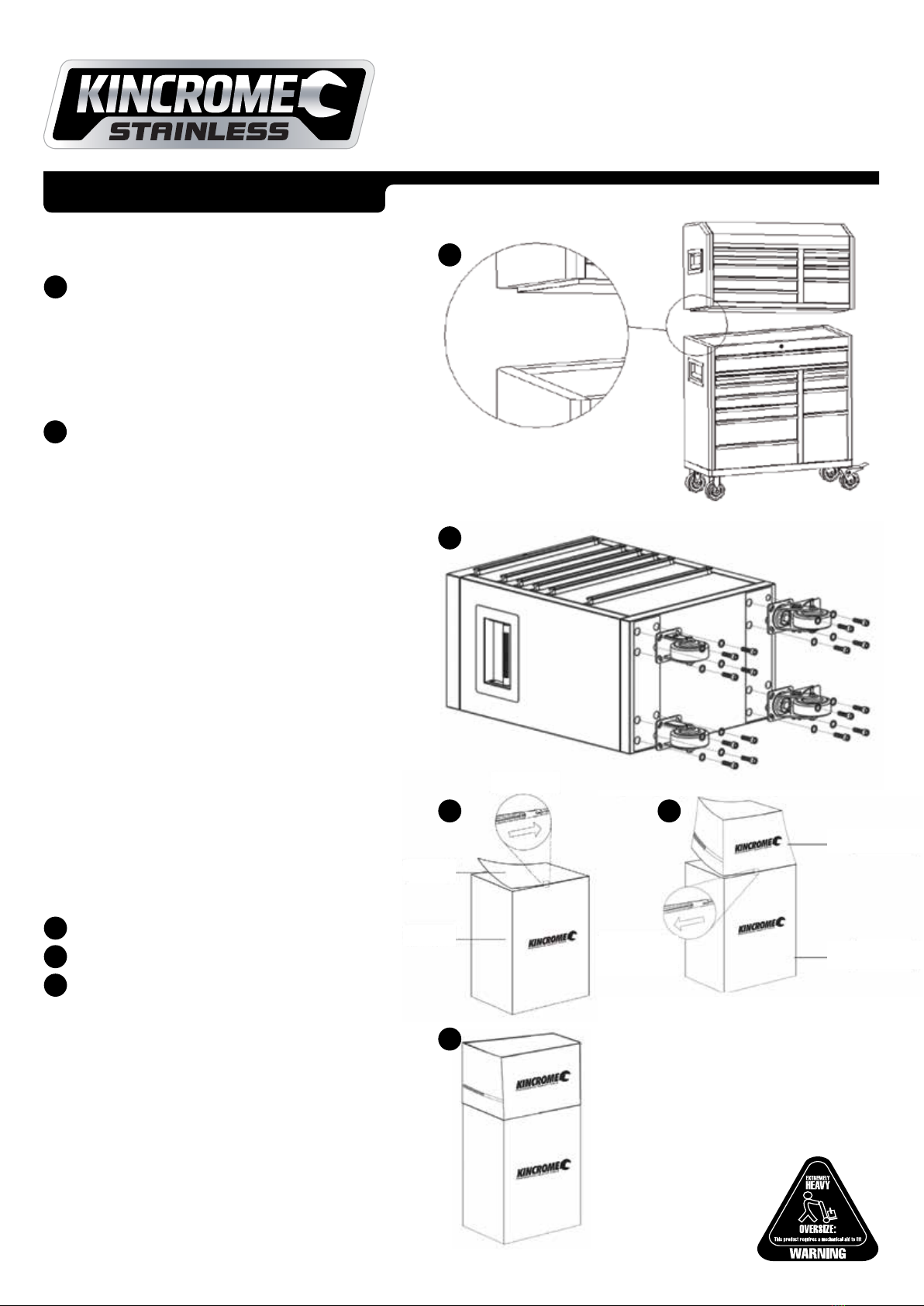

CHEST & TROLLEY COMBINATION
TO PLACE CHEST ON CABINET
When securing the Top Chest and Bottom Roller
Cabinet together, remove the liner so that the
chest bottom will fit tightly into the recessed area
of cabinet. This will help prevent the chest from
slipping or tipping over.
TO INSTALL CASTORS
Estimated assembly time: 20 minutes
Tools required for assembly: Hex Key Wrench
(included)
1. Lay the tool chest on its back when
installing castors
2. Using the hex key wrench provided, install the
2 rigid castors on the bottom of the chest as
shown below
3. Follow the same procedure to install the 2
swivel castors on the opposite side.
CAUTION
For your safety, DO NOT install castors by yourself.
Installing the Castors requires TWO PEOPLE due to
having to lay the tool trolley on its back and to stand
it up once the castors are installed. Failure to follow
this warning may result in personal injury and
damage to the tool trolley.
COVER ASSEMBLY
TO ASSEMBLE COVERS
When using both covers for the Top Chest and
Bottom Roller Cabinet, zip the two covers together
to create one cover. Otherwise the covers can be
used individually.
To unzip the cover top of bottom cover
To zip the top cover and bottom cover up
To place cover over the rolling chest.
K7308
TOOL TROLLEY
11 DRAWER
2
Unzip cover top
Cover top
Bottom cover
Top cover
Bottom cover
Zip up top and
bottom cover
2
3
National Head Office
National Distribution and Showroom
3 Lakeview Dve, Caribbean Business Park
Scoresby Victoria 3179 Australia
E enquiries@kincrome.com.au
W kincrome.com.au
Administration
T+61 3 9730 7100 F+ 61 3 9730 7199
ABN 41 007 185 006
Customer Service Centre
T1300 657 528 F1300 556 005
National Head Office
National Distribution and Showroom
3 Lakeview Dve, Caribbean Business Park
Scoresby Victoria 3179 Australia
W kincrome.com.au
Administration
T+61 3 9730 7100 F+ 61 3 9730 7199
ABN 41 007 185 006
Customer Service Centre
T1300 657 528 F1300 556 005
Australia & Global UK & EU
www.kincrome.com.au www.kincrome.co.uk
enquiries@kincrome.com.au enquiries@kincrome.co.uk
Made to Kincrome Tools & Equipment Pty Ltd Global
specifications and quality standards in China
Kincrome UK Ltd PO Box 646 EASTLEIGH SO50 0NA

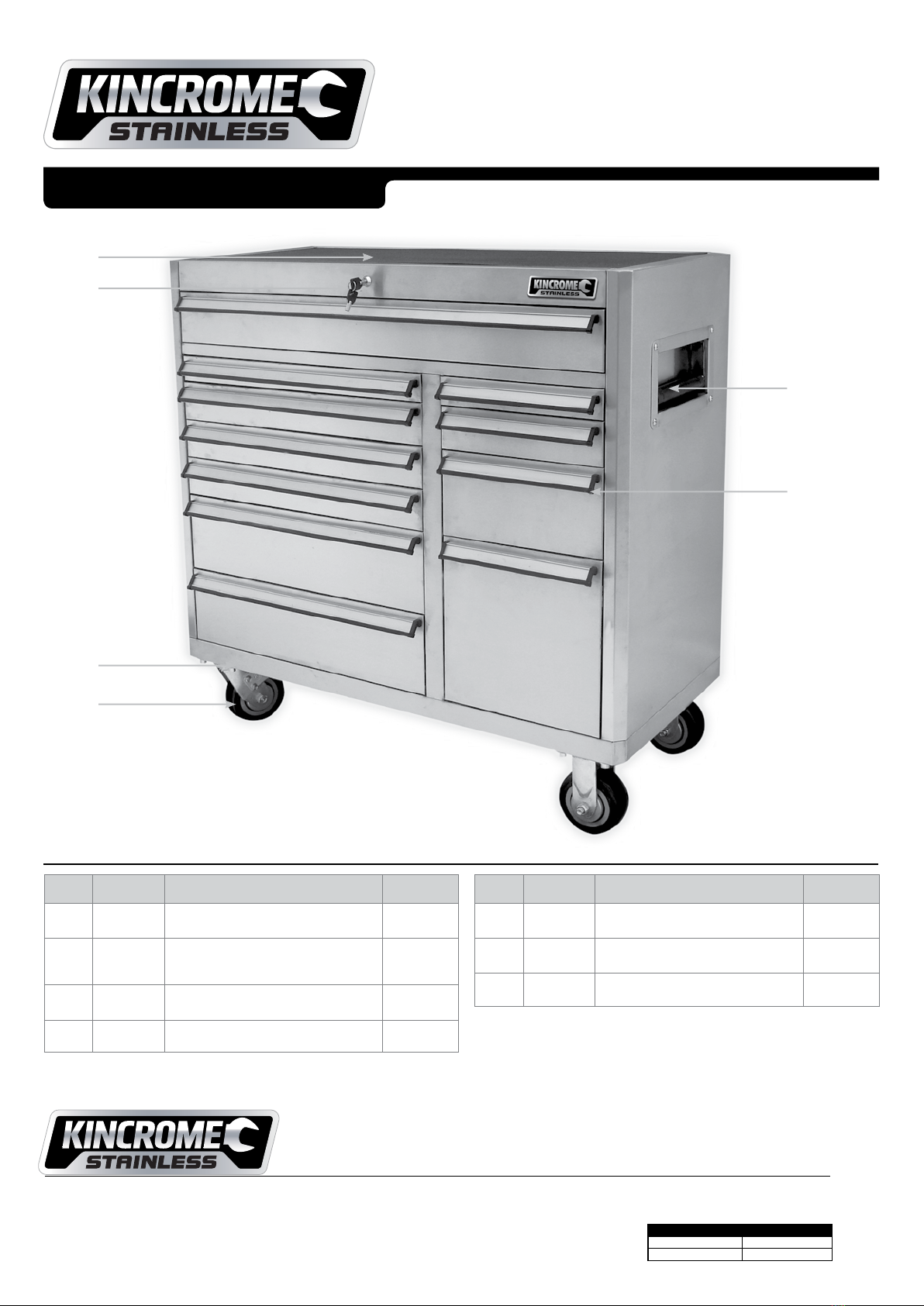

ITEM PART NO. DESCRIPTION QUANTITY
1 K7303-3 Mat Liners 12
2 K7303-1 Lock Set
(Cam Lock with Round Keys)
1
3 K7303-4 Castors (Two Rigid & Two Swivel) 4
4 K7303-33 Bolts & Washers for Castors 930mm 16
REPLACEMENT PARTS
ITEM PART NO. DESCRIPTION QUANTITY
5 K7303-6 Side Handles 2
6 K7300-1 Drawer Slides 11
7NOT SHOWN Hex Key for Castors 1
2
1
3
4
6
5
Replacement Parts
K7308
TOOL TROLLEY
11 DRAWER
