OVEN PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

05−08 Litho in U.S.A. (amd) (eeb) Part No. W10203837 Rev. A

24" BUILT−IN ELECTRIC

DOUBLE OVEN

SELF−CLEAN

OVEN PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10045010

Installation

Instructions

8304062 Owners Manual

W10185219

Tech Sheet

4449264 Easy Set Guide

Safer Cooking Tips

3191638 English

9759133 French

4457288 Installation

Instructions

(Bottom Trim)

2 Trim, Side

Right

4455426 Black

4455375 White

W10166932

Stainless

Left

4455427 Black

4455374 White

W10166933

Stainless

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 4452490 Spacer, Foam

6 8302347 Divider, Vent

7 4455863 Top Chassis

8 Deflector, Vent

Box

4455807 Black

4452489 White & Stainless

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Assembly, Oven

Light

W10169757

Bulb, Light

14 9760754 Frame, Front

15 4455380 Gasket, Door

16 8281236 Screw

17 4449743 Screw

18 3196176 Screw

19 4451476 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right

4450582 Left

22 9760888 Latch, Motorized

23 4449040 Screw

24 4448444 Grommet

25 4455641 Side, Chassis

26 4452232 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 4452152 Bracket, Mounting

29 4455636 Sensor

30 4449154 Screw

31 4449748 Screw

32 4450038 Screw

33 9760675 Deflector, Vent

34 4452265 Vent, Center

35 4450118 Nut

37 9759242 Thermostat (TOD)

43 4450525 Base, Chassis

44 4449809 Screw

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

4456811 Black

4456812 White

W10144973

Stainless

52 3400832 Screw

53 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449314 Insulation, Wrap

4450363 Insulation, Back

CONTROL PANEL PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8300815 Black

8300816 White

W10166935

Stainless

2 4452260 Spacer, Foam

3 8303018 Control,

Electronic

4 4449745 Screw

5 Assembly,

Membrane

8302743 Black

8302746 White

8302770 Stainless

6 3400832 Screw

7 8301848 Latch, Sister

Board

OVEN DOOR PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303698 Door Liner

2 Hinge, Door

9760569 Right (Green)

9760570 Left (Green)

(Below hinges are

used on Stainless

models only)

9760571 Right (White)

9760572 Left (White)

3 4449247 Glass, Inner

4 4451720 Insulation, Door

5 4457130 Retainer, Glass

6 4449809 Screw

7 9759223 Glass, Inner

8 4448520 Bumper, Door

12 Assembly, Door

Glass

8300836 Black

8300837 White

W10151060

Stainless

13 Door Handle

9760538 Black

4452499 White

9760537 Stainless

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

17 3400832 Screw

18 3196184 Screw

19 4457101 Shield, Heat

22 4457112 Shield, Heat

(Bottom)

23 Retainer, Clip

4450863 Black

4450864 White

W10145010

Stainless

24 9759226 Glass, Inner

25 Bracket, Handle

4455803 Right

4455804 Left

26 8300853 Seal, Door

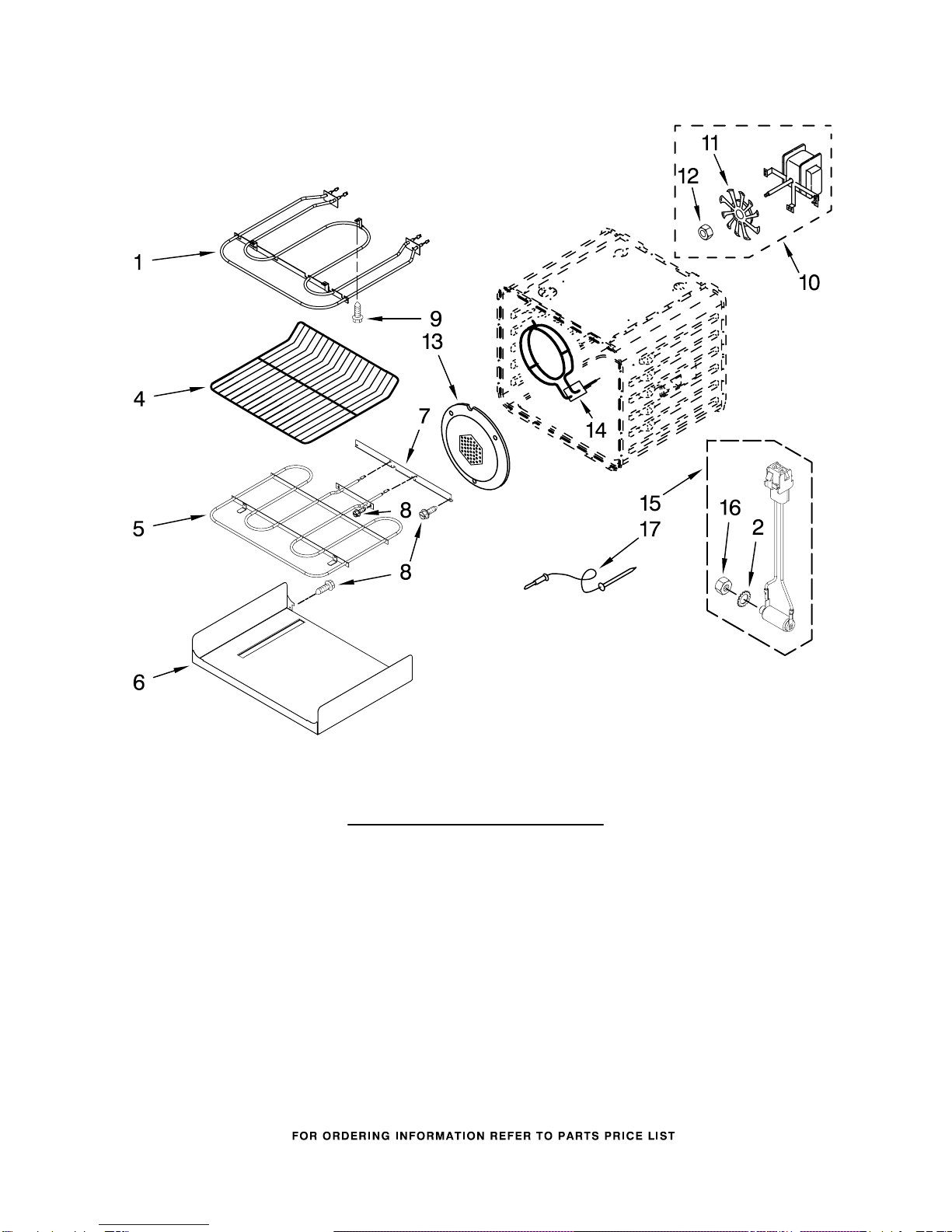

INTERNAL OVEN PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION

1 9760772 Element, Broil

2 9755547 Lock Washers

4 4448716 Rack, Oven

5 9760768 Element, Bake

6 4455035 Tray, Hidden Bake

7 4450039 Cover, Bake Tray

8 4449809 Screw

9 4449154 Screw

W10116228

Motor, Convection

W10116351

Blade, Fan

W10116349

Nut

13 4448418 Cover, Fan

14 9760769 Element,

Convection

15 9755543 Jack, Meat Probe

16 9755546 Nut, Hex

17 9755542 Probe, Meat

TOP VENTING PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451758 Foam, Block

2 4451759 Vent, Exhaust

3 Blower

W10016550

Lower Oven 45MM

4457289 Upper Oven 65MM

5 4449809 Screw

6 8302390 Bracket, Support

Air Stop

7 9760587 Transformer

8 4455178 Elbow, Vent−Top

9 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

12 3400080 Screw

13 4448547 Vent, Control

Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450549 Cover, Top Rear

17 4448664 Clamp

18 4452365 Cover, Top Front

19 4451985 Suppressor

OPTIONAL PARTS

For Models: KEBC247KBL07,KEBC247KWH07,KEBC247KSS07

(Black) (White) (Stainless)

W10203837

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301909 Harness, Latch

4449809 Screw

W10179652

Harness, Main

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4452400 Lead, Ground

4451761 Support, Wiring

313438 Clip, Harness

4455191 Plate, Blower

Service

98997 Clip

Miscellaneous

4448950 Screw, Install (4)
