CABINET PARTS

For Model: KORU06RSSS00

(Stainless Steel)

01−07 Litho In U.S.A. (mat) Part No. W10118282 Rev. A

REFRIGERATOR

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2319106 Energy Guide

2311008 Use & Care Guide

2311029 Service & Wiring

Sheet

2 2311018 Baseplate

Assembly

3 2311062 Shield, Heater (2)

5 2311019 Cover, Unit

Compartment

7 2311016 Hinge Asm, Bottom

9 489282 Screw

11 3192294 Screw

12 8533833 Screw (5)

13 8534097 Screw (4)

17 Cabinet

(Not A

Serviceable Part)

18 2311015 Hinge Asm, Top

19 2155311 Closer, Door

20 2223857 Light Socket

22 2311017 Cover, Light

23 547225 Light Bulb

24 2311053 Panel, Unit

25 2303615 Leveling Pad (4)

26 2303721 Knob, Thermostat

27 2311054 Panel, Evaporator

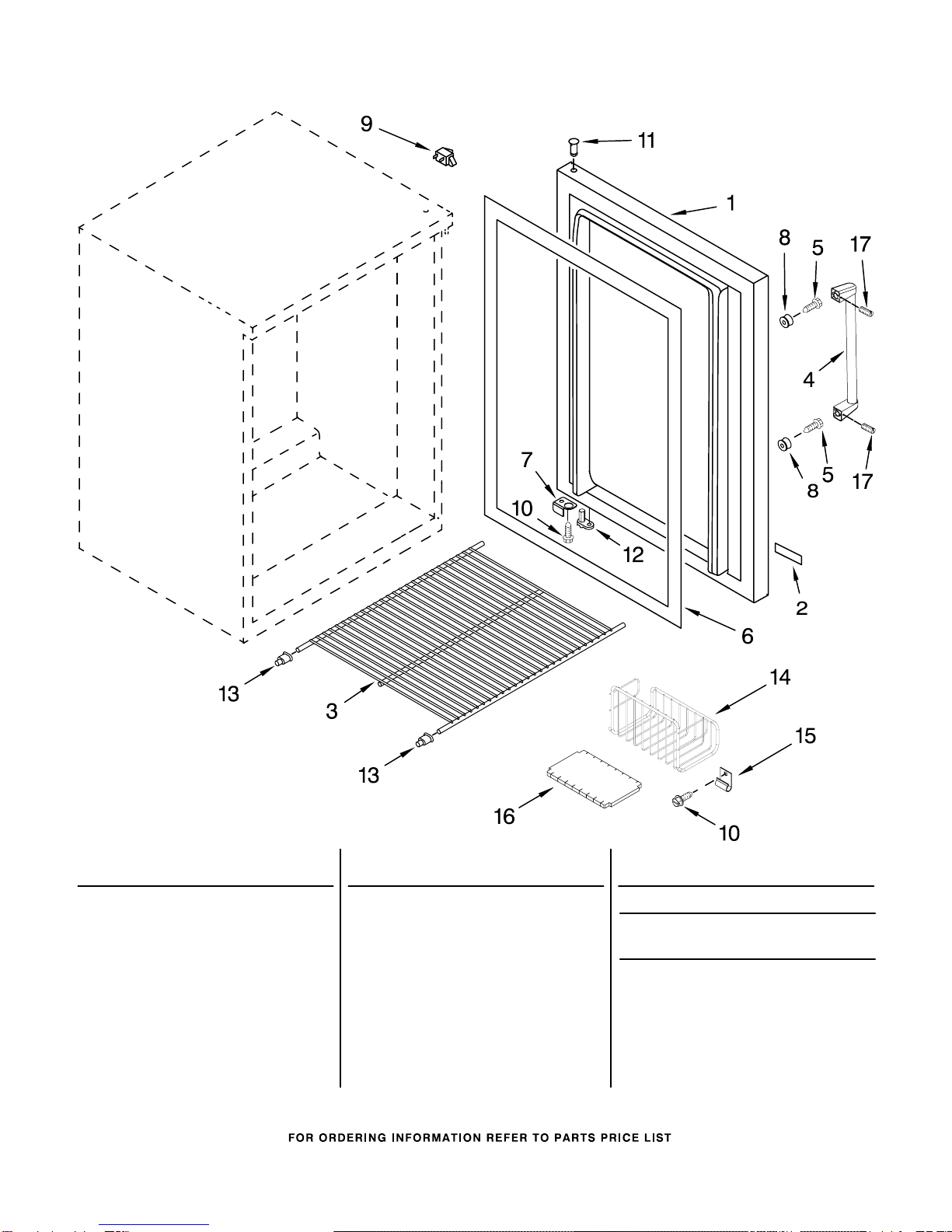

DOOR AND SHELF PARTS

For Model: KORU06RSSS00

(Stainless Steel)

W10118282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2965118 Door Assembly

(Includes Gasket)

2 2319107 Nameplate

2311014AS

Shelf, Wire (2)

4 2319124 Handle, Door Assy

5 488163 Screw

6 2311057 Gasket, Door

7 2311061 Bracket, Door Stop

8 2219698 Stud, Handle

9 1115373 Switch, Rocker

Arm

10 8533833 Screw

11 2183003 Thimble

12 2182178 Door Closer,

Upper Cam

13 2163762 Cup, Shelf Mtg.

2311003AS

Basket, Door (2)

15 2311001 Clip, Basket

Mounting (8)

16 2311051 Mat, Door

Basket (2)

W10114271

Screw, Set

OPTIONAL PARTS

NOT ILLUSTRATED

4396337 Caster Kit (4)

8171420 Cleaner, Stainless

Steel (12 oz)

UNIT PARTS

For Model: KORU06RSSS00

(Stainless Steel)

W10118282

UNIT PARTS

For Model: KORU06RSSS00

(Stainless Steel)

W10118282

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2188848 Motor, Evap Fan

2 2200509 Blade, Fan

3 2319130 Panel, Evap Fan

4 2303629 Bracket, Mounting

5 2214979 Bracket, Front

6 2187957 Wire Harness,

Evap Fan

(Includes #41)

7 2303751 Tube, Barrier

8 2303662 Thermostat

9 2303745 Relay, Starting

10 2303746 Overload

11 2208371 Cover, Terminal

12 2163787 Clip, Compressor

13 2303680 Compressor

(Includes 9,

10, 11 & 28)

14 2319104 Evaporator

15 2303647 Condenser Asm

16 2225834 Blade, Fan

(Condenser)

17 2188729 Motor, Evap Fan

18 2303740 Bracket, Fan

Mounting

19 2301979 Plate, Mounting

20 2310035 Wire Harness,

Unit

(Includes #38)

21 2303618 Drain Pan,

Evaporator

22 9872015 Strain Relief

23 2311063 Drain Pan

24 2311058 Cover, Condenser

Fan

25 8533833 Screw

26 2201185 Support Block

27 2303782 Tube, Defrost

Drain

28 2163786 Grommet

29 2319825 Drier Assembly

30 2311056 Washer (4)

31 2303630 Tube, Discharge

32 2155648 Tube, Process

33 2303634 Tube, Condenser

Out

34 2303632 Tube, Suction

Lower

35 2205813 Strap

36 8281197 Screw

37 8281196 Screw

38 2303763 Clamp, Cord

39 2303783 Shield, Bi−Metal

40 2262032 Clip, Tree (2)

41 2303775 Bi−Metal, Defrost

42 8534048 Screw (2)

43 2197380 Grommet (2)

44 2006252 Washer (2)

45 531933 Grommet (2)

46 2254101 Bi−Metal, Liner

Heater

REFRIGERANT CHARGE

4.75

(R−134)
