KitchenAid KSSO48FTX03 Manuale utente

CABINET PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

01−09 Litho In U.S.A. (jdc)(bay) Part No. W10242826 Rev. A

48" BUILT IN

REFRIGERATOR

CABINET PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10205638

Energy Guide

W10159831

Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center

Service Sheet

2325192 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2318189 Tray, Drip Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

W10163493

Refrigerator Side

W10163491

Freezer Side

8 Cap, Water Filter

2260518B Black

9 2307640 Mounting Stud,

Grille

10 2307584 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

W10121140

Housing, Water

Filter

14 3400525 Screw

15 4396841 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 Hinge (Top)

2252292 RC

2252291 FC

19 2318190 Bracket, Mount

(Water Filter)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

24 2221242 Spring, Door

Closure

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2309472 Freezer Side

2309471 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 Skirt−Grille,

Bottom

2209026B Black

33 Extension Arm,

Door Closer

2267192 Right

2267193 Left

34 Grille Bottom,

Front

2325186B Black

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

42 8281163 Screw

43 2260503B Button, Filter

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

W10132411

Cabinet, Trim

(Right Side)

3 1163283 Screw

4 2316688 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2313962S Cabinet, Trim Top

W10132416

Cabinet Trim

(Left Side)

W10121451

Nutsert (4)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

W10175906

Wire, Shelf (2)

W10213535

Cover, Shelf

3 2302884 Shelf, Fixed (2)

4 2259083 Basket

5 2256271 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266935 Door, Ice

9 2266932 Bucket, Ice

10 2266955 Spacer

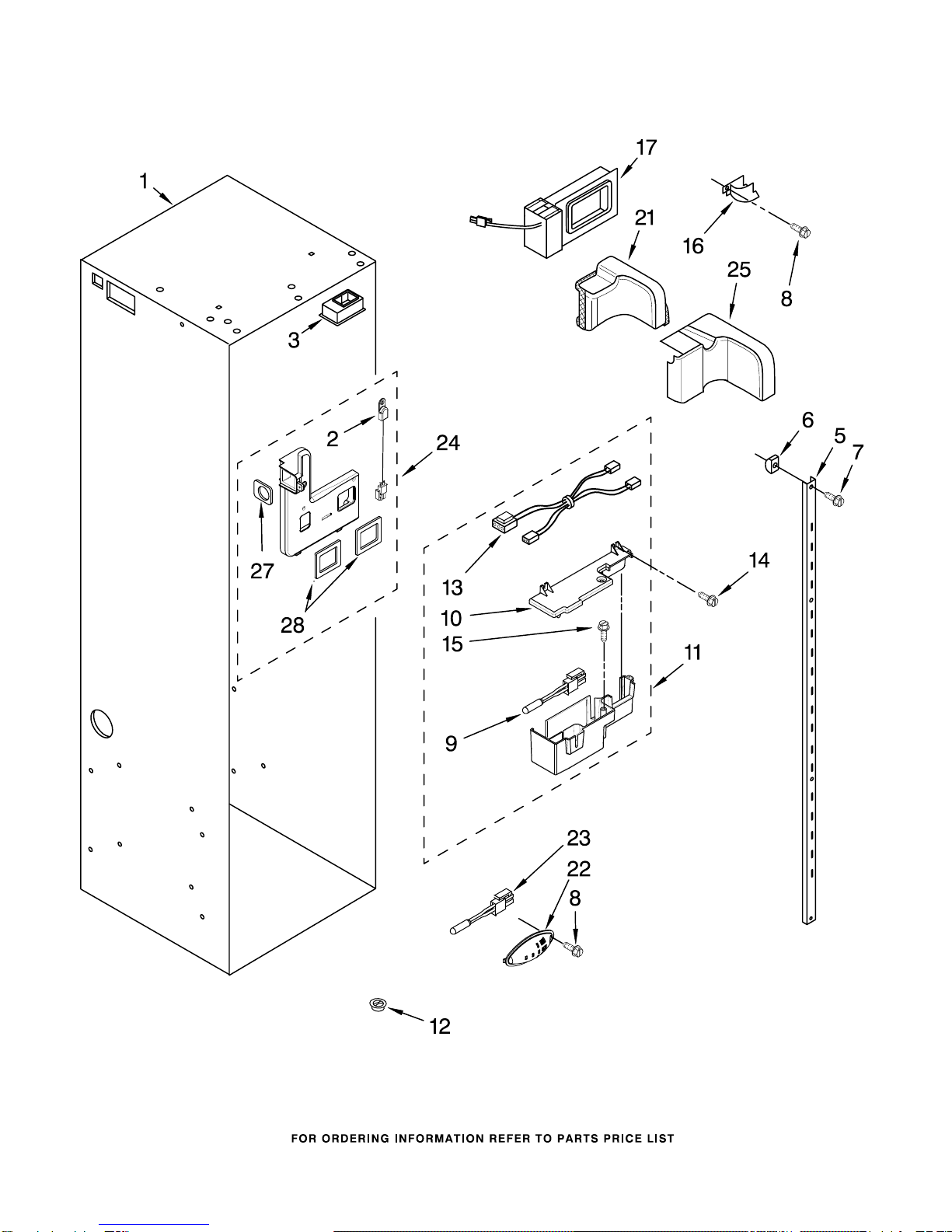

REFRIGERATOR LINER PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

REFRIGERATOR LINER PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Air Baffle

W10169528

Baffle, Control

Assembly

12 2171846 Release Valve

13 2310205 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

16 2003577 Guard−Air Return

17 2221296 Air Baffle

Assembly

21 2309222 Diffuser Assembly

22 2317105 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

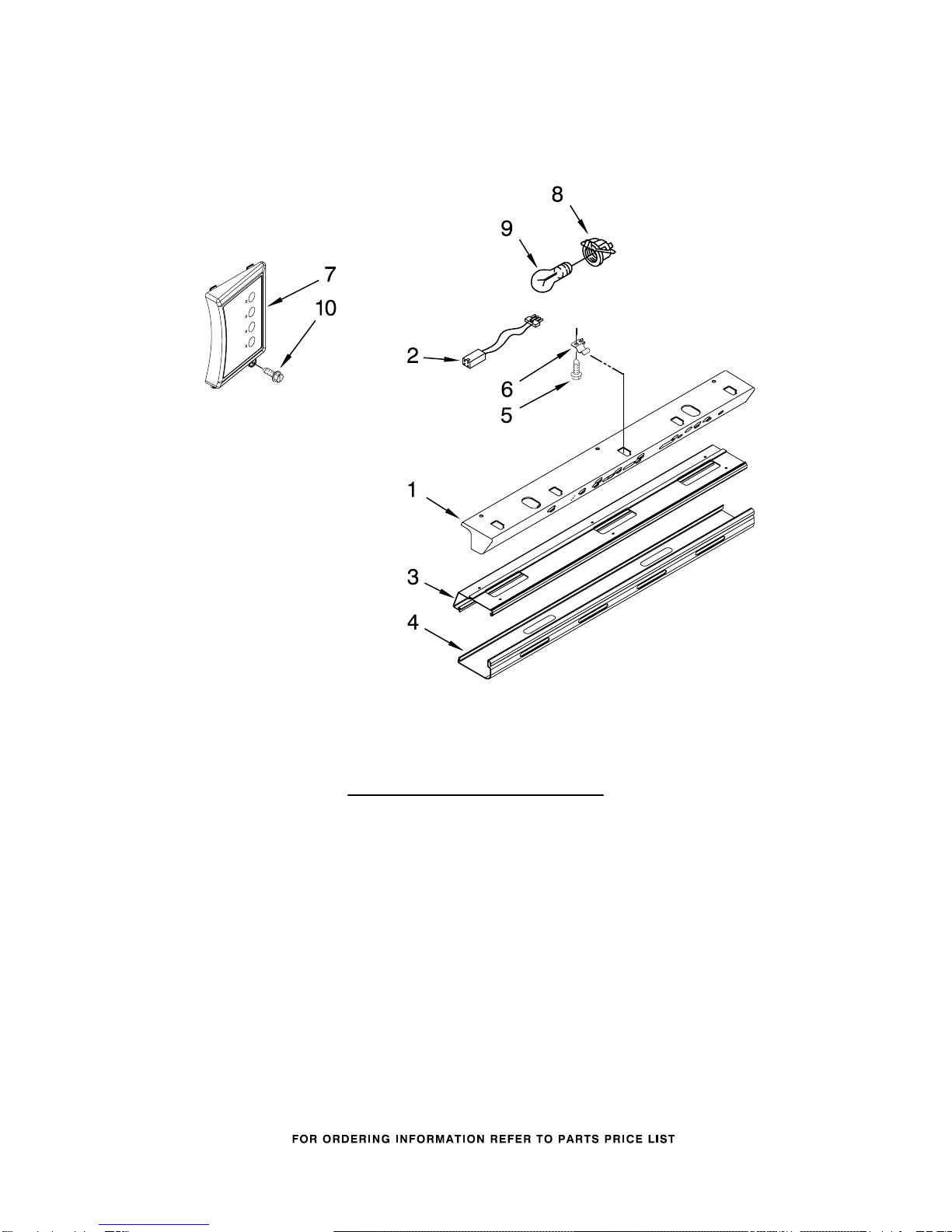

CONTROL PANEL PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

1 2307587 Control Box Assy

2 2310164 Wire, Jumper

3 2324973 Bracket,

Control Box

4 2307596 Shield, Light

5 487539 Screw

6 2317000 Clip, Control Box

7 2306086 Display Board,

Ingredient

Care Center

8 2223857 Socket, Light

9 2326255 Light Bulb

10 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

1 2313979S Top Grille Assy

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10185625

Cover, Unit Front

6 487415 Screw

W10167456

Wire Assembly

RC/FC Light Switch

8 2215910 Grommet−Flexible

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

REFRIGERATOR SHELF PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

REFRIGERATOR SHELF PARTS

(Etched Aluminum)

For Model: KSSO48FTX03

W10242826

Illus. Part

No. No. DESCRIPTION

1 2222593 Shelf Assy (4)

2 2256250 Trim, Glass Side

Meat Pan

3 2179404 Rack, Wine

4 2302843 Meat Pan Cover

Assembly

5 2302836 Crisper Cover

Assembly

6 2257583 Trim, Glass Rear

7 2252413 Crisper Pan (2)

8 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

10 2256255 Trim, Glass Rear

11 2256249 Front, Crisper

Pan

12 2252255 Trim, Glass Side

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 8533929 Screw

17 2256370 Pan Assembly

Meat

18 2256367 Front, Meat Pan
