Klipsch Reference Premiere RP-260F Manuale utente

Product Type: RP-280F/RP-260F/RP-250F

Manual Part #: 1061797

Model Line: Reference

Product Launch Year: 2015

The information contained in this document is solely intended for service and repair of Klipsch Group, Inc product;

use of this information to mimic or copy KGI designs is strictly prohibited and subject to prosecution.

KLIPSCH AUDIO TECHNOLOGIES

Reference Premiere RP-280F/RP-260F/RP-250F Floorstanding

Speaker Service Manual

Table of Contents

SPECIFICATIONS.........................................................................................................................2

CUT SHEET DATA FOR RP-280F.....................................................................................................2

CUT SHEET DATA FOR RP-260F.....................................................................................................2

CUT SHEET DATA FOR RP-250F.....................................................................................................4

EXPLODED VIEW ........................................................................................................................5

WARRANTY PARTS LIST ..........................................................................................................6

TROUBLESHOOTING GUIDELINES .......................................................................................7

TWEETER REMOVAL.......................................................................................................................7

WOOFER REMOVAL......................................................................................................................15

Service Manual –Consumer

Specifications

Cut Sheet Data

Model: RP-280F

Service Manual –Consumer

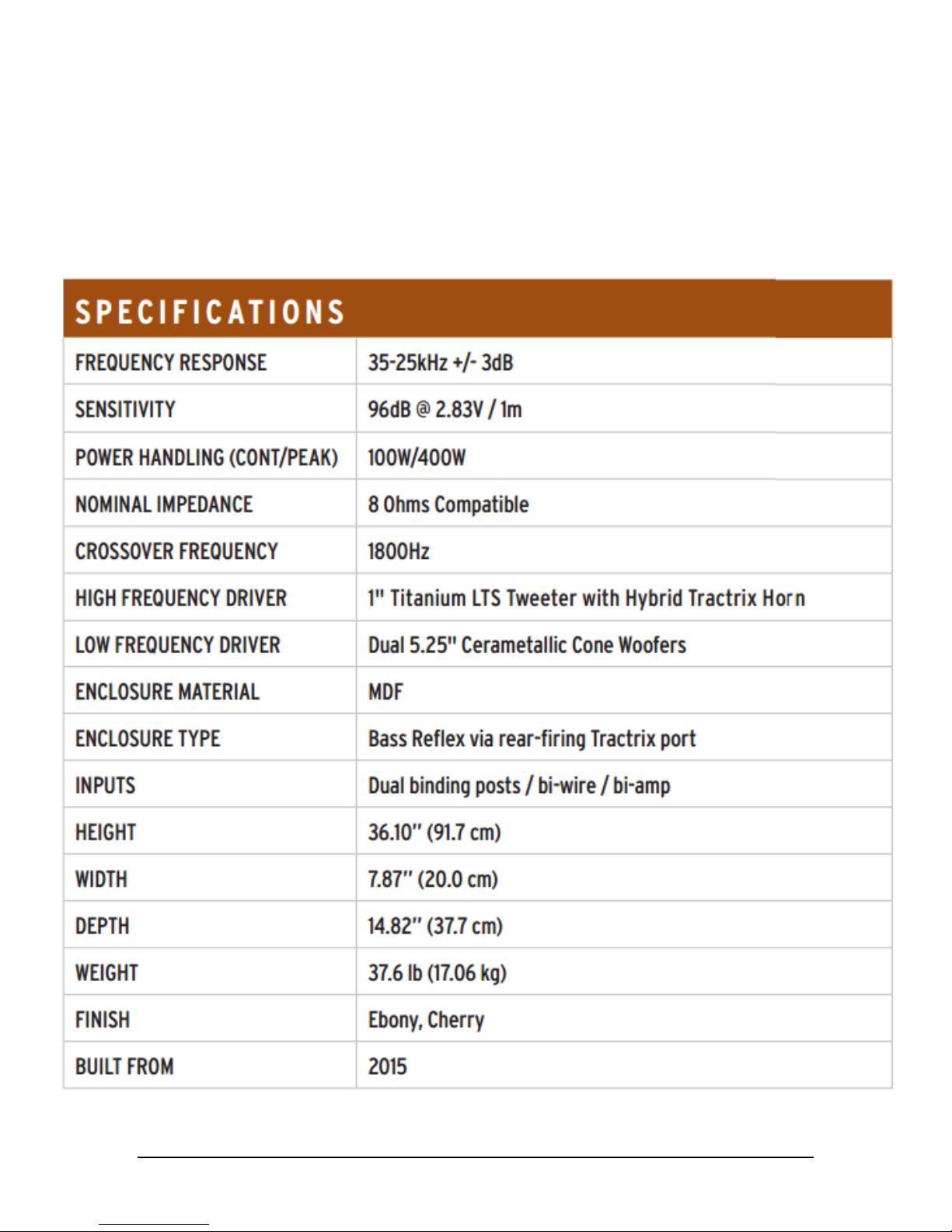

Specifications

Cut Sheet Data

Model: RP-260F

Service Manual –Consumer

Specifications

Cut Sheet Data

Model: RP-250F

Service Manual –Consumer

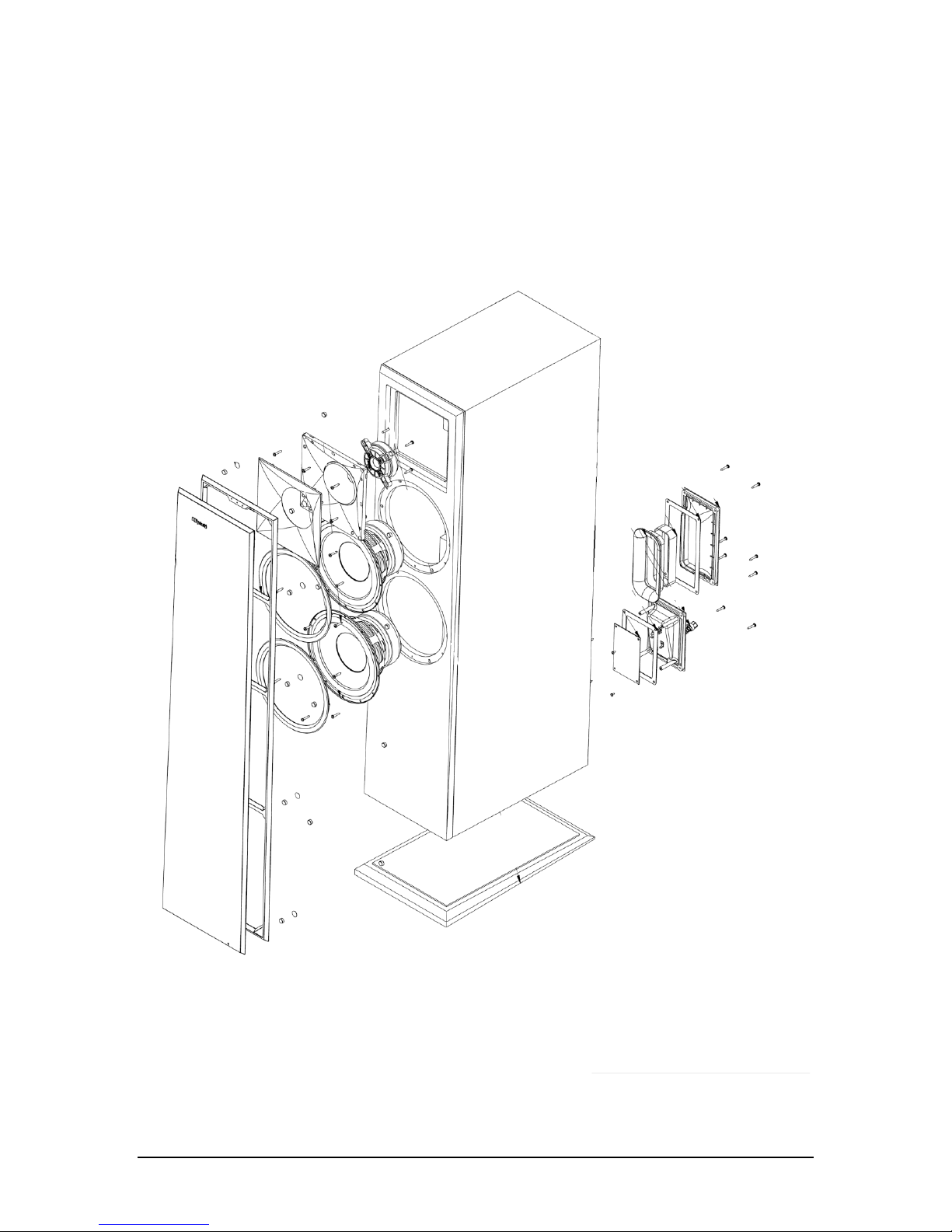

Exploded View

Service Manual –Consumer

Part Number

1060814

1061147

1061107

1061087

1062493

1016198

1060814

1061254

1061108

1061086

1062493

1016198

1060814

1061255

1061023

1061085

1062493

1016198

RP-250F Grill

RP-250F Network Assy

Premiere Binding Post Shorting Straps (Pair)

Rubber Foot

RP-250F Warranty Replacement Parts

RP-260F Warranty Replacment Parts

RP-260F Network Assy

Premiere Binding Post Shorting Straps (Pair)

Rubber Foot

Reference Premiere Tweeter

RP-250F Woofer

Premiere Binding Post Shorting Straps (Pair)

Reference Premiere Floorstanding Speaker Warranty Replacement Parts

Parts Description

Reference Premiere Tweeter

RP-260F Woofer

RP-260F Grill

RP-280F Warranty Replacement Parts

Reference Premiere Tweeter

RP-280F Woofer

RP-280F Grill

RP-280F Network Assy

Warranty Parts List

Service Manual –Consumer

Tweeter Removal for RP-280F, RP-260F, and RP-250F

Tools needed:

3mm hex (Allen) key

Small Flat Blade Screwdriver

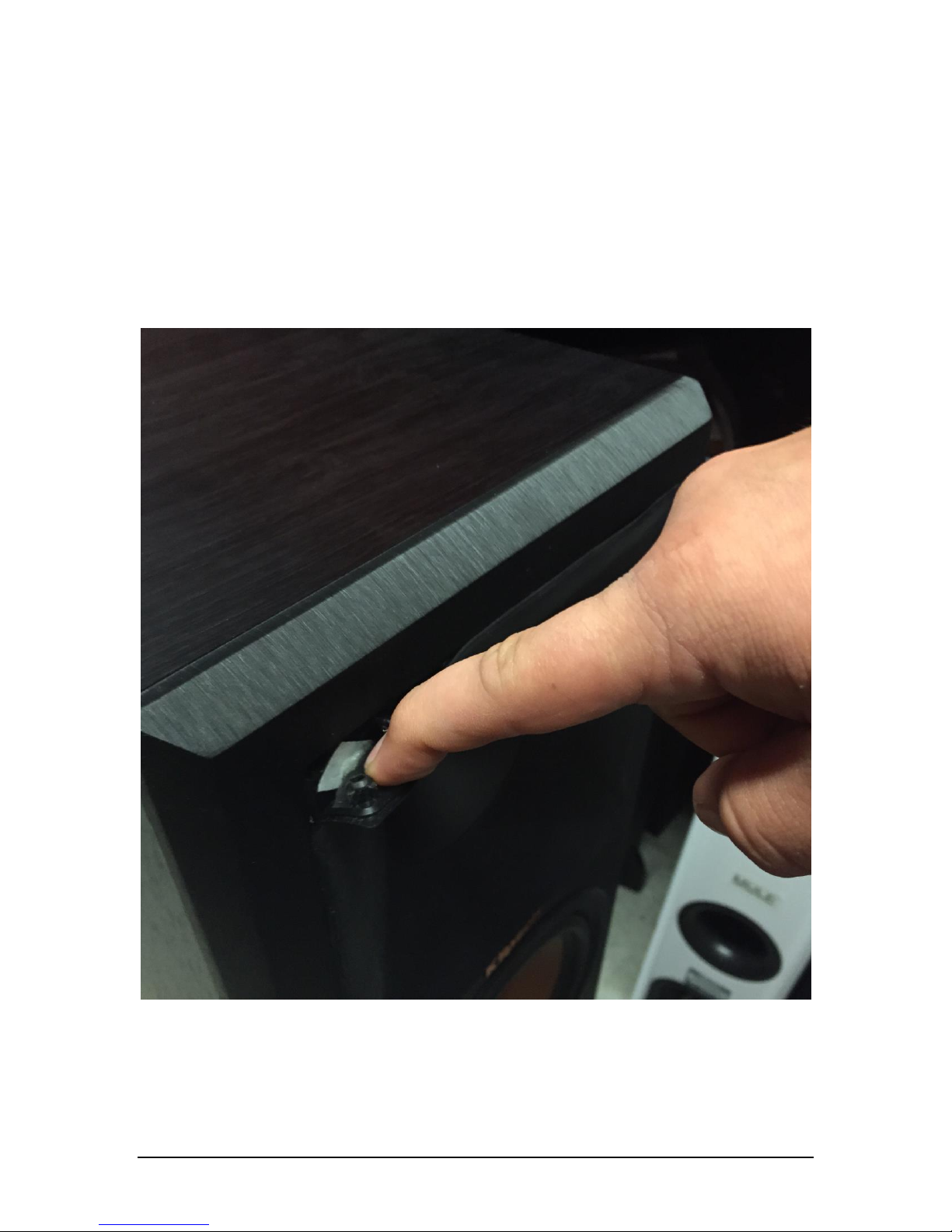

First, gently pry back the silicone tweeter horn lens with your finger-tips as illustrated below

Service Manual –Consumer

Next, begin removing the screws from the perimeter of the tweeter, highlighted in red below.

There will be eight (8) total screws to remove, each using a 3mm hex key head.

Service Manual –Consumer
