Getting Started

The

Kodak Digital Science

calibration utility (calibration utility) allows

your printer to produce the best possible color response. In simplest

terms, printer calibration adjusts the response of the printer so that a

speciﬁc data input value yields a speciﬁc color density output. When a

printer is properly calibrated, it generates the correct density for each

given data value. Calibration considers only a single primary color at a

time and measures the density for the primary color.

Density is one color aspect that can be easily and reliably measured, so

calibrating the Kodak Professional 8670 PS printer(8670 printer) is easy

and straightforward.

The calibration utility lets you select either a visual calibration process or

a more accurate densitometer calibration.

System Requirements

To use the calibration utility, your system must have the following

hardware and software:

Macintosh Systems

Recommended System Conﬁguration

•

a 68040 or PowerPC processor

•

Apple Operating System 7.5 or higher software

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

•

16 MB of RAM

•

color monitor

•

export module for the 8670 printer

•

densitometer if you will be doing the densitometer calibration procedure

Minimum System Conﬁguration

•

68030 processor

•

Apple Operating System 7.1

•

8 MB of RAM

•

standard color or black and white monitor (minimum resolution 640 x

400 pixels

•

export module for the 8670 printer

•

densitometer if you will be doing the densitometer calibration

NOTE: The export module software for Macintosh systems is included on

the software CD that came with your printer. Windows Systems

Recommended System Conﬁguration

•

486 or Pentium processor

•

MS-DOS version 6.22 or later

•

Microsoft Windows for workgroups 3.11 or Windows 95 software

•

16 MB of RAM

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

•

4 MB of hard disk space

•

color monitor

•

export module for the 8670 printer

•

densitometer if you will be doing the densitometer calibration

Minimum System Conﬁguration

•

386 processor

•

MS-DOS version 5.0 or later

•

Microsoft Windows 3.1, Windows for workgroups 3.11, or Windows 95

software

•

8 MB of RAM

•

4 MB or hard disk space

•

standard color or black and white monitor (standard VGA; minimum

resolution 640 x 480 pixels)

NOTE: The export module software for Windows systems is included on

the software CD that came with your printer.

Installing the Software for the Calibration Utility

The software for the calibration utility and the export module are included

on the CD that came with your printer. Install the CD in the CD-ROM

drive, and use the browser to locate and install the software.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Getting Started with the Calibration Utility

Before you use the calibration utility, you should be thoroughly familiar

with how to operate the printer. If you plan to use the densitometer

calibration, you should be familiar with densitometry and how to operate

and calibrate your densitometer.

How Often To Calibrate

Calibrate your printer whenever the density or color balance of the prints

do not look correct.You may also want to calibrate your printer after it has

been serviced. Be sure that you calibrate for the correct media installed.

Calibrating your printer means calibrating the printing system—printer

and media.

Calibration Methods

The visual calibration components of the calibration utility include Easy

Cal, Visual Gray Balance, and Visual Linearity. While these methods do

not yield as accurate a result as a densitometer calibration, they can

make signiﬁcant improvements in the consistency of results.

Easy Cal

—a ﬁve-step process to quickly calibrate your printer using the

Visual Gray Balance calibration. Refer to “Easy Cal”for instructions on

running an Easy Cal calibration.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Visual Gray Balance

—calibrates your printer so that it produces a

neutral gray. Visual Gray Balance calibration ensures that the correct

percentages of cyan, magenta, and yellow dye are printed over the entire

tonal range to produce a neutral gray. Use the Visual Gray Balance

calibration if the color balance of your prints is not correct. Refer to

“Visual Gray Balance”for instructions on running a Visual Gray Balance

calibration.

Visual Linearity

—calibrates your printer for the correct lightness/

darkness.Visual Linearity ensures that your printer produces an accurate

representation of the requested density values over the entire tonal

range. Use the Visual Linearity calibration if the color balance is correct,

but the density is too dark or light. Refer to “Visual Linearity”for

instructions on running a Visual Linearity calibration.

Densitometer Calibration

A densitometer calibration calibrates your printer’s response based on the

densitometer reading for selected patches on a test print. Calibrating your

printer with a densitometer yields the most accurate calibration results for

color balance and density. Refer to “Densitometer Calibration”for

instructions on running a Densitometer calibration.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Starting the Calibration Utility

The following steps describe how to start the calibration utility:

NOTE: The illustrations in this chapter show Macintosh system dialog

boxes. The dialog boxes for Windows are similar and have

identical functionality.

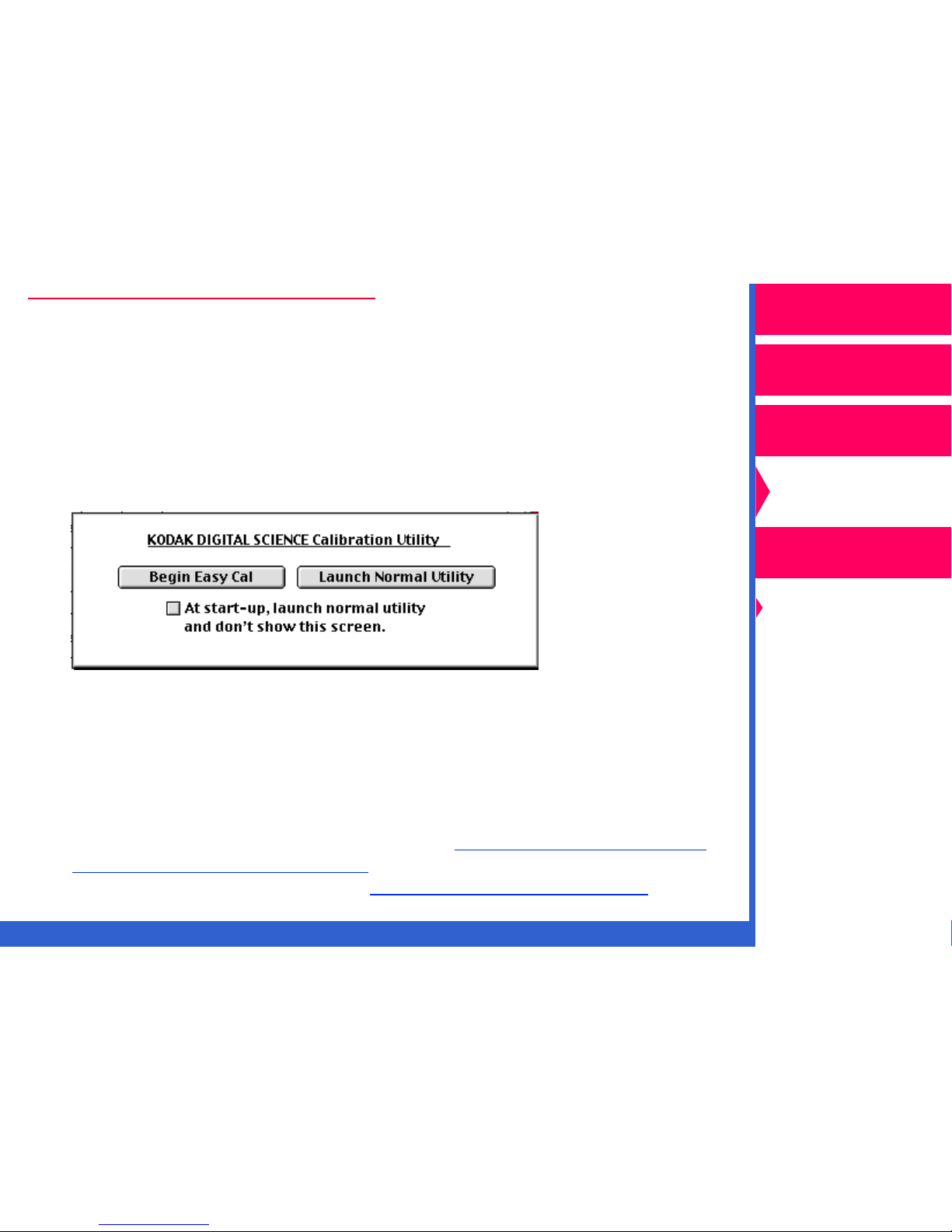

Double-click on the icon for the calibration utility.

The calibration utility selection box opens.

Do one of the following:

•

Click on

Begin Easy Cal

to launch Easy Cal,

•

Click on

Launch Normal Utility

to use the other calibration

procedures.

For information about the Normal Utility, refer to “Using the Normal

Utility to Calibrate Your Printer.” For more information on the

calibration utility selection box, refer to “Option Descriptions.”

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Using the Normal Utility to Calibrate Your Printer

The Normal Utility allows you to create a new calibration document or

start from a previously-saved calibration document.

When you click on

Launch Normal Utility

in the Calibration Utility

selection box, the Normal Utility calibration procedure starts up; and the

Printer Calibration Utility window opens.

NOTE: If this is the ﬁrst time you have run the calibration utility, or there

are no printers on the Select Printer menu, or the Preferences

ﬁles have been deleted, you must select and open the export

module.

For information about creating a new calibration table, refer to

“Creating a New Calibration Document.” For information about

opening an existing calibration document, refer to “Using an Existing

Calibration Table as the Starting Point.”

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Easy Cal

Easy Cal provides you with the steps to guide you through the process of

calibrating your printer based on a Visual Gray Balance calibration.

NOTE: You cannot use Easy Cal to calibrate a printer with a black-only

ribbon.

For a description of the dialog boxes used in Easy Cal, refer to “Option

Descriptions.”

When you click on

Begin Easy Cal

in the Calibration Utility selection

dialog box, the Easy Cal calibration procedure starts up.

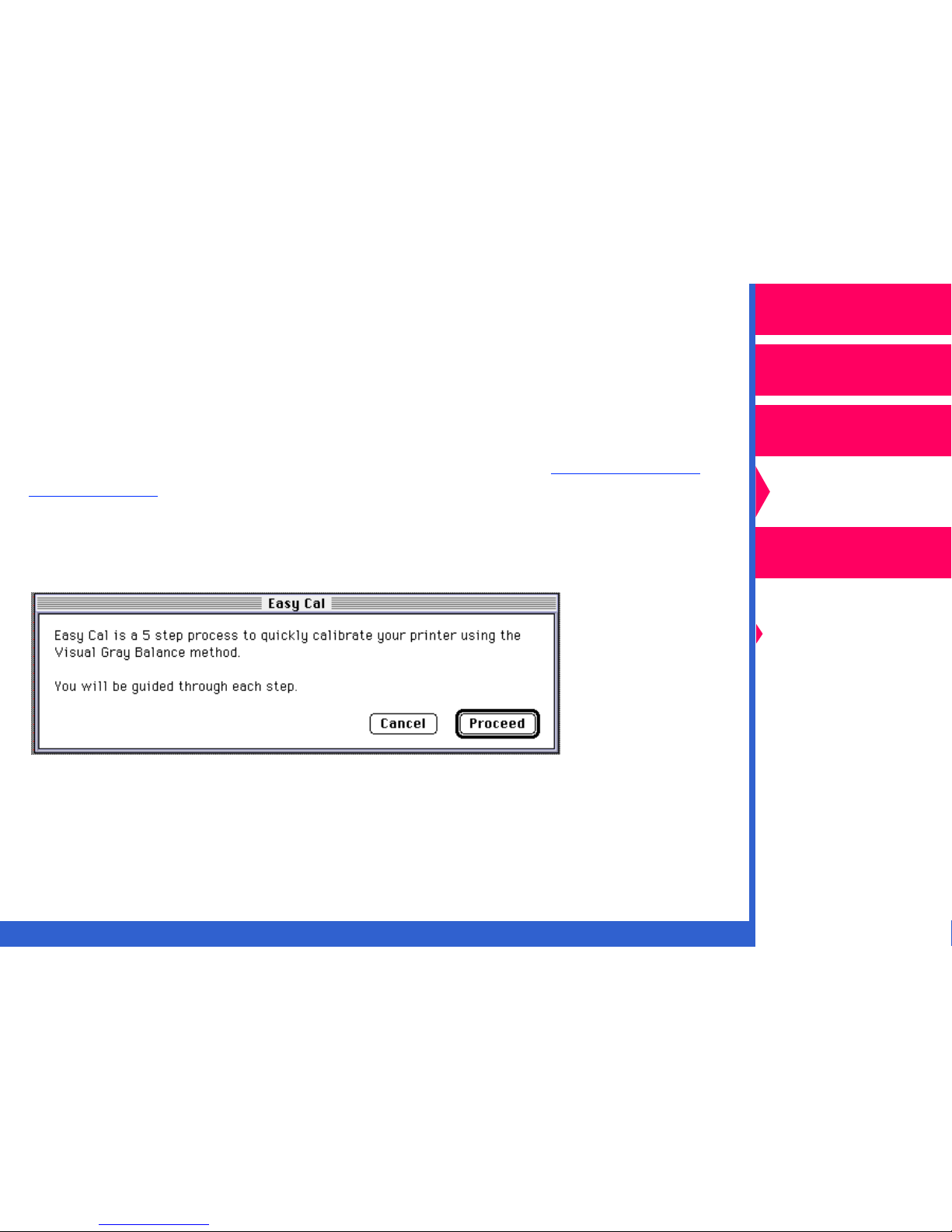

The Easy Cal dialog box appears.

•

Click on

Proceed

NOTE: Clicking on

Cancel

accesses the Normal Utility.

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

Easy Cal Step 1

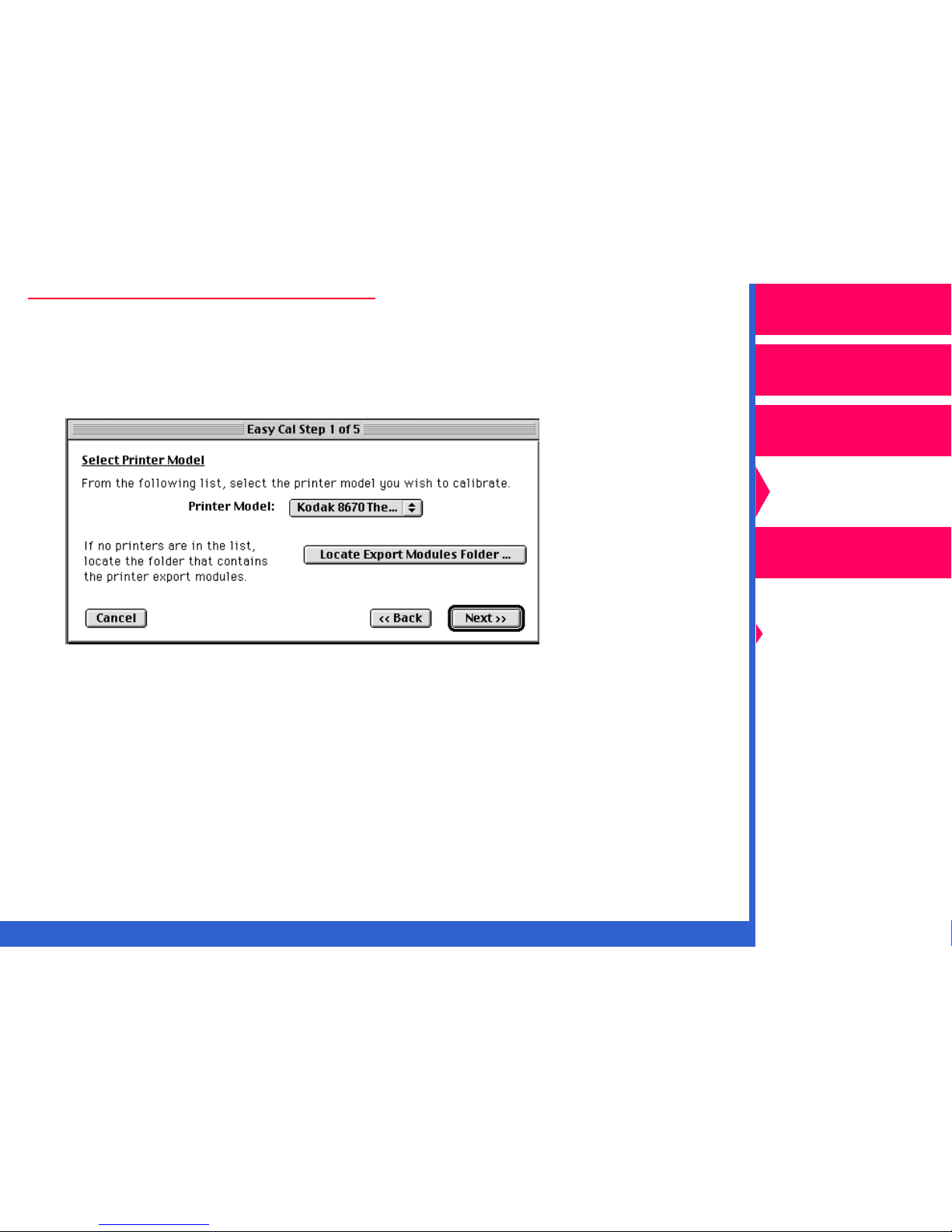

The Easy Cal Step1of 5 dialog box appears. This dialog box allows

you to select the printer model you wish to calibrate and locate the

folder containing the export module.

Select the printer from the Printer Model drop-down list.

NOTE: If the printer you want to calibrate does not appear on the menu,

you must locate and select the export module for that printer.

Click on

Locate Export Modules Folder

In the ﬁle selection box that appears, locate and open the folder that

contains the export module:

•

On Macintosh systems, use the path System Folder:Applications

Support:Kodak:Plug-ins (Printing).

CONTENTS

INDEX

HELP

Operator’s Guide

Printing

Guide

Color Management

Calibration

Getting Started

Easy Cal

Setting Preferences

and Using

Calibration Tables

Visual Gray Balance

Visual Linearity

Densitometer

Calibration

Network

Interface Guide

•

On Windows systems, use the path C:\Windows\Kodak\Plugins

(Printing).

Select the export module, and click on

Open

.You are returned to the

Easy Cal Step 1 of 5 dialog box.

Click on

Next.

Easy Cal Step 2

The Easy Cal Step 2 of 5 dialog box appears.

If you want to calibrate a different printer than the one that appears in

the Printer box, go to Step 2 in this procedure. If you do not need to

select a new printer, click on

to go to Easy Cal Step 3 of 5.

Click on

Select Printer

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kodak Stampante

Kodak

Kodak 305 Manuale di installazione e funzionamento

Kodak

Kodak G610 - EasyShare Printer Dock Photo Manuale utente

Kodak

Kodak EasyShare G600 Manuale utente

Kodak

Kodak NexPress 2500 Guida all'installazione

Kodak

Kodak Mini 2 Manuale utente

Kodak

Kodak 1200I Manuale dell'operatore

Kodak

Kodak NovaJet 850 Guida all'installazione

Kodak

Kodak DryView 8150 Manuale utente

Kodak

Kodak Ektascan 1120 Manuale utente

Kodak

Kodak PROFESSIONAL LED II 20R Manuale utente

Kodak

Kodak XLS 8300 Manuale utente

Kodak

Kodak DUPLEX DL2100 Manuale utente

Kodak

Kodak 1400 Manuale utente

Kodak

Kodak 8660 - EXPORT MODULE GUIDE Manuale

Kodak

Kodak Dryview 5800 Manuale utente

Kodak

Kodak VERSAMARK DP5120 Manuale utente

Kodak

Kodak Ektascan 2180 Manuale utente

Kodak

Kodak 1400 Manuale utente

Kodak

Kodak Apex 7015 Manuale utente

Kodak

Kodak 305 Manuale utente

Kodak

Kodak EasyShare G600 Manuale utente

Kodak

Kodak PROFESSIONAL LED II 20P Manuale

Kodak

Kodak 8810 Manuale utente

Kodak

Kodak DryView 8150 Manuale utente

Manuali Stampante popolari di altre marche

Lexmark

Lexmark 1400 Series Manuale

Canon

Canon i70 Series Manuale utente

Evolis

Evolis Elypso Manuale utente

Kyocera

Kyocera FS-9530DN Manuale utente

Canon

Canon LASER SHOT LBP-1210 Manuale utente

Samsung

Samsung BIXOLON SRP-350plusF Manuale utente

Canon

Canon PIXMA PRO-1 Series Manuale utente

Canon

Canon PIXMA G3560 Guida all'installazione

Dell

Dell Color Laser Printer 2130cn Manuale utente

Tektronix

Tektronix Phaser 840 Manuale utente

Epson

Epson ET-7750 Istruzioni operative

Canon

Canon CLBR 460ps Manuale utente

Eltron

Eltron P210 Guide Manuale utente

Ricoh

Ricoh MD-P1 Manuale utente

Epson

Epson SC-F7100 series Manuale utente

Epson

Epson Stylus C40UX Manuale utente

Canon

Canon imagePASS-A2 Manuale utente

Canon

Canon S820D Manuale utente
