Kohler K-10668 Istruzioni per il montaggio

Homeowners Guide

Exposed Flush Valve

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-10668

1140767-5-A

Table of Contents

EC Declaration of Conformity ............................. 3

Important Information ................................... 4

Your Kohler Electronic Valve .............................. 4

Control Stop Valve Operation ............................. 6

Remove the DC Sensor ................................. 7

Replace the Battery .................................... 8

Install the DC Sensor ................................... 9

Remove the Solenoid .................................. 10

Install the Solenoid .................................... 11

Clean/Replace the Diaphragm ........................... 12

Replace the Vacuum Breaker ............................ 14

Replace the Button Assembly ............................ 15

Warranty ........................................... 15

Troubleshooting ...................................... 17

Service Parts ........................................ 22

1140767-5-A 2 Kohler Co.

EC Declaration of Conformity

declare under our sole responsibility that our products, ELECTRONIC FLUSH VALVES, models:

We,

Kohler Company

444 Highland Drive, Kohler, WI 53044

Phone 920-457-4441

EC DECLARATION OF CONFORMITY

K-10673

to which this declaration relates, are in conformity with the following standards:

Electromagnetic Compatibility Directive 89/336/EEC of 3 May 1989 as Amended by

92/31/EEC of 28 April 1992 and 93/68/EEC, Article 5 of 22 July 1993, based on:

• IEC 61000/ IEC 61000-3-:

"Electromagnetic Compatibility (EMC)";

Part 3: "Limits".

Section 2. "Limits for harmonic current emissions (equipment input current up to and including

16A per phase" (2000).

Section 3. "Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage

supply systems, for equipment with rated current <16 A per phase and not subjected to

conditional connection" (1995 + A1:2001).

• EN 61000-6-2/ EN 61000-6-2:

"Electromagnetic Compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial

environments" (2001).

• EN 55022 Class B:

"Information technology equipment – Radio disturbance characteristics – Limits and methods of

measurements" (1998 A1:2000 + A2:2003).

Low Voltage Directive 73/23/EEC of 19 February 1973 as Amended by 93/68/EEC, Article 13 of

22 July 1993, based on:

• EN 60730/1:

"Specification for Automatic Electrical Controls for Household and Similar Use. General

Requirements".

• EN 60730/2/8:

"Specification for Automatic Electrical Controls for Household and Similar Use. Particular

Requirements for Electrically Operated Water Valves, Including Mechanical Requirements".

Timothy J. Stessman

Codes & Standards Dept.

Kohler Company

November 18, 2008

DateSignature

November 18, 2008 08

K-10677

K-10674

K-10678

K-10675

K-10679

K-10676 K-10668

K-10666

Kohler Co. 3 1140767-5-A

Important Information

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including

interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures.

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

•Consult the dealer or an experienced radio/television technician

for help.

Modiﬁcations: Any modiﬁcations made to this device that are not

approved by Kohler Co. may void the authority granted to the user by

the FCC to operate this equipment.

This Class B digital apparatus complies with Canadian ICES-003.

Your Kohler Electronic Valve

Design Features

The valve is designed speciﬁcally for use with 1-1/2″(1.9 cm) top spud

toilets as offered by Kohler Company and others.

The valve is supplied with factory preset timing values. No

programming or adjustment is required.

1140767-5-A 4 Kohler Co.

Your Kohler Electronic Valve (cont.)

Depending upon use,a9Vlithium battery can be expected to last for

two to three years before replacement is required.

Flush Operations

The exposed electronic valve provides the following ﬂushing

operations:

Wave activated main ﬂush operation: Shortly after the individual

departs the ﬁxture, the valve provides a main ﬂush that lasts for

several seconds.

Automatic 24-hour ﬂush operation: After 24-hours of non-use,

the valve produces a full ﬂush.

Low Battery Indication

The 9 V lithium battery can be expected to last for two to three years

before replacement is required. When the battery reaches a certain

point in its lifetime, the valve announces the low battery condition by

continuously ﬂashing an LED whenever a user is in range. The battery

is easily replaced as described in the section ″Replace the Battery″in

this guide.

Replacement batteries can be purchased from drugstores or other stores

stocking batteries. The required battery is a standard 9 V lithium.

Seasonal Use

The exposed electronic valve is not designed for operation in freezing

conditions. If freezing conditions are expected, isolate and drain the

valve along with whatever other winterization steps are taken for the

facility.

Mobile Use

The exposed electronic valve is not designed for use in moving

environments such as boats.

Kohler Co. 5 1140767-5-A

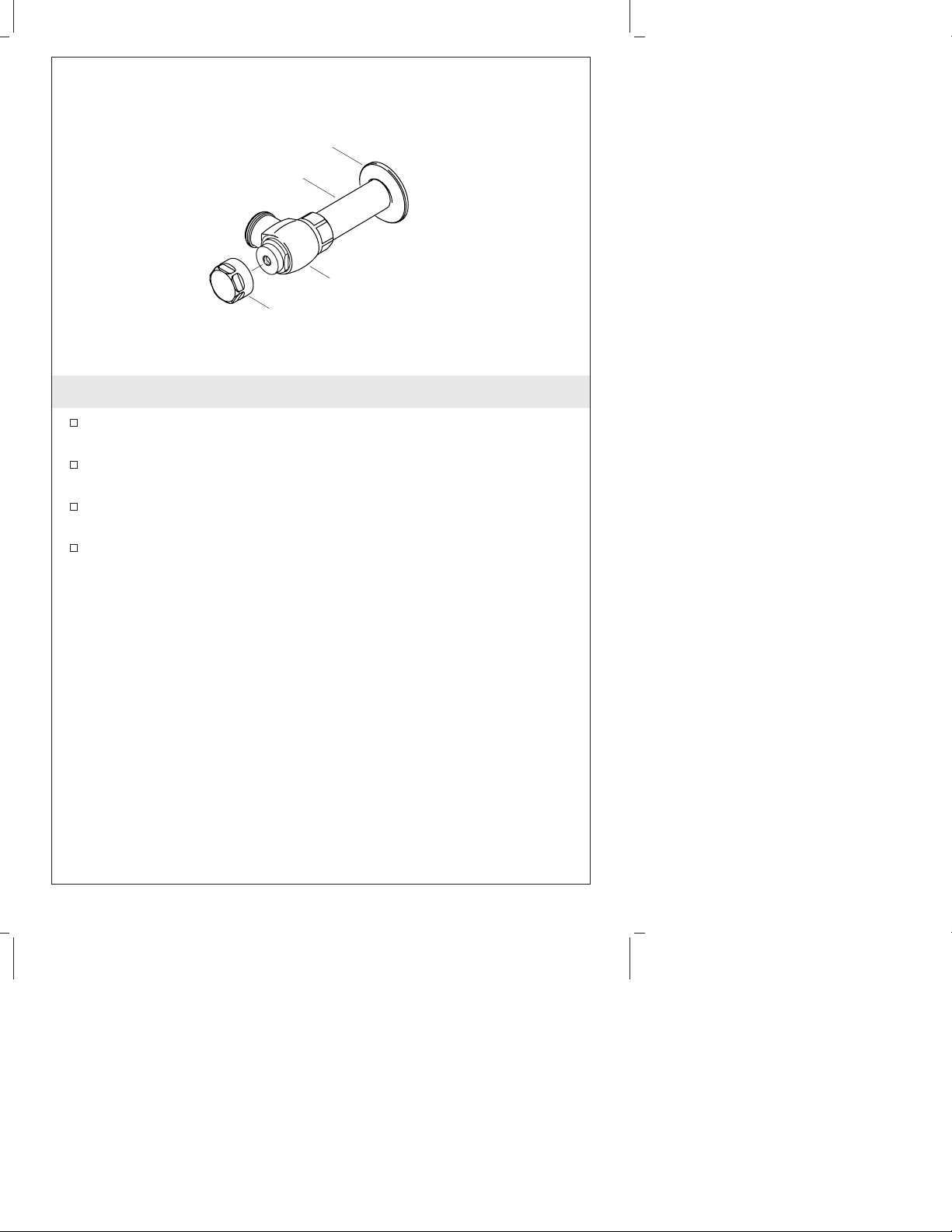

Control Stop Valve Operation

Use a strap wrench to remove the vandal-resistant cap from the

control stop valve.

Close the stop valve by turning the valve screw clockwise as far

as it can go.

Open the stop valve by turning the valve screw counterclockwise

as far as it can go.

When done, place the stop cap on the control stop valve and

tighten using a strap wrench.

Wall Flange

Wall Tube

Control Stop

Stop Cap

1140767-5-A 6 Kohler Co.

Remove the DC Sensor

Close the control stop valve (refer to the ″Control Stop Valve

Operation″section).

Using a 3/32″hex head wrench, remove the setscrew from the

valve cap.

Remove the cap by carefully lifting from the valve body.

Disconnect the DC sensor connector to the solenoid by grasping

each side of the connector pair and pulling apart. Do not separate

the connector pair by pulling on the wires.

Position the cap on its side and look inside.

Remove the battery.

Remove the screws that hold the DC sensor in place inside the

cap.

Turn the cap over and slide the DC sensor, sensor strap, and

screws into your hand.

NOTE: The battery inside the sensor may be considered hazardous

waste. Discard the old DC sensor and/or battery in accordance with

any applicable codes.

If replacing the DC sensor, discard the old DC sensor and battery.

Cap

Setscrew

DC Sensor

Connector

Sensor Strap

Screw

Kohler Co. 7 1140767-5-A

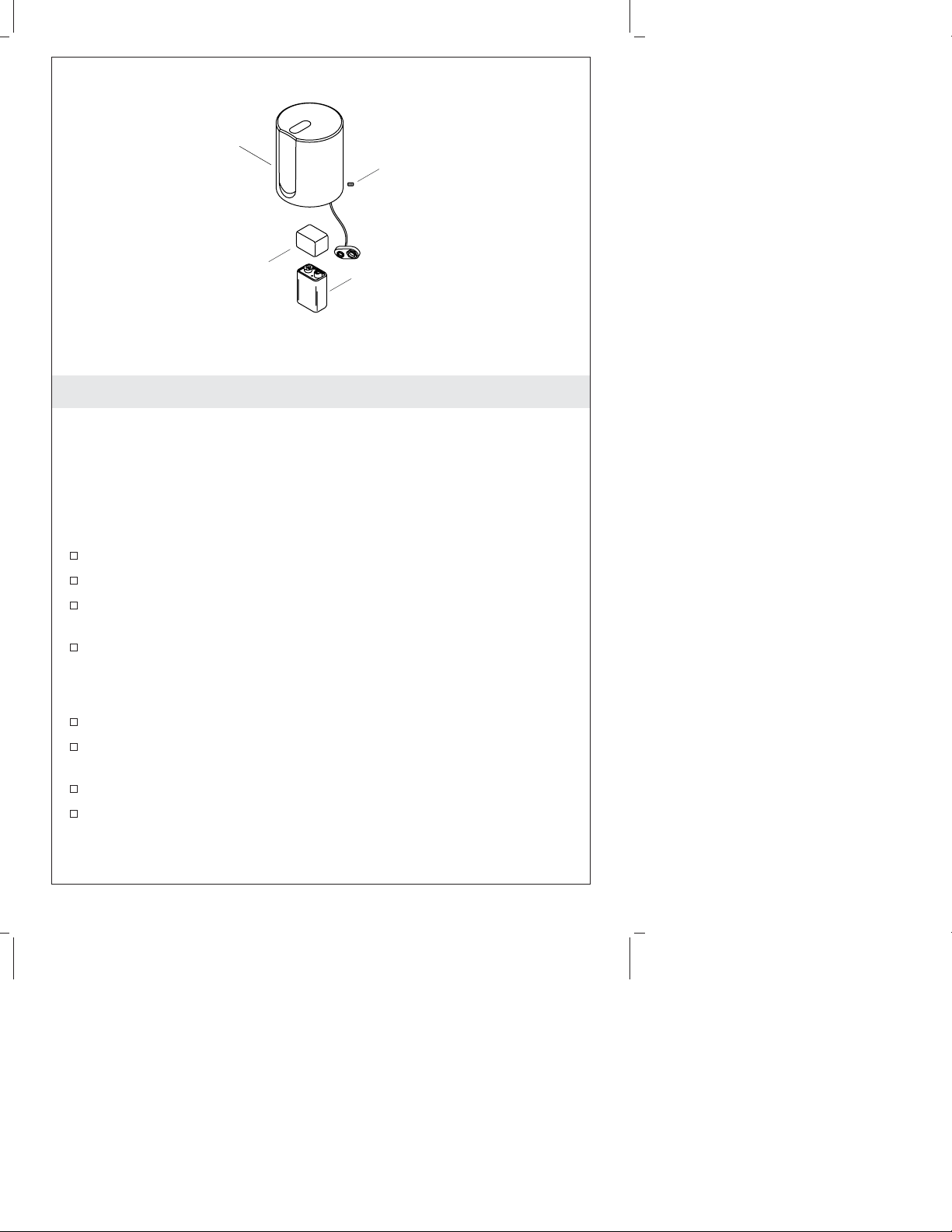

Replace the Battery

NOTE: When purchasing a replacement battery, selecta9Vlithium

battery.

NOTE: If replacing the sensor, install a battery in the new sensor

unit before installing the sensor.

NOTE: It is not necessary to remove the sensor from the cap to

replace the battery.

Using a 3/32″hex wrench, remove the setscrew from the cap.

Remove the cap.

Using a small, ﬂat-blade screwdriver (if necessary), carefully pry

the battery from the cap.

Disconnect the battery and remove the battery boot.

NOTE: The battery may be considered hazardous waste. Discard the

old battery in accordance with any applicable codes.

Discard the old battery.

Connect the new battery. Install the battery boot over the

connections.

Reinstall the battery into the cap.

Reinstall the cap.

Battery

Setscrew

Battery Boot

Cap

1140767-5-A 8 Kohler Co.

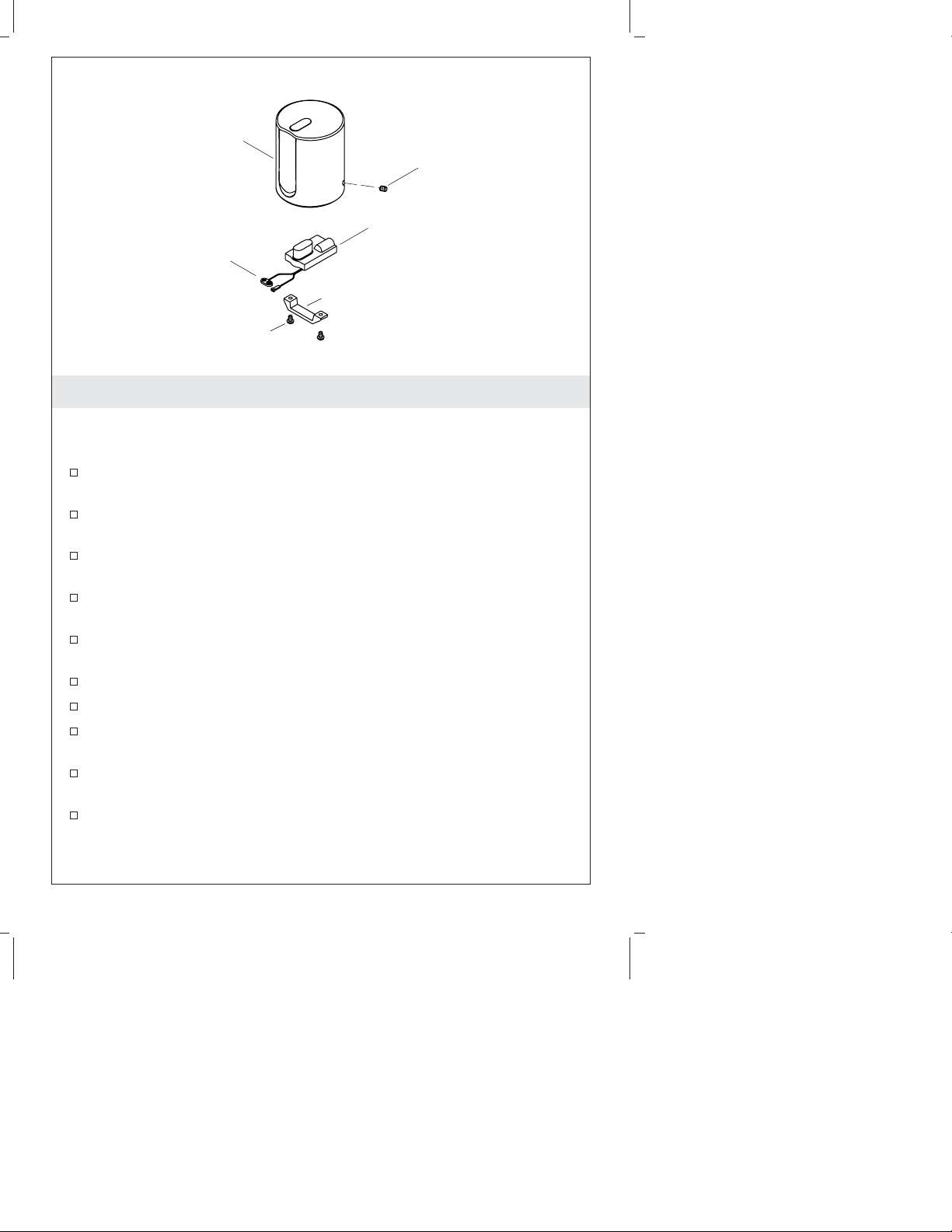

Install the DC Sensor

NOTICE: Do not pinch or kink the wires between the cap and the

valve body. If the wires are damaged, the unit may not operate.

Hold the cap vertically with the sensing holes down and align the

DC sensor with the cap.

Slide the DC sensor into the cap until the sensor eye aligns with

the hole in the cap. Ensure the sensor wires are not pinched.

Place the sensor strap over the DC sensor and tighten the screws

in the cap until snug.

Connect the DC sensor connector to the solenoid connector on the

valve. Ensure that the connector pair is fully seated.

Locate the connector assembly adjacent to the battery to prevent

pinching when the cap is reinstalled on the valve.

Place the cap on the valve body.

Secure the cap with the setscrew.

Open the control stop valve (refer to the ″Control Stop Valve

Operation″section).

Reinstall the stop cap onto the control stop and tighten ﬁrmly

with a strap wrench.

Verify that the valve functions.

Cap

Setscrew

DC Sensor

Connector

Sensor Strap

Screw

Kohler Co. 9 1140767-5-A

Remove the Solenoid

Close the control stop valve (refer to the ″Control Stop Valve

Operation″section).

NOTE: If the unit has not ﬂushed since the stop valve was closed,

the inlet arm may still be pressurized. Use the manual ﬂush button

to release pressure.

Use a 3/32″hex wrench to remove the setscrew from the cap.

Remove the cap.

Disconnect the DC sensor connector from the solenoid connector

by pulling the two connectors apart.

Temporarily store the cap and DC sensor assembly in a safe

place.

Use an adjustable wrench to remove the solenoid assembly from

the valve body by unscrewing counterclockwise until the solenoid

is free.

Valve Body

Diaphragm

Cap

Setscrew

O-Ring

Piston

Retaining Nut

Spring

Piston Cover

Solenoid

Connector

DC Sensor

Connector

Solenoid

Assembly

1140767-5-A 10 Kohler Co.

Indice

Lingue:

Altri manuali Kohler Unità di controllo

Kohler

Kohler K-407 Manuale utente

Kohler

Kohler K-307 Manuale utente

Kohler

Kohler DTV+ Konnect K-97999-NA Manuale utente

Kohler

Kohler K-14677 Istruzioni per il montaggio

Kohler

Kohler K-682 Manuale utente

Kohler

Kohler K-76746GL-NA Manuale utente

Kohler

Kohler K-10675 Manuale utente

Kohler

Kohler K-402 Istruzioni per il montaggio

Kohler

Kohler Rite-Temp K-8304-K Manuale utente

Kohler

Kohler K-10675 Manuale operativo

Kohler

Kohler K-528 Manuale utente

Kohler

Kohler K-10956 Manuale operativo

Kohler

Kohler TOUCHLESS K-13686 Manuale utente

Kohler

Kohler K301 Manuale utente

Kohler

Kohler K-528-K1 Istruzioni per il montaggio

Kohler

Kohler K-T10669 Istruzioni per il montaggio

Kohler

Kohler K-19537P Manuale utente

Kohler

Kohler DTV+ Istruzioni per il montaggio

Kohler

Kohler K-2971 Manuale utente

Kohler

Kohler Mira Select B14C Manuale utente

Kohler

Kohler K-304 Istruzioni per il montaggio

Kohler

Kohler K-305 Istruzioni per il montaggio

Kohler

Kohler 28139T-DR Manuale utente

Kohler

Kohler K-175 Istruzioni per il montaggio

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
