K-10675, K-10676, K-10678, K-10679
1108712-5-D
Table of Contents
EC Declaration of Conformity ............................. 3
Important Information ................................... 4
Your Kohler Electronic Valve .............................. 4
Control Stop Valve Operation ............................. 6
Remove The DC Sensor ................................ 7
Replace The Battery ................................... 8
Install The DC Sensor .................................. 9
Remove the Solenoid .................................. 10
Install The Solenoid ................................... 11
Clean the Screen/Replace the Piston ...................... 12
Clean/Replace the Diaphragm ........................... 14
Replace the Vacuum Breaker ............................ 16
Replace the Button Assembly ............................ 17
Warranty ........................................... 17
Troubleshooting ...................................... 19
Service Parts ........................................ 23
1108712-5-D 2 Kohler Co.
EC Declaration of Conformity
declare under our sole responsibility that our products, ELECTRONIC FLUSH VALVES, models:
We,
Kohler Company
444 Highland Drive, Kohler, WI 53044
Phone 920-457-4441
EC DECLARATION OF CONFORMITY
K-10673
to which this declaration relates, are in conformity with the following standards:
Electromagnetic Compatibility Directive 89/336/EEC of 3 May 1989 as Amended by
92/31/EEC of 28 April 1992 and 93/68/EEC, Article 5 of 22 July 1993, based on:
• IEC 61000/ IEC 61000-3-:
"Electromagnetic Compatibility (EMC)";
Part 3: "Limits".
Section 2. "Limits for harmonic current emissions (equipment input current up to and including
16A per phase" (2000).
Section 3. "Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage
supply systems, for equipment with rated current <16 A per phase and not subjected to
conditional connection" (1995 + A1:2001).
• EN 61000-6-2/ EN 61000-6-2:
"Electromagnetic Compatibility (EMC) – Part 6-2: Generic standards – Immunity for industrial
environments" (2001).
• EN 55022 Class B:
"Information technology equipment – Radio disturbance characteristics – Limits and methods of
measurements" (1998 A1:2000 + A2:2003).
Low Voltage Directive 73/23/EEC of 19 February 1973 as Amended by 93/68/EEC, Article 13 of
22 July 1993, based on:
• EN 60730/1:
"Specification for Automatic Electrical Controls for Household and Similar Use. General
Requirements".
• EN 60730/2/8:
"Specification for Automatic Electrical Controls for Household and Similar Use. Particular
Requirements for Electrically Operated Water Valves, Including Mechanical Requirements".
Timothy J. Stessman
Codes & Standards Dept.
Kohler Company
November 18, 2008
DateSignature
November 18, 2008 08
K-10677
K-10674
K-10678
K-10675
K-10679
K-10676 K-10668
K-10666
Kohler Co. 3 1108712-5-D
Important Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures.
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/television technician
for help.
Modifications: Any modifications made to this device that are not
approved by Kohler Co. may void the authority granted to the user by
the FCC to operate this equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Your Kohler Electronic Valve
Design Features
Your new Kohler exposed electronic valve is precision engineered and
constructed of premium quality materials to provide trouble-free
operation even under the hardest water conditions.
The valve is designed specifically for use with 3/4″(19 mm) or 1-1/4″
(32 mm) top spud urinals as offered by Kohler Company and others.
1108712-5-D 4 Kohler Co.
Your Kohler Electronic Valve (cont.)
The valve is supplied with factory preset timing values. No
programming or adjustment is required.
Depending upon use,a9Vlithium battery can be expected to last for
two to three years before replacement is required.
Flush Operations
The exposed electronic valve provides the following flushing
operations:
Wave activated main flush operation: When a hand is waved
over the sensor, the valve provides a main flush.
Automatic 24-hour flush operation: After 24-hours of non-use,
the valve produces a full flush.
Low Battery Indication
The 9 V lithium battery can be expected to last for two to three years
before replacement is required. When the battery reaches a certain
point in its lifetime, the valve announces the low battery condition by
continuously flashing an LED whenever a user is in range. The battery
is easily replaced as described in the section ″Replace the Battery″in
this guide.
Replacement batteries can be purchased from drugstores or other stores
stocking batteries. The required battery is a standard 9 V lithium.
Seasonal Use
The exposed electronic valve is not designed for operation in freezing
conditions. If freezing conditions are expected, isolate and drain the
valve along with whatever other winterization steps are taken for the
facility.
Mobile Use
The exposed electronic valve is not designed for use in moving
environments such as boats.
Kohler Co. 5 1108712-5-D
Control Stop Valve Operation
NOTE: A flat-blade screwdriver must be used to remove the stop
cap and adjust the valve position.
Using a flat-blade screwdriver, pry the vandal-resistant stop cap
from the control stop.
To close the stop valve: Turn the valve screw clockwise until the
end of travel is reached.
To open the stop valve: Turn the valve screw counterclockwise
until the end of travel is reached.
When done, place the cap on the control stop, then gently tap the
control stop into place with the screwdriver handle.
Wall Flange
Wall Tube
Control Stop
Stop Cap
1108712-5-D 6 Kohler Co.

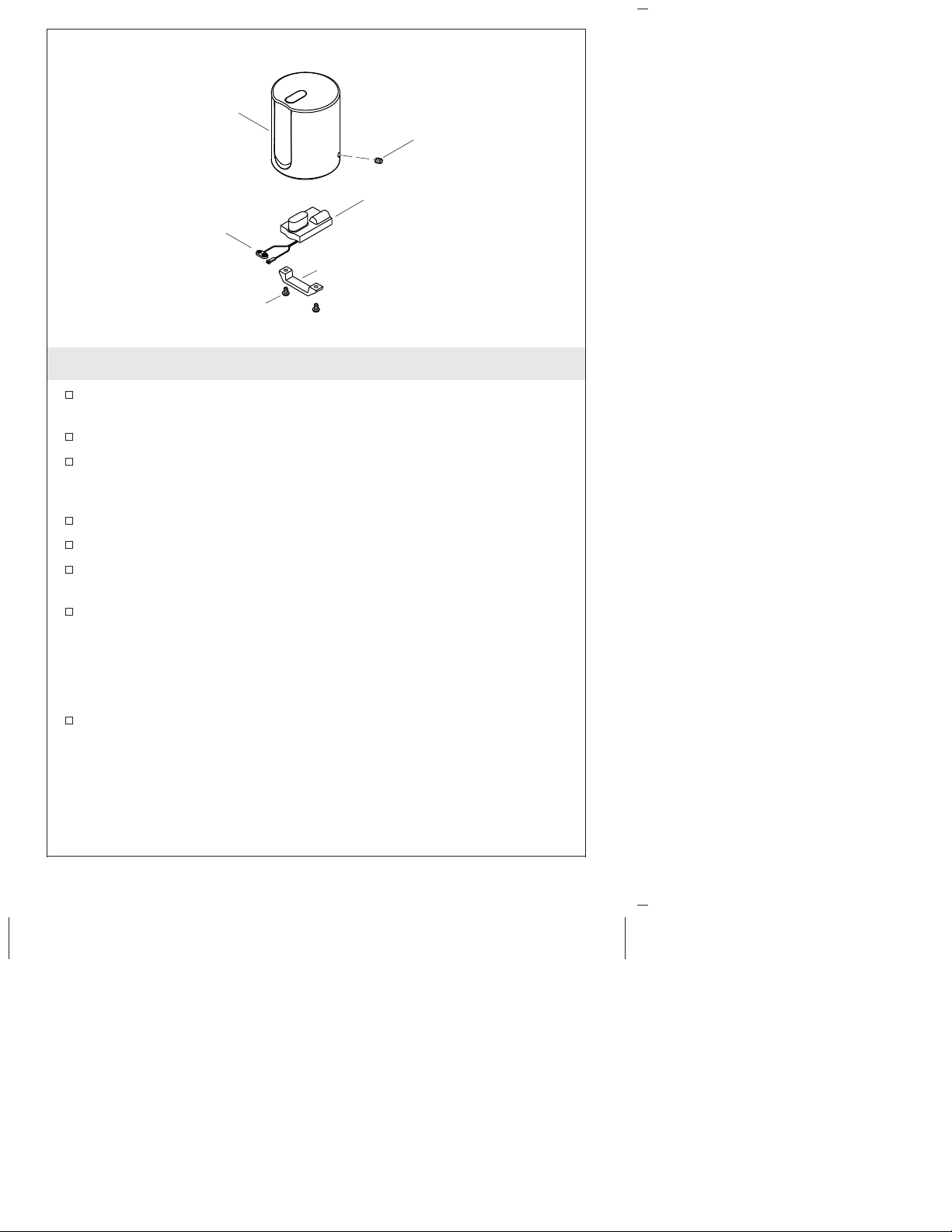

Remove The DC Sensor
Using a 3/32″hex head wrench, remove the setscrew from the
valve cap.
Remove the cap by carefully lifting from the valve body.
Disconnect the DC sensor connector to the solenoid by grasping
each side of the connector pair and pulling apart. Do not separate
the connector pair by pulling on the wires.
Position the cap on its side and look inside.
Remove the battery.
Remove the screws that hold the DC sensor in place inside the
cap.
Turn the cap over and slide the DC sensor, sensor strap, and
screws into your hand.
NOTE: The battery inside the sensor may be considered hazardous
waste. Discard the old DC sensor and/or battery in accordance with
any applicable codes.
If replacing the DC sensor, discard the old DC sensor and battery.
Cap
Setscrew
DC Sensor
DC Sensor
Connector
Sensor Strap
Screw
Kohler Co. 7 1108712-5-D
Replace The Battery
NOTE: When purchasing a replacement battery, selecta9Vlithium
battery.
NOTE: It is not necessary to remove the sensor from the cap to
replace the battery.
Using a 3/32″hex wrench, remove the setscrew from the cap.
Remove the cap.
Using a small, flat-blade screwdriver (if necessary), carefully pry
the battery from the cap.
Disconnect the battery and remove the battery boot.
NOTE: The battery may be considered hazardous waste. Discard
the old battery in accordance with any applicable codes.
Discard the old battery.
Connect the new battery. Install the battery boot over the
connections.
Reinstall the battery into the cap.
Reinstall the cap.
Battery
Setscrew
Battery Boot
Cap
1108712-5-D 8 Kohler Co.
Install The DC Sensor
NOTICE: Do not pinch or kink the wires between the cap and the
valve body. If the wires are damaged, the unit may not operate.
Hold the cap vertically with the sensing holes down and align the
DC sensor with the cap.
Slide the DC sensor into the cap until the sensor eye aligns with
the hole in the cap. Ensure the sensor wires are not pinched.
Place the sensor strap over the DC sensor and tighten the screws
in the cap until snug.
Connect the DC sensor connector to the solenoid connector on the
valve. Ensure that the connector pair is fully seated.
Locate the connector assembly adjacent to the battery to prevent
pinching when the cap is reinstalled on the valve.
Place the cap on the valve body.
Secure the cap with the setscrew.
Verify that the valve functions correctly.
Cap
Setscrew
DC Sensor
DC Sensor
Connector
Sensor Strap
Screw
Kohler Co. 9 1108712-5-D
Remove the Solenoid
Close the control stop valve (refer to the ″Control Stop Valve
Operation″section).
NOTE: If the unit has not flushed since the stop valve was closed,
the inlet arm may still be pressurized. Use the manual flush button
to release pressure.
Use a 3/32″hex wrench to remove the setscrew from the cap.
Remove the cap.
Disconnect the DC sensor connector from the solenoid connector
by pulling the two connectors apart.
Temporarily store the cap and DC sensor assembly in a safe
place.
Use an adjustable wrench to remove the solenoid assembly from
the valve body by unscrewing counterclockwise until the solenoid
is free.
Valve Body
Diaphragm
Cap
Setscrew
O-Ring
Piston
Retaining Nut
Pin
Spring
Piston Cover
Solenoid
Connector
DC Sensor
Connector
Solenoid
Assembly
1108712-5-D 10 Kohler Co.
Altri manuali per K-10675
2
Questo manuale è adatto per i seguenti modelli
3
Indice
Lingue:
Altri manuali Kohler Unità di controllo
Kohler
Kohler 28138T Manuale utente
Kohler
Kohler K-10675 Manuale utente
Kohler
Kohler K-308 Manuale utente
Kohler
Kohler K-14677 Istruzioni per il montaggio
Kohler
Kohler K-528 Manuale utente
Kohler
Kohler K-11842 Series Istruzioni per il montaggio
Kohler
Kohler K-175 Manuale utente
Kohler
Kohler K-402 Istruzioni per il montaggio
Kohler
Kohler K-10673 Manuale operativo
Kohler
Kohler K-19537P Manuale utente
Kohler
Kohler 5-10EKD Manuale utente
Kohler
Kohler K-2971 Istruzioni per il montaggio
Kohler
Kohler K-10675 Manuale operativo
Kohler
Kohler Mira Select B14C Manuale utente
Kohler
Kohler K-402 Manuale utente
Kohler
Kohler BEAM K-77691K-G Manuale utente
Kohler
Kohler 1216612 Manuale utente
Kohler
Kohler K-304 Istruzioni per il montaggio
Kohler
Kohler K-400 Manuale utente
Kohler
Kohler K-2971 Manuale utente
Manuali Unità di controllo popolari di altre marche
Festo
Festo Compact Performance CP-FB6-E Manuale elenco delle parti
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manuale utente
JS Automation
JS Automation MPC3034A Manuale utente
JAUDT
JAUDT SW GII 6406 Series Guida rapida
Spektrum
Spektrum Air Module System Manuale utente
BOC Edwards
BOC Edwards Q Series Manuale utente
