KTI Networks KPOE-800-1P Manuale utente

Modular 8-Port Mid-span

Power over Ethernet Injector

KPOE-800-1P

KPOE-800-2P

Installation Guide

DOC.090201

any form or by any means or used to make any directive work (such as translation or transformation)

without permission from KTI Networks Inc.

KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from

time to time without obligation on the part of KTI Networks Inc. to provide notification of such

revision or change.

For more information, contact:

United States KTI Networks Inc.

P.O. BOX 631008

Houston, Texas 77263-1008

Phone: 713-2663891

Fax: 713-2663893

E-mail: [email protected]

URL: http://www.ktinet.com/

International Fax: 886-2-26983873

E-mail: [email protected]

URL: http://www.ktinet.com.tw/

The information contained in this document is subject to change without prior notice. Copyright (C)

TRADEMARKS

Ethernet is a registered trademark of Xerox Corp.

FCC NOTICE

This device complies with Class A Part 15 the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received including the interference that may cause.

CE NOTICE

Marking by the symbol indicates compliance of this equipment to the EMC directive of the European

Community. Such marking is indicative that this equipment meets or exceeds the following technical

standards:

EMC Class A

EN 50081-1/1992 :EN55022:1994/A1:1995/A2:1997 Class A

EN61000-3-2:2000

EN61000-3-3:1995/A1:2001

EN 55024:1998/A1:2001

IEC 61000-4-2:1995

IEC 61000-4-3:1995

IEC 61000-4-4:1995

IEC 61000-4-5:1995

IEC 61000-4-6:1996

IEC 61000-4-8:1993

IEC 61000-4-11:1994

Table of Contents

1. Introduction ................................................................................................................................5

1.1 Features.................................................................................................................5

1.2 Product Panels ......................................................................................................6

1.3 Mid-span Injector Function ....................................................................................6

1.4 Model Definition.....................................................................................................7

1.5 Specifications.........................................................................................................7

2. Installation ..................................................................................................................................9

2.1 Unpacking..............................................................................................................9

2.2 Safety Cautions .....................................................................................................9

2.3 Mounting the Injector...........................................................................................10

2.4 Installing Power Module.......................................................................................12

2.5 Applying AC Power..............................................................................................13

3. Making LAN Connections........................................................................................................14

3.1 Making Switch Port Connections.........................................................................14

3.2 Making Powered Device Connections.................................................................15

3.3 LED Indication .....................................................................................................16

4. Applications..............................................................................................................................17

4.1 Application with Low Power Requirements..........................................................17

4.2 Application with High Power Requirements.........................................................17

1. Introduction

The Power over Ethernet (PoE) injector is a mid-span power injector designed and tested for use with

all IEEE802.3af compatible PoE Powered Devices (PDs). The PoE injector sits between a switch port

and the PoE powered device, providing inline power capability to an un-powered switch port.

The injector provides modular power design. For high power applications, the injector can be installed

with 2 power modules to support full PoE power up to 120W for eight powered devices. For low

power applications, the injector can work with only one power module and support PoE power up to

60W for eight connections. This flexible modular power design provides cost-effective solutions for

different requirements.

The PoE injector offers the following significant benefits:

 Low purchase cost - Installing an injector costs less than upgrading to new PoE switches, since

PoE injectors can easily connect with existing Ethernet switches.

 Low installation cost - The injector is a plug & play product making the installation much easier

than a PoE switch. There is no need any software configuration.

 Protecting existing and future investment – The PoE injectors are interoperable with all Ethernet

switches and most terminals. PoE injectors can be used in conjunction with different switch

vendors, and end-terminals, which comply with the PoE 802.3af standard. It protects your existing

network installation and future investment as well.

1.1 Features

 Supports 8 Ethernet ports

 Full IEEE802.3af compliance

 Gigabit Ethernet support

 Transparent to switch functionality

 Standard user safety protection

 Modular PoE power upgradability

 19" rack mounting support

1.2 Product Panels

The following figure illustrates the faces of the injector:

1.3 Mid-span Injector Function

The PoE mid-span power injector is designed and tested for use with all IEEE802.3af compatible PoE

PDs. The PoE injector sits between a switch port and the PoE powered device, providing inline power

capability to an un-powered switch port.

1.4 Model Definition

KPOE-800-1P 1 Power Model The injector unit with one pre-installed power module

KPOE-800-2P 2 Power Model The injector unit with two pre-installed power modules

KPOE-800P60W Power Module PoE 60W Power Module

KPOE-800BSET1 BRACKET SET1 The bracket set for mounting one unit in a 19” rack

KPOE-800BSET2 BRACKET SET2 The bracket set for mounting two units in a 19” rack

1.5 Specifications

Network Ports 8 connections to 8 non-PoE switched ports

8 connections to 8 PoE powered devices

Compatible Std. Ethernet Ethernet, Fast Ethernet & Gigabit Ethernet

PoE Standard IEEE 802.3af compliance

Data IN Jack Shielded RJ-45

IEEE 802.3, 10Base-T, 100Base-TX, 1000Base-T std.

Hot-plug support

PoE OUT Jack Shielded RJ-45

IEEE 802.3, 10Base-T, 100Base-TX, 1000Base-T std.

Hot-plug support

PoE OUT Cable 4-pair Cat.5, 5e, or 6

Distance mid-span up to 100 meters

PoE OUT Voltage 48VDC on jack pin 4/5 (V48dc+) and jack pin 7/8 (V48dc-)

PoE OUT Power Total 60 Watts for 8 connections with one power module

Total 120 Watts for 8 connections with two power modules

PoE OUT Protection Port power shut down protection for events:

- Incompliant PD detection,

- Disconnection,

- Overload,

- Over-current

- Short-circuit,

- Under voltage

Power Module Slots 2

LED Indicators Power module status x 2 , Port PoE status x 8

Power Input Voltage: 100 ~ 240VAC, Frequency: 50/60Hz

Power Consumption 1 Power Model: 68W max. (60W for remote PoE PDs)

2 Power Model: 136W max. (120W for remote PoE PDs)

Power Dissipation 1 Power Model: 3W

2 Power Model: 6W

Dimension 190 x 238 x 43 mm (WxDxH)

Housing Enclosed metal with no fan

Mounting Support 19" rack mountable

Temperature Operating: 0oC ~ +40oC, Storage: -20oC ~ 85oC

Relative humidity: 5 ~ 95% non-condensing

Certificate

FCC Part 15 Class A

CE/EMC EMI EN50081-1 Class A

EMS EN55024

CE/LVD Safety EN 60950

EN 50081-1/1992 :

EN55022:1994/A1:1995/A2:1997

EN61000-3-2:2000

EN61000-3-3:1995/A1:2001

EN 55024:1998/A1:2001

IEC 61000-4-2:1995 ESD Test

IEC 61000-4-3:1995 RS Test

IEC 61000-4-4:1995 EFT/BURST Test

IEC 61000-4-5:1995 Surge Test

IEC 61000-4-6:1996 CS Test

IEC 61000-4-8:1993 Magnetic Field

IEC 61000-4-11:1994 Voltage Int. Dips

2. Installation

2.1 Unpacking

Check that the following components have been included:

 Information CD

 The device unit

 An AC power cord

If any item is found missing or damaged, please contact your local reseller for replacement.

The following are available optional accessories:

 19” rack mounting bracket kits

The brackets are used for mounting the devices in a 19” rack.

 PoE 60W Power Module

The module is used for upgrading the mid-span injector power up to 120W.

2.2 Safety Cautions

To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the

following precautions.

 Do not service any product except as explained in your system documentation.

 Opening or removing covers may expose you to electrical shock.

 Only a trained service technician should service components inside these compartments.

 If any of the following conditions occur, unplug the product from the electrical outlet and replace

the part or contact your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

 Do not push any objects into the openings of your system. Doing so can cause fire or electric shock

by shorting out interior components.

 Operate the product only from the type of external power source indicated on the electrical ratings

label. If you are not sure of the type of power source required, consult your service provider or

local power company.

2.3 Mounting the Injector

Desktop Mounting

The injector can be mounted on a desktop or shelf. Make sure there is proper heat dissipation from and

adequate ventilation around the device. Do not place heavy objects on the device.

Rack Mounting

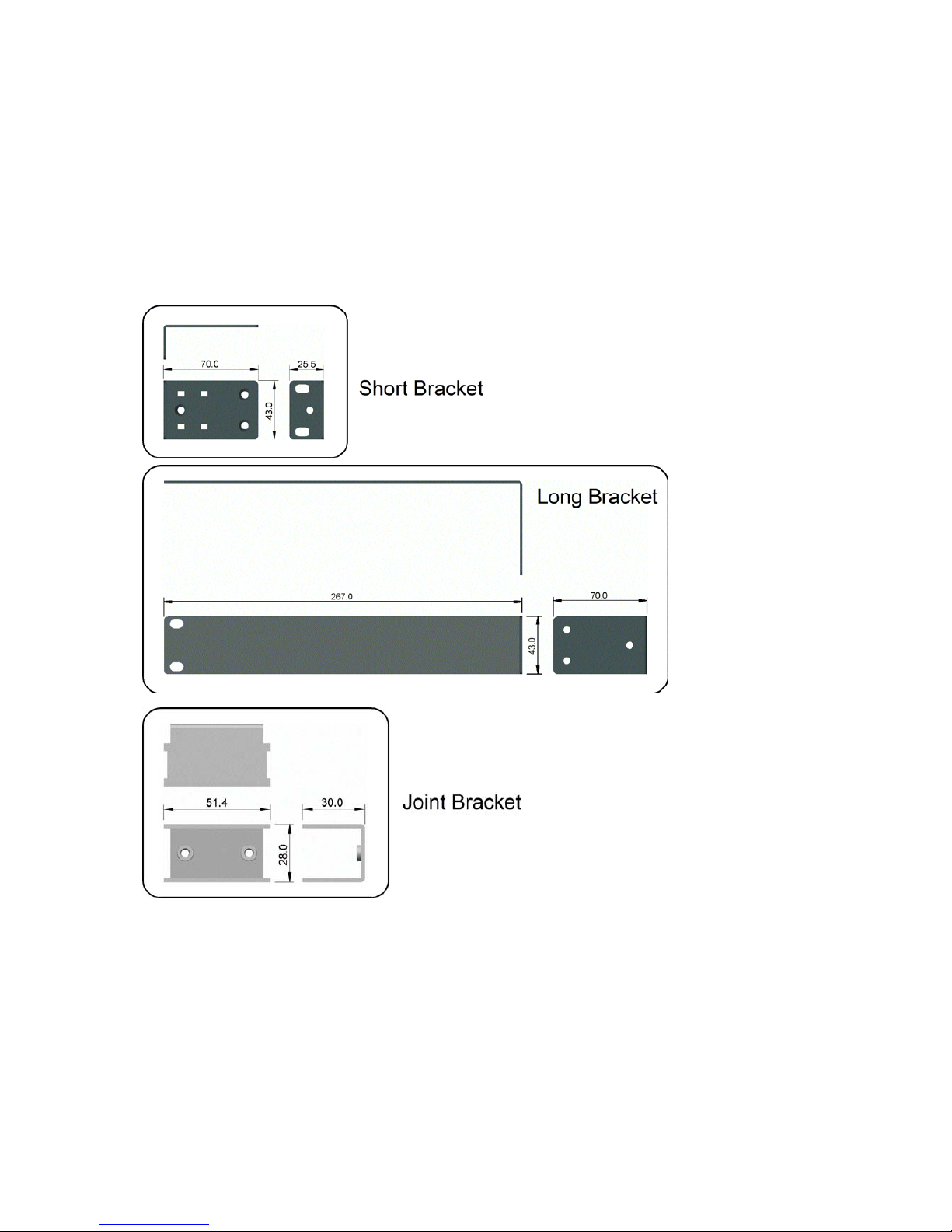

The following brackets are designed for use to mount the devices in a 19” rack.

Mounting one unit in a rack

Use the bracket set1 and follow the steps shown below:

 Short bracket x 1

 Long bracket x 1

1. Install the short bracket to one side of the device.
