Kunbus PR100069 Manuale utente
User Manual
Gateway Component for PROFINET
4/15/2019
Table of Contents KUNBUS GmbH
ii Gateway Component for PROFINET
Table of Contents
1 General Information ........................................................................................................................3
1.1 Disclaimer..................................................................................................................................3
1.2 Notes Regarding this User Manual............................................................................................3
1.3 Validity .......................................................................................................................................4
1.4 Limitation of Liability ..................................................................................................................4
1.5 Customer Service ......................................................................................................................4
2 Safe Use ...........................................................................................................................................5
2.1 Intended Use .............................................................................................................................5
2.2 User ...........................................................................................................................................5
2.3 Symbols.....................................................................................................................................5
2.4 Important safety instructions......................................................................................................6
2.5 Environmental Conditions..........................................................................................................7
2.6 Data safety ................................................................................................................................7
3 Overview ..........................................................................................................................................8
3.1 Functionality ..............................................................................................................................8
3.2 Control Elements .......................................................................................................................9
3.3 Status LEDs.............................................................................................................................12
4 Installation .....................................................................................................................................13
4.1 Preparations for Inteference-free Operation............................................................................13
4.2 Requirements .........................................................................................................................15
4.3 Connecting Gateway Components..........................................................................................16
4.4 Installing a Gateway in the Control Cabinet ............................................................................17
4.5 Connecting a Power Supply ....................................................................................................18
4.6 Connecting a Gateway to the Fieldbus....................................................................................19
5 Configuration.................................................................................................................................20
5.1 Supported size of process data ...............................................................................................20
5.2 Setting Station Name...............................................................................................................20
5.3 Exchanging Data cyclically ......................................................................................................21
5.4 Exchanging Data acyclically (Records) ...................................................................................25
5.4.1 I&M Data....................................................................................................................... 27
5.4.2 Diagnosis Alarm............................................................................................................ 28
6 Integrated servers .........................................................................................................................29
6.1 FTP-Server ..............................................................................................................................29
6.2 Webserver ...............................................................................................................................29
6.3 Firmware Update .....................................................................................................................31
7 Technical Data...............................................................................................................................42
7.1 Technical Data.........................................................................................................................42
Gateway Component for PROFINET 3 / 44
1 General Information
1.1 Disclaimer
© 2019 KUNBUS GmbH, Denkendorf (Deutschland)
The contents of this user manual have been compiled by KUNBUS
GmbH with the greatest possible care. Due to technical developments,
KUNBUS GmbH reserves the right to change or exchange the
contents of this user manual without prior notice. You can always
obtain the latest version of the user manual from our homepage:
www.kunbus.com
KUNBUS GmbH shall be liable exclusively to the extent specified in
the General Terms and Conditions (www.kunbus.de/agb.html).
The contents published in this user manual are protected by copyright.
Reproduction or use is permitted for the internal use of the user.
Duplication or use for other purposes is not permitted without the
express written consent of KUNBUS GmbH. Contraventions will result
in damages.
Trademark protection
– KUNBUS is a registered trademark of KUNBUS GmbH.
– Windows® und Microsoft® are registered trademark of Microsoft, Corp.
KUNBUS GmbH
Heerweg 15 C
73770 Denkendorf
Germany
www.kunbus.com
1.2 Notes Regarding this User Manual
This user manual provides important technical information that can
enable you as a user to integrate the Gateway into your applications
and systems efficiently, safely and conveniently. It is intended for
trained, qualified personnel, whose sound knowledge in the field of
electronic circuits and expertise of PROFINET is assumed.
As an integral part of the module, the information provided here should
be kept and made available to the user.
General Information
Gateway Component for PROFINET 4 / 44
1.3 Validity
This document describes the application of the Gateway product
number:
– PR100069, Release 00
1.4 Limitation of Liability
Warranty and liability claims will lapse if:
– the product has been used incorrectly,
– damage is due to non-observance of the operating manual,
– damage is caused by inadequately qualified personnel,
– damage is caused by technical modification to the product (e.g. solder-
ing).
1.5 Customer Service
If you have any questions or suggestions concerning this product,
please do not hesitate to contact us:
KUNBUS GmbH
Heerweg 15 C
73770 Denkendorf
Germany
+49 (0)711 3409 7077
www.kunbus.de
General Information
Gateway Component for PROFINET 5 / 44
2 Safe Use
2.1 Intended Use
The modular gateway component is part of a gateway that can be
combined with another modular gateway component or a RevPi Core/
Connect from KUNBUS as required.
The modular gateway component is designed to forward data from a
specific protocol to a controller or other gateway component.
No other purpose is intended. If you do not use the device as intended,
damage to property and personal injury may result.
2.2 User
The Gateway may only be assembled, installed and put into operation
by trained, qualified personnel. Before assembly, it is absolutely
essential that this documentation has been read carefully and
understood. Expertise in the following fields is assumed:
– electronic circuits,
– basic knowledge of PROFINET,
– work in electrostatic protected areas,
– locally applicable rules and regulations for occupational safety.
2.3 Symbols
The symbols used have the following meaning:
DANGER Danger
Always observe this information!
There is a safety hazard that can lead to serious injuries and death.
CAUTION Caution
There is a safety hazard that can result in minor injuries and material
damage.
NOTICE Note
There is a safety hazard that can result in material damage.
Safe Use
Gateway Component for PROFINET 6 / 44
2.4 Important safety instructions
DANGER Danger of explosion
The modular Gateway component do not meet the requirements of the
ATEX directive. Therefore, they are not suitable for use in potentially
explosive environments.
èDo not use the modular Gateway component in potentially explosive
environments.
CAUTION Electric shock
Switch off all voltages before assembly/disassembly.
èFailure to observe this warning may result in personal injury.
CAUTION The devices are „open equipment“ according to the Standard
UL61010-2-201.
To fulfill requirements for safe operation with regard to mechanical stability,
flame retardation, stability, and protection against contact, the following
alternative types of installation are specified:
èInstallation in a suitable cabinet.
èInstallation in a suitable enclosure.
èInstallation in a suitable equipped, enclosed control room.
NOTICE Incorrect connection of the power supply
Using an unsuitable power supply can destroy your modules and
connected devices.
èUse a power supply in the approved area for the base modules. The
values for this can be found in the technical data of your base module.
Safe Use
Gateway Component for PROFINET 7 / 44
2.5 Environmental Conditions
To prevent damage, only operate the RevPi module in an environment
that corresponds to the operating conditions.
Suitable ambient conditions:
Operating temperature -30 °C to +55 °C
Air humidity 93% (no condensation)
NOTICE This device is designed for indoor use only.
If you use the device outdoors, it may be destroyed.
èOnly use the device indoors.
2.6 Data safety
Please note that Gatewayis not suitable for use in unprotected
networks (e.g. the Internet).
Use Gateway in a secured network:
.
◦ Seal off your network so that no direct access via the Internet is
allowed.
◦ Immediately change the default password for the web server. You
can find out how to do this in the chapter "Changing the
password". Select a secure new password.
◦ Check our website regularly for the latest software security alerts
and updates for your product. Install the security updates
provided by us.
If you do not follow these instructions, it is possible that your module
data may be manipulated.
Safe Use
Gateway Component for PROFINET 8 / 44
3 Overview
3.1 Functionality
The KUNBUS Gateway is a protocol converter. It allows
communication between networks with different protocols.

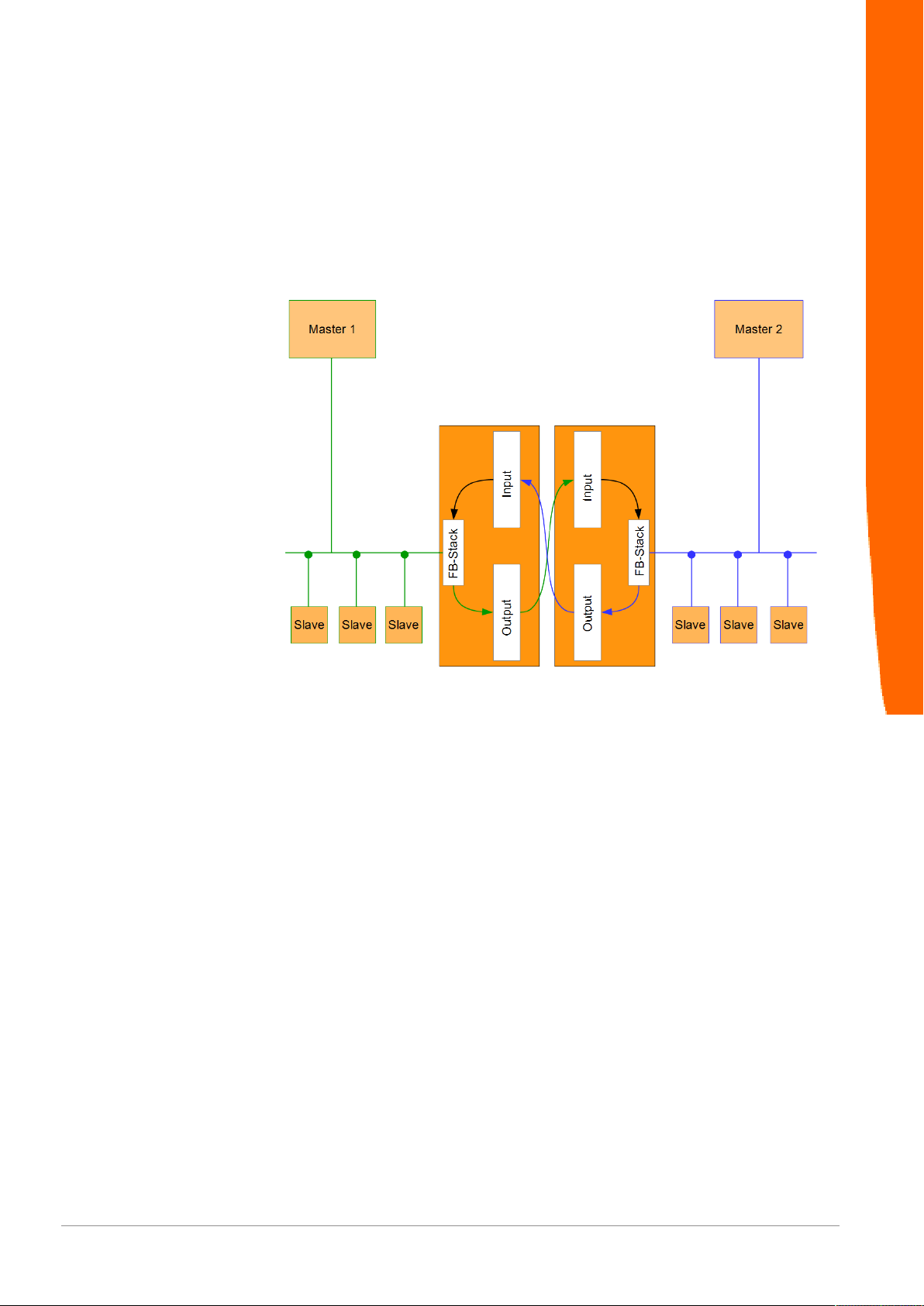

Illustration1: Functionality as a slave
A Gateway consists of 2 gateway components that master one
specific protocol each. You can combine these gateway components
as you wish. This design offers you a high degree of flexibility, since
you can exchange the individual gateway components at any time.
The following gateway components are currently available as slaves:
– CANopen
– DeviceNet
– EtherCAT
– EtherNet/IP
– Modbus RTU
– Modbus TCP
– POWERLINK
– PROFIBUS
– PROFINET
– Sercos III
The gateway component for DMX can be operated as a master or
slave.
Overview
Gateway Component for PROFINET 9 / 44
In addition, you can combine the gateway components with the RevPi
Core.
3.2 Control Elements
Front view
1
2
Illustration2: Front view
1 Status LEDs
2 Fieldbus connection
two RJ45 sockets for the connection to PROFINET
PROFINET
Overview
Gateway Component for PROFINET 10 / 44
Top view
11
2
Illustration3: Top view
1 Interconnect ports
for interconnecting the gateway components.
2 Locking clamps
for securely attaching the gateway component to the DIN
rail.
Overview
