KYORITSU KEW 6300 Istruzioni per il montaggio

(1) Connect one end of a USB cord to your PC.

(2) Set the Function switch on the instrument to SET UP range

and connect the other end of USB cable to the instrument.

(3) When your PC and the instrument are connected properly the following figure appears.

Select ”Locate and install driver software (recommended)”.

(4) Select “Don’t search online”.

USB Driver Installation

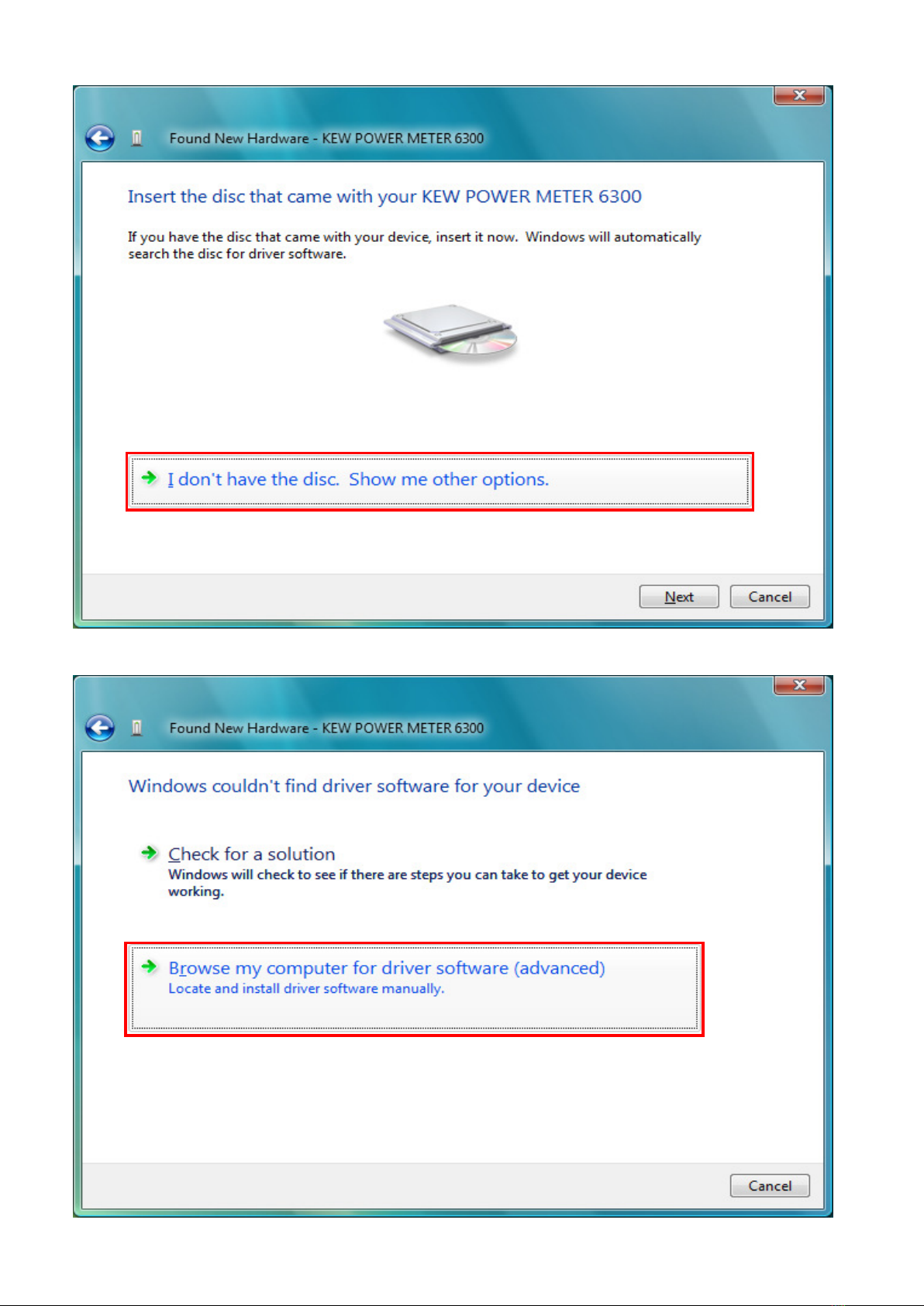

(5) Select “I don’t have the disc. Show me other options”.

(6) Select “Browse my computer for driver software(advanced)”.

(7) Check the boxes for “Include subfolders” and then click “Browse”.

(8) Select a folder to download the file.

(9) It's confirmed that a chosen folder is indicated and click “Next”.

(10) In case that following window appears on Windows Vista click “Install this driver software anyway”.

(It is an operation check and no problem happens if install is continued.)

(11) Install is completed when the wizard finishes. Click “Close”.

(12) When installation above-mentioned ends the following figure appears.

Select “Don’t search online”. After that step (5) to (11) will be repeated twice.

(13) When 2 being installed as shown in the lower figure a driver was normally installed.

When install of the USB driver is interrupted and reinstall cannot be

done follow the procedure below and delete the existing driver and

then install it again.

(1) Connect a PC and the instrument with a USB cord.

(2) Click the “Control Panel” in the Start menu.

(3) Click “Device Manager” in the Control panel.

(4)

Right click

on “KEW POWER METER 6300” in the Other devices.

(5) Click “Uninstall” to uninstall the USB driver.

(6) Remove the USB cord connecting your PC and the instrument once and connect them again.

(7) When “Found New Hardware Wizard” window appears follow the

procedures described at “

USB Driver Installation

” and install the driver.

USB Driver Un-installation
