Lantech IGC-0101DSFP Manuale utente

Lantech

IGC-0101DSFP

IPGC-0101DSFP

10/100/1000T (PoE at) to 100/1000M

SFP Industrial Switch Converter

User Manual

Oct 2020

Recommendation for Shielded network cables

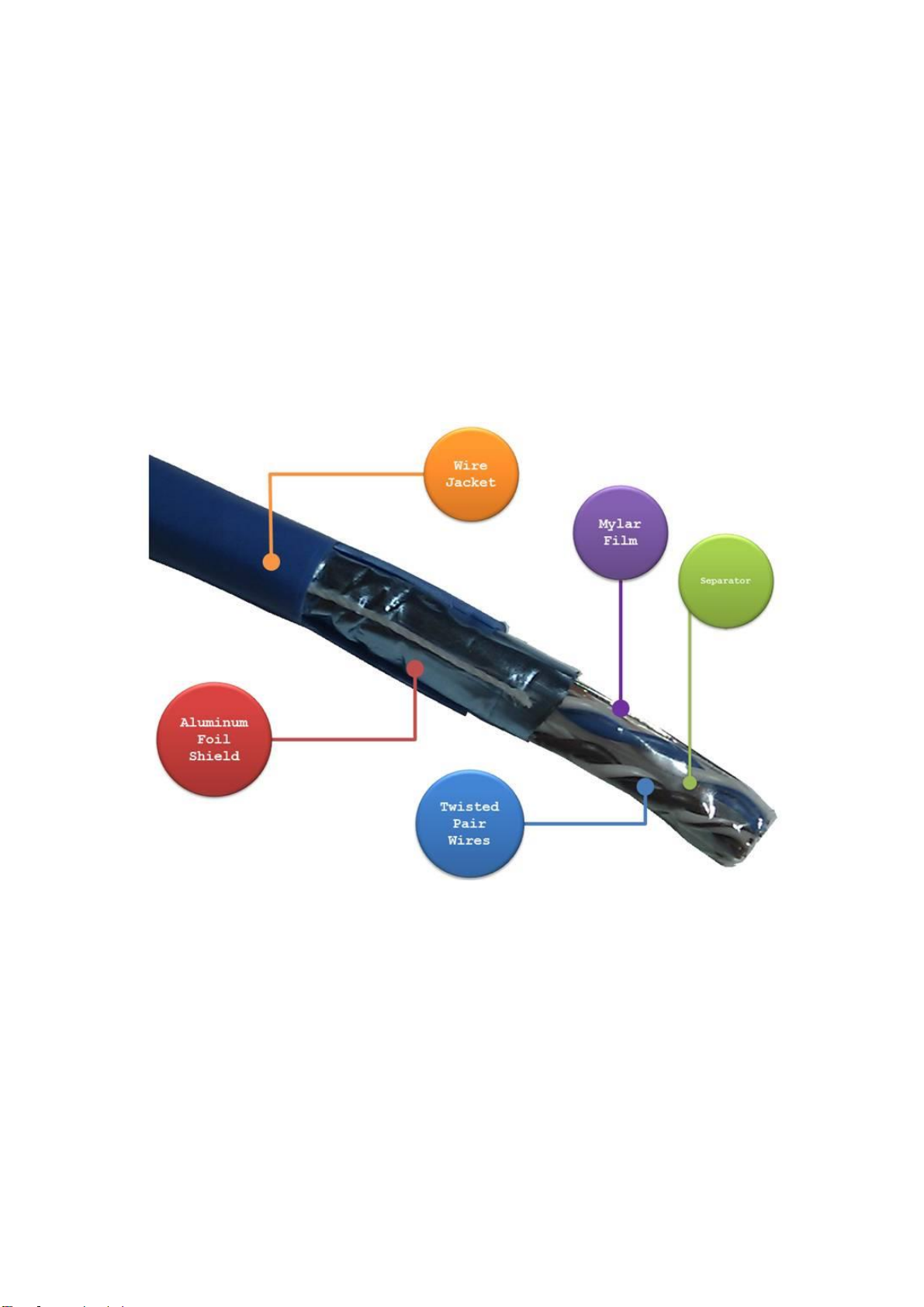

STP cables have additional shielding material that is used to reduce external interference. The

shield also reduces the emission at any point in the path of the cable. Our recommendation is

to deploy an STP network cable in demanding electrical environments. Examples of

demanding indoor environments are where the network cable is located in parallel with

electrical mains supply cables or where large inductive loads such as motors or contactors are

in close vicinity to the camera or its cable. It is also mandatory to use an STP cable where the

power device (like IP camera) is used outdoors or where the network cable is routed outdoors.

Content

Overview............................................................1

Introduction: IGC-0101DSFP.................................. 1

Introduction: IPGC-0101DSFP................................ 2

Packing List............................................................ 3

Safety Precaution ................................................... 3

Hardware Description.........................................4

Front Panel............................................................. 4

Top View ................................................................ 5

Wiring the Power Inputs.......................................... 5

Wiring the Fault Alarm Contact ............................... 6

LED Indicators........................................................ 7

DIP-Switch.............................................................. 7

Ports....................................................................... 8

Cabling................................................................... 9

Mounting Installation........................................13

DIN-Rail Mounting ................................................ 13

Wall Mount Plate Mounting................................... 15

Rack-mounting ..................................................... 16

Hardware Installation .......................................18

Installation Steps .................................................. 18

Troubles shooting.............................................20

FCC Warning

This Equipment has been tested and found to comply with the limits for a Class-A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in

accordance with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Overview

Introduction: IGC-0101DSFP

The Lantech IGC-0101DSFP is an Industrial Converter converting from

10/100/1000BaseT to 100/1000M-FX dual speed. It supports 10K bytes

jumbo frame.

Auto-sensing LLF and Power Fault LED/relay alarm setting by DIP

switch

Featured with LLF (Link Loss Forwarding) function, Lantech

IPGC-0101DSFP is able to auto cut off connection if one end of

connection is down. When copper port disconnects, it will auto turn off

fiber port. When fiber port disconnects, it will auto turn off copper port.

Smart LLF function alert central side switch immediate remedy action

when connection is lost. Power Fault LED and relay alarm can be off by

DIP switch.

Dual power input from 18V~72VDC/18~36VAC with galvanic

isolation

IGC-0101DSFP supports dual wide range input from 18V~72VDC

(standard model) and 18~36VAC (AC model) with galvanic isolation that

is good for various application including vehicle, railway, solar panel etc.

Hardened design with extended temperature range

It provides ±2000V EFT and ±6000V ESD protection, which can reduce

unstable situation caused by power line and Ethernet. It has high

reliability and robustness coping with extensive EMI/RFI phenomenon,

environmental vibration and shocks usually found in Automation,

transportation, surveillance, Wireless backhaul, Semi-conductor factory

and assembly lines.

The -E model can be used in extreme environments with an operating

temperature range of -40°C to 75°C.

19” Rack mount-able kit for up to 10 converters mounting

The optional 19” rack-mount kit can be mounted with up to 10

converters.

Introduction: IPGC-0101DSFP

The Lantech IPGC-0101DSFP is an Industrial Converter converging

from 10/100/1000BaseT to 100/1000M-FX dual speed with 802.3at/af

PoE support. It supports 10K jumbo frame.

Auto-sensing LLF and Power Fault LED/relay alarm setting by DIP

switch

Featured with LLF (Link Loss Forwarding) function, Lantech

IPGC-0101DSFP is able to auto cut off connection if one end of

connection is down. When copper port disconnects, it will auto turn off

fiber port. When fiber port disconnects, it will auto turn off copper port.

Smart LLF function alert central side switch immediate remedy action

when connection is lost. Power Fault LED and relay alarm can be off by

DIP switch

Dual DC input power

IPGC-0101DSFP supports dual input from 9.5V~57VDC (12V model) or

44V~56VDC (48V model) for various application including vehicle,

railway, solar panel etc.

Hardened design with extended temperature range

It provides ±2000V EFT and ±6000V ESD protection, which can reduce

unstable situation caused by power line and Ethernet. It has high

reliability and robustness coping with extensive EMI/RFI phenomenon,

environmental vibration and shocks usually found in Automation,

transportation, surveillance, Wireless backhaul, Semi-conductor factory

and assembly lines.

The -E model can be used in extreme environments with an operating

temperature range of -40°C to 75°C.

19” Rack mount-able kit for up to 10 converters mounting

The optional 19” rack-mount kit can be mounted with up to 10

converters.

Packing List

1 x 10/100/1000 to Mini-GBIC Industrial Switch Converter

1 x Terminal Block

Safety Precaution

Attention

IF DC voltage is supplied by an external circuit, please use a

protection device on the power supply input.

Hardware Description

In this paragraph, we will introduce the Industrial switch converter’s

hardware spec, port, cabling information, and wiring installation.

Front Panel

The Front Panel of the IGC-0101DSFP/IPGC-0101DSFP is shown as

below.

Front Panel of the Industrial Switch Converter

Top View

The top panel of the Industrial Switch Converter is equipped one

terminal block connector of two DC power inputs.

Top panel of the Industrial Switch Converter

Wiring the Power Inputs

Please follow the steps below to insert the power wire.

1. Insert the positive and negative wires into the V+ and V- contacts on the

terminal block connector.
