Lantech IES-5416DF Series Manuale utente

IPES/IES-5416DF

IPES/IES-5216DF

Series

16 10/100TX + 4 or 2 100/1000FX Dual Speed Fiber L2+(w/ PoE

at/af) EN50155 Managed Ethernet Switch

User Manual (Hardware)

IP-67

IP-54

Apr 2019

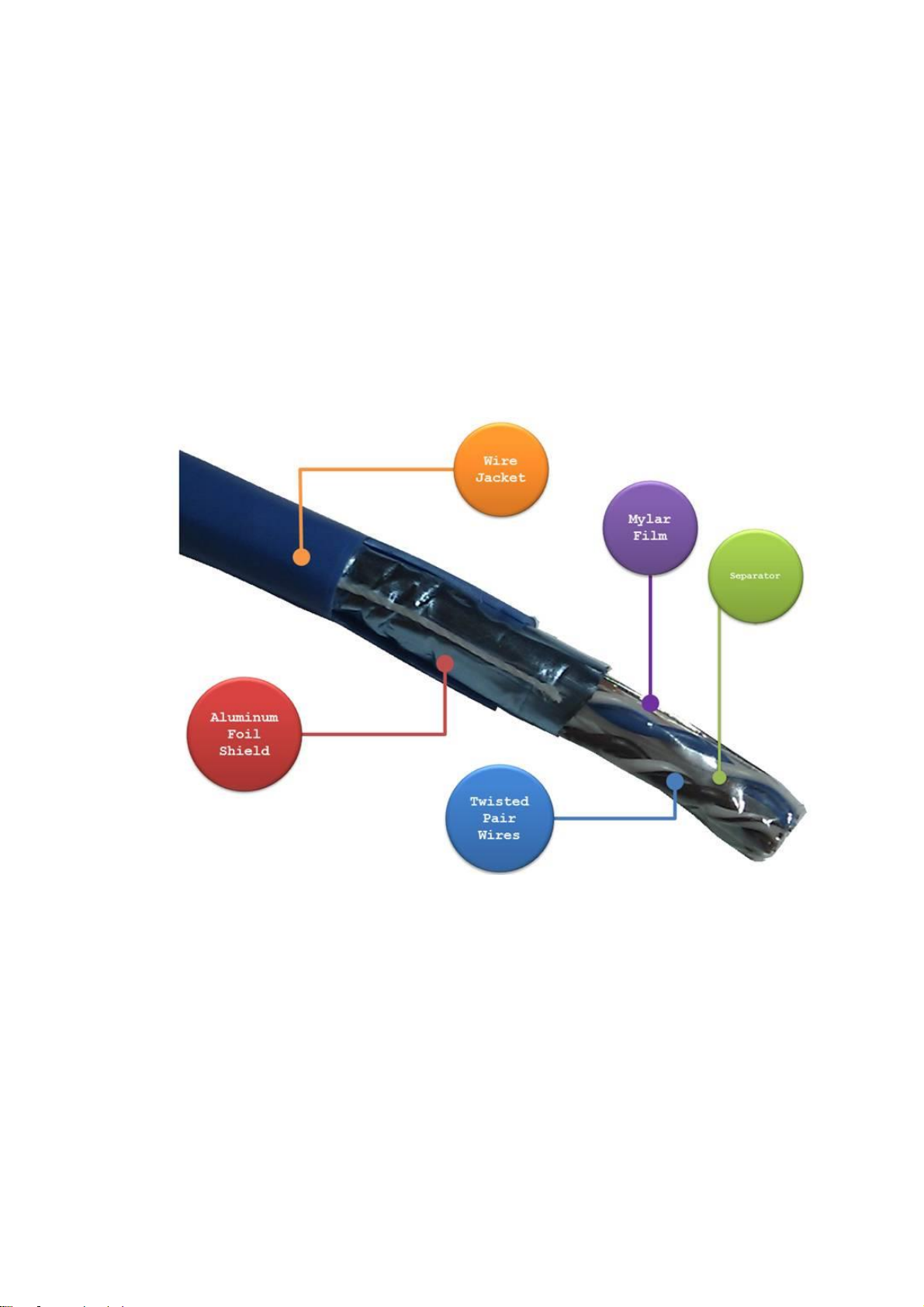

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference.

The shield also reduces the emission at any point in the path of the cable. Our

recommendation is to deploy an STP network cable in demanding electrical environments.

Examples of demanding indoor environments are where the network cable is located in

parallel with electrical mains supply cables or where large inductive loads such as motors

or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an

STP cable where the power device (like IP camera) is used outdoors or where the network

cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial or industrial installation. This equipment generates, uses, and

can radiate radio frequency energy. It may cause harmful interference to

radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Introduction ........................................... 5

Chapter 2 Hardware Description............................ 6

2.1 Physical Dimension....................................... 6

2.2 IP Protection................................................12

2.3 LED Indicators .............................................15

Chapter 3 Hardware Installation .......................... 17

Chapter 4 Network Application............................ 22

4.1 ITU G.8032 Scheme......................................22

4.2 Ring Coupling ...............................................22

4.3 Multiple Rings ...............................................23

4.4 Dual Homing.................................................24

4.5 Chain ............................................................24

Chapter 5 Console Management.......................... 26

5.1 Connecting to the Console Port....................26

5.2 Login in the Console Interface......................26

Chapter 1 Introduction

Model Description

IPES-5416DF series

16 10/100TX PoE at/af + 4 Dual Speed Fiber L2+EN50155

Managed IP67/IP54 Ethernet Switch w/ 8 or 16 PoE at/af

IPES-5216DF series

16 10/100TX PoE at/af + 2 Dual Speed Fiber L2+EN50155

Managed IP67/IP54 Ethernet Switch w/ 8 or 16 PoE at/af

IES-5416DF series

16 10/100TX PoE at/af + 4 Dual Speed Fiber L2+EN50155

Managed IP67/IP54 Ethernet Switch

IES-5216DF series

16 10/100TX PoE at/af + 2 Dual Speed Fiber L2+EN50155

Managed IP67/IP54 Ethernet Switch

Chapter 2 Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

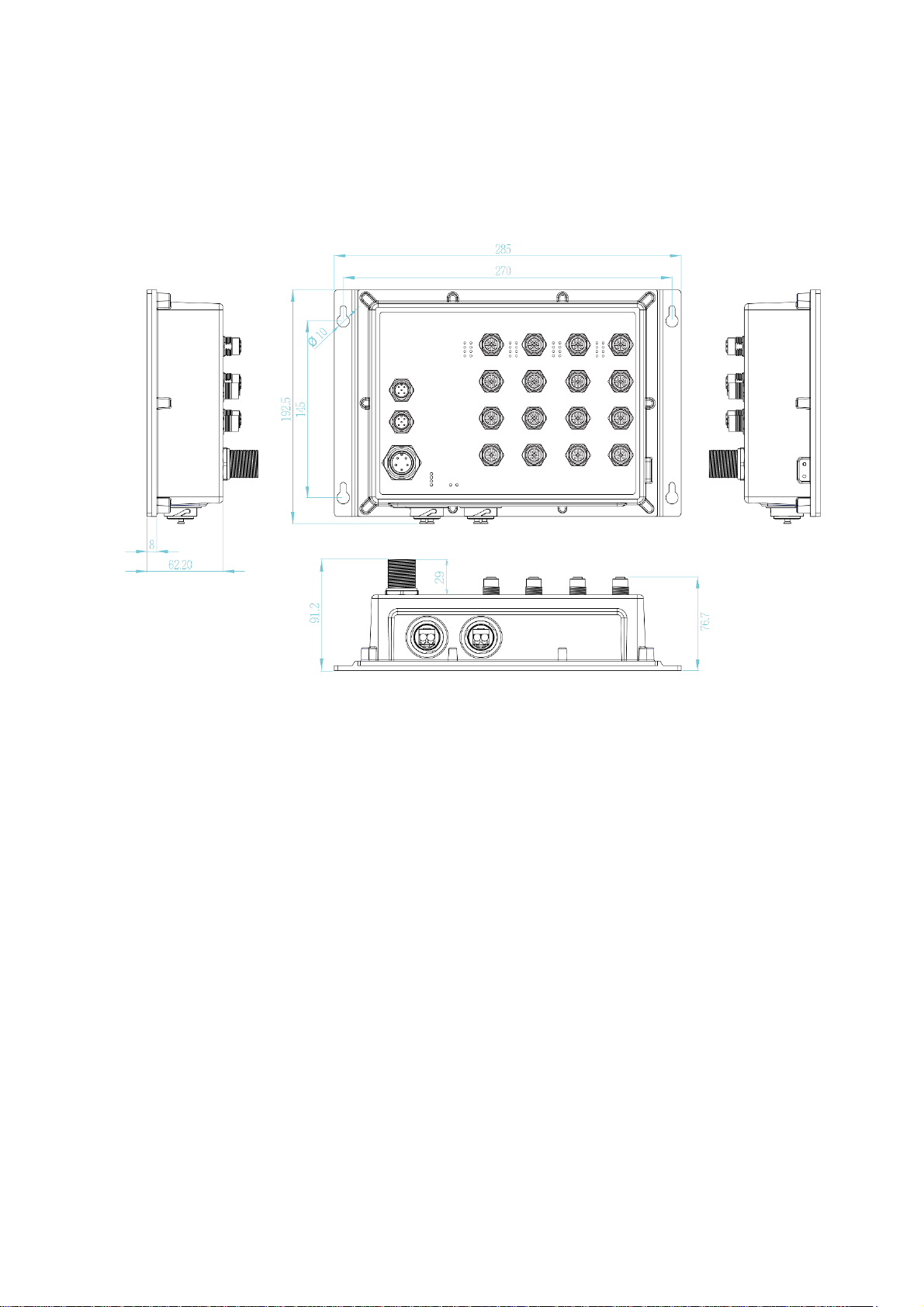

2.1 Physical Dimension

IPES-5416DF

Aluminum case. IP-67,

285 (W) x 193 (D) x 91.2 (H) mm

Aluminum case. IP-54,

252 (W) x 179.5 (D) x 91 (H) mm

IES-5416DF

Aluminum case. IP-67,

285 (W) x 193 (D) x 91.2 (H) mm

Aluminum case. IP-54,

252 (W) x 179.5 (D) x 91 (H) mm

IPES-5216DF

Aluminum case. IP-67,

285 (W) x 201.4 (D) x 84.4 (H) mm

Aluminum case. IP-54,

285 (W) x 201.4 (D) x 84.4 (H) mm
