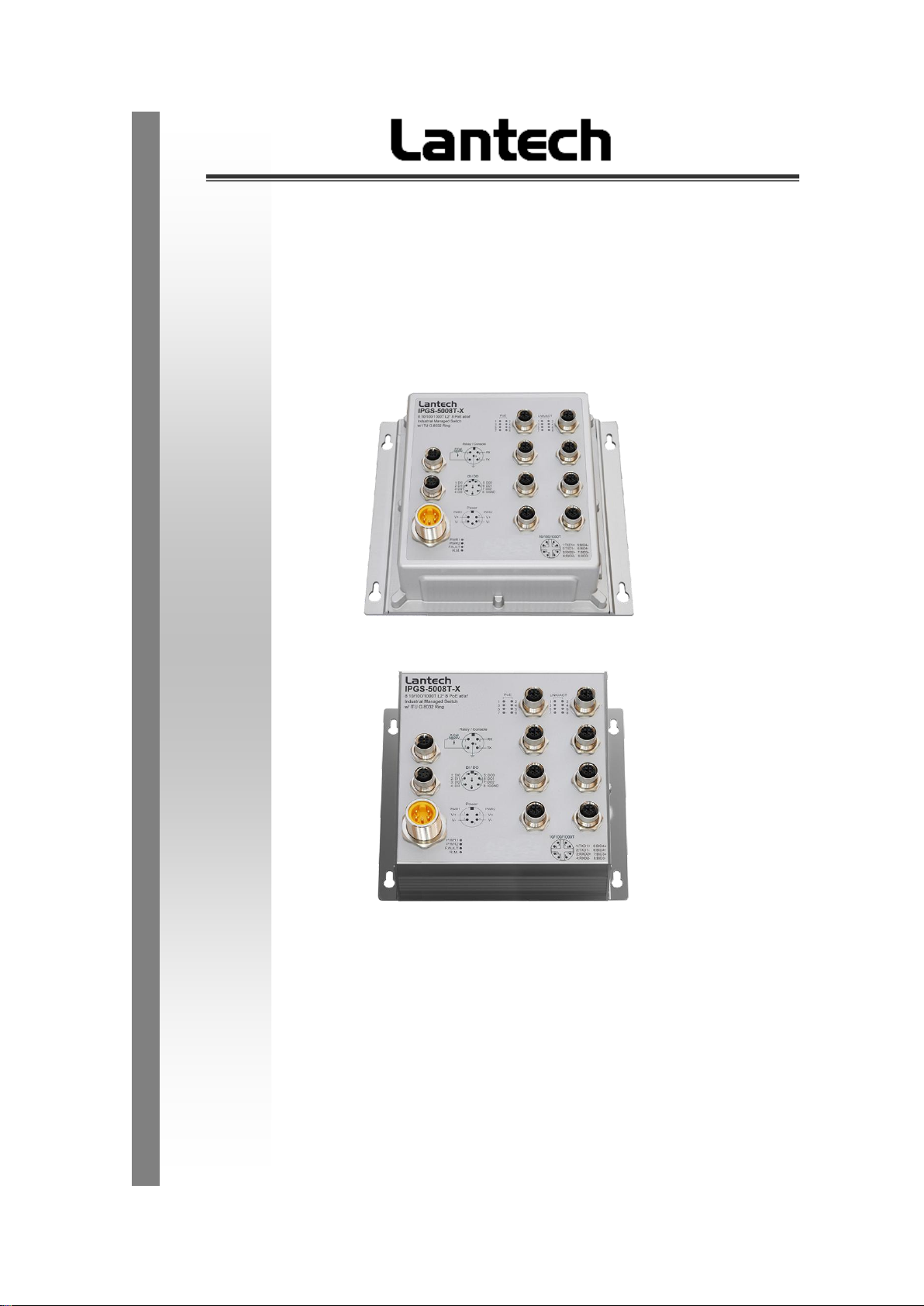

Lantech IPGS-5008T Series Manuale utente

IPGS/IGS-5008T-X Series

8 10/100/1000T X-coded L2+(w/8 PoE at/af) Industrial Managed

Switch w/Enhanced G.8032 Ring

User Manual (Hardware)

IP-67

IP-54

Sept. 2017

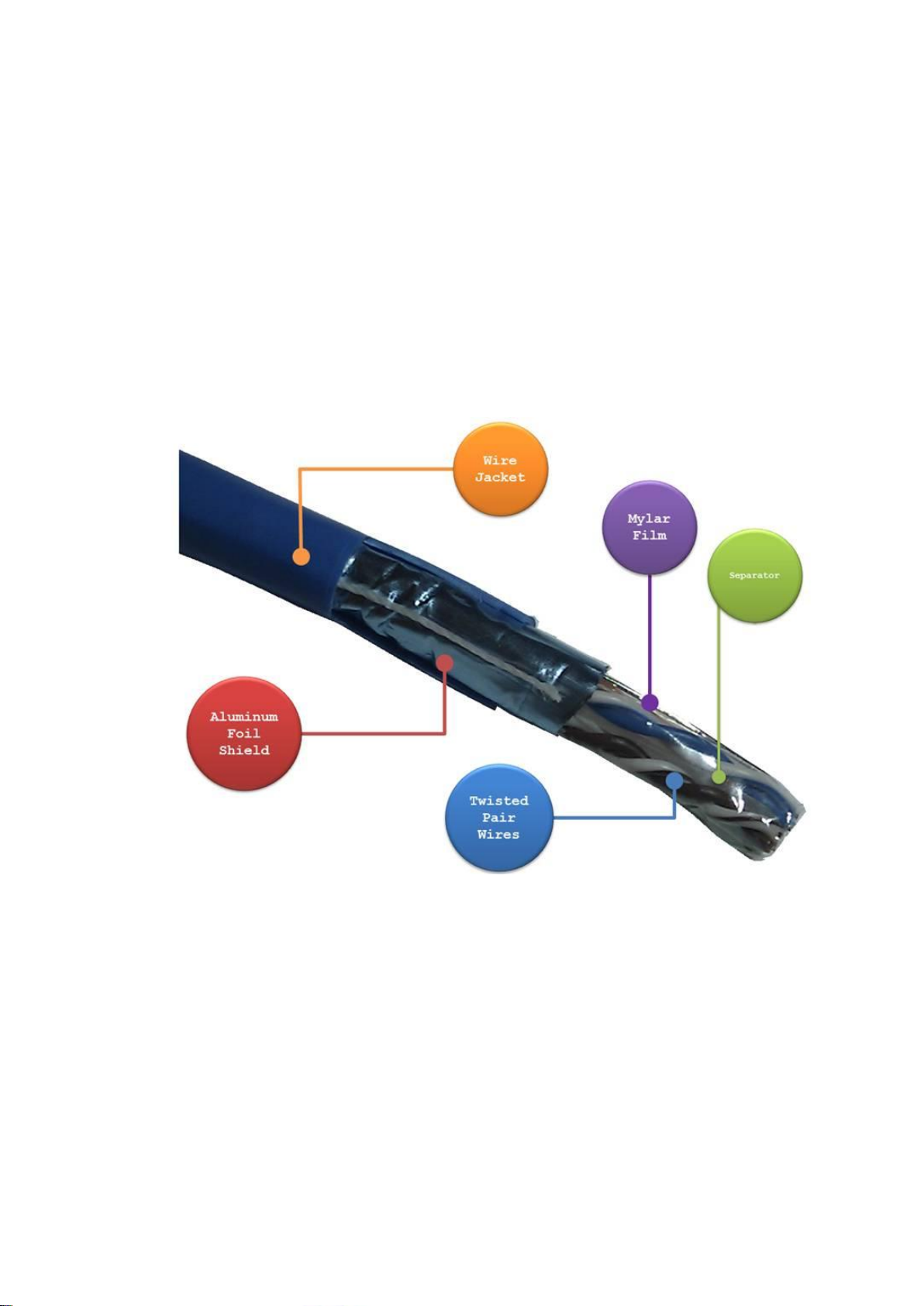

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference.

The shield also reduces the emission at any point in the path of the cable. Our

recommendation is to deploy an STP network cable in demanding electrical environments.

Examples of demanding indoor environments are where the network cable is located in

parallel with electrical mains supply cables or where large inductive loads such as motors

or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an

STP cable where the power device (like IP camera) is used outdoors or where the network

cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial or industrial installation. This equipment generates, uses, and

can radiate radio frequency energy. It may cause harmful interference to

radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Introduction.............................................5

Specification............................................................. 5

Chapter 2 Hardware Description ..........................10

2.1 Physical Dimension...................................... 10

2.2 Package Content:......................................... 12

2.3 IP Protection................................................. 12

2.4 LED Indicators.............................................. 15

Chapter 3 Hardware Installation...........................17

Chapter 4 Network Application.............................21

4.1 ITU G.8032 Scheme...................................... 21

4.2 Ring Coupling................................................ 21

4.3 Multiple Rings................................................ 22

4.4 Dual Homing.................................................. 23

4.5 Chain............................................................. 23

Chapter 5 Console Management ..........................25

5.1 Connecting to the Console Port................... 25

5.2 Login in the Console Interface..................... 25

Chapter 1 Introduction

Lantech IPGS-5008T-X (IP67/IP54) is a high performance L2+ All Gigabit switch with 8

10/100/1000T w/8 PoE at/af injectors at M12 X-coded providing L2 wire speed and

advanced security function for network aggregation deployment. It houses in a IP67/IP54

aluminum compact enclosure that is waterproof and will prevent moisture ingress due to

temperature fluctuations.

Specification

IGS-5008T-X series

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX

IEEE802.3x Flow Control and Back Pressure

IEEE802.3ad Port trunk with LACP

IEEE802.1d Spanning Tree

IEEE802.1w Rapid Spanning Tree

IEEE802.1s Multiple Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1X User Authentication (Radius)

IEEE802.1p Class of Service

IEEE802.1Q VLAN Tag

Switch

Architecture

Back-plane (Switching Fabric): 16Gbps

Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Gigabit Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

10KB on all ports

Connectors

10/100/1000T: 8 x ports M12 8-pole X-coded with Auto

MDI/MDI-X function

RS-232 connector: 1 x M12 5-pole A-coded

Power Input connector : 1 x M12 5-pole A-coded

Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

Bypass

Protection**

High-speed optical switching (<4ms)

Minimal insertion loss (Max 1.6dB as Bypass Mode)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)

Ethernet port: Link/Activity (Green)

DI/DO

4 Digital Input (DI) :

Level 0: -30~2V / Level 1: 10~30V

Max. input current:8mA

3 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating

Humidity

5% ~ 95% (Non-condensing)

Operating

Temperature

-40°C~75°C / -40°F~167°F

Storage

Temperature

-40°C~85°C / -40°F~185°F

Power Supply

24V model: 9.5~60VDC

WV model: 9.5~137.5VDC

Power

Consumption

Max. 25W

Case Dimension

IP67 model: Aluminum case

215mm(W)x200mm(H)x84.4mm(D)

IP54 model: Aluminum case

194mm(W)x165mm(H)x82mm(D)

Weight

1.4kgs(IP67); 980gs (IP54)

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,

CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE

EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE

EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

Certifications&

report

EN50155/EN50121-3-2/EN50121-4 Certificate

EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF

X70-100-1 & 2) Fire & Smoke Certificate

Warranty

5 years

*Future release

**Optional

IPGS-5008T-X series

Standards

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX

IEEE802.3x Flow Control and Back Pressure

IEEE802.3ad Port trunk with LACP

IEEE802.1d Spanning Tree

IEEE802.1w Rapid Spanning Tree

IEEE802.1s Multiple Spanning Tree

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

IEEE 802.1X User Authentication (Radius)

IEEE802.1p Class of Service

IEEE802.1Q VLAN Tag

IEEE802.3at/af Power over Ethernet

Switch

Back-plane (Switching Fabric): 16Gbps

Architecture

Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

1,488,000pps for Gigabit Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

10KB on all ports

Connectors

10/100/1000T: 8 x ports M12 8-pole X-coded with Auto

MDI/MDI-X function

RS-232 connector: 1 x M12 5-pole A-coded

Power Input connector : 1 x M23 5-pole A-coded

Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable

EIA/TIA-568 100-ohm (100m)

Bypass

Protection**

High-speed optical switching (<4ms)

Minimal insertion loss (Max 1.6dB as Bypass Mode)

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)

Ethernet port: Link/Activity (Green)

DI/DO

4 Digital Input (DI) :

Level 0: -30~2V / Level 1: 10~30V

Max. input current:8mA

3 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating

Humidity

5% ~ 95% (Non-condensing)

Operating

Temperature

-40°C~75°C / -40°F~167°F

Storage

Temperature

-40°C~85°C / -40°F~185°F

Power Supply

24V model: 9.5~56VDC

WV model: 9.5~137.5VDC

Power

Consumption

Max. 25W

PoE Budget

80W

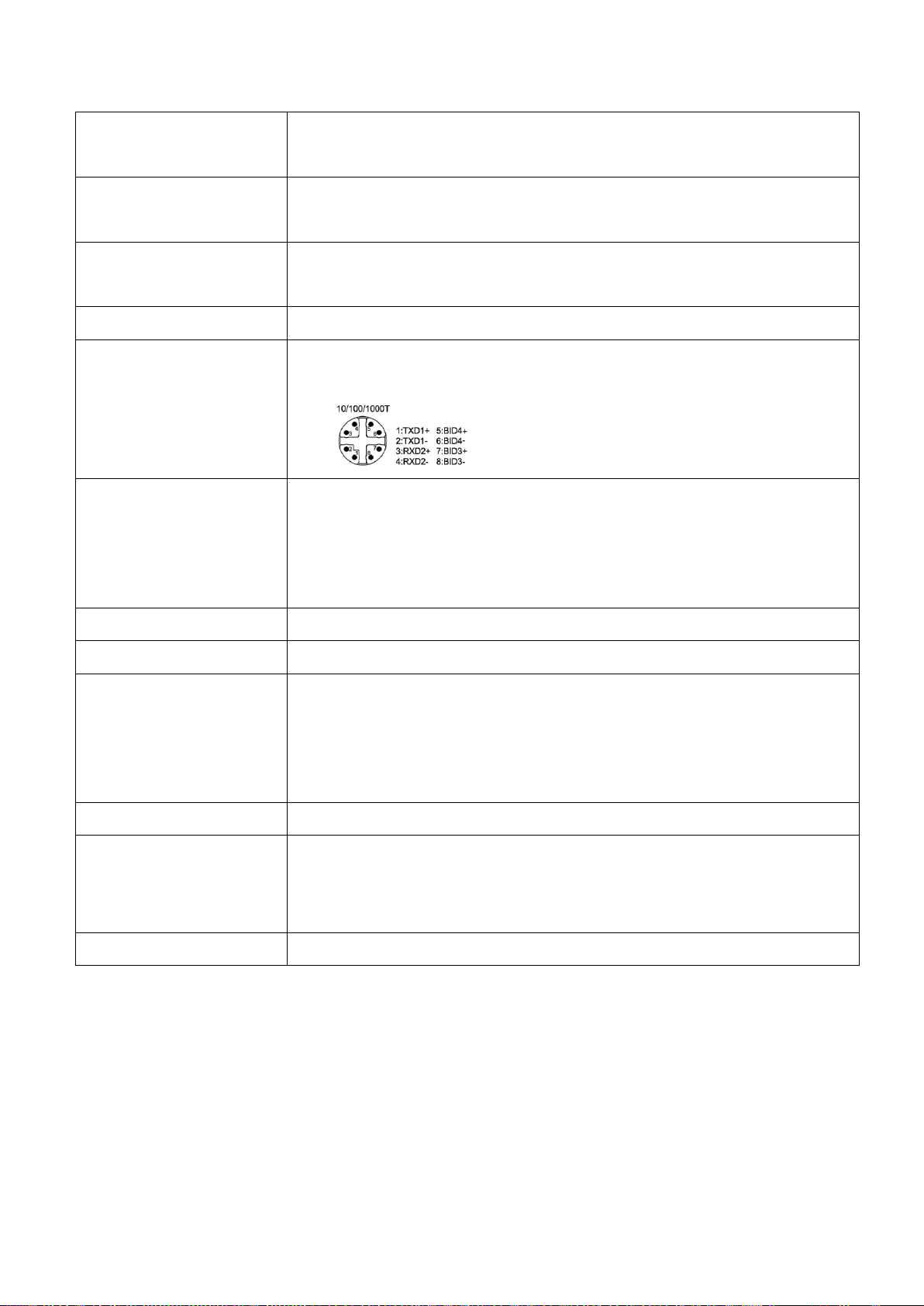

PoE pin

assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point,

Alternative A mode. Per port provides 15W class 0-4.

Case Dimension

IP67 model: Aluminum case

215mm(W)x200mm(H)x84.4mm(D)

IP54 model: Aluminum case

194mm(W)x165mm(H)x82mm(D)

Weight

1.4kgs(IP67); 980gs (IP54)

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A,

CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE

EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE

EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

Certifications&

report

EN50155/EN50121-3-2/EN50121-4 Certificate

EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF

X70-100-1 & 2) Fire & Smoke Certificate

Warranty

5 years

*Future release

**Optional

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lantech Interruttore

Lantech

Lantech IES-2208C Manuale utente

Lantech

Lantech IGS-0208GSFP Manuale utente

Lantech

Lantech IPES-0008B Series Manuale utente

Lantech

Lantech IES-0008B Series Manuale utente

Lantech

Lantech IES-0008-M12 Manuale utente

Lantech

Lantech TPGS-L6216XT Manuale utente

Lantech

Lantech IPES-5416T Series Manuale utente

Lantech

Lantech IES-5216DF Manuale utente

Lantech

Lantech TPGS-L6208XT Manuale utente

Lantech

Lantech IPWMR-3204DF Manuale utente

Lantech

Lantech IPES-5416DF Series Manuale utente

Lantech

Lantech LES-2400-RPS Manuale utente

Lantech

Lantech IPGS-0204DSFP Manuale utente

Lantech

Lantech LPGS-2424C Series Manuale utente

Lantech

Lantech IPES-5408T-43 Manuale utente

Lantech

Lantech IGS-0016 Manuale utente

Lantech

Lantech IPES/IES-0008B Series Manuale utente

Lantech

Lantech IES-5416DF Series Manuale utente

Lantech

Lantech IPES-3424DSFP-2P-PT Manuale utente

Lantech

Lantech LGS-2300-RPS Manuale utente

Lantech

Lantech IGS-0008A Manuale utente

Lantech

Lantech IES-2008 Manuale utente

Lantech

Lantech IPES-5208T-X Series Manuale utente

Lantech

Lantech IES-0208CA Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
