UBox™4100 Quick Start Guide

UBox 4100

UBox 4100 QUICK START GUIDE CONTENTS

What’s in the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Connecting the USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Configuring the UBox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

UBox 4100

GETTING STARTED CONTINUED…

STEP 2:INSTALLTHE SOFTWARE

Requirements:Windows 2000/XP or later

The following procedure summarizes the steps for installing the UBox software.

1.Insert the product CD into your CD drive.The CD should start automatically.

If the CD does not launch automatically:

a. Open My Computer.

b. Click on the CD Drive Letter.

c. Double-click Launch.exe.

2.Click the UBox Software Installation button to install the application.

3.Follow the on-screen instructions.

Note: Duringorafter the softwareinstallation,theWindowsNew HardwareWizard

mayask you to installsoftware severaltimes.Select Install the software

automatically.Ifyousee an additionalpromptregarding logo testing,click

Continue Anyway toproceed.The UBox application opens automatically once

the installation is complete.

4.To verify that the application sees the UBox Device Server,click the Servers tab.

Note: Initially,theUBoxdisplays as Unnamed.During configuration,youcanassign

aname to it.

Quick Start Guide

UBox 4100

WHAT’S IN THE BOX

The package includes:

• Lantronix UBox USB Device Server • Power Supply

• Quick Start Guide • CD with software and User Guide

The Lantronix UBox USB Device Server makes it possible for computers on a Local

Area Network (LAN) to connect and share USB devices such as printers,scanners,

and storage drives.This Quick Start will get you up and running with your new

UBox.For more detailed instructions,please refer to the UBox USB Device Server

User Guide on the product CD or the Lantronix web site.

GETTING STARTED

STEP 1:INSTALLTHE HARDWARE

1.Connect the UBox to your network using an RJ45 Ethernet cable.

2.Connect the power supply included in the package to the UBox.

Youshouldnowsee lightsonyour UBox.When theleft-most (green)SYSTEMlightstarts

blinking slowly (once every 3 seconds),you are ready to install the UBox software.

If you do not see the left-most (green) SYSTEM light

blinking slowly,please read the detailed troubleshooting

instructions in the User Guide.

Note: Donotconnect USB Devicestothe UBox until after

UBoxhardwareandsoftware have been installed.

2WWW.LANTRONIX.COM 3

PowerSupply Network

Connection

CONNECTINGTHE USB DEVICE

1.Connect your USB device to any USB port on the Lantronix UBox.

Above each USB port is a green LED light.This light indicates whether your USB

device is supported in the current software/firmware.A solid green light

indicates that your device is supported.A slowly blinking light indicates that

your USB device is not currently supported.Please contact Lantronix if you

have a slowly blinking light.

4WWW.LANTRONIX.COM

GETTING STARTED CONTINUED…

If the software does not see the UBox hardware,please see the Users Guide

on the CD for more detailed troubleshooting information.

Note: Ifyouwantadditionalusers to connecttoyourUBox,youneed to installthe

UBoxsoftwareon eachclientcomputer.

Quick Start Guide

UBox 4100

USBPorts

Serverstab

UBoxis

listed UBoxDetails

Computers

currently

connected

totheUBox

➞

CONNECTINGTHE USB DEVICE CONTINUED…

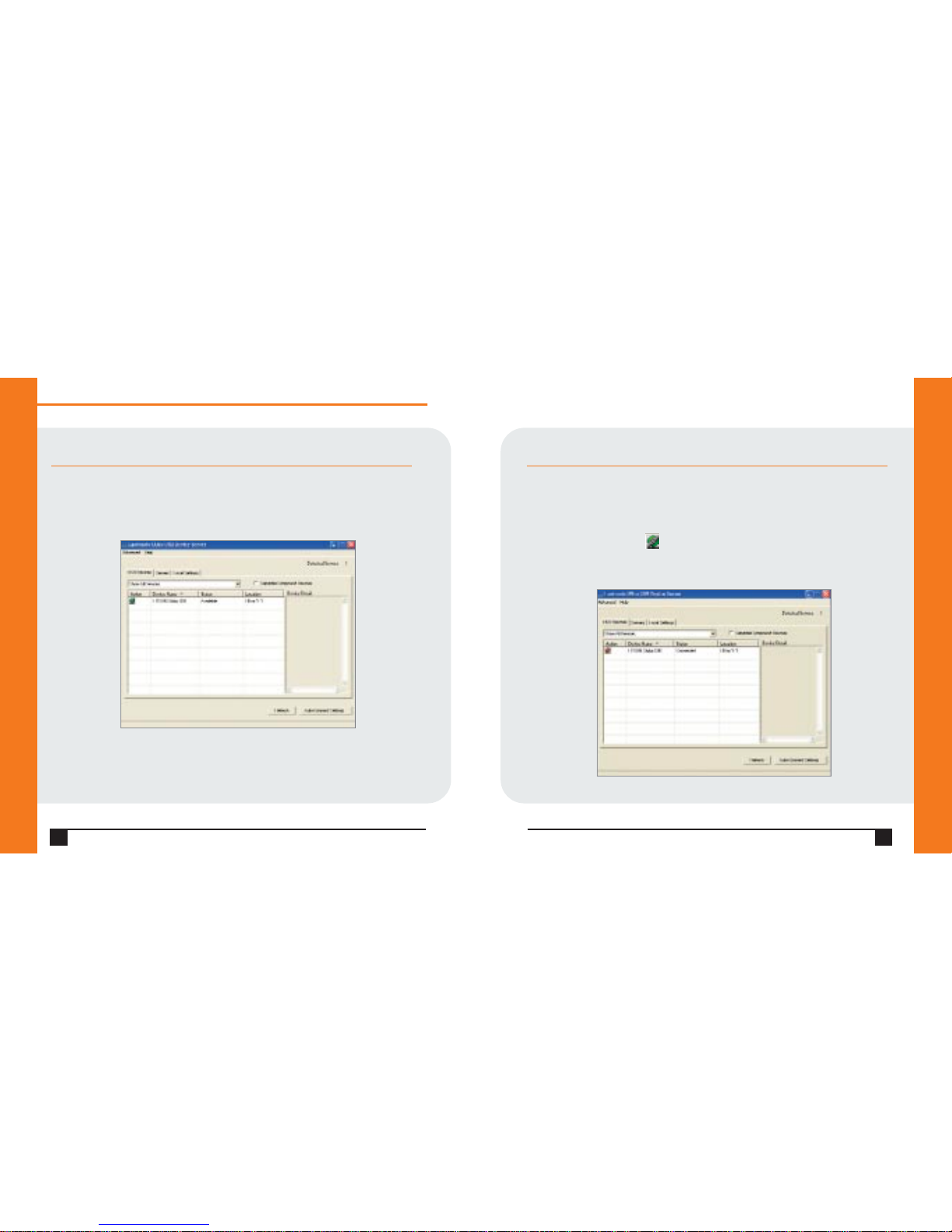

2.On the Start menu,click Programs➞Lantronix UBox USB Device

Server➞UBox USB Device Server.The USB Devices tab of the Lantronix

UBox USB Device Server window opens.Your networked USB device displays

in the Device Name column.

Notes:

• If you do not see your USB device,please read the detailed troubleshooting

instructions in the User Guide.

• If you have installed a software or hardware firewall,you may need to configure

it to allow access to your UBox.Please refer to the User Guide for details.

6WWW.LANTRONIX.COM

CONNECTING/DISCONNECTING VIA SOFTWARE

Now that the USB Device is physically connected,you must connect to it

through the UBox software.

1.Click the USB Devices tab.

2.Select your device by clicking its name.

3.Click the Connect icon in the Action column to the left of the device.

You can now use your device as if it were directly connected to your computer.

Quick Start Guide

UBox 4100

USBDevice

attachedto

theUBox ➞

USB

Connected

totheUBox➞

CONNECTING/DISCONNECTING CONTINUED…

4.When you are finished using your USB device,select the device and click

the Disconnect icon in the Action column. This makes the USB device

available to other UBox users.

5.Repeat this procedure for additional USB devices.

Shortcut: Connect and Disconnect USB Devices Without

Opening the Software

Connect and disconnect USB devices without opening the UBox software by

using the UBox SystemTray.

To use the system tray:

1.Find the UBox icon on the System Tray.The SystemTray is in the

lower right corner of your screen (next to the time).

2.Right-click the UBox icon .A menu displays.

Quick Start Guide

UBox 4100

WWW.LANTRONIX.COM

CONNECTING/DISCONNECTING CONTINUED…

3.Select Connect to devices.Asubmenu lists the devices physically

connected to the UBox.A checkmark indicates that the device is connected

by the software.

4.Select the device you want to connect or disconnect.

Note:You can use the system tray for other purposes.For example,to open the

UBox application instead of using the Start menu,right-click the system tray

and select UBox Settings.

Quick Start Guide

UBox 4100

CONTACT

Technical Support US

Check our online knowledge base or send a question to Technical Support at

www.lantronix.com/support.

Technical Support Europe,Middle East,Africa

Phone:+49 (0) 89 31787 817

Email:[email protected] or [email protected]

Lantronix

15353 Barranca Parkway

Irvine,CA 92618,USA

Phone:(949) 453-3990

Fax:(949) 453-3995

www.lantronix.com

WWW.LANTRONIX.COM 11

CONFIGURINGTHE UBOX

The UBox package has two components:the UBox hardware and the

UBox software.Both have their own settings and configuration options.

You modify the settings for the UBox on the Servers tab;these settings are

stored in the UBox hardware.You modify the settings of the UBox software

on the Local Settings tab; these settings are stored on your computer.

Refer to the User Guide for details on configuring the UBox hardware

and software.
