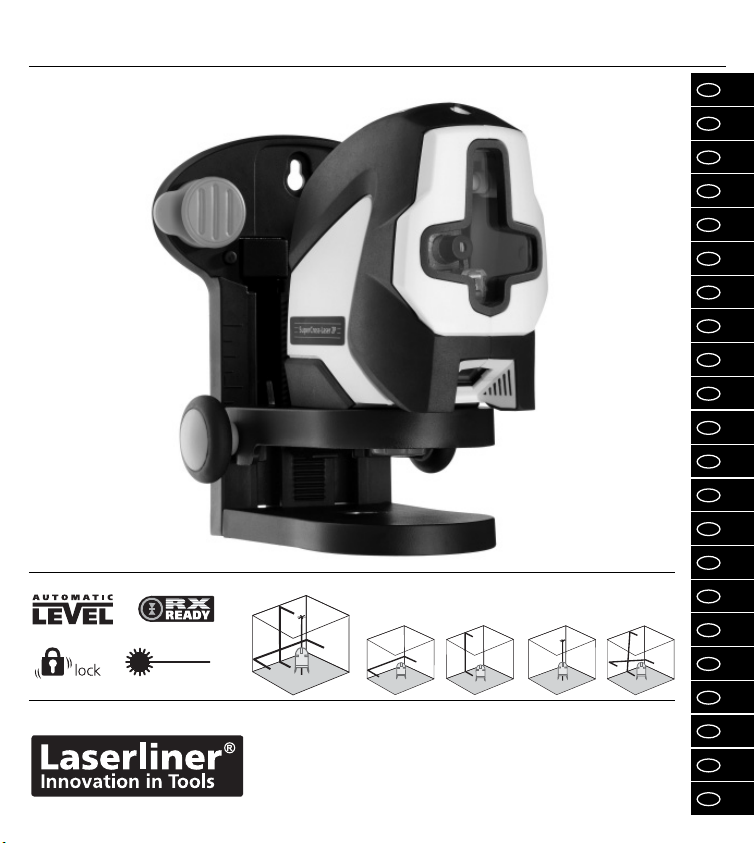

LaserLiner SuperCross-Laser 2P Manuale utente

Laser

635 nm

SuperCross-Laser 2P

1H 1V 2P

_1_Manual_SCL_2P_Rev1110_umschlag.indd 3 24.11.2010 10:54:45 Uhr

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely.

Follow the instructions they contain. Safely keep these documents for future reference.

The automatic cross-line laser with plumb function and integrated hand-held receiver mode

for aligning tiles, wall studding, windows, doors etc.

General safety instructions Laser radiation!

Do not stare into the

beam! Class 2 laser

< 1 mw · 635 nm

EN 60825-1:2007-10

Caution: Do not look directly into the beam. Lasers must be kept

out of reach of children. Never intentionally aim the device at

people. This is a quality laser measuring device and is 100% factory

adjusted within the stated tolerance. For reasons of product liability,

we must also draw your attention to the following: Regularly check

the calibration before use, after transport and after extended periods of storage. We also wish to point out that

absolute calibration is only possible in a specialist workshop. Calibration by yourself is only approximate and the

accuracy of the calibration will depend on the care with which you proceed.

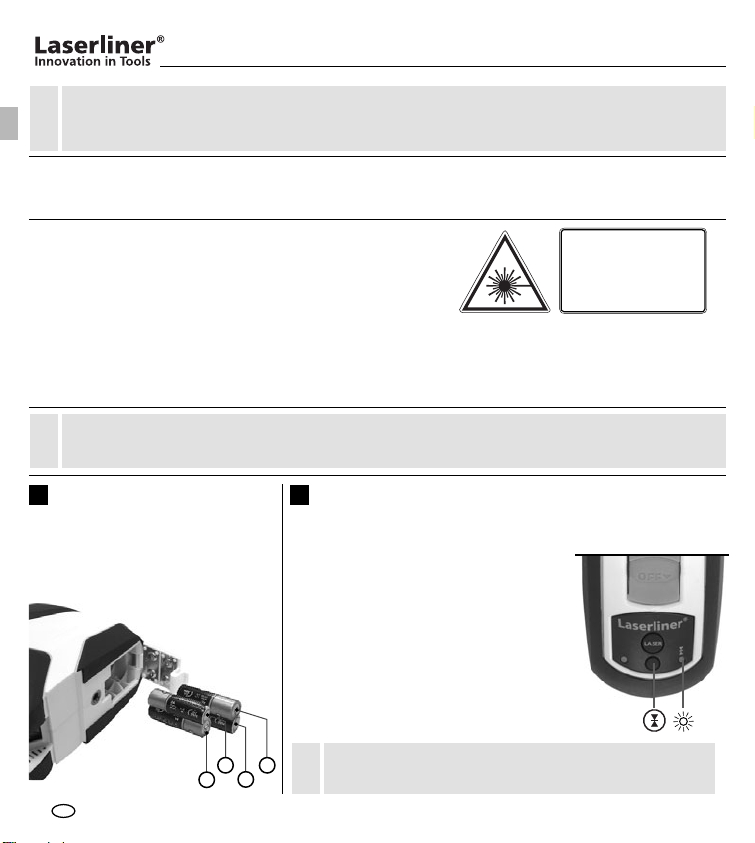

Open the battery compartment

and insert batteries (4 x type AA)

according to the symbols. Be sure

to pay attention to polarity.

Inserting batteries

Always turn off all lasers and latch the pendulum in place before transporting, ON/OFF switch in its „OFF“

position!

Hand receiver mode

Optional: Working with the laser receiver RX

Use an RX laser receiver (optional) to carry out

levelling at great distances or when the laser

lines are no longer visible.

To work with a laser receiver, switch the line

laser into hand receiver mode with the Hand

receiver mode button. The laser lines will now

pulsate with high frequency, making the laser

lines darker. The laser receiver can detect

these pulsating laser lines.

Observe the laser receiver‘s operating instructions for line

lasers.

1 2

–

02_Manual_SCL_2P_Rev1110_GB.indd Abs1:6 24.11.2010 11:01:24 Uhr

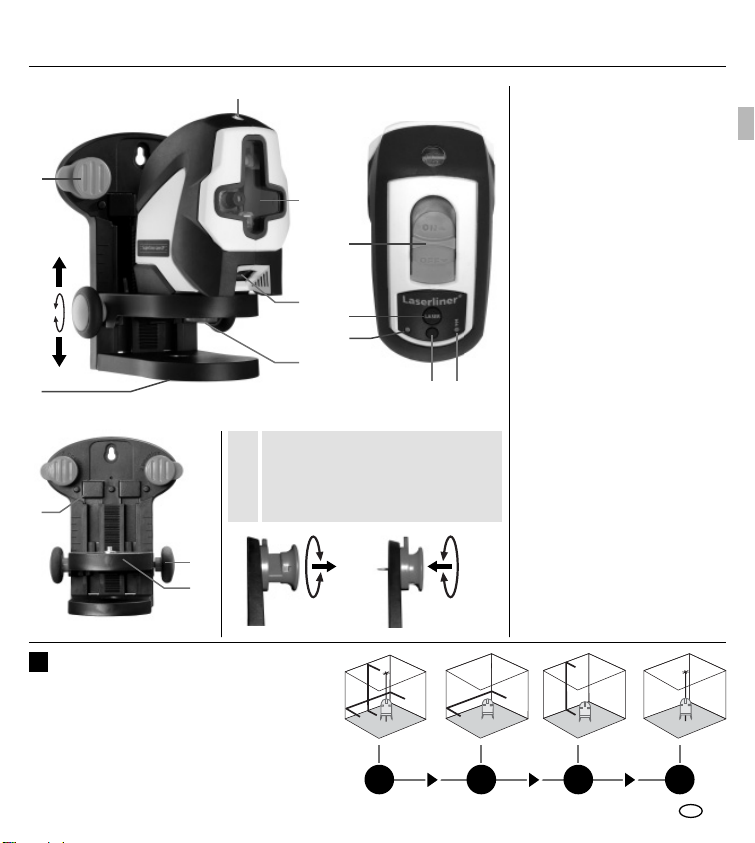

SuperCross-Laser 2P

2Laser-emitting window,

plumb laser

31/4“ fastening screw

1Laser output windows

45/8“ tripod threads with

threaded bush insert for 1/4“

photo-tripod threads

5Special pins for direct

attachment to a wall

6ON / OFF switch,

transport retainer

7Laser line selection button

8LED Status indicator

9Hand receiver mode

10 LED Hand receiver mode

11 Holding magnets on the

back-side for attachment to

magnetic-responsive objects

12 Height adjustment knob

13 Tripod/wall bracket with

63 mm height adjustment

910

Always rotate the special pins into

their parked position for transport, see

illustration below. Otherwise there is

danger of injury.

Park Fasten

Release the transport restraint, set the ON/

OFF switch to „ON“. The laser cross and the

two plumb lasers appear. The laser lines can be

switched individually with the selection button.

Horizontal and vertical levelling

LASER LASER LASER LASER

02_Manual_SCL_2P_Rev1110_GB.indd Abs1:7 24.11.2010 11:01:30 Uhr

Technical Data

Automatic levelling range

Accuracy

Operating range (depending on room illumination)

Laser wavelength

Laser class / line laser output power

Power supply

Operating time

Temperature range, operating / storage

Dimensions (W x H x D)

Weight (without wall bracket and batteries)

The transport restraint must be released for horizontal and vertical levelling. The laser lines ×ash and the LED

lights red as soon as the device is outside the automatic levelling range of 4°. Position the device such that it

is within the levelling range. The LED switches back to green and the laser lines stop ×ashing (steady light).

Do not release the transport restraint, set the ON/OFF switch to „OFF“. Select and switch on

the laser with the selection button. Sloping planes can now be measured. This mode cannot

be used to perform horizontal or vertical levelling as the laser lines are no longer aligned auto-

matically. The LED lights constantly red.

Slope mode

Subject to technical changes without notice. 11.10

Guarantee, product care and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European

Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: www.laserliner.com/info

Working range with hand-held receiver

± 4°

±5 mm/10 m

20 m

depending on receiver: 30 to 50 m

635 nm

2/÷1 mW

4x 1.5V batteries (type AA, LR6)

approx. 25 hours

0 °C ... +50 °C/-10 °C ... +70 °C

66 x 119 x 124 mm

0.43 kg

02_Manual_SCL_2P_Rev1110_GB.indd Abs1:8 24.11.2010 11:01:32 Uhr

SuperCross-Laser 2P

Performing the calibration check:

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls,

which must be at least 5 metres apart. Switch the device on (Laser cross ON). The best calibration results are achie-

ved if the device is mounted on a tripod.

A2 A2

< 2 mm / 10 m = OK

If points A2 and A3 are more than 5 mm / 10 m, the device is in need of calibration. Contact your authorised

dealer or else the UMAREX-Laserliner Service Department.

1. Mark point A1 on the wall.

2. Turn the device through 180° and mark

point A2. You now have a horizontal

reference between points A1 and A2.

3. Position the device as near as possible to

the wall at the height of point A1.

4. Turn the device through 180° and mark

point A3. The difference between points

A2 and A3 is the tolerance.

Checking the vertical line: Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m

length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the

plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is

not greater than ± 1.5 mm.

Checking the horizontal line:

Position the device about 5 m from a wall and switch on the cross laser. Mark point B

on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check

whether the horizontal line from point C is level with point B to within ± 2 mm.

Repeat the process by turning the laser to the left.

2,5 m

< 2 mm = OK

Regularly check the calibration before use, after transport and after extended periods of storage.

02_Manual_SCL_2P_Rev1110_GB.indd Abs1:9 24.11.2010 11:01:32 Uhr

081.125A / Rev.1110

SERVICE

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: +49 2932 638-333

[email protected]

Umarex GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com



SuperCross-Laser 2P

_1_Manual_SCL_2P_Rev1110_umschlag.indd 2 24.11.2010 10:54:42 Uhr
