LeCroy HDO6000 Manuale utente

HDO6000

High Deﬁnition Oscilloscopes

Getting Started Guide

921447-00 Rev A

700 Chestnut Ridge Road

Chestnut Ridge, NY 10977

1.800.5.LECROY •teledynelecroy.com

Unauthorized duplication of Teledyne LeCroy documentation materials other than for internal sales

and distribution purposes is strictly prohibited. However, clients are encouraged to distribute and

duplicate Teledyne LeCroy documentation for their own internal educational purposes.

HDO and Teledyne LeCroy are trademarks of Teledyne LeCroy. Windows is a registered

trademark of Microsoft Corporation. Other product or brand names are trademarks or requested

trademarks of their respective holders. Information in this publication supersedes all earlier

versions. Specifications are subject to change without notice.

HDO6000

High Deﬁnition Oscilloscopes

Getting Started Guide

921447-00 Rev A

Welcome

Thank you for buying a Teledyne LeCroy product. We’re certain you’ll be pleased with the detailed features so unique to our instruments.

This Getting Started Guide is designed to cover important safety and installation information for your oscilloscope, along with some basic operating

procedures so you’re quickly working with waveforms.

Introduction

About the HDO6000 Oscilloscopes 2

Materials List 2

General Safety Information 3

Support 4

Set Up

The Front of Your Oscilloscope 6

The Side of Your Oscilloscope 8

The Back of Your Oscilloscope 9

Carrying 10

Connecting 10

Powering On/Off 11

Probes 11

Software Activation 12

User Interface

Touch Screen Display 14

Toolbar Shortcuts 16

Language Selection 16

Entering/Selecting Data 17

Front Panel 19

Contents

Basics

Turning On/Off Traces 22

Vertical 23

Horizontal (Timebase) 24

Zoom 25

Triggers 26

Cursors 27

Measurements & Statistics 28

Math 30

Spectrum Analyzer 31

Memories (Reference Waveforms) 32

Documenting 33

Temperature Dependent Calibration 34

Software Options 35

Reference

Service 38

Teledyne LeCroy Service Centers 39

Certifications 40

Warranty 42

Windows License Agreement 42

HDO6000 High Deﬁnition

Oscilloscopes

INTRODUCTION

921447-00 Rev A

INTRODUCTION 2

About the HDO6000 Oscilloscopes

Combining Teledyne LeCroy’s HD4096 high-definition technology with

long memory, a compact form factor, 12.1" touch screen display, and

powerful debug and circuit analysis tools, the HDO6000 Oscilloscopes

are ideal for precise measurements and quick debug. Tools such as

Spectrum Analyzer, WaveScan®Search and Find, and LabNotebook

Report Generator help identify, isolate, and document problems for faster

troubleshooting.

HD4096

HD4096 high-definition technology consists of high sample rate 12-bit

ADCs, high signal-to-noise input amplifiers, and a low-noise system

architecture. This technology enables HDO™ oscilloscopes to capture

and display signals up to 1 GHz with a high sample rate and 16 times

more resolution than other oscilloscopes.

Waveforms captured and displayed on the HDO6000 with HD4096

technology are cleaner and crisper. Signal details often lost in the noise

are clearly visible and easy to distinguish, and measurements can be

performed with unmatched precision for improved debug and analysis.

Specifications

Detailed specifications are maintained in the Datasheet on the product

page at teledynelecroy.com.

Spectrum Analyzer

Navigate waveforms in the frequency domain using spectrum analyzer

type controls and apply FFT measurements without worrying about FFT

set up.

WaveScan Search and Find

Search a single acquisition using more than 20 different criteria. Or, set

up a scan condition and scan for an event over hours or even days.

History Mode

Scroll back in time to view previous waveforms and isolate anomalies.

Use cursors and measurement parameters to quickly find the source of

problems. History mode is always available, no need to enable it.

LabNotebook Report Generator

Save and document all your waveforms, settings and screen images in

one place with the LabNotebook report generation tool. Returning your

oscilloscope to a past state is only one button press away thanks to

LabNotebook’s flashback feature.

Materials List

Check that you have all the parts listed here. Contact Teledyne LeCroy

immediately if any part is missing.

•One (1) oscilloscope

•Four (4) passive probes (one for each channel)

•One (1) AC line (power) cord

•One (1) protective front cover

•One (1) Getting Started Guide

•One (1) Oscilloscope Security Certificate

•One (1) Oscilloscope Registration Card

•One (1) Calibration Document

Key Speciﬁcations

Bandwidth 350 MHz–1 GHz

Channels 4

Sample Rate (all channels) 2.5 GS/s

Memory (per channel) 50 Mpts/ch

Maximum Memory 250 Mpts

921447-00 Rev A

INTRODUCTION 3

General Safety Information

This section contains instructions that must be observed to keep the

instrument operating in a correct and safe condition. You are required

to follow generally accepted safety procedures in addition to the

precautions specified in this section.

The overall safety of any system incorporating this instrument is

the responsibility of the assembler of the system.

Symbols

These symbols appear on the instrument’s front or rear panels and in its

documentation to alert you to important safety considerations.

CAUTION of damage to instrument, or WARNING of hazard to

health. Attend to the accompanying information to protect against

personal injury or damage. Do not proceed until conditions are fully

understood and met.

WARNING. Risk of electric shock.

Measurement ground connection.

Safety (protective) ground connection.

Alternating Current.

On/Standby power.

CAT Installation (Overvoltage) Category rating (I or II) per

EN 61010-2:030:2010 safety standard. See Certifications for details.

Precautions

• Use proper power cord. Use only the power cord shipped with this

instrument and certified for the country of use.

• Maintain ground. This product is grounded through the power

cord grounding conductor. To avoid electric shock, connect only to a

grounded mating outlet.

• Connect and disconnect properly. Do not connect/disconnect

probes or test leads while they are connected to a voltage source.

• Observe all terminal ratings. Do not apply a voltage to any input

(C1, C2, C3, C4 or EXT) that exceeds the maximum rating of that

input. Refer to the front of the oscilloscope for maximum input

ratings.

• Use only within operational environment listed. Do not use in

wet or explosive atmospheres.

• Use indoors only.

• Keep product surfaces clean and dry.

• Do not block the cooling vents. Leave a minimum six-inch gap

between the instrument and the nearest object. Keep the underside

clear of papers and other objects.

• Do not remove the covers or inside parts. Refer all maintenance to

qualified service personnel.

• Do not operate with suspected failures. Do not use the product

if any part is damaged. Obviously incorrect measurement behaviors

(such as failure to calibrate) might indicate impairment due to

hazardous live electrical quantities. Cease operation immediately and

sequester the instrument from inadvertent use.

921447-00 Rev A

INTRODUCTION 4

Operational Environment

Temperature: 5° to 40° C

Humidity: Maximum relative humidity 90% for temperatures up to

31° C decreasing linearly to 50% relative humidity at 40° C

Altitudes: up to 3,000 m (at < 30° C)

Power and Ground Connections

The instrument operates from a single-phase, 100 to 240 Vrms (± 10%)

AC power source at 50/60/400 Hz (± 10%). Manual voltage selection

is not required because the instrument automatically adapts to the line

voltage.

The AC inlet ground is connected directly to the frame of the instrument.

For adequate protection again electric shock, connect to a mating outlet

with a safety ground contact.

WARNING. Interrupting the protective conductor inside or

outside the oscilloscope, or disconnecting the safety ground

terminal, creates a hazardous situation. Intentional interruption

is prohibited.

Maximum power consumption with all accessories installed (e.g., active

probes, USB peripherals) is 350 W (350 VA). Power consumption in

standby mode is 4 W.

Cleaning

Clean only the exterior of the oscilloscope using a damp, soft cloth. Do

not use harsh chemicals or abrasive elements. Under no circumstances

submerge the instrument or allow moisture to penetrate it. Avoid

electric shock by unplugging the power cord from the AC outlet

before cleaning.

CAUTION. Do not attempt to clean internal parts.

Support

Online Documentation

Teledyne LeCroy publishes a free Technical Library on its website.

Manuals, tutorials, application notes, white papers, and videos are

available to help you get the most out of your Teledyne LeCroy products.

The HDO6000 Oscilloscopes Operator’s Manual can be downloaded

from teledynelecroy.com/hdo6000. This .PDF document contains more

extensive procedures for operating your oscilloscope than are found

here. You can also download Oscilloscope System Recovery Tools and

Procedures, which contains instructions for using Acronis®True Image®

Home included with the oscilloscope.

The Datasheet published on the product page contains the detailed

product specifications.

Technical Support

Registered users can contact their local Teledyne LeCroy service center

at the number listed in this guide to make Technical Support requests by

phone or email. You can also submit Technical Support requests via the

website at teledynelecroy.com/support/techhelp.

HDO6000 High Deﬁnition

Oscilloscopes

SET UP

921447-00 Rev A

SET UP 6

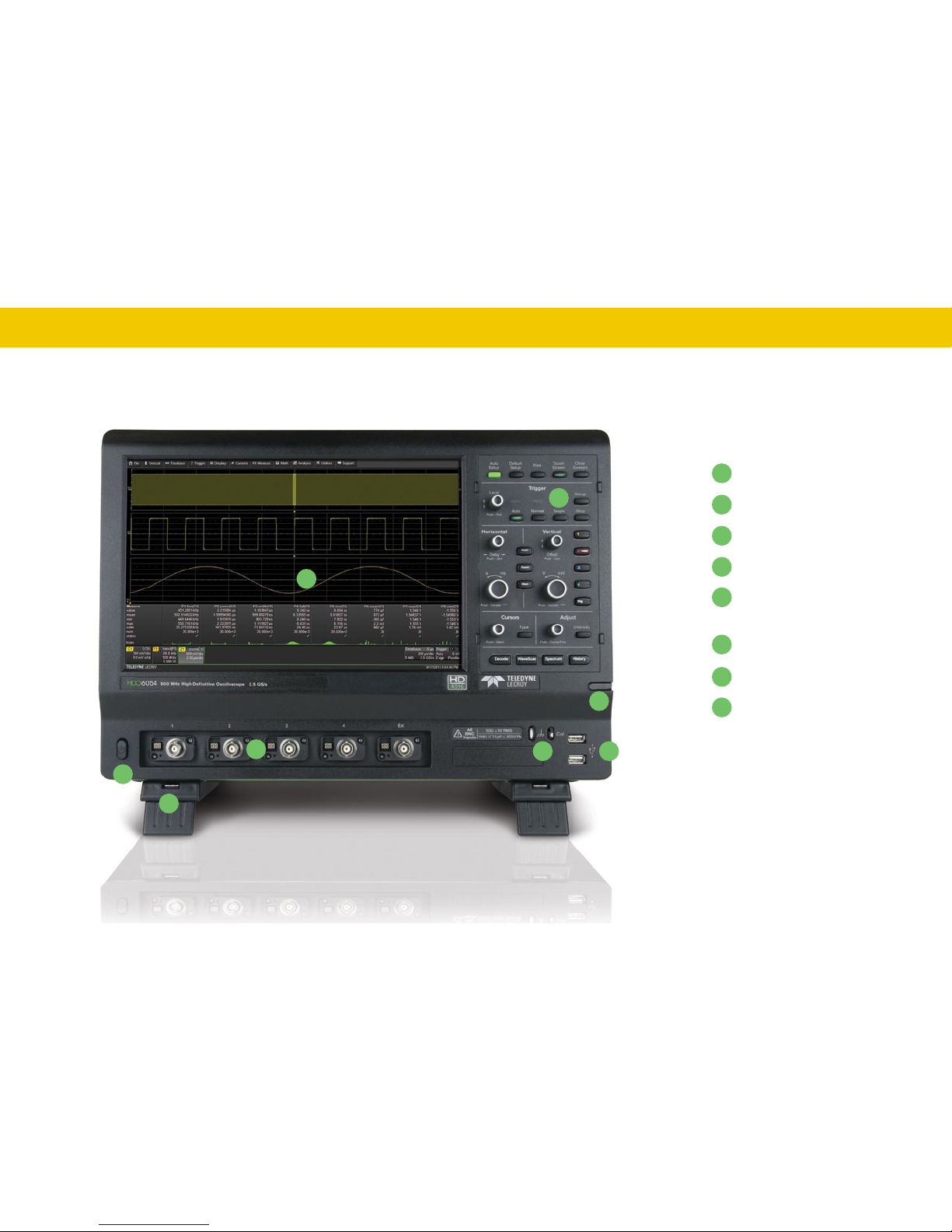

The Front of Your Oscilloscope

Touch Screen Display

Front Panel

Built-in Stylus Holder

USB Ports

Ground and Calibration

Output Terminals

Channel Inputs

Power Button

Rotating / Tilting Feet
