Lectron Energy Meter Manuale utente
User Manual
Energy Meter
In the Box
1 x energy meter
Page 1
About the Lectron Energy Meter
The Lectron Energy Meter allows you to measure
how much electricity is used by your Lectron
V-BOX Charging Station.
Warnings
1. During normal operation, hazardous voltages
may be present in some of the terminals of
this unit. Always use with caution.
Page 2
2. Ensure all parts are de-energized before
attempting to connect.
3. Never touch or adjust terminals after
installation.
4. Only install in a dry and safe environment.
1. Installation should only be done by a qualified
professional, following all local regulations.
2. This energy meter should never be used as the
sole means of fault protection.
3. Install this energy meter after your main power
supply.
4. Only use this energy meter with the Lectron
V-BOX charging station.
Disclaimer
Page 3

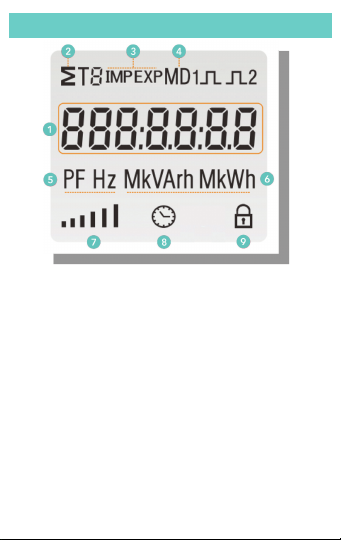

LCD Display
1. energy measurement value
2. total value
3. import / export energy
4. maximum demand
(loading current)
5. PF (power factor); Hz (frequency)
6. measurement of kVArh
(reactive power)
measurement of kWh
(active power)
7. power level
8. time/duration
9. lock device
Page 4
How to Install
Install the energy meter by connecting it between
your electrical panel and your V-BOX.
1. Connect the ground wire from the electrical
panel to the V-BOX.
ground
Page 5
2. Insert the neutral wire from the electrical panel
into the no. 1 port at the top of the energy
meter. Flip open the top compartment and
tighten the screw using a Phillips screwdriver
(not included).
V-BOX connect
to Energy Meter - N
3. Insert the neutral wire from the V-BOX into the
no. 4 port at the bottom of the energy meter.
Flip open the bottom compartment and
tighten the screw.
no. 1 port
(top view)
2 1
no. 4 port
(bottom view)
3 4
Page 6
4. Insert the live wire from the electrical panel into
the no. 2 port at the top of the energy
meter. Tighten the screw and close the
compartment.
5. Insert the live wire from the V-BOX into the
no. 3 port at the bottom of the energy meter.
Tighten the screw and close the compartment.
V-BOX connect
to Energy Meter - L
no. 3 port
(bottom view)
3 4
no. 2 port
(top view)
2 1
Page 7
Note: When the energy meter is powered on, it
will initiate a self check. After that, it will
display the total kWh (active power).
*speed of data exchange
Click the scroll button to go through the functions,
and press the enter button to select the function.
Scrolling Between Functions
Scroll
Buttons:
1. total kWh
2. import kWh
3. export kWh
4. resettable kWh
5. total kVArh
6. import kVArh
7. export kVArh
8. resettable kVArh
9. max power demand
10. voltage
11. current
12. W (watt)
13. VAr (volts-amps
reactive)
14. VA (volt-ampere)
15. power factor
16. frequency
17. DI 1 (digital input)
18. DI 2
19. modbus ID
20. baud rate*
21. continuous
running time
Enter
Page 8

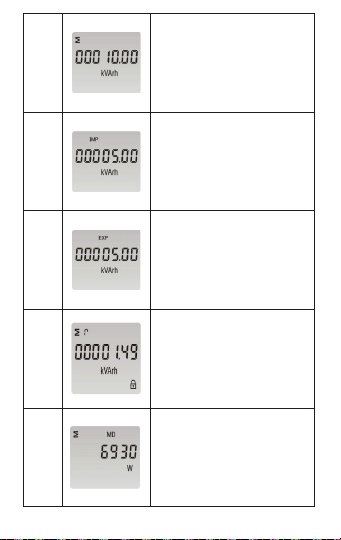

total active energy
1
Function / Description
Order Display
(example)
2import active energy
export active energy3
total resettable energy4
Page 9
total reactive energy5
import reactive energy6
export reactive energy7
total resettable reactive
energy
8
total max. power
demand
9
