LEGRAND 412015 Manuale utente

83 mm

17.7 mm

Connected energy meter

4 120 15

LE12267AB

Composition

Imperative security precaution

Failure to strictly comply with the installation and use conditions

may result in risk of electric shock or ﬁre.

Requires the installation of a :

Connected Starter Pack

"... with Netatmo"

Gateway module

Connected energy meter

72A MAX

2,4 à

2,4835Ghz

<100 mW

+5°C

+45°C

100-240V~

50 / 60Hz

measure

+/-1%

under 63A

kWh

Ø10.2 mm

Measure coil

Cable lenght: 800mm

Ø26.45 mm

Accuracy

kWh

Measure

Global

CE Directive

Compliant with the following European directive:

Low voltage directive

(LVD) 2014/35/UE

Electromagnetic compatibility

(CEM) n° 2014/30/UE

Imax=72A AC

Pay attention to the direction of the current

Wiring

8mm

Preparation, connexion

OFF

Turn oﬀ the power

at general

circuit breaker

3.5 mm

A circuit breaker for the Energy meter is necessary

MAX

2x 1.5mm²

1.5mm²

V1, N:

0.5Nm

N (neutral) = blue L (Line) = Everything but blue and green/yellow

Connection

of the power supply

Connection

of the power supply

Direction of the

current indicated

on the coil

4 120 15

Measure coil

*: Do not use on a three Lines electrical installation.

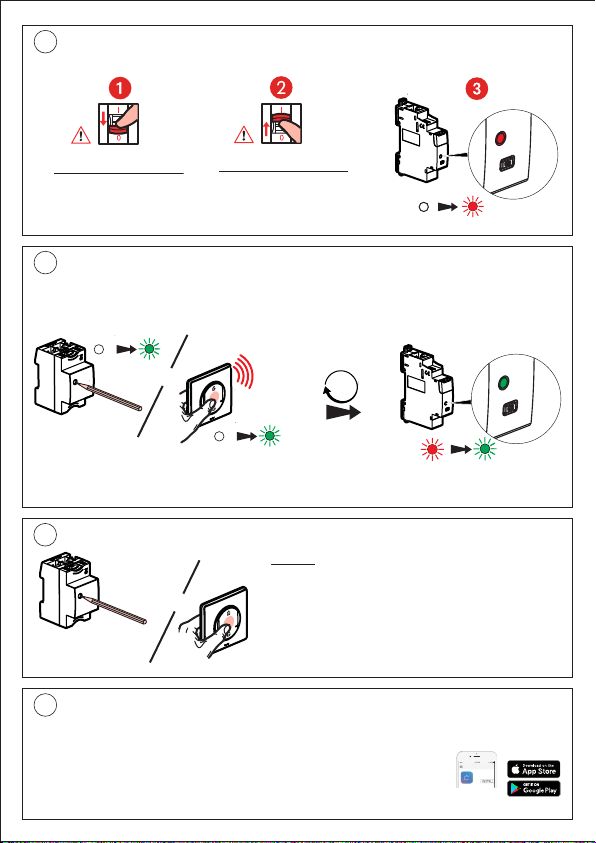

Add the in a connected installation Energy meter

Press and hold the Gateway module settings button ,or in the center of the

General Scenario Wireless Command until the LED turns green,

then release the button.

Complete the installation

>30s

>3s >3s

<1s

OFF ON

Turn on the power at the

general circuit breaker

once the installation

completed and controlled

Turn oﬀ the power at

general circuit breaker

The conﬁguration LEDs of " ... with Netatmo " devices must all light up in ﬁxed green.

Brieﬂy press the setting button on

the Gateway module (or in the center of the

General Scenario Wireless Command)

to ﬁnalize the installation.

All devices LED go OFF.

Legrand Home + Control

Finalize the installation in the Legrand Home + Control app

To add this connected product and peripheral items in your

connected installation, you must follow the instructions:

- with Legrand Home + Control app

(Parameters/Add new product)

- or consult the guides and instructions sheets on legrand.fr

EU SIMPLIFIED DECLARATION OF CONFORMITY

The undersigned,

Legrand

declares that the radio equipment listed on this instruction sheet

are compliant to the directive 2014/53/UE.

The full text of the EU declaration of conformity

is available at the following website:

www.legrandoc.com

LEGRAND - Pro and Consumer Service - BP 30076

87002 LIMOGES CEDEX FRANCE • www.legrand.com

www.legrand.fr/reference/412015

Press the button for more than 5 seconds

conﬁguration of the Energy meter until

the conﬁguration indicator lights up solid red.

It is no longer associated with the Gateway module

/ Control socket.

>5s

Reset an Energy meter

to remove it from a connected installation
