Leica TS02 Manuale utente

Leica FlexLine

TS02/TS06/TS09

Quick Guide

Version 2.0

English

To use the product in a permitted manner, please refer to the detailed safety instructions in the User

Manual.

Container Contents

a) GKL211 battery charger*

b) GFZ3 diagonal eyepiece*

c) GEV189 data cable (USB-RS232)*

d) GLI115 clip-on bubble*

e) GHT196 holder for height meter*

f) CPR105 flat prism*

g) GLS115 mini prism pole*

h) GHM007 height meter*

i) Protective cover / Lens hood

j) GEV223 data cable (USB-mini USB)

k) GMP111 mini prism*

l) Adjustment tools

m) GEB211 batteries*

n) GAD105 flat or mini prism adapter*

o) MS1 Leica industrial grade USB memory stick

p) GEB221 battery*

q) Tip for mini prism pole*

r) Counterweight for diagonal eyepiece*

s) Instrument with supplied tribrach

t) User manual and quick guide

* Optional

The GEV223 data cable (USB-mini USB) and MS1 Leica industrial grade USB memory stick are for instruments with a

Communication side cover.

Leica FlexLine

TS02/TS06/TS09

User Manual

lm n o p r st

cba d e f g h i j k

User Interface

Keys

Page key. Displays the next screen when several screens are available.

FNC key. Quick-access to measurement supporting functions.

User key 1. Programmable with a function from the FNC menu.

User key 2. Programmable with a function from the FNC menu.

ENTER key. Confirms an entry and continues to the next field.

Navigation key. Controls the focus bar.

ESC key. Quits a screen or edit mode without saving changes. Returns to next higher level.

,,,Function keys that are assigned the variable functions displayed at the bottom of the screen.

Alphanumeric keypad for entry of text and numerical values.

Keyboard

Screen

Standard keyboard Alphanumeric keyboard

a) Fixed keys

b) Navigation key

c) ENTER key

d) ESC key

e) Function keys F1 to F4

f) Alphanumeric keypad

a) Title of screen

b) Fields

c) Status icons

d) Focus in screen. Active field

e) Softkeys

S_QG_TSOX_001

S_QG_TSOX_002

S_TSOX_001

Status Icons

Icon Description Icon Description

The battery symbol indicates the level of the

remaining battery capacity.

Telescope position face I.

Compensator is on. Telescope position face II.

Compensator is off. Leica standard prism.

Prism EDM mode. Leica mini prism.

Non-Prism EDM mode. Leica 360° prism.

! Offset is active. Leica 360° mini prism.

Keypad is set to numeric mode. Leica reflector tape.

Keypad is set to alphanumeric mode.

User defined prism.

Anticlockwise horizontal angle measure-

ment.

USB communication port is selected.

Selectable field. Bluetooth is connected. If the icon has a

small cross beside it, the Bluetooth commu-

nication port is selected, but the status is

inactive.

Up and down arrows indicate that several

screens are available, which are accessed

using .

012

ABC

Data Storage and Transfer

Description

An internal memory is included in all instruments. The FlexField firmware stores all data in jobs in a database in the

internal memory. Data can then be transferred to a computer or other device for post processing via a LEMO cable

connected to the serial interface RS232 port.

For instruments fitted with a Communication side cover, data can also be transferred from the internal memory to

a computer or other device via:

• a USB memory stick inserted into the USB host port,

• a USB cable connected to the USB device port, or

• via a Bluetooth connection.

Main Menu

a) Quick Survey program to begin measuring immediately.

b) To select and start applications.

c) To manage jobs, data, codelists, formats, system memory and USB memory

stick files

d) To export and import data.

e) To change EDM configurations, communication parameters and general

instrument settings.

f) To access instrument related tools such as check and adjust calibrations,

personal start up settings, PIN code settings, licence keys and system infor-

mation.

abc

def

S_TSOX_002

Menu Tree

|—— Q-Survey |—— Setting

| | |—— General

|—— Programs | | |—— Contrast, Trigger Key 1, Trigger Key 2, USER Key 1, USER Key

2, Tilt Correction, Hz Correction, Beep, Sector Beep, HZ Incre-

ment, V-Setting, Face I Definition, Language, Language

Choice, Angle Unit, Minimum Reading, Distance Unit,

Distance Decimal, Temperature Unit, Pressure Unit, Grade

Unit, Data Output, GSI Format, GSI Mask, Code record, Code,

Display IIIumination, Reticle IIIumination, Display Heater, Pre-

/Suffix, Identifier, Sort Type, Sort Order, Double Point ID,

Auto-Off, V After DIST.

|—— Station Setup

|—— Surveying

|—— Stakeout

|—— Reference Element

|—— Tie Distance

|—— Area & DTM-Volume

|—— Remote Height

|—— Construction

|—— Cogo

|—— Road 2D

|—— Roadworks 3D

|—— TraversePRO

|—— Reference Plane

| |—— EDM Settings

|—— EDM Setting, Atmospheric Data, Individual PPM, Projection

Scale, EDM Signal Reflection, EDM Frequency

| |—— Communication Parameters

| |—— Communication Settings, Bluetooth PIN

|—— Manage |—— Tools

|—— Jobs

|—— Fixpoints

|—— Measurements

|—— Codes

|—— Formats

|—— Delete Job Memory

|—— Memory Statistics

|—— USB-File Manager

|—— Adjust

|——

Hz-Collimation

V-Index

Tilt Axis

View Adjustment Reminder

Adjustment Reminder

|—— Start Up

|—— System Information

|—— Transfer | |—— Instrument Information, Software Information, Set Date, Set

Time|

|—— Export Data

|—— Import Data

|—— Licence Key

|—— PIN

|—— Load Firmware

Q-Survey Application

Description

After switching on and setting up correctly, the instrument is immediately ready for measuring.

Access

Select Q-Survey from the MAIN MENU.

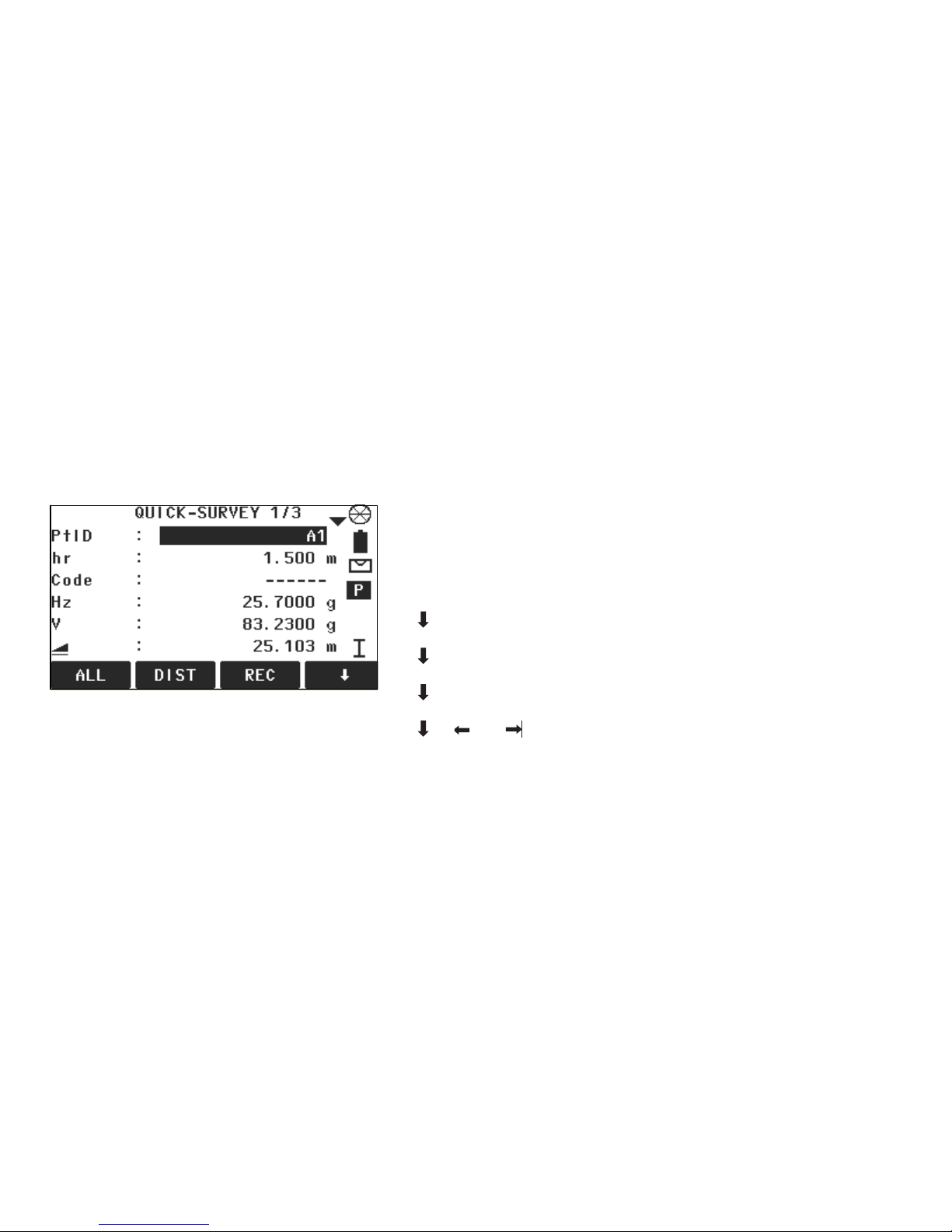

QUICK-SURVEY

Next step

Measure and record the point by pressing DIST and REC, or ALL.

ALL

To start measurements and save the measured values.

DIST

To start measurements and display the measured values.

REC

To save the displayed values.

CODE

To find/enter codes.

STATION

To enter station data and set the station.

Hz=0

To set the orientation to horizontal direction = 0.

Hz / Hz

To set the horizontal angle reading to the left (anticlockwise)

or to the right (clockwise).

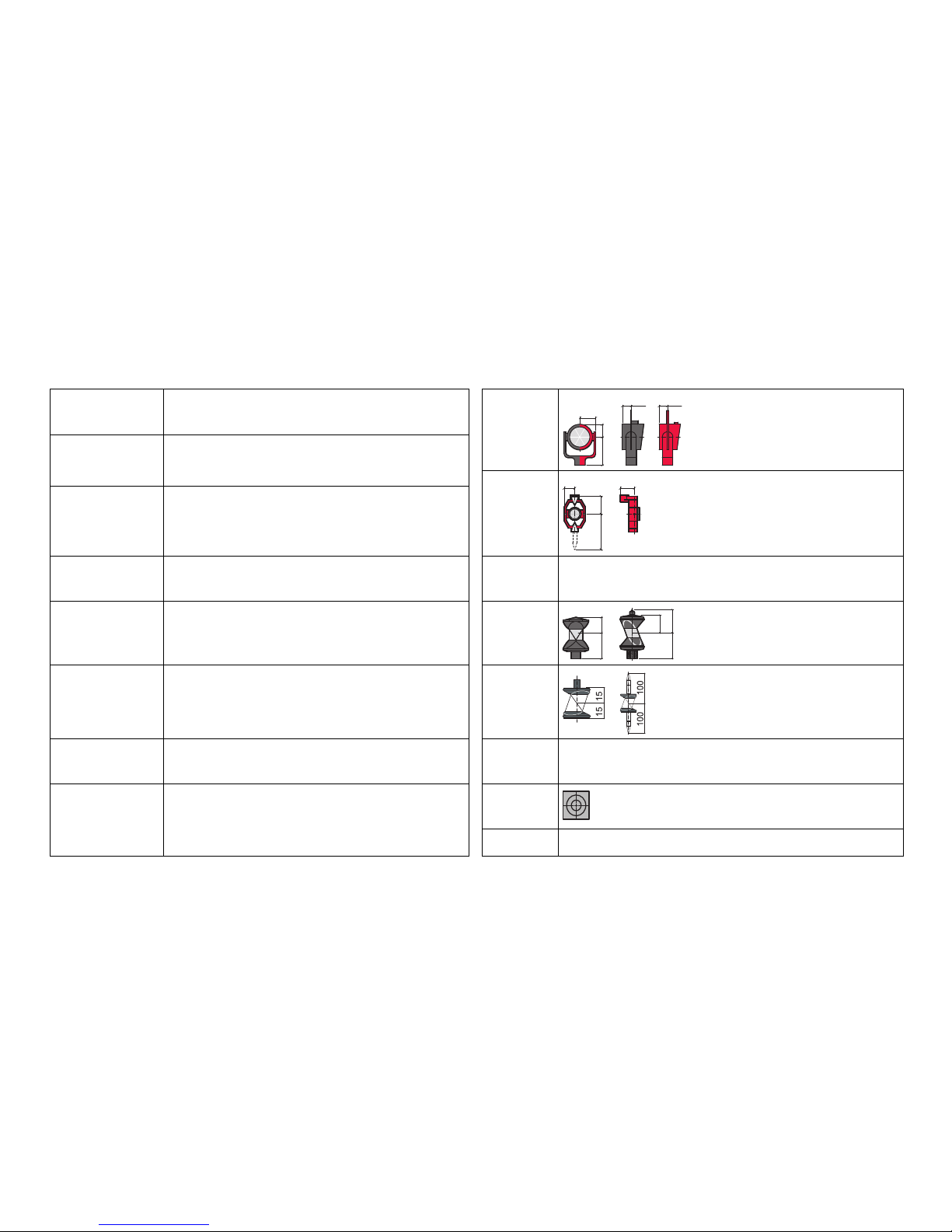

EDM Settings

EDM mode Prism type

Prism-

Standard

Fine measuring mode for high precision

measurements with prisms.

Round Standard prism GPR121/111

Leica Constant: 0.0 mm

Non-Prism-

Std.

For distance measurements without

prisms.

Mini GMP111

Leica Constant: +17.5 mm

GMP111-0

Leica Constant: 0.0 mm

Non-Prism-

Track.

For continuous distance measurements

without prisms.

Prism

(>3.5km)

For long range distance measurements

with prisms.

JpMini Miniprism. Leica Constant: +34.4 mm

Prism-Fast Quick measuring mode with prisms with

higher measuring speed and reduced

accuracy.

360° GRZ4/122

Leica Constant: +23.1 mm

Prism-

Tracking

For continuous distance measurements

with prisms.

360°

Mini

GRZ101

Leica Constant: +30.0 mm

Tape For distance measurements using Retro

reflective targets.

User1 /

User2

The user can define two of their own prisms.

Constants can be entered in mm.

FlexPoint For distance measurements without

prisms, up to ~30 m.

Tape Leica Constant: +34.4 mm

None Without prism. Leica Constant: +34.4 mm

3886

26 91

100

4030

Total Quality Management: Our commitment to total customer satisfaction.

Leica Geosystems AG, Heerbrugg, Switzerland, has been

certified as being equipped with a quality system which

meets the International Standards of Quality Management

and Quality Systems (ISO standard 9001) and Environmental

Management Systems (ISO standard 14001).

Ask your local Leica dealer for more information about our TQM program.

767515-2.0.0en

Original text

Leica Geosystems AG

Heinrich-Wild-Strasse

CH-9435 Heerbrugg

Switzerland

Phone +41 71 727 31 31

www.leica-geosystems.com
