Datasheet_FSW-0507TX

5-port 10/100 Mbps Switch

LevelOne’s FSW-0507TX Fast Ethernet Switch is designed for

easy installation and high performance in an environment where

traffic on the network and the number of user increase

continuoulsy. This switch is equipped with 5 Fast Ethernet ports

and reaching the highest bandwidth up to 200Mbps for each

port to provide workstations with a congestion-free data pipe for

simultaneous access to the server.

This FSW-0507TX combines dynamic memory allocation with a

store-and-forward switching architecture to ensure that the

buffer is effectively allocated for each port. It also controls the

data flow between transmit and receive nodes to guarantee

against all possible packet loss. With Auto-MDIX function for

each port, this switch is expandable by cascading two or more

switches together by uplinking directly without cable selection

hassle.

The switch with small and compact size is specially designed to

fit in space-limited locations and for small to middle workgroup.

With the accessory kits, the device can be standable on the

desk or mounted on the wall. Users can immediately access

any of the features of this product simply by attaching the cables

and turning on the power. For instant error detection, the switch

is equipped with a full range of LEDs to help you monitor and

troubleshoot problems on your network.

FSW-0507TX

Key Features

 5-port 10/100 Mbps Gigabit Switch

 Complies with IEEE 802.3, 802.3u and 802.3x

 Supports Nway auto-negotiation for speed and

duplex modes for each port

 Auto MDIX function for unlinking at each port

 Store-and-Forward switching architecture

 Front-panel diagnostic LEDs

 IEEE 802.3x flow control for full-duplex

 Back pressure flow control for half-duplex

Standable Wall-Mountable

Datasheet_FSW-0507TX

Technical Specification

 Standards Compliance

IEEE 802.3: 10 BASE-T

IEEE 802.3u: 100 BASE-TX

IEEE 802.3 Nway Auto-negotiation

 Ports

5 x RJ-45 10/100Mbps ports

 Protocol

CSMA/CD

 Switching Method

Store-and-Forward switching architecture

 Data Transfer Rate

Ethernet: 10Mbps half duplex, 20 Mbps full duplex

Fast Ethernet: 100Mbps half duplex, 200 Mbps full duplex

 Cabling

Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm

Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm

 Flow Control

IEEE802.3x for full-duplex

Back-Pressure for half-duplex

 MAC Address Table

4K entries per device

 Packet Buffer

128KB per device

 LEDs

Per Device: Power

Per Port: 100Mbps, Link/Act,

 Power Supply

External power DC7.5V/1A

 Power Consumption

7.5 Watts (max)

 Temperature

Operating: 0°C ~40°C

Storage: -20°C ~70°C

 Humidity

Operating: 5% ~ 90% Non-Condensing

 Dimension

131.5mm(L) * 71.5mm(W) * 32mm(H)

 EMI and Safety

FCC class B, CE Mark B, VCCI-B

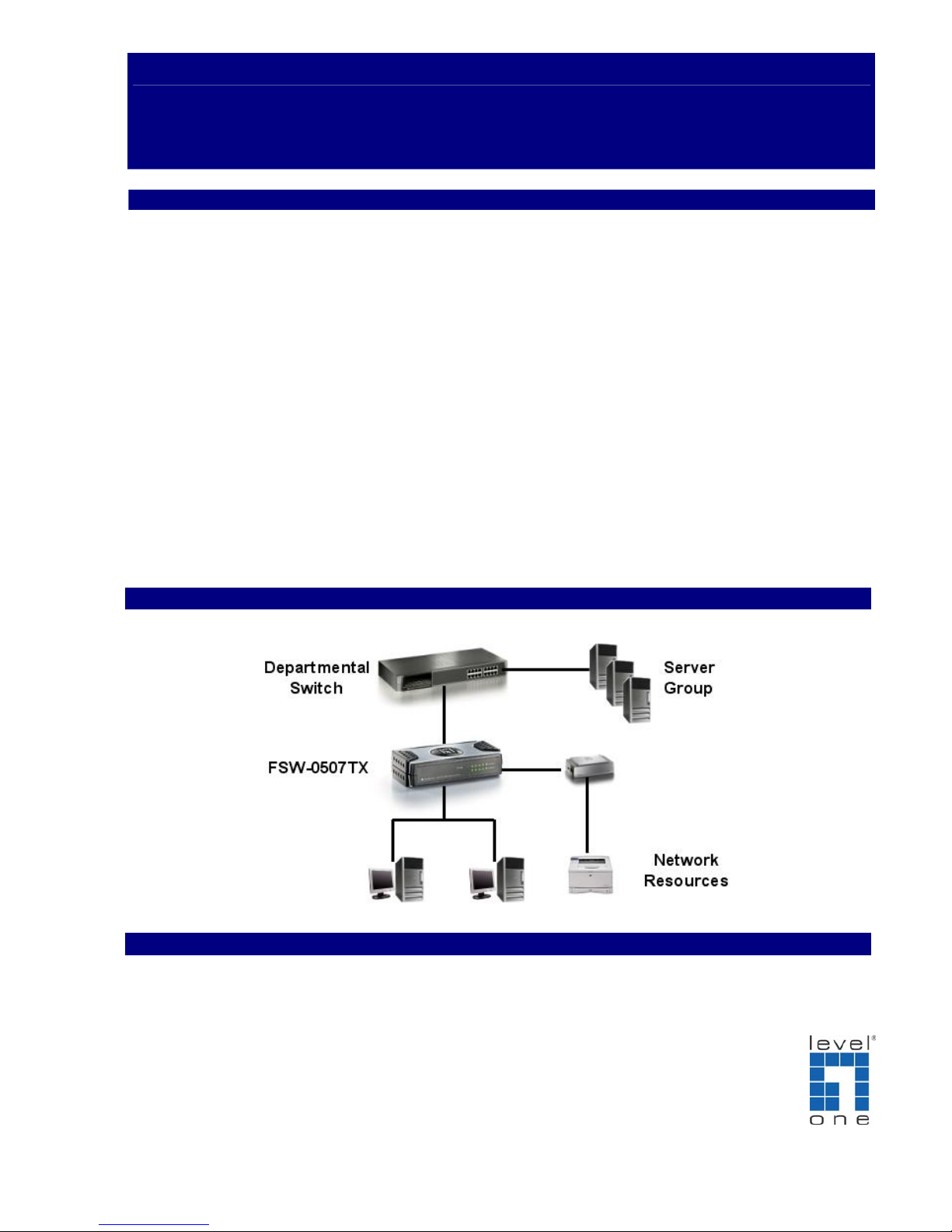

Product Diagram

Ordering Information

 GSW-0507TX: 5-port 10/100Mbps Switch
