Lexmark Optra S

4059-XXX

Extracted From Service Manual

FirstEdition: September 2002

The following paragraph does not apply to any country where such

provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC.

PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND,

EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions, therefore, this statement may not apply

to you.

This publication could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in later editions. Improvements or changes in the products or the

programs described may be made at any time. Publications are not stocked at the

address given below; requests for publications should be made to your point of

purchase.

Comments may be addressed to Lexmark International, Inc., D22A/035-3,

740 New Circle Road NW, Lexington, Kentucky 40550, U.S.A. Lexmark may use

or distribute any of the information you supply in any way it believes appropriate

without incurring any obligation to you.

Lexmark and Optra are trademarks of Lexmark International, Inc., registered in

the United States and/or other countries.

©CopyrightLexmarkInternational,Inc.1998, 2002

All rights reserved.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark

International, Inc., Lexington, KY 40550.

4059-XXX

Parts Catalog 7-1

4059-XXX

7. Parts Catalog

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the

other of the assemblies are listed separately and identified by

description.

•AR: (As Required) in the Units column indicates that the

quantity is not the same for all machines.

•CC: (Color Code) in the Description column indicates the part is

identified by a color marking on the part.

•NS: (Not Shown) in the Asm-Index column indicates that the

part is procurable but is not pictured in the illustration.

•PP: (Parts Packet) in the Description column indicates the part

is contained in a parts packet.

•INDENTURE: The indenture is marked by a series of dots

located before the parts description. The indenture indicates the

relationship of a part to the next higher assembly. For example:

INDENTURE RELATIONSHIP OF PARTS

(No dot) MAIN ASSEMBLY

(One dot) o Detail parts of a main assembly

(One dot) o Subassembly of the main assembly

(Two dot) o o Detail part of a one-dot subassembly

(Two dot) o o Subassembly of a one-dot subassembly

The Optra S laser printer is available in eleven models. The model

designations are as follows:

1250 (4059-121) 1255 (4059-125) 1620 (4059-162)

1625 (4059-165) 1650 (4059-160) 1855 (4059-185)

2420 (4059-242) 2450 (4059-240) 2455 (4059-245)

1855-C01 (4059-185) 3455 (4059-345)

The parts catalog uses the four digit model number to identify model

specific FRUs.

7-2 4059 Service Manual

4059-XXX

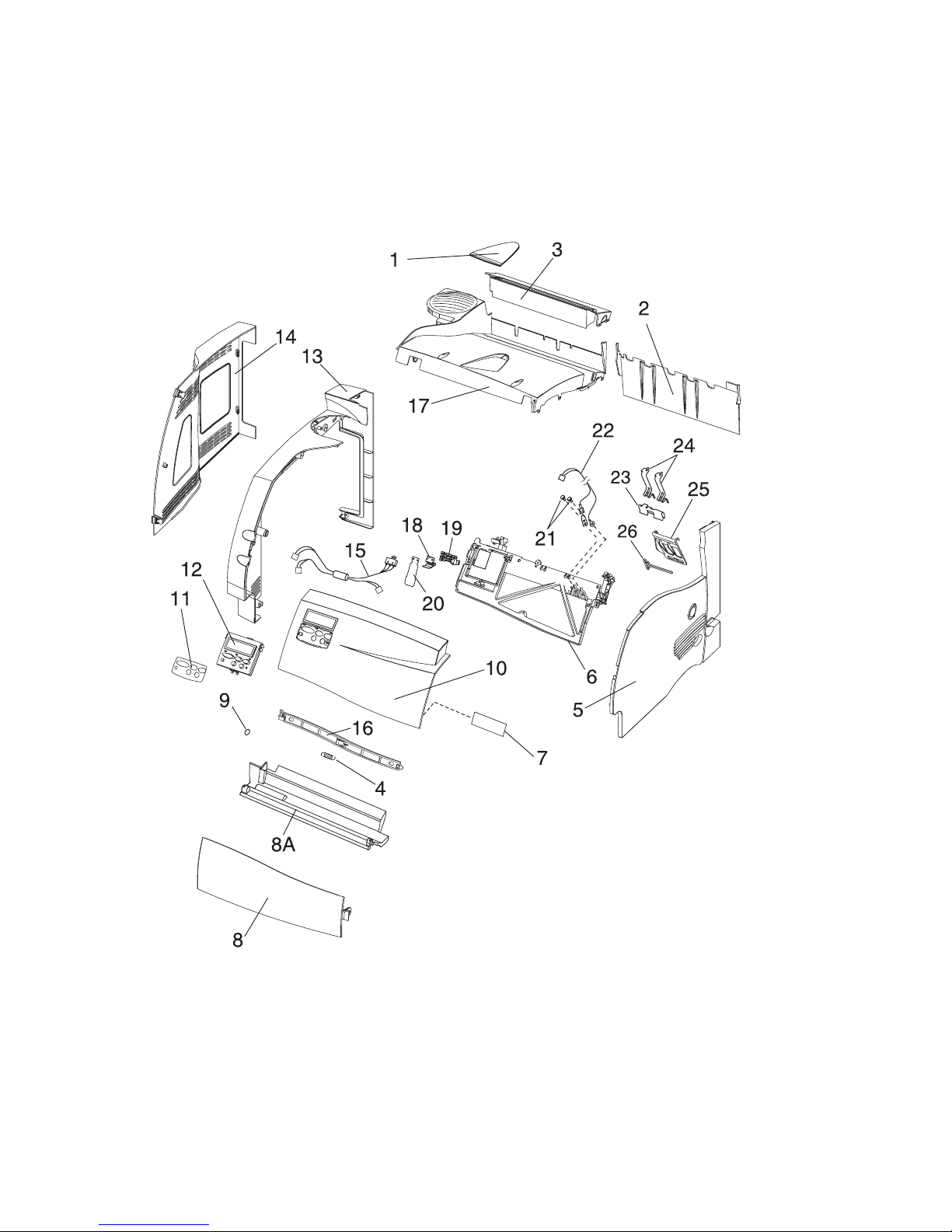

Assembly 1: Covers

Parts Catalog 7-3

4059-XXX

Asm-

Index Part

Number Units Description

1-1 99A0553 1 Support, Paper

1-2 99A0463 1 Spacer, Front 2450/2455/3455

1-2 99A0464 1 Spacer, Front

1620/1650/2420/1250/1255/1855/1625

1-3 99A0016 1 Cover, Fuser Wick Assembly

1-4 99A0004 1 Spring, Latch

NS 3 Screw, Right Side Cvr Mtg PP 99A0263

1-5 99A0011 1 Cover, RIght Side

1250/1620/1650/2420/1855/1625

1-5 99A0012 1 Cover, Right Side 2450/2455/3455

1-6 99A0008 1 Hinge, Upper Front Cover

1-7 99A0007 1 Label, TLI/ID/Serial No. - Blank

1-8 99A0023 1 Cover Assembly, Lower Front

1250/1255/1620/1625/1650/1855/2420

1-8 99A0020 1 Cover Assembly, Lower Front

2450/2455/3455

1-8A 99A0022 1 Cap, MPT 2450/2455/3455

1-9 99A0021 1 O-Ring, Lower Front Door

NS 5 Screw, Upper Front Cvr Mtg PP 99A0263

1-10 99A0917 1 Kit, Upper Front Cover with Labels

NS 99A0458 1 Labels, Upper Front Cover

1-11 99A0630 1 Bezel, Operator Panel, English

1-11 99A0631 1 Bezel, Operator Panel, France

1-11 99A0632 1 Bezel, Operator Panel, Italy

1-11 99A0633 1 Bezel, Operator Panel, Germany

1-11 99A0634 1 Bezel, Operator Panel, Spain

1-11 99A0535 1 Bezel, Operator Panel, Denmark

1-11 99A0536 1 Bezel, Operator Panel, Netherlands

1-11 99A0537 1 Bezel, Operator Panel, Norway

1-11 99A0538 1 Bezel, Operator Panel, Sweden

1-11 99A0539 1 Bezel, Operator Panel, Brazil/Portugal

1-11 99A0540 1 Bezel, Operator Panel, Finland

1-11 99A0541 1 Bezel, Operator Panel, Japan

7-4 4059 Service Manual

4059-XXX

Assembly 1: Covers (continued)

Parts Catalog 7-5

4059-XXX

Asm-

Index Part

Number Units Description

1-12 99A0001 1 Operator Panel Assembly

1-13 99A0009 1 Cover, Left Side

1250/1255/1620/1650/2420/1855/1625

1-13 99A0010 1 Cover, Left Side 2450/2455/3455

NS 5 Screw, Left Side Cvr Mtg PP 99A0263

1-14 99A0017 1 Door, Left Panel 1650/1855/2420

1-14 99A0019 1 Door, Left Panel 1250/1255/1620/1625

1-14 99A0018 1 Door, Left Panel 2450/2455/3455

1-15 99A0296 1 Switch, Cover Open w/Operator Panel Cable

Assembly

1-16 99A0003 1 Latch, Upper Cover

1-17 99A0013 1 Cover, Laser Assembly

NS 6 Screw, Laser Cover PP 99A0263

NS 99A0552 1 Cover Assembly, Redrive Cap

NS 99A0573 2 Nut, Front Spacer Mounting 2450/2455/3455

1-18 99A0550 1 Shield, ESD Cover Open

1-19 99A0031 1 Bracket, Cover Open Switch

1-20 99A0036 1 Spring, Cover Open Switch

1-21 2 Screws, Contact Mounting PP 99A0263

1-22 99A0814 1 Cable, Smart Cartridge 3455

1-23 99A0816 1 Contact, Smart Cartridge Ground 3455

1-24 99A0815 2 Contact, Smart Cartridge 3455

1-25 99A0817 1 Cover, Smart Cartridge Contact 3455

1-26 99A0834 1 Plunger, Overstress Smart Cartridge 3455

NS 99A0577 1 Cable Tie

7-6 4059 Service Manual

4059-XXX

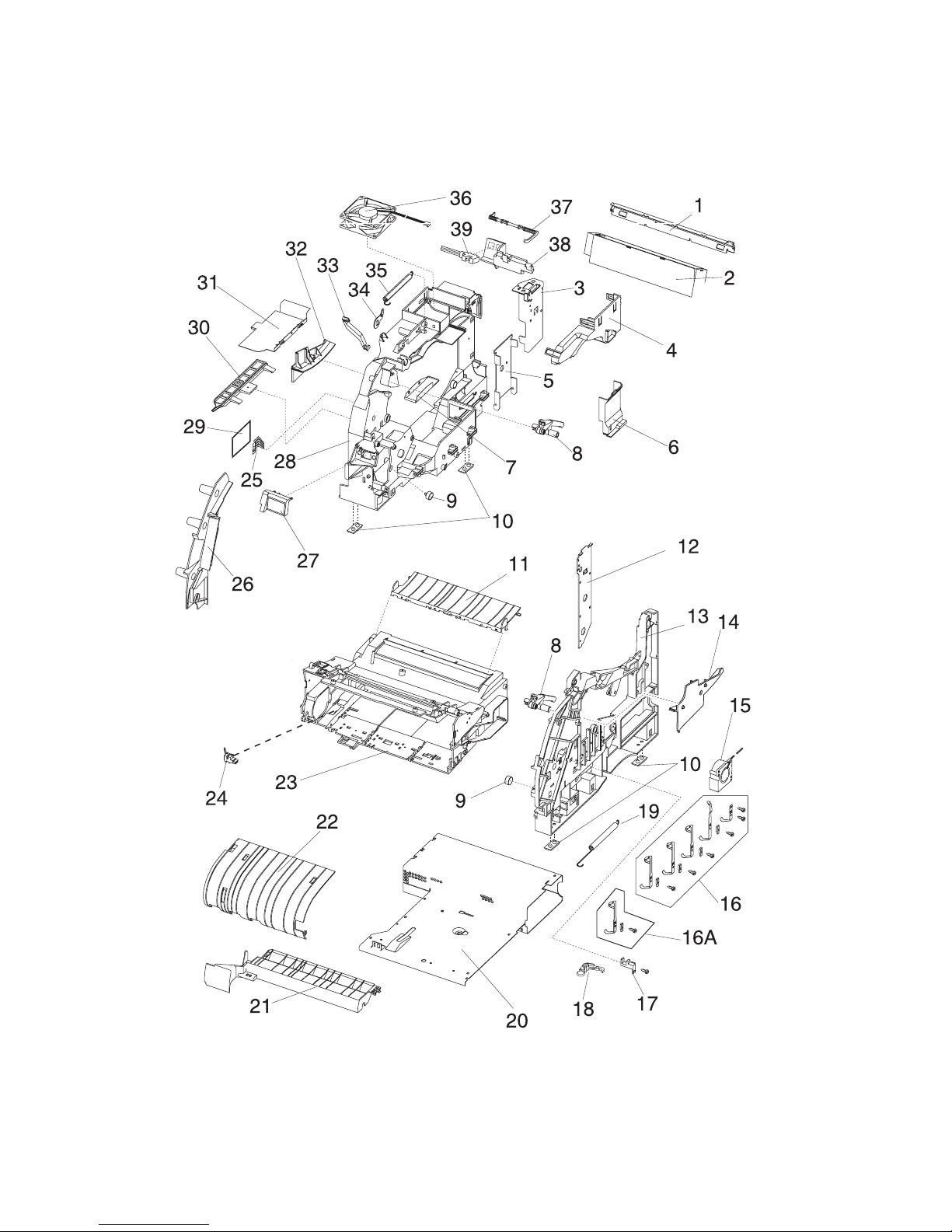

Assembly 2: Frame

Parts Catalog 7-7

4059-XXX

Asm-

Index Part

Number Units Description

2-1 99A0425 1 Support, Cross Brace

2-2 99A0463 1 Spacer, Front 2450/2455/3455

2-2 99A0464 1 Spacer, Front

1250/1255/1620/1650/2420/1855/1625

2-3 99A0033 1 Duct, Left Stacker 2450/2455/3455

2-3 99A0034 1 Duct, Left Stacker

1250/1620/1650/2420/1855/1625

2-4 99A0867 1 Duct, Main Body

2-5 99A0551 1 Support, Left Lower Stacker

2-6 99A0114 1 Duct, LVPS Left Side

2-7 99A0113 1 Pan, Drip ITC

2-8 99A0045 2 Latch, Cartridge Assembly

2-9 99A0039 2 Roller, Developer Support

2-10 99A0058 4 Pad, Machine Mounting

2-11 99A0558 1 Transfer Plate Assembly

2-11 99A0828 1 Transfer Plate Assembly 3455

2-12 99A0904 1 Plate Assembly, Stacker Ground

2450/2455/3455

2-12 99A0561 1 Support, Right Stacker

1250/1255/1620/1650/2420/1855/1625

2-13 99A0111 1 Right Sideframe

2-14 99A0043 1 Track, Cartridge Guide RH

2-15 99A0049 1 Fan, Auxiliary 2420/2450/3455

2-16 1 Contact Kit PP 99A0585

3 o Contact, Doctor Blade/TAR/Developer Roll

1 o Contact, PC Drum

1 o Contact, Charge Roll

4 o Block, Contact Mounting

5 o Screw, Contact Mounting

2-16A 99A0805 1 Contact, Charge Brush 3455

2-17 99A0466 1 Sensor, Toner Cartridge Level

2-18 99A0026 1 Tray Bias Arm Assembly

2-19 99A0028 1 Spring, Tray Bias

2-20 99A0038 1 Pan, Center Assembly

7-8 4059 Service Manual

4059-XXX

Assembly 2: Frame (continued)
