Quick Reference

Loading paper and

specialty media

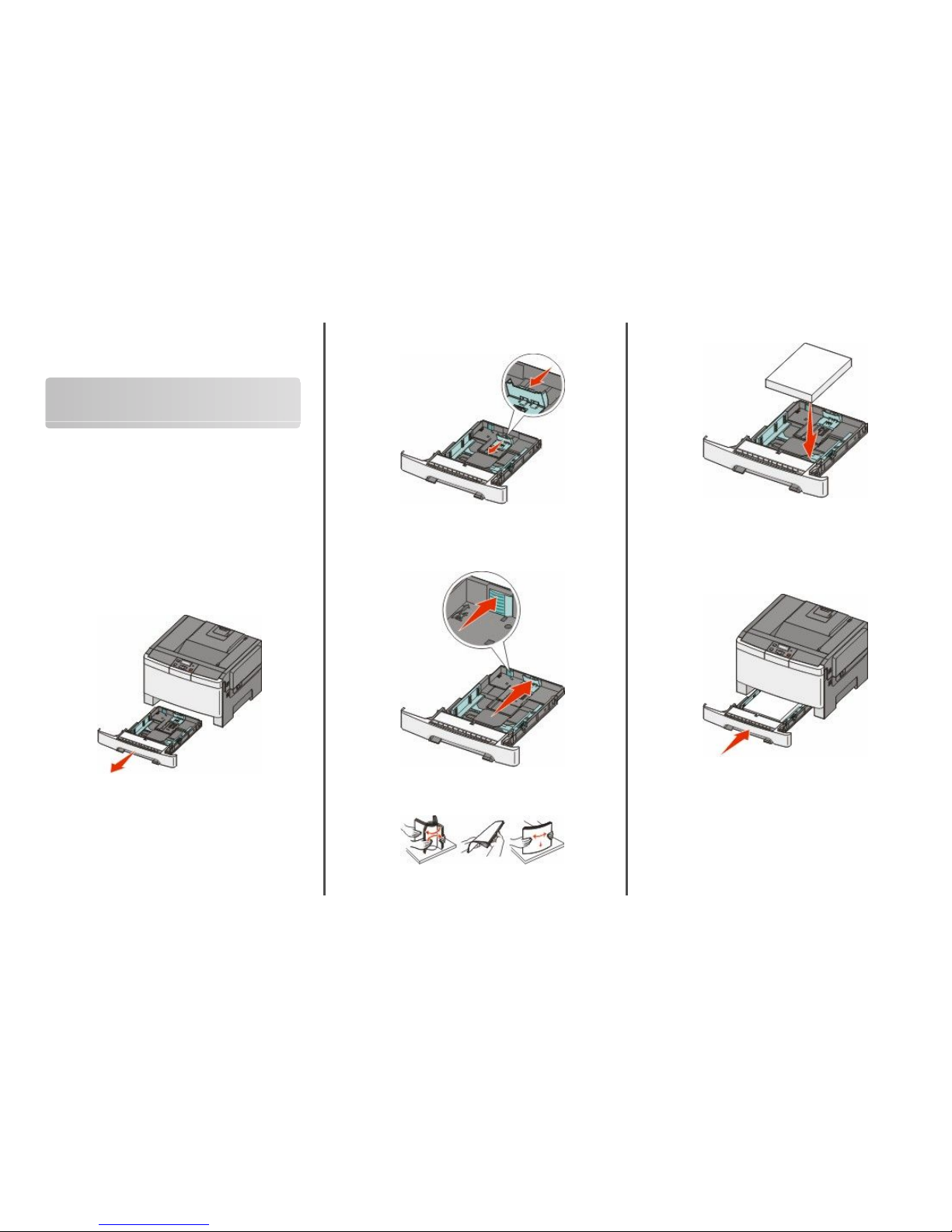

Loading the standard 250-sheet

tray

The printer has one standard 250-sheet tray (Tray 1) with an attached

manualfeeder.The250-sheettray,the650-sheetduodrawer,andthe

optional 550-sheet tray support the same paper sizes and types and

are loaded in the same way.

Note: The optional 550-sheet tray is not available for all printer

models.

1Pull the tray out.

Note: Do not remove trays while a job prints or while Busy

appears on the display. Doing so may cause a jam.

2Squeeze the length guide tab inward as shown, and slide the

guide to the correct position for the paper size being loaded.

Note: Use the size indicators on the bottom of the tray to help

position the guide.

3If the paper is longer than A4 or letter size, push the green tab at

the back of the tray to extend it.

4Flex the sheets back and forth to loosen them, and then fan them.

Do not fold or crease the paper. Straighten the edges on a level

surface.

5Load the paper stack with the recommended print side faceup.

6Make sure the paper guides are secure against the edges of the

paper.

Note: Make sure that side guides are placed tightly against the

edges of the paper so that the image is registered properly on

the page.

7Insert the tray.

8If a different type or size of paper was loaded than the type or size

previouslyloaded in the tray,change the Paper Typeor Paper Size

setting for the tray from the printer control panel.

Note: Mixing paper sizes or types in a tray may lead to jams.

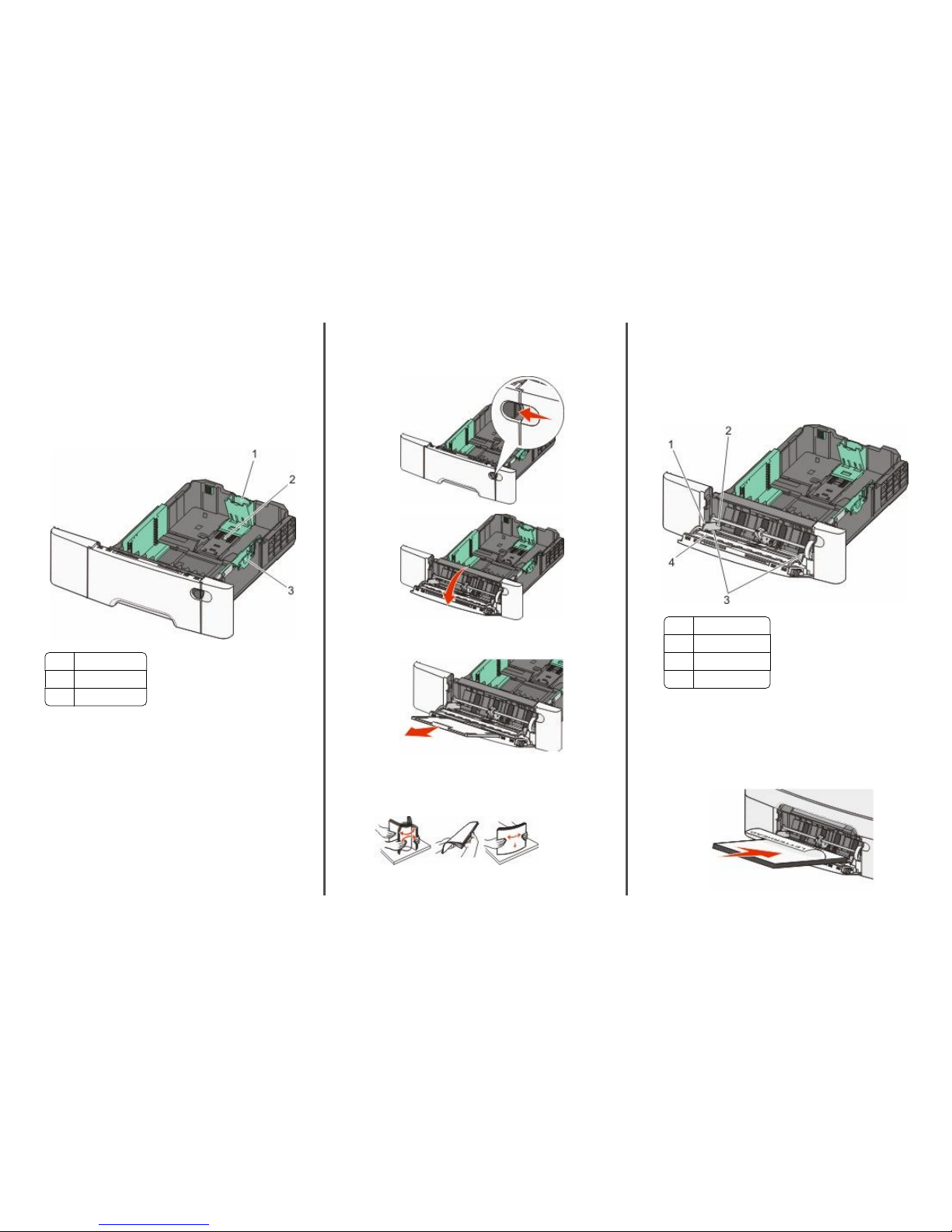

Loading the 650-sheet duo drawer

The 650-sheet duo drawer (Tray 2) consists of a 550-sheet tray and an

integrated 100-sheet multipurpose feeder. The drawer is loaded in

the same way as the 250-sheet tray and the optional 550-sheet tray,

and supports the same paper types and sizes. The only differences

are the look of the guide tabs and the location of the paper size

indicators, as shown in the following illustration:

Note: The optional 550-sheet tray is not available for all printer

models.

1Length guide tabs

2Size indicators

3Width guide tabs

Using the multipurpose feeder

1Push the feeder release latch to the left to allow the multipurpose

feeder to fall open.

2Grasp the extension, and pull it straight out until it is fully

extended.

3Prepare the paper for loading.

•Flex sheets of paper back and forth to loosen them, and then

fanthem.Donotfoldorcreasethepaper.Straightentheedges

on a level surface.

•Hold transparencies by the edges and fan them. Straighten

the edges on a level surface.

Note: Avoid touching the print side of transparencies. Be

careful not to scratch them.

•Flex a stack of envelopes back and forth to loosen them, and

then fan them. Straighten the edges on a level surface.

4Locate the stack height limiter and tab.

Note:Donotexceed the maximum stack heightbyforcing paper

under the stack height limiter.

1Tab

2Stack height limiter

3Width guides

4Size indicators

5Squeeze the left width guide tab, and align it for the size of paper

being loaded.

6Load the paper, and then adjust the width guide to lightly touch

the edge of the paper stack.

•Load paper, card stock, and transparencies with the

recommendedprintsidefacedown and the top edge entering

first.

•Load envelopes with the flap side up.

Warning—Potential Damage: Never use envelopes with

stamps, clasps, snaps, windows, coated linings, or self-stick

adhesives. These envelopes may severely damage the

printer.

Notes:

•Do not load or close the multipurpose feeder while a job is

printing.

•Load only one size and type of paper at a time.

7Makesure the paperis as farinto the multipurposefeeder as it will

go with very gentle pushing. Paper should lie flat in the

multipurpose feeder. Make sure the paper fits loosely in the

multipurpose feeder and is not bent or wrinkled.

8From the printer control panel, set the Paper Size and Paper Type.

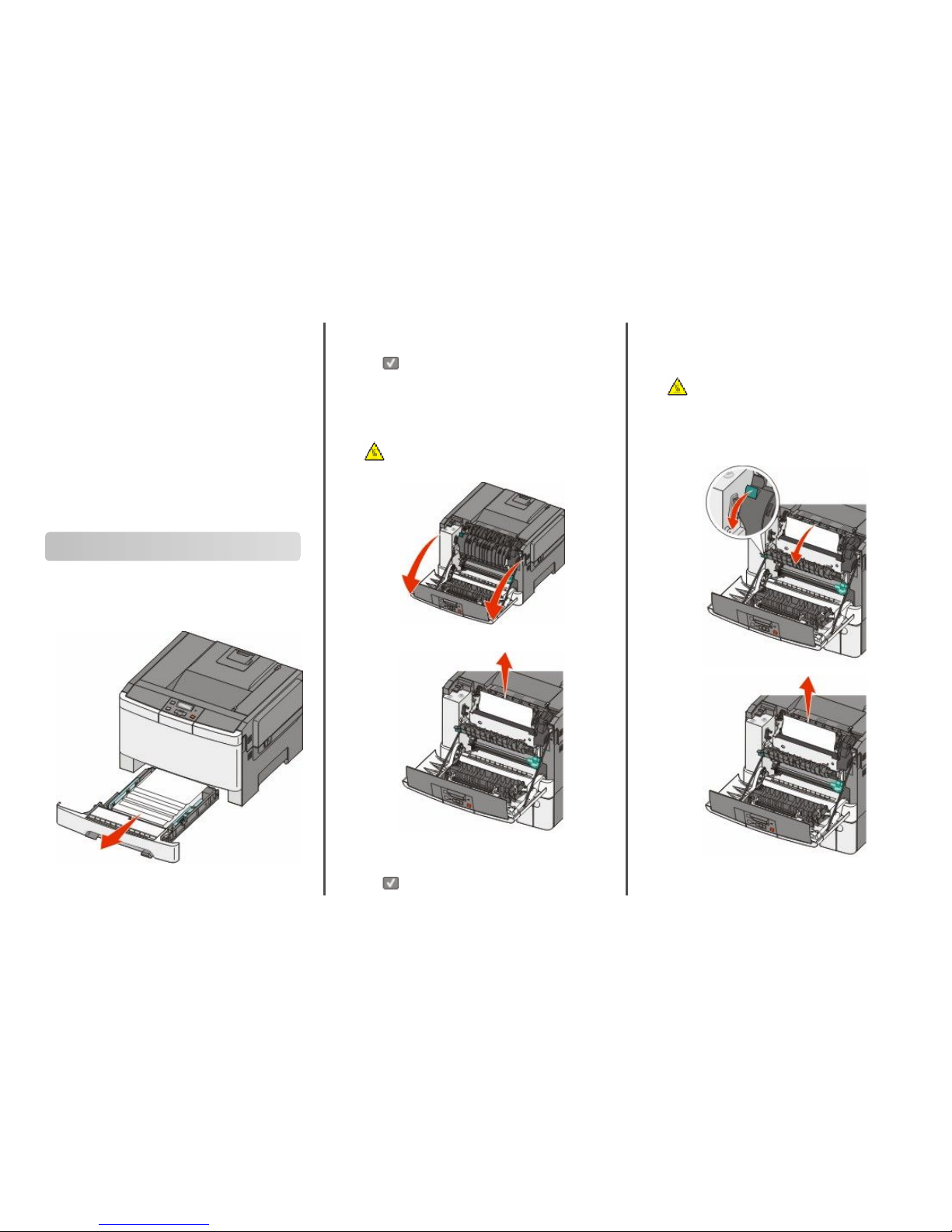

Clearing jams

200 paper jam

1Grasp the handle, and pull the standard 250-sheet tray (Tray 1)

and manual feeder out.

2Remove the jam.

Note: Make sure all paper fragments are removed.

3Insert the tray.

4Press .

201 paper jam

1Graspthefrontdooratthesidehandholds, and then pull it toward

you to open it.

CAUTION—HOT SURFACE: The inside of the printer

might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

2Remove the jammed paper.

Note: Make sure all paper fragments are removed.

3Close the front door.

4Press .

202 paper jam

1Graspthefrontdooratthesidehandholds, and then pull it toward

you to open it.

CAUTION—HOT SURFACE: The inside of the printer

might be hot. To reduce the risk of injury from a hot

component, allow the surface to cool before touching.

2Grasp the green lever, and then pull the fuser cover toward you.

3Hold the fuser cover down, and then remove the jammed paper.

The fuser cover closes when released.

Note: Make sure all paper fragments are removed.

4Close the front door.

5Press .

230 paper jam

1Graspthefrontdoorattheside handholds, and then pull it toward

you to open it.

2Remove the jam.

3Press .

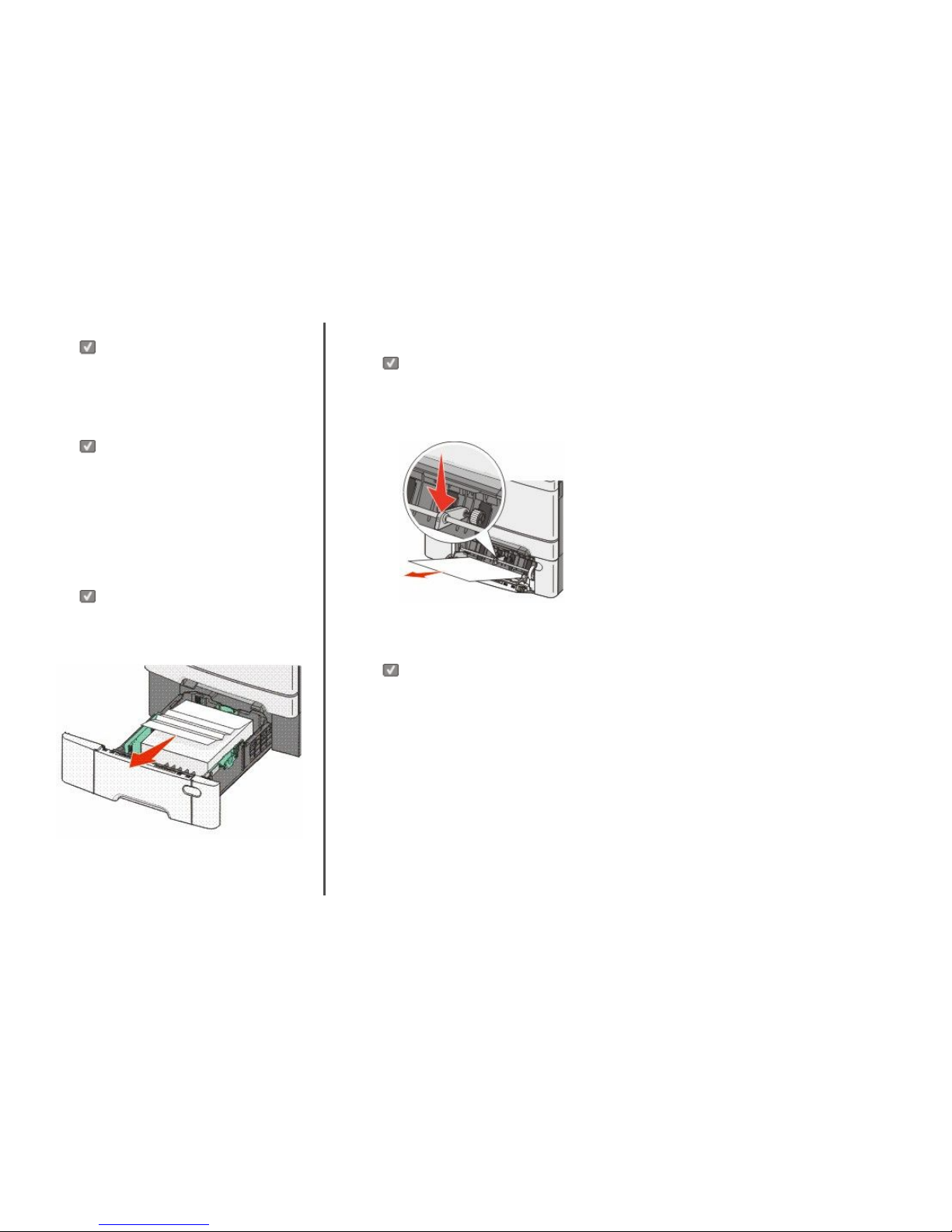

235 paper jam

1Graspthefrontdoorattheside handholds, and then pull it toward

you to open it.

2Remove the jam.

3Load the tray with the correct paper size.

4Insert the tray.

5Close the front door.

6Press .

242 and 243 paper jams

1Grasp the handle, and pull the optional 550-sheet tray out.

Note: The optional 550-sheet tray is not available on all printer

models.

2Remove the jammed paper.

Note: Make sure all paper fragments are removed.

3Insert the tray.

4Press .

250 paper jam

1Push the lever in the multipurpose feeder down to access the

jammed paper.

2Remove the jam.

Note: Make sure all paper fragments are removed.

3Insert the tray.

4Press .
