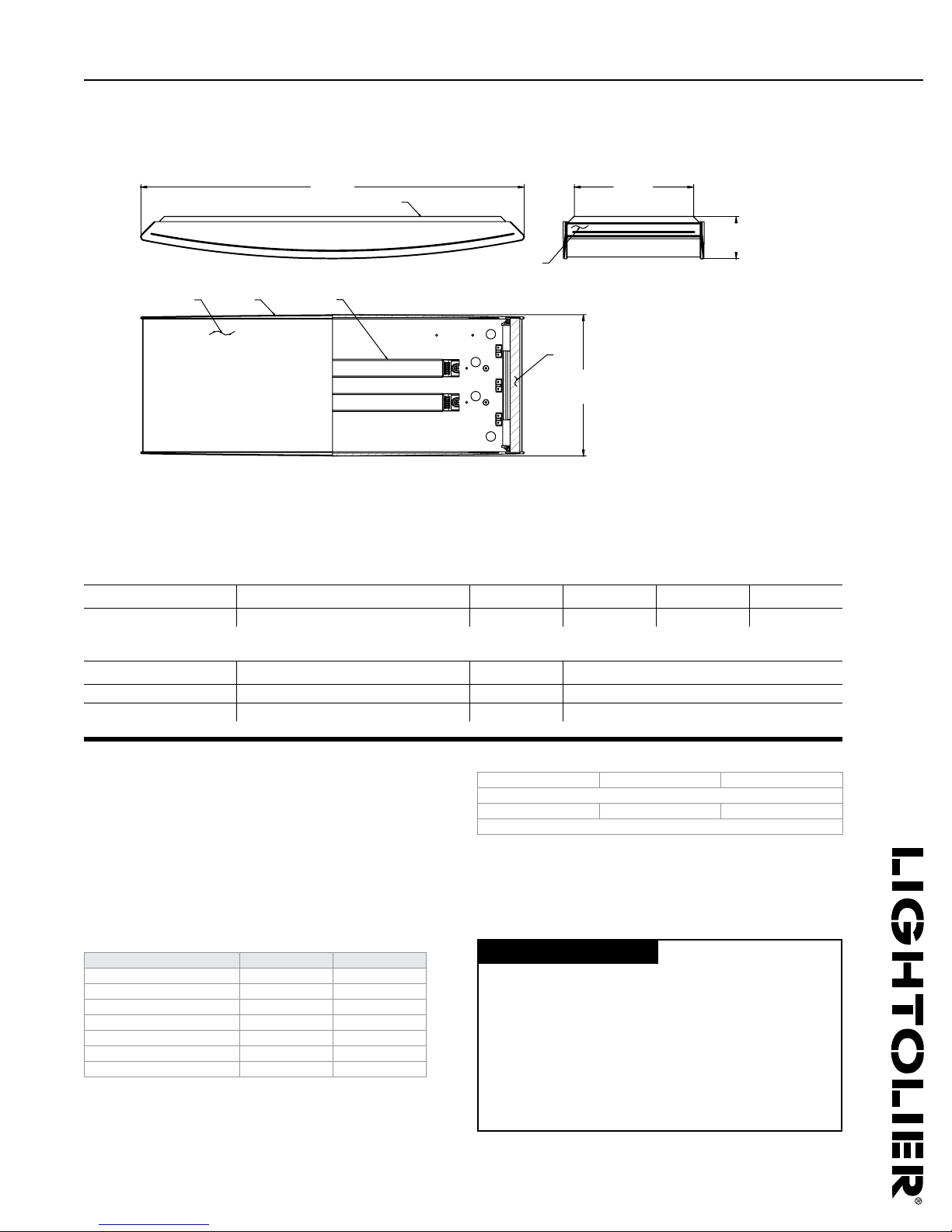

Brisa™Linear Bow Surface Mount FB9314UDA

Page 1 of 1 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Features

1. Housing Sides and ends: Die-cast aluminum.

2. Back Pan: Stamped 18ga. (0.048”) sheet metal.

3. Diffuser: Bowed opal glass or opal acrylic

4. Optics: Internal white acrylic diffuser covers slots on housing sides

and ends.

Mounting

Fixture Mounts directly to 4" octagonal junction box.

Electrical

5. Ballast-Fixture: Has (1) 1-lamp ballast and (1) 2-lamp ballast, allowing for

separate switching.

A. Dali Dimming 120V-277V 1 Lamp 2 Lamp

Voltage 120V 277V 120V 277V

Total Input Watts 18W 18W 35W 35W

Max. Line Current (Amps) 0.15A 0.07A 0.28A 0.13A

Power Factor >0.98 >0.98 >0.98 >0.98

THD <10% <10% <10% <10%

Min. Starting Temp 50°F, -10°C 50°F, -10°C

Dimming Range 100%-1% 100%-1%

6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Lampholders

Fluorescent: Mini Bi-Pin, G5 Base

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 14W T5 Linear Fluorescent

F14W/T5/*/ECO FP14/* F14T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp

FB9314UDA Linear Bow Surface Mount Dali Dimming Satin aluminum 14W 120-277V (3) T5

Diffuser Ordering Information

Catalog No. Description Finish Dimensions (Nominal)

FBA9 Acrylic Bow Diffuser Opal 9" X 24"

FBG9 Glass Bow Diffuser Opal 9" X 24"

25 5/16”

[643mm]

7 15/16”

[202mm]

3 1 5

9 5/16”

[237mm]

2 13/16”

[71mm]
