Lightolier Brisa FP14U Manuale utente

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

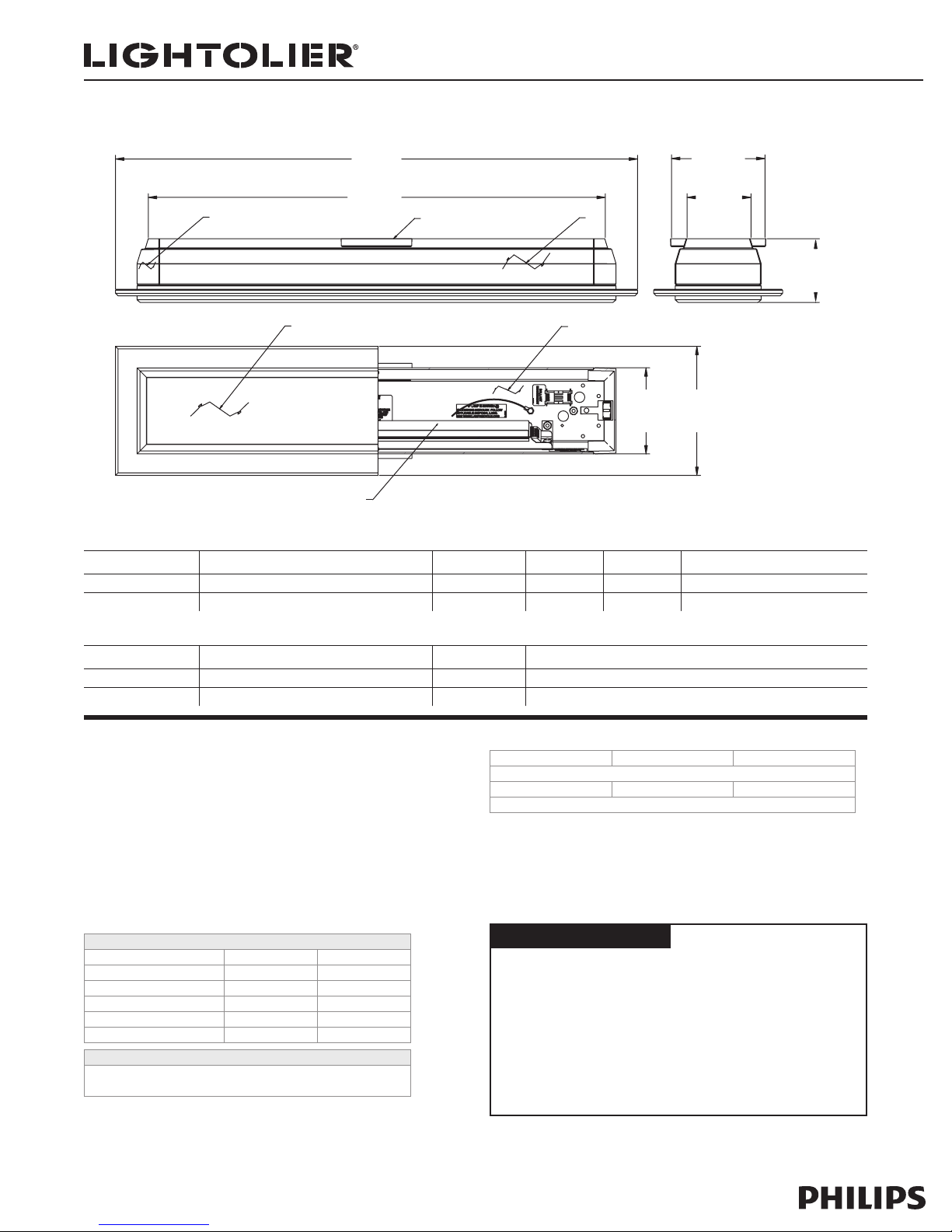

Brisa™ Linear Planar Surface Mount FP14U

Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

Features

1. Housing Ends: Die-cast aluminum.

2. Housing Sides: Extruded aluminum.

3. Back Pan: Stamped 18ga. (0.048") sheet metal.

4. Diffuser: Planar clear glass with opal diffuse glass or planar clear acrylic

with opal diffuse acrylic.

5. Junction Box Cover: (2) Die-cast aluminum, easy installation

(provided with luminaire).

6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box

(Not Shown in Drawing).

Electrical

7. Ballast

A. Electronic 120-277V

Voltage 120V 277V

Total Input Watts 19W 19W

Max. Line Current (Amps) 0.16A 0.07A

Power Factor\ 0.98 0.90

THD 20% 20%

Min. Starting Temp 0°F, -18°C 0°F, -18°C

B. Emergency

Bodine LP550 emergency battery pack with integral test light

and switch.

8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)

and CEC Disconnect Requirements.

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 14W T5 Linear Fluorescent

F14W/T5/*/ECO FP14/* F14T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Damp Locations.

ULus Listed, Dry Locations only for Emergency Units.

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp

FP14U Linear Planar Surface Mount Satin aluminum 14W 120-277V (1) T5

FP14UEM Linear Planar Surface Mount w/Emergency Satin aluminum 14W 120-277V (1) T5

Diffuser Ordering Information

Catalog No. Description Finish Dimensions (Nominal)

FPA1 Acrylic Planar Diffuser Opal 5" X 24"

FPG1 Glass Planar Diffuser Opal 5" X 24"

4 3

24 7/8"

[632mm]

21 3/4"

[533mm]

[76mm]

4 9/16"

[115mm]

4 1/8"

[104mm]

6 1/8"

[156mm]

[76mm]

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Brisa™ Linear Planar Surface Mount FP14U

Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

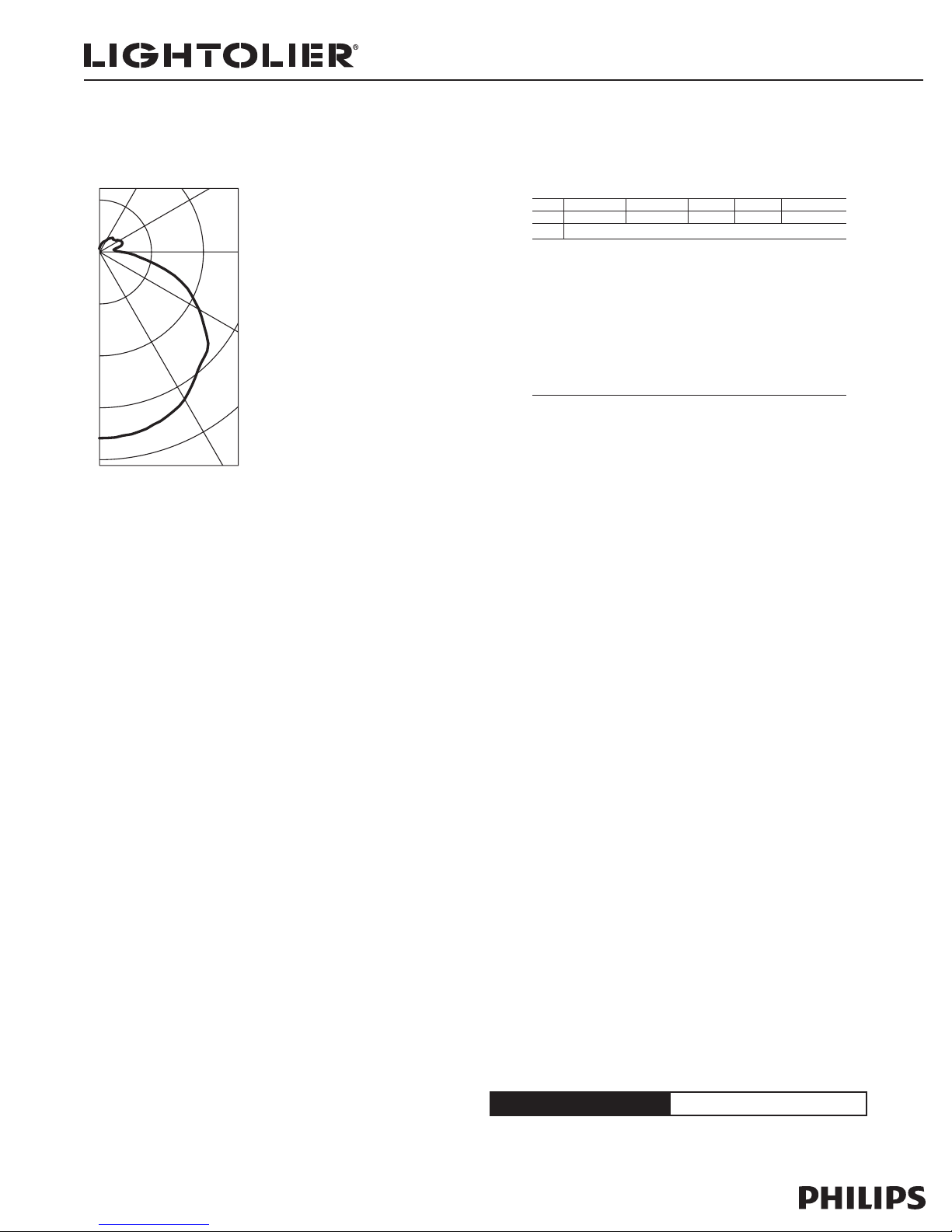

Candlepower Summary

Angle Along 22.5. 45 67.5 Across. Output

Lumens

0 179 179 179 179 179

5 179 179 179 179 179 9

15 173 173 174 175 176 25

25 161 163 165 167 169 38

35 145 147 150 154 156 47

45 124 127 132 139 143 51

55 100 105 114 121 123 51

65 72 78 88 93 98 43

75 42 48 56 62 66 29

85 12 17 26 31 34 14

90 5 9 16 19 21

95 6 9 13 15 15 7

105 7 10 17 20 22 8

115 8 9 15 21 24 7

125 7 10 12 17 19 6

135 7 8 12 16 19 5

145 5 6 10 12 15 3

155 4 5 7 9 11 2

165 3 3 4 5 7 1

175 4 3 3 3 3 0

180 3 3 3 3 3

100

150

200

0°30°

60°

90°

Certied Test Report no. 3622FR

Computed by LSI Program **TEST-LITE**

SC= 1.3

Prepared For:

Lightolier

Fall River, MA

TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE

TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.

Coefﬁcients of Utilization

Ceiling 80% 70% 50% 30% 10%

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 .65 .65 .65 .65 .63 .63 .63 .63 .59 .59 .59 .55 .55 .55 .51 .51 .51 .50

1 .59 .57 .54 .52 .57 .55 .53 .50 .51 .49 .48 .48 .47 .45 .45 .44 .43 .41

2 .54 .49 .45 .42 .52 .48 .44 .41 .45 .42 .39 .42 .40 .37 .39 .37 .36 .34

3 .49 .43 .39 .35 .47 .42 .38 .34 .39 .36 .33 .37 .34 .32 .35 .32 .30 .29

4 .45 .38 .33 .30 .43 .37 .33 .29 .35 .31 .28 .33 .30 .27 .31 .28 .26 .24

5 .41 .34 .28 .25 .39 .33 .28 .24 .31 .27 .24 .29 .25 .23 .27 .24 .22 .20

6 .37 .30 .25 .21 .36 .29 .24 .21 .27 .23 .20 .26 .22 .20 .24 .21 .19 .18

7 .34 .27 .22 .19 .33 .26 .21 .18 .25 .20 .18 .23 .20 .17 .22 .19 .16 .15

8 .32 .24 .19 .16 .30 .23 .19 .16 .22 .18 .15 .21 .17 .15 .20 .17 .14 .13

9 .29 .22 .17 .14 .28 .21 .17 .13 .20 .16 .13 .19 .15 .13 .18 .15 .12 .11

10 .27 .20 .15 .12 .26 .19 .15 .12 .18 .14 .11 .17 .14 .11 .16 .13 .11 .10

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 32.0

DECORATIVE LUMINAIRE CAT. # FP14U-FPA1C

14W PHILIPS T-5 LAMPS. LUMEN RATING = 1200 LMS.

BALLAST/ ADVANCE ICN-2S28

FP14U-FPA1

Zonal Lumens and Percentages

Zone Lumens % Lamp %Luminaire

0-30 141 11.83 21.14

235 19.61 35.05

435 36.28 64.85

595 49.60 88.66

359 29.99 53.61

159 13.32 23.81

76 6.35 11.34

671 55.94 100.00

0-40

0-60

0-90

40-90

60-90

90-180

0-180

** Efciency = 55.9%**
