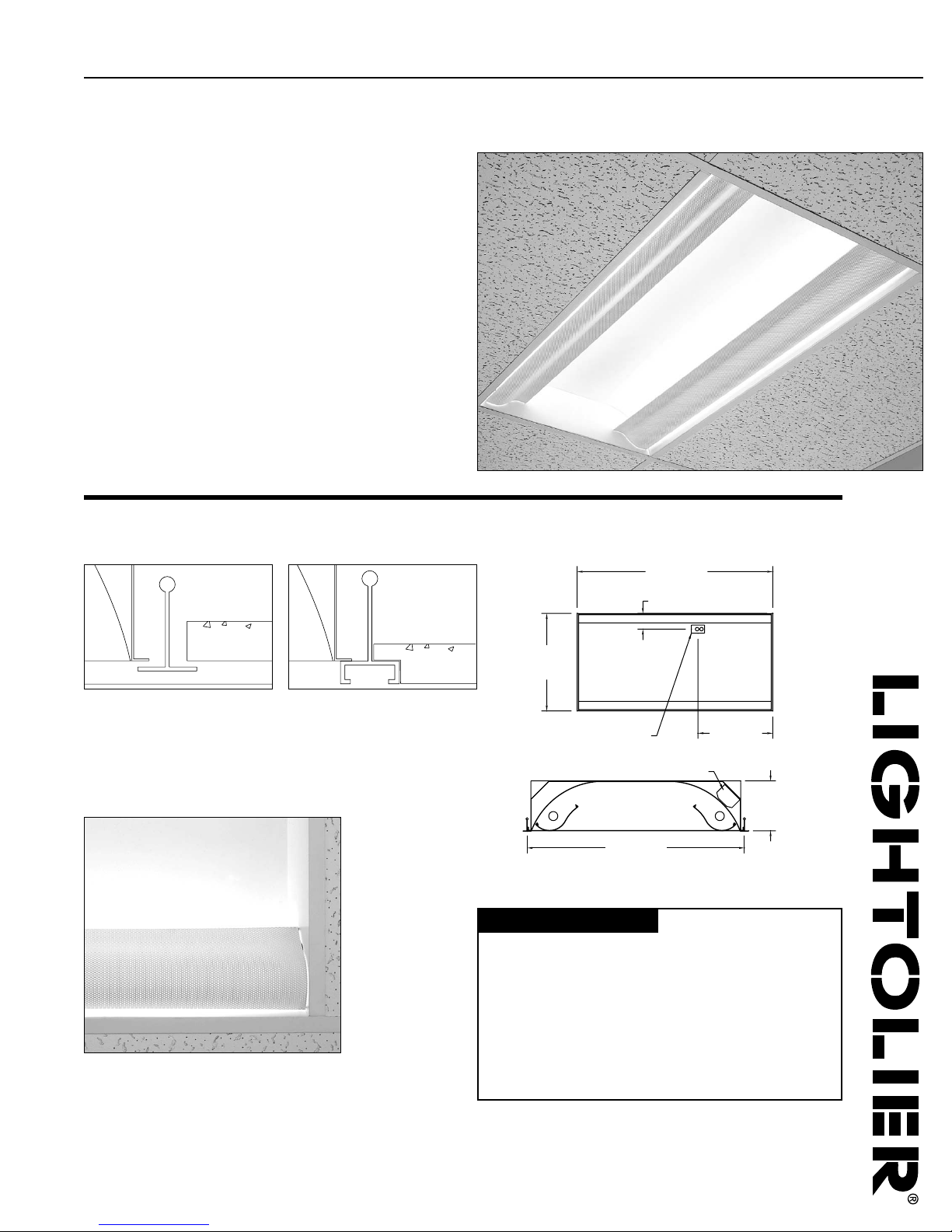

Lightolier QVL2GPFSS232 Manuale utente

Mounting Methods/Features Dimensions

Ceiling compatibility

Microperforated mesh lamp shield

Suite to standard T-grid ceilings Suite to standard exposed slot

T-grid ceilings

ACCESS PLATE

(2) 7/8" K.O.’S

3-13/16"

(97mm)

18-1/4"

(464mm)

47-13/16"

(1215mm)

23-13/16"

(605mm)

5-1/2"

(140mm)

24"(610mm)

BALLAST

ALTER WAVES QVL2GPFSS232

Page 1 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT, 2 LAMP, T8, 5 1/2’’ DEEP

MICROPERFORATED MESH DUAL LATERAL LAMP SHIELD

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L90-20

Features

• Efficiency 64.7%.

• Microperforated mesh lamp shields provide soft awareness of light

source.

• Dual-wave shape lateral lamp shields project light upwards to

reflector and provide indirect light.

• 95% reflective Alter soft white paint finish.

• Fully recessed lamp shields and reflector.

• No visible welding, screws, latches, springs, holes, rivets or plastic

supports.

• Optional solid lamp shields.

• Optional curved lamp shields.

• Alter soft white film inside of microperforated mesh lamp shield

conceals lamp image, providing balance between reflected and

direct light.

• Swing-down lamp shield for easy relamping.

• Easy access to ballast.

• Fits standard T-grid, exposed slot-T-grid and drywall ceilings.

• Optional hold-down clips.

Ordering Information:

Explanation of Catalog Number Example: QVL2GPFSS232120SO

FAMILY

QVL: Quality Visual

Waves

LUMINAIRE

WIDTH:

24”

CEILING TYPE:

G = Grid

LAMP SHIELD:

PF = Microperforated mesh

SD = Solid White

LAMP

QUANTITY

LAMP

32 = 32W (T8 NOMINAL 48’)

VOLTAGE:

120V

277V

347V

BALLAST:

OC = Magnetic T8

SO = 1 or 2 LPB electronic T8 IS

SR = 1 or 2 LPB electronic T8 RS

PS = PowerSpec HDF Dimming Electronic T8

OPTIONS:

F = Internal Fusing (consult

factory)

N = Emergency lighting

System (for U.S.)

O = Emergency Lighting System

(for Canada)

R = Radio Interference Flter

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Soft white acrylic film on inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os are

within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by

Photometry

QVL 2 G 2 32

SHIELD DETAILING

SS = Lateral Wave Side Shields

SR = Lateral Curved Side Shields

LPB : Number of lamps per ballast

ALTER WAVES QVL2GPFSS232

Page 2 of 2 2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT, 2 LAMP, T8, 5 1/2’’ DEEP

MICROPERFORATED MESH DUAL LATERAL LAMP SHIELD

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L90-20

Job Information Type:
