Lytecaster®Recessed Downlighting 1078

Page 1 of 2 5" Aperture Lexan®Dish Diffuser Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1078 Opal

LED

Fluorescent

Frame-In Kit Installation Type Lamping Height

Frame-In Kit Ceiling Type Lamping Height

1001LED

1001LEDEM

1000LEDREM

L56LED

Non-IC

Non-IC EM

Non-IC Remodeler

Non-IC Retrofit

LED

6 3/4"

1001F13U Series UniFrame

™

Non-IC (1) Quad/Triple 13W (GX24q-1) 5 7/8"

Incandescent

1001F18U Series UniFrame

™

Non-IC (1) Quad /Triple 18W (GX24q-2) 5 7/8"

Frame-In Kit Ceiling Type Lamping Height

1001F26U Series UniFrame

™

Non-IC (1) Triple 26W (GX24q-3) 5 7/8"

1000P1

1002P1

1003R

Non-IC

Non-IC Remodeler

60W A19 6 3/4"

6 3/4"

1004F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

1000IC

1000AICM

AirSeal® IC

40W A19 7 5/16"

7 5/16"

1004F18 Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"

1004F26* Series IC (1) Quad/Triple 26W (GX24q-2) 7 1/2"

1001F 13ICU/N Performance IC (1) Quad/Triple 13W (GX24q-1) 7 1/4"

1001F18ICU/N Performance IC (1) Quad/Triple 18W (GX24q-2) 7 1/4"

1001F26ICU/N Performance IC (1) Triple 26W (GX24q-3) 7 1/4"

1001FDICMX1/N Performance IC

Advance Mark 10

Dimming 120v

(1) Triple 26W (GX24q-3) 7 1/4"

1001FDICMX2/N Performance IC

Advance Mark 10

Dimming 277v

(1) Triple 26W (GX24q-3) 7 1/4"

1910XFH1 Conversion Kit (1) Quad/Triple 13W (GX23q-2) 6 3/4 "

1078/1003R

0™

Non-IC Remodeler

6 3/4”

1078/1002P1 Series

Standard Incandescent

Features

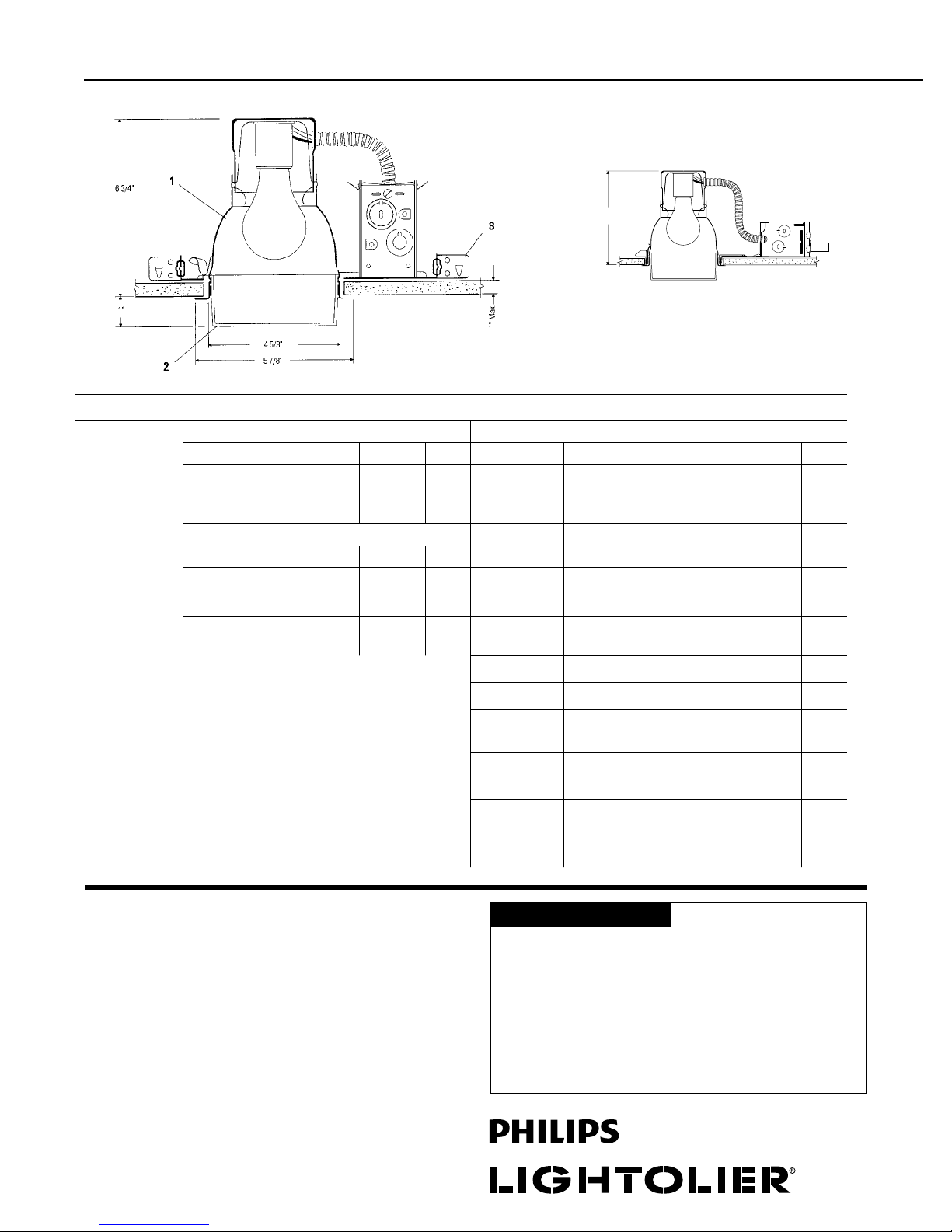

1. Reflector: Hydroformed aluminum, .040” thick (18 ga.); non-yellowing,

scratch resistant Perma White finish, 88% reflectance; white trim flange.

2. Diffuser: Translucent white, polycarbonate Lexan®. Installs and removes

with twist-lock action, no tool required.

3. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above and

shown on the right. See Frame-In Kit specification sheets for more details.

Labels

UL (Suitable for Wet Locations—Covered Ceiling), I.B.E.W.

* Lightolier recommends the use of triple tube lamps.

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster®Recessed Downlighting 1078

Page 2 of 2 5" Aperture Lexan®Dish Diffuser Reflector Trim

Job Information Type:

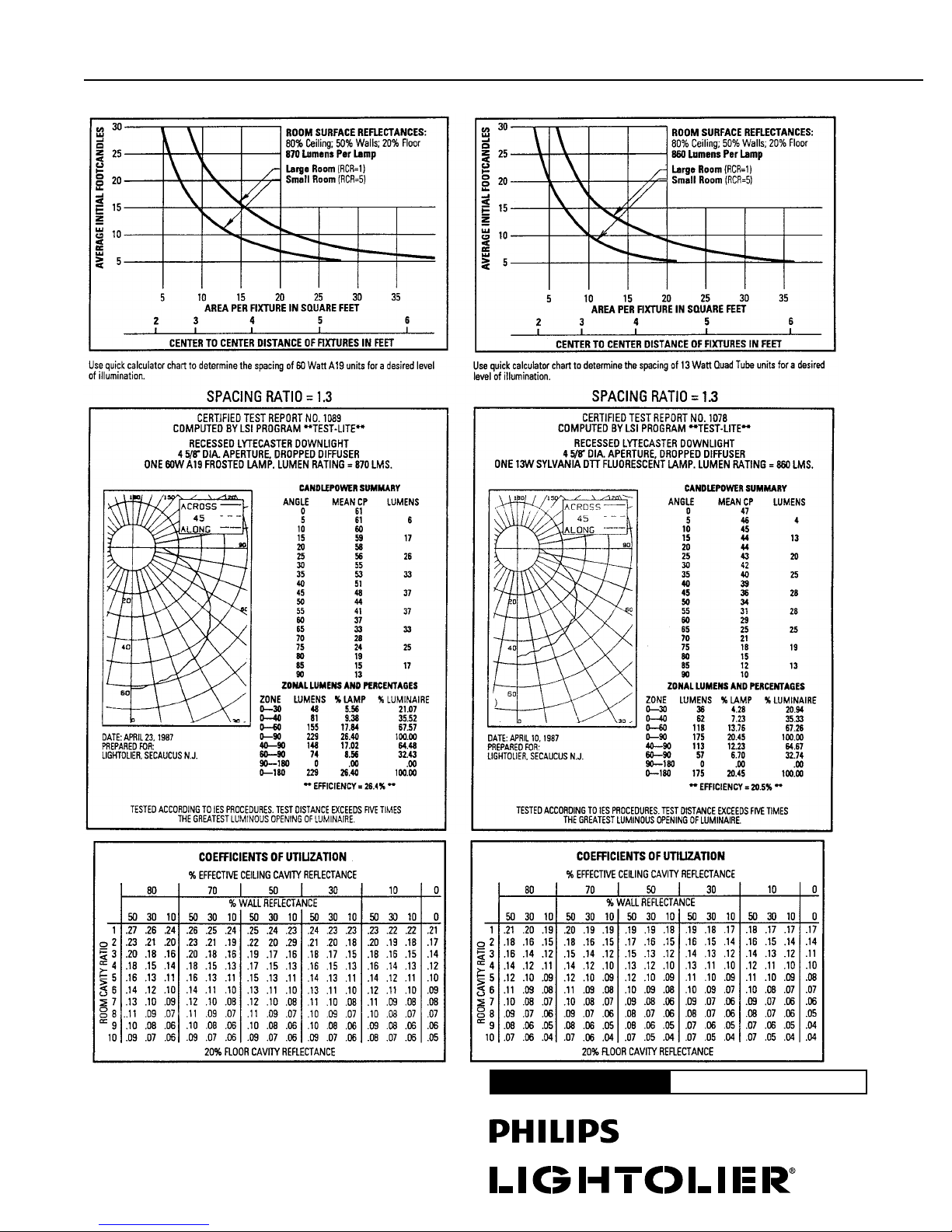

To convert lighting data for a lower wattage incandescent lamp of the same

type, multiply the footcandle (or candlepower) values by the ratio of the lumens

of the two lamps. The coefficients of utilization remain the same.
