Lilliput FA1000 Manuale utente

COLOR TFT LCD

ONIT

User

GENERAL

ION

Thank you for choosing our TFT LCD(liquid crystal display) monitor. This

product employs integrate circuits, low power consumption, and no radiation emission.

It has fashion designed appearance and good portability. The TFT LCD monitor is

your best choice. Moreover, this product is able to be used in office, at home, or other

proper positions. Please enjoy the benefits of convenience, safety, and space-saving

from this TFT LCD monitor in different ways.

ensure

the best use of this

product,

please

read

this manual

lly

bef

ehand

This product employs integrate circuits, lower power consumption, and lower

radiation emission. It has fashion designed appearance and good portability.

AV, HDMI, VGA&DVI Input.

LED backlight display, support 1024×768 HD resolution and 262144 colors.

420cd/㎡ high brightness display.

DC 12V input.

Optional handling VESA bracket, allowing you to use more extensive and

convenient

CAUTIONS

Please use the

adapter attached

in the

acce

ies.

2. Please keep away

from strong

light while using this

product

order

to obtain the clearest and the most colorful

pictu

es.

3. Please avoid heavy impact or

drop

onto the

ound

4. Please do NOT use chemical solutions to clean this

product. P

eas

wipe with a clean soft cloth to

maintain

the

brightness

of the

sur

5. Please follow the

instructions

and

trouble-shootings

to adjust

the

product.

Other

improper adjustment

may

result

in damage. A

further adjustment

must be

performed or

conducted by a

qualified

technician

6. Please unplug the power and

ove the

battery

if long-term no-use,

thunder

weat

her

Table of

ntent

1. PRODUCT DESCRIPTION

----------------------------------- 3

2. REMOTE CONTROL ------------------------------------------

3. WIRING INSTRUCTIONS

------------------------------------5

4. SETTING MENU

----------------------------------------------- 6

5. ACCESSORIES

------------------------------------------------- 9

6. PARAMETER

---------------------------------------------------

7. TROUBLESHOOTING --------------------------------------- 10

1. PRODUCT

ESC

RIP

itiv

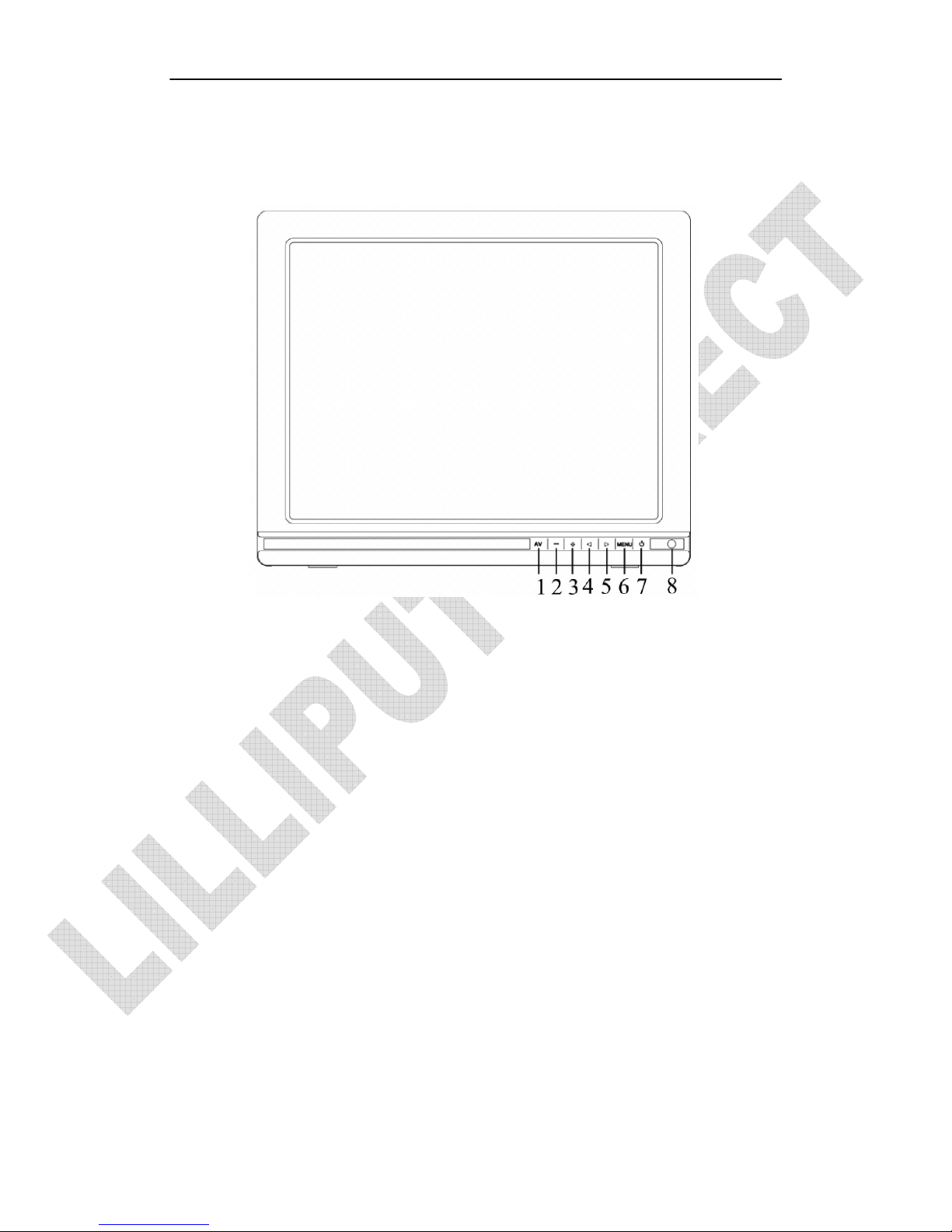

1. A/V: circularly switch among HDMI、PC、DVI、Video 1 and Video 2

2. –: Volume down, or value down while using menu setting functions.

3. +: Volume up, or value up while using menu setting functions.

4. ◄: Left selection key, to select items on OSD menu. Press to make “AUTO

ADJUSTING” function available under the PC mode.

5. ►: Right selection key, to select items on OSD menu. Press to adjust brightness

among 6 levels.

6. MENU: To activate OSD (on-screen display) menu.

Long press to zoom in/out

pictures automatically

when

ece

iving

HDM

(High-Definition

Multimedia Interface) signals.

7. Power: ON/OFF

；

switch concurrence battery indicator light (red while standby;

green while working)

。

8. Infrared signal receiver (work with remote control).

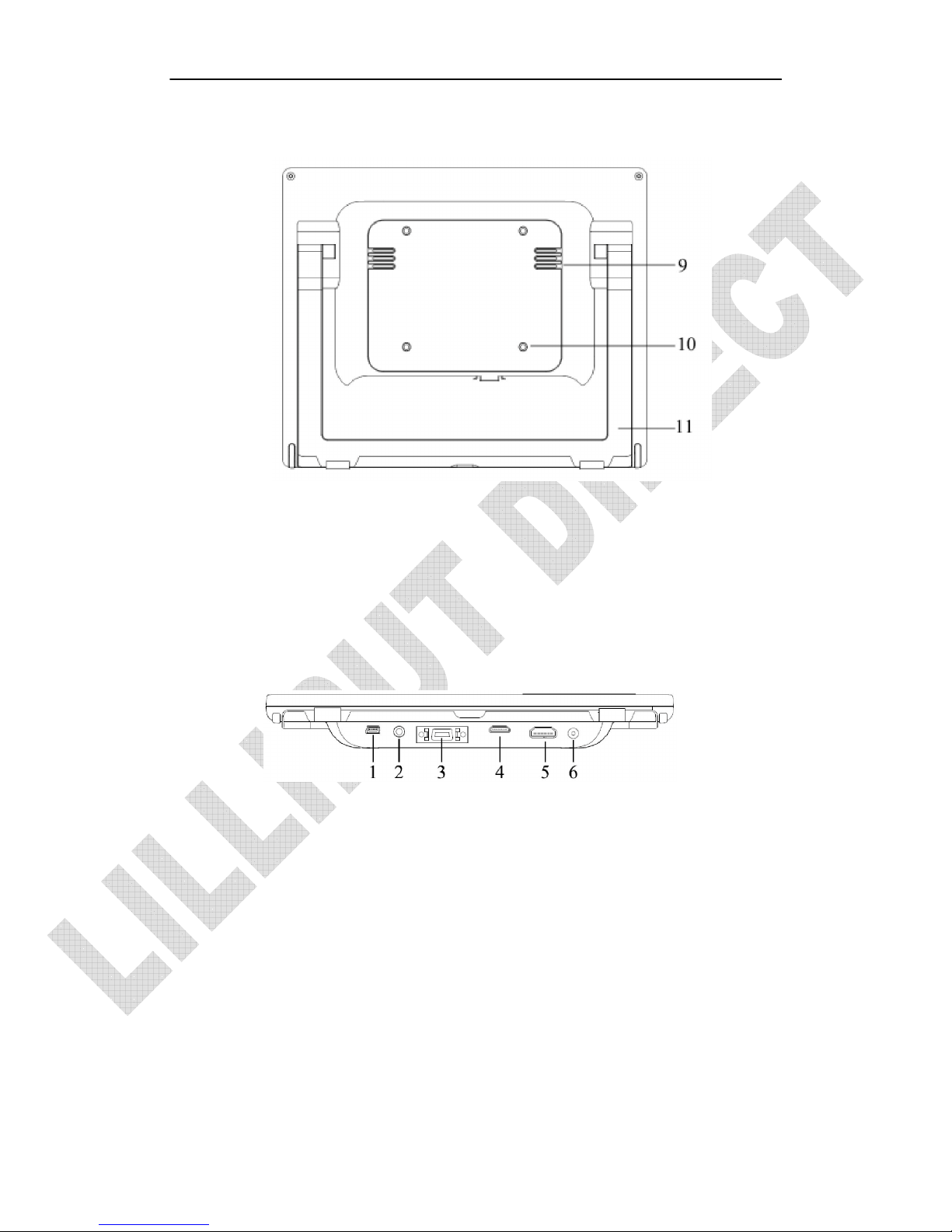

Bac

9. Speakers

10. VESA mounts connector

11. Holder

tto

1. Mini USB interface(For touch function).

2. EAR: Earphone jack.

3. 14Pin SKS interface.

4. HDMI input.

5. HDMI to DVI interface.

6. DC 12V power input.

REMOTE

CON

TROL

1. Mute button.

2. Display switch among

HDMI

、

DVI

、

Video 1 and Video 2.

3.◄: Left move; or volume down; or increase the function values in menu

settings.

▼: Down move.

5. Power.

6.▲: Up move, or change brightness among 6 levels.

►: Right move; or volume up; or decrease the function values in menu

settings.

MENU: enter menu function setting.

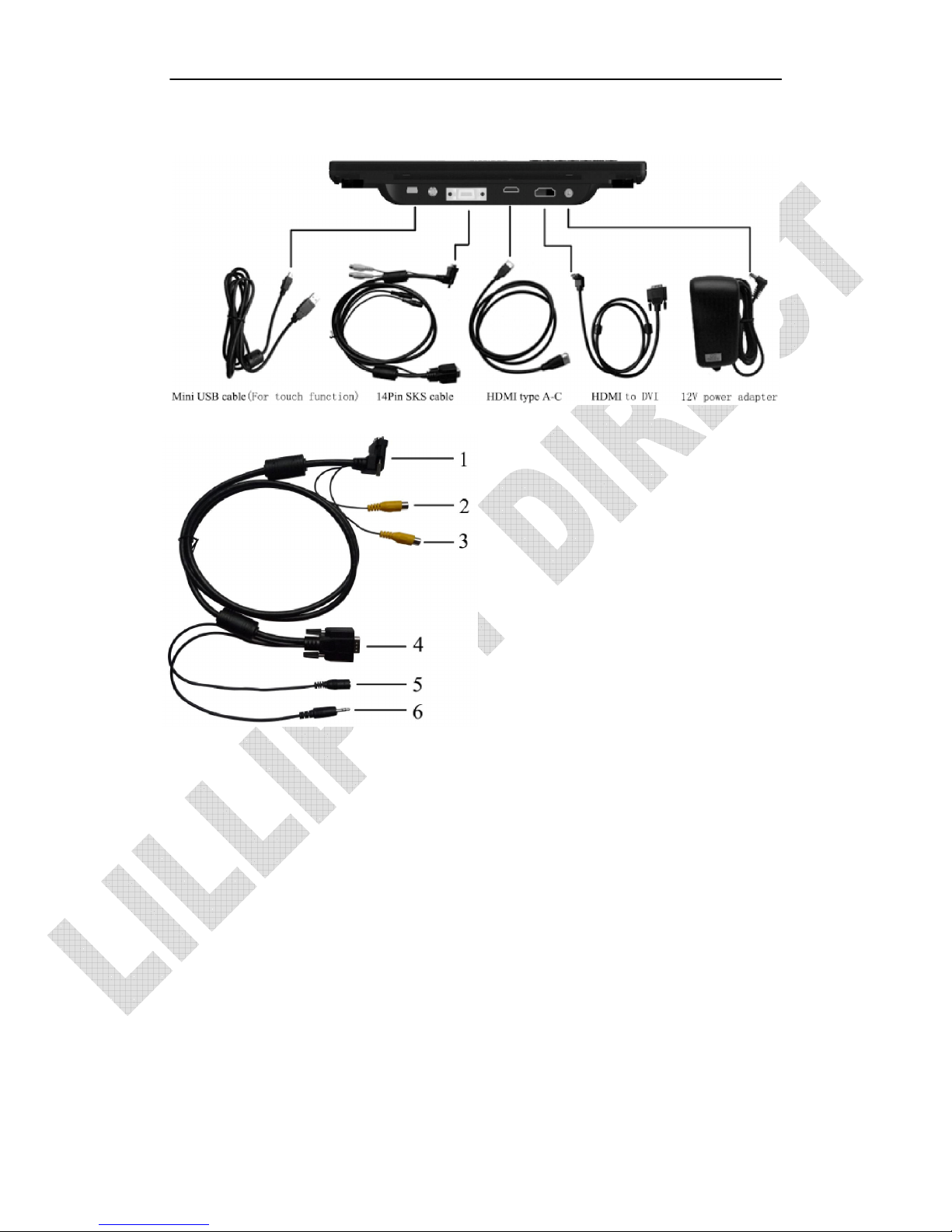

3. WIRING

STRUCTION

1. 14Pin SKS signal interface.

2. Yellow RCA: Video signal 1 input.

3. Yellow RCA: Video signal 2 input.

4. VGA signal input.

5. DC 12V Power input

6. Audio: L and R channels signal input.

4. SETTING

ENU

Before setting the menu functions, please make sure the device is connected

correctly. When power on, press MENU on the device or on the remote control.

The menu functions setting will display on the screen.

Press buttons

►

◄

on the device or buttons

▼

▲

on the remote control to

select items. Then press + / – on the device or

►

◄

on the remote control to

change the values.

IN AV

MODE

2. IN PC

MODE

3. IN DVI & HDMI

MODE

OSD

SCEL

LANEOUS

DVI MODE

OSD miscellaneous setting under DVI

HDMI MODE

OSD miscellaneous setting under HDMI

Item

Name

Fun

BRIGHTNESS

Brightness setting.

CONTRAST

Contrast setting.

SATURATION Saturation setting (NOT under

DVI/HDMI mode).

Tint Tint setting for image display (NOT under

DVI/HDMI mode).

OSD H-position adjustment To adjust the OSD move in horizontal

direction.

OSD V-position adjustment To adjust the OSD move in vertical

direction.

PHASE To adjust the beginning point and terminal

point of image.

FREQUENCY

To adjust the frequency range of image.

RESET You can reset adjustment of the unit when

click “YES”.

COLOR TEMPERATURE Choose color and temperature at first,

such as: 6500

K, 7500

K or 9300

RED

GREEN

BLUE

NOTE: only if under “USER”

ode,

can adjust RED, GREEN and

BLUE to meet the color value you

need.

LANGUAGE

Language setting: English or Japanese.

MISCELLANEOUS Move to next page for miscellaneous

setting.

OSD AUTO COLOR If select “YES” it will adjust automatic

color system to the best.

EXIT OSD

Select “YES” to exit.

OSD H-POSITION To adjust the picture position in horizontal
