DEMO MANUAL DC2608
DESCRIPTION
DC2618 and DC2210
LTC2986-1
Digital Temperature Measurement System
The DC2608 is the starter kit for demonstrating the per-
formance and ease of use of the LT C
®
2986-1, which is a
complete temperature measurement system on a chip.
This kit includes the DC2618 (main demo circuit contain-
ing the LTC2986-1) and the DC2210 (a simple experiment
circuit allowing bread boarding). In addition to the starter
demonstration kit, sensor specific demonstration boards
highlighting the performance of RTDs, thermistors, or
thermocouples are also available.
• Universal Temperature Measurement Board – DC2211
• Thermocouple Board – DC2212
• Dedicated RTD Board – DC2213
• Dedicated Thermistor Board – DC2214
L, LT, LTC, LTM, Linear Technology, the Linear logo and Linduino are registered trademarks
and QuikEval is trademark of Analog Devices, Inc. All other trademarks are the property of their
respective owners.
The DC2618 is a member of the QuikEval™ family of dem-
onstration boards. It is designed to allow easy evaluation
of the LTC2986-1 and may be connected to any one of
the sensor daughter boards.
These daughter boards allow evaluation of the various
LTC2986-1 sensor types (see Figure 1).
For the serial digital interface, the DC2618 may be con-
nected to the DC2026 Linduino
®
One.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2608
Figure 1. DC2618 Temperature Measurement Demonstration Board
2
dc2608f
DEMO MANUAL DC2608
QUICK START PROCEDURE
Connect one of the five sensor daughter boards (DC2210,
DC2211, DC2212, DC2213 or DC2214) to the DC2618
demo board. Connect the DC2618 to a DC2026 using
the supplied 14-conductor ribbon cable. Connect the
DC2026 to the PC using a standard USB A/B cable. Run
the QuikEval software which the latest version can be
downloaded from the Linear website at www.linear.com/
software. The LTC2986-1 demo program will be loaded
automatically. Refer to software manual LTC2986DSM for
more detailed information.
The demo software helps program and run the LTC2986-1.
It can configure the LTC2986-1, check and save the con-
figuration, run the LTC2986-1, output the results into a
file, and even create Linduino One ready C code based on
the configuration. The demo software allows the user to
configure the LTC2986-1 manually or automatically from
data stored in the daughter board EEPROM. Please see
www.linear.com/LTC2986software for the demo software
manual. It includes a short tutorial for getting started.
Figure 2 shows a screenshot of the demo software at
start-up.

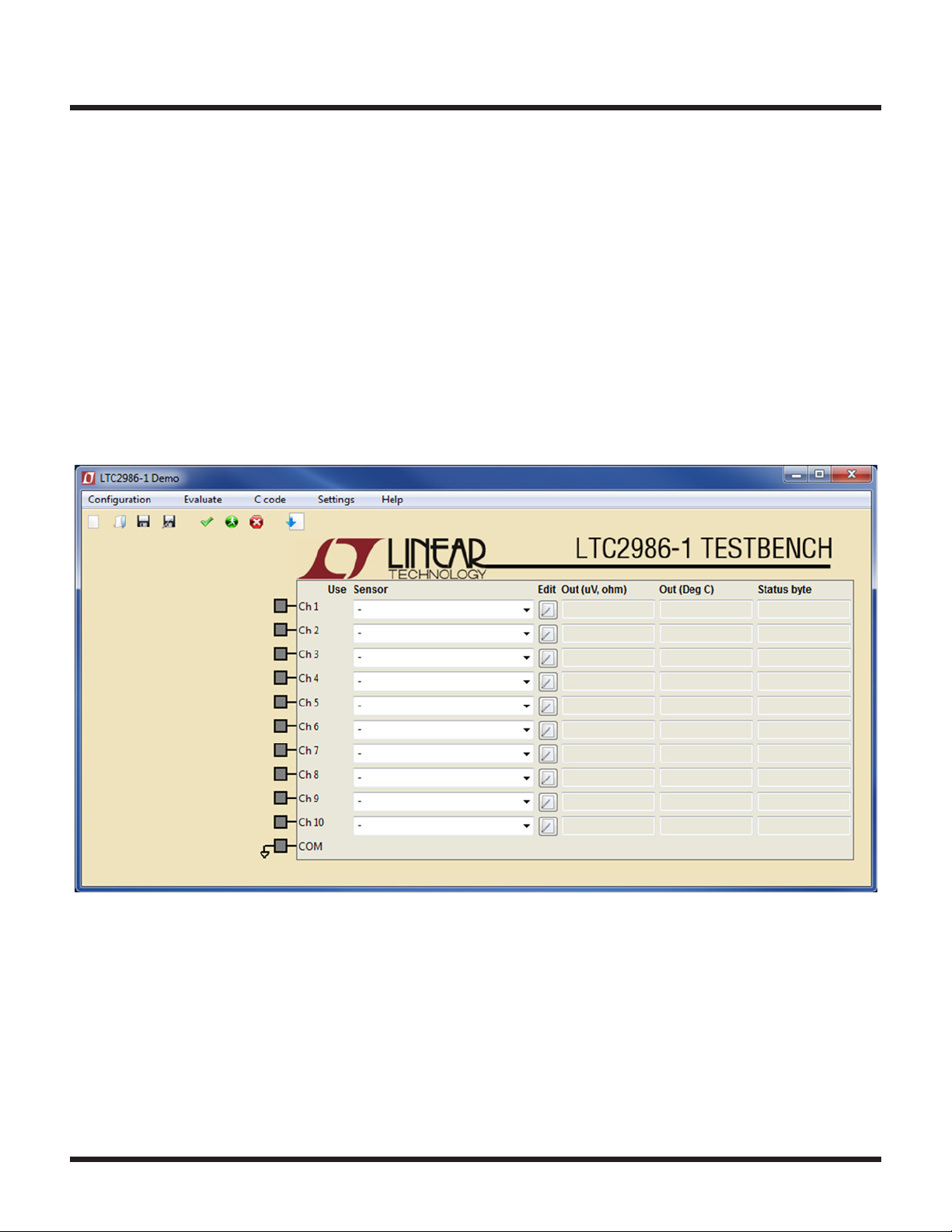

Figure 2. LTC2986-1 Demo Software
3
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
DC2210 EXPERIMENTER BOARD
(INCLUDED IN DC2608 KIT)
The DC2210 experimenter board (see Figure 3) brings all
LTC2986-1 channels plus the COM connection out to a
proto area and a 24-position terminal block. The user may
connect any of the supported sensors and sense resistors
to any of the LTC2986-1 inputs in this area. Figure 4 shows
the connection schematic of the DC2210 Experimenter
board. Please note that only CH1 to CH10 are valid on
the DC2210 when used in conjunction with the DC2618.
Figure 3. DC2210 Experimenter Board
4
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
Figure 4. DC2210 Experimenter Board Schematic
J1
J2
J3
5
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
DC2211 UNIVERSAL TEMPERATURE MEASUREMENT
BOARD
The universal temperature measurement board (see
Figure5) allows the user to connect any of the LTC2986-1
supported sensors to the DC2618 demo board.
Figure 5. DC2211 Universal Temperature Measurement Board
6
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
The universal temperature measurement board has a
built-in sense resistor for RTD applications as well as a
cold junction sensor diode for thermocouple applications
(see Figure 6 for the DC2211 schematic diagram). The
sense resistor is a 2kΩ ±0.1% 10ppm/°C sense resistor
on channels 1 and 2 which may be used with any of the
supported RTD sensor types. The precise value of this
sense resistor is stored in an on-board EEPROM. The
LTC2986-1 demo software can read this EEPROM and use
to configure the sense resistor value in the LTC2986-1’s
configuration memory.
The external interface on the universal temperature mea-
surement board is an 8-position screw-terminal block
with the flowing pinout.
Table 1. DC2211 Terminal Connector Pinout
Position A LTC2986-1 CH2 as well as the low side of the on-board
2k sense resistor
Position B LTC2986-1 CH3
Position C LTC2986-1 CH4
Position D LTC2986-1 CH5
Position E Common/Ground Connection
Position F Common/Ground Connection
Position G Common/Ground Connection
Position H Common/Ground Connection
Figure 6. DC2211 Universal Temperature Measurement Board Schematic
J2
J1
R6
Q1
R5, 100Ω
R4, 100Ω
R3, 100Ω
R2, 100Ω
R1, 100Ω
7
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
UNIVERSAL TEMPERATURE MEASUREMENT
DAUGHTER BOARD EXAMPLES
• Four thermocouples connected to positions A-D with
the negative connections tied to positions E-H using the
on-board diode as cold junction sensor (see Figure 7a
for the schematic and Figure 8a for the corresponding
software configuration).
• A 4-wire RTD connected to positions A-D using the
on-board sense resistor as the ratiometric reference
(see Figure 7b for the schematic and Figure 8b for the
corresponding software configuration).
Figure 7. Universal Temperature Measurement Board Examples
8
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
Figure 8a. DC2211 Four Thermocouple Software Configuration
9
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
Figure 8b. DC2211 4-Wire RTD Software Configuration
10
dc2608f
DEMO MANUAL DC2608
HARDWARE SETUP
DC2212 THERMOCOUPLE DAUGHTER BOARD
The thermocouple board (see Figure 9) demonstrates
the flexibility, accuracy, and low noise features of the
LTC2986-1 thermocouple modes.
If the user wishes to connect external sensors to the
thermocouple board, two universal-type thermocouple
jacks (J2 and J3) are provided (see schematic diagram
Figure 10 and corresponding software configuration
Figure 11). The user may connect any of the LTC2986-1
supported thermocouples (B, E, J, K, N, R, S, or T) as well
as custom thermocouples through these jacks.
To demonstrate the flexibility of the LTC2986-1, the ther-
mocouple board includes cold junction diodes (Q1 and Q2)
embedded in each thermocouple socket. Alternatively, a
4-wire PT100 RTD (R5) can be used as the cold junction
sensor for either or both thermocouples.
To demonstrate the low system noise and offset of the
LTC2986-1, the thermocouple board provides a short to
ground on channel 5.
To demonstrate the accuracy of the LTC2986-1, the ther-
mocoupleboardallowsthe userto connecta thermocouple
calibrator or an external voltage source to CH10 of the
LTC2986-1 through a pair of banana jacks (J4 and J5).

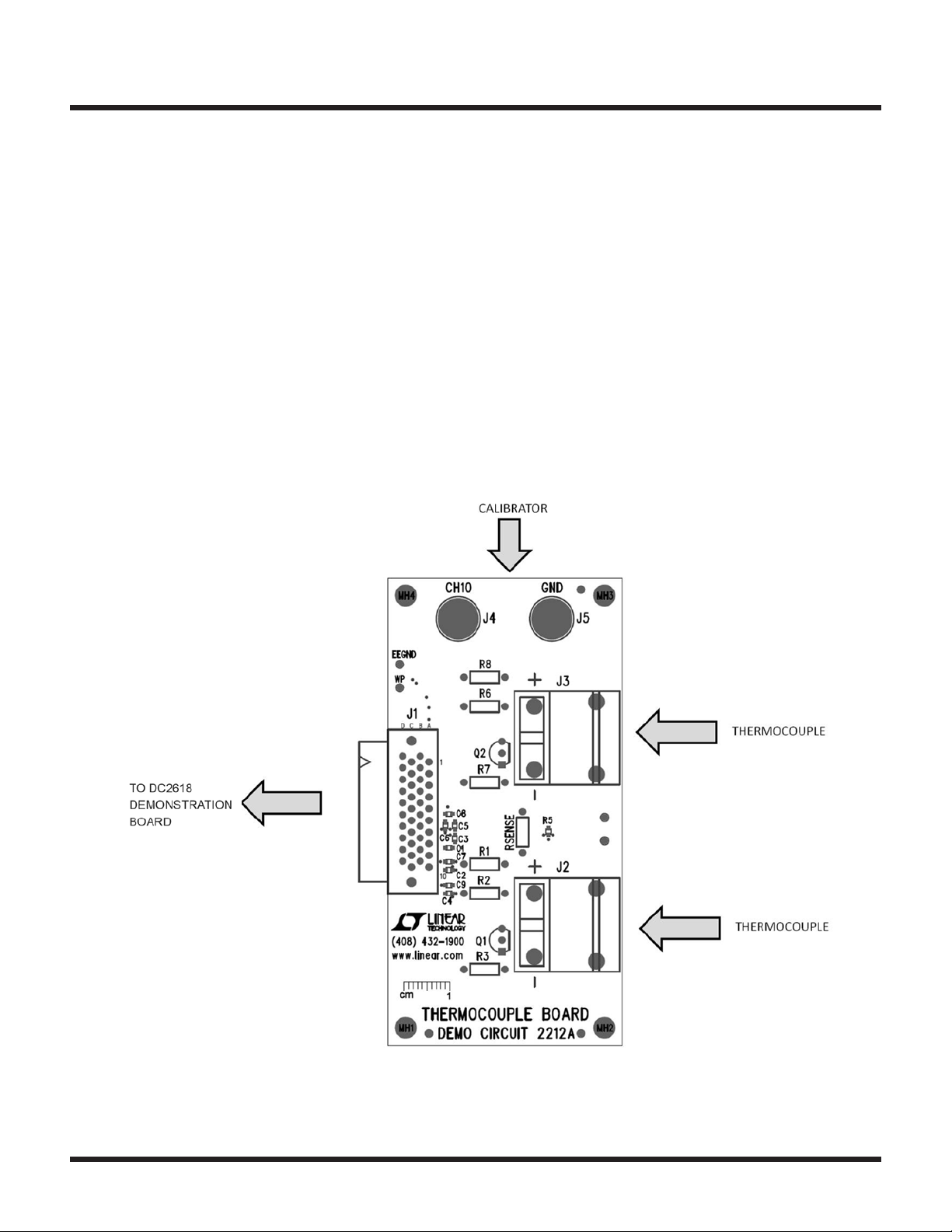

Figure 9. DC2212 Thermocouple Daughter Board
