DEMO MANUAL DC1668B-C

DESCRIPTION

LTM4627EV

High Efficiency PolyPhase

Step-Down Power Supply

Demonstrationcircuit1668B-Cisa PolyPhase

power sup-

ply featuring four LT M

4627 high efficiency synchronous

buck µModule

regulators. The DC1668B-C input voltage

range is between 4.5V to 20V with a jumper programmable

output voltage from 0.6V to 3.3V. The demo circuit can

deliver up to 50A of load with excellent current-sharing.

Current derating may be necessary under certain operat-

ing conditions.

The LTM4627 can be synchronized to an external clock be-

tween 250kHz to 770kHz. The default switching frequency

for the DC1668B-C is set to 500kHz through the onboard L, LT, LTC, LTM, Linear Technology, PolyPhase, µModule and the Linear logo are registered

trademarks of Linear Technology Corporation. All other trademarks are the property of their

respective owners.

PERFORMANCE SUMMARY

BOARD PHOTO

LTC6902 clock generator. The external clock interleaves

the paralleled phases to minimize input and output ripple.

DC1668B-C demonstrates that paralleling LTM4627 mod-

ules is easy and reliable. These features and the availability

of the LTM4627 in a compact thermally enhanced 15mm

×15mm × 4.32mm LGA package make the circuit ideal for

use in high density point of load regulation applications.

Design files for this circuit board are available at

http://www.linear.com/demo

PARAMETER CONDITIONS/NOTES VALUE

Maximum Input Voltage 20V

Minimum Input Voltage 4.5V

Output Voltage VOUT Remove VOUT SEL Jumper for VOUT = 0.6VDC 0.6VDC, 1VDC, 1.2VDC, 1.5VDC,

1.8VDC, 2.5VDC, 3.3VDC

Maximum Continuous Output Current IOUT(MAX) Current Derating May Be Necessary for Certain VIN,

VOUT, Frequency and Thermal Conditions

50ADC

Default Operating Frequency 500kHz

External Clock Synchronous Frequency Range 250kHz to 770kHz

Output Voltage Ripple (Typical) VIN = 12V, VOUT = 1.8V, 500kHz (20MHz BW) < 10mVP-P at IOUT = 50A, See Figure 6

Efficiency VIN = 12V, VOUT = 1.8V, 500kHz 87.7% at IOUT = 50A, See Figure 3

Load Transient VIN = 12V, VOUT = 1.8V See Figure 5

Specifications are at TA= 25°C

Figure 1. LTM4627/DC1668B-C Demo Board

DC1668bc F01

dc1668bcf

DEMO MANUAL DC1688B-C

QUICK START PROCEDURE

Demonstrationcircuit 1668B-C is easy to set up to evaluate

the performance of paralleled LTM4627 modules. Please

refer to Figure 2 for proper measurement equipment setup

and follow the procedure below:

1. With power off, connect the input power supply, load,

meters, and VOUT BNC cable as shown in Figure 2.

Preset the load to 0A and VIN supply to be 0V. Place

jumpers in the following positions for a typical 1.8VOUT

application:

JP2 JP7 JP6

VOUT Select RUN TRACK/SS

1.8V OFF SOFT-START

2. Turn on the power at the input. Increase VIN to 12V

(Do not hot-plug the input supply or apply more than

the rated maximum voltage of 20V to the board or the

modules may be damaged).

3. Set the run pin jumper (JP7) to the ON position. The

output voltage should be regulated. The output voltage

meter should read 1.8V ±2% (1.76V to 1.84V).

4. Vary the input voltage from5Vto 20V and adjust the load

current from 0A to 50A. VOUT should remain regulated

at1.8V±2%. Observethe load regulation, output voltage

ripple, efficiency and other parameters. Output voltage

ripple should be measured at J6 with a BNC cable and

oscilloscope. The probe channel for VOUT should be set

at 50Ω termination resistance to match the BNC cable.

5. For optional load transient testing apply an adjustable

positive pulse signal between IOSTEP CLK and GND

pins. The pulse amplitude sets the load step current

amplitude. The pulse width should be short (< 1ms)

and pulse duty cycle should be low (< 15%) to limit the

thermal stress on the load transient circuit. The load

step current can be monitored with a BNC connected

to J5 (5mV/A).

dc1668bcf

DEMO MANUAL DC1668B-C

QUICK START PROCEDURE

Figure 2. Test Setup of DC1668B (All Versions)

DC1668bc F02

dc1668bcf

DEMO MANUAL DC1688B-C

QUICK START PROCEDURE

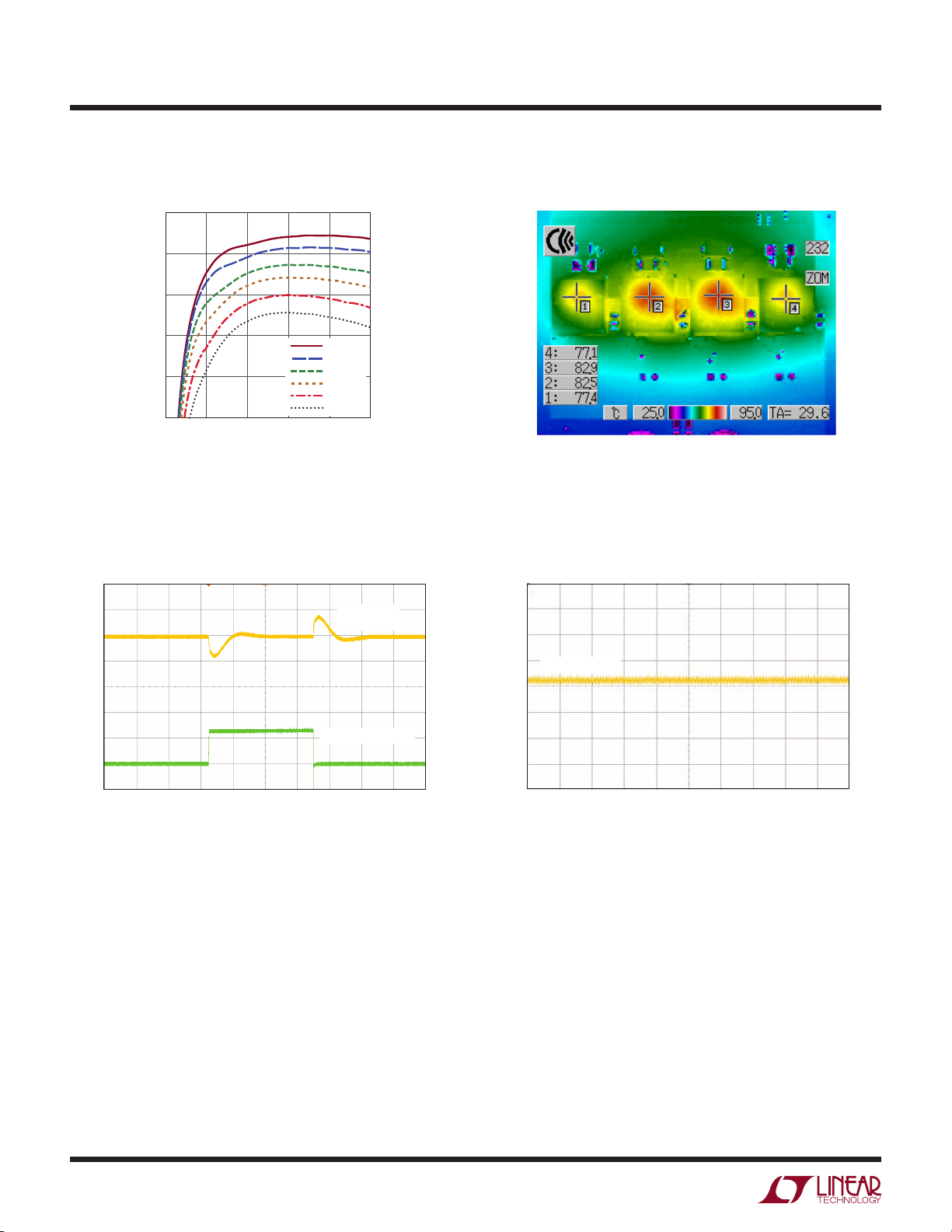

Figure 3. Measured Efficiency at 12VIN, 500kHz Figure 4. Thermal Capture at 12VIN, 1.8VOUT, 50A,

500kHz No Forced Airflow (Convection). TA= 29°C.

Figure 5. Measured Load Step Response Figure 6. Measured Output Voltage Ripple (20MHz BW)

LOAD CURRENT (A)

EFFICIENCY (%)

DC1668bc F03

30 504010 20

3.3VOUT

2.5VOUT

1.8VOUT

1.5VOUT

1.2VOUT

1VOUT

VOUT = 1.8V

IOUT DC = 25A

IOUT STEP = 25A

fSW = 500kHz

DC1668bc F05

VOUT

(100mV/DIV)

IOUT STEP (20A/DIV)

VOUT = 1.8V

IOUT = 50A

fSW = 500kHz

DC1668bc F06

VOUT (20mV/DIV)

DC1668bc F04

dc1668bcf

DEMO MANUAL DC1668B-C

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP, 150µF 20% 35V ALUM SANYO 35MV150WXV

2 2 CIN13, CIN18, CIN20,

CIN22

CAP, 1210 22µF 20% 25V X5R AVX 12103D226MAT2A

3 2 COUT1, COUT5, COUT9,

COUT13

CAP, 1812 100µF 20% 6.3V X5R TDK C4532X5R0J107MZ

4 2 COUT20, COUT21, COUT25 CAP, 470µF 20% 4V POSCAP SANYO POSCAP 4TPF470ML

5 2 R8 RES, 0603 0Ω JUMPER VISHAY CRCW06030000Z0EA

6 2 R18, R19 RES, 0603 10Ω 5% 1/10W AAC CR16-100JM

7 4 R30, R31, R32, R33 RES, 0603 100Ω 5% 1/10W KOA RK73B1JTTD101J

8 1 R34 RES, 0603 100k 5% 1/10W VISHAY CRCW0603100KJNEA

9 1 R35 RES, 0805 0Ω JUMPER VISHAY CRCW08050000Z0EA

10 1 U5 IC, LTC6902CMS LINEAR TECHNOLOGY LTC6902CMS

11 1 C12 CAP, 0603 100pF 10% 50V NP0 AVX 06035A101KAT2A

12 4 C52, C53, C54, C61 CAP, 0603 180pF 5% 50V NP0 AVX 06035A181JAT

13 1 C61 CAP, 0603 180pF 5% 50V NP0 AVX 06035A181JAT

14 2 C65, C67 CAP, 0603 1000pF 10% 50V NP0 AVX 06035A102KAT2A

15 1 R1 RES, 0603 7.5k 1% 1/10W VISHAY CRCW06037K50FKEA

16 1 R2 RES, 0603 10k 1% 1/10W VISHAY CRCW060310K0FKEA

17 1 R3 RES, 0603 4.75k 1% 1/10W VISHAY CRCW06034K75FKED

18 1 R4 RES, 0603 3.32k 1% 1/10W VISHAY CRCW0603K32FKEA

19 1 R12 RES, 0603 22.6k 1% 1/10W VISHAY CRCW060322K6FKEA

20 1 R14 RES, 0603 15k 1% 1/10W VISHAY CRCW060315K0FKEA

21 1 R27 RES, 0603 0Ω JUMPER VISHAY CRCW06030000Z0EA

22 1 R29 RES, 0603 100k 1% 1/10W VISHAY CRCW0603100KFKEA

23 4 U1, U2, U3, U4 IC, MICRO MODULE LINEAR TECHNOLOGY LTM4627EV

Additional Demo Board Circuit Components

1 2 C14, C38 CAP, 0603 0.1µF 20% 16V X7R TAIYO YUDEN EMK107BJ104MA-T

2 1 C16 CAP, 0603 1µF 20% 10V X5R TAIYO YUDEN LMK107BJ105MA-T

3 1 C60 CAP, 0603 1000pF 10% 50V NP0 AVX 06035A102KAT2A

4 1 D1 DIODE, ZENER 350mW DIODES INC. MMBZ5227B

5 1 R7 RES, 0805 2k 5% 1/10W AAC CR10-202JM

6 1 Q14 XSTR,SUD50N03-10CP MOSFET SILICONIX SUD50N03-10CP

7 1 R10 RES, 0603 10k 5% 1/10W AAC CR16-103JM

8 2 R20 RES, 0603 0Ω JUMPER VISHAY CRCW06030000Z0EA

9 3 R11, R16, R17 RES, 2512 0.015Ω 1% 1W PANASONIC ERJM1WSF15MU

10 0 CIN2, CIN3 CAP, 1206 10µF 20% 35V X5R OPTION TAIYO YUDEN GMK316BJ106ML-T OPTION

11 0 CIN14, CIN19, CIN21,

CIN23

CAP, 1210 22µF 20% 25V X5R OPTION AVX 12103D226MAT2A OPTION

12 0 COUT2, COUT3, COUT6 CAP, 1812 100µF 20% 6.3V X5R OPTION TDK C4532X5R0J107MZ OPTION

13 0 COUT4, COUT7, COUT11,

COUT15

CAP, 1812 OPTION TAIYO YUDEN JMK432BJ107MU-T OPTION

dc1668bcf

DEMO MANUAL DC1688B-C

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

14 0 COUT10, COUT14 CAP, 1812 100µF 20% 6.3V X5R OPTION TDK C4532X5R0J107MZ OPTION

15 0 COUT19 CAP, 1206 OPTION TAIYO YUDEN EMK316BJ475ML-T OPTION

16 0 COUT23, COUT26, COUT27 CAP, 470µF 20% 4V POSCAP OPTION SANYO POSCAP 4TPF470ML OPTION

17 0 COUT24 CAP, 1812 OPTION TAIYO YUDEN JMK316BJ226ML-T

18 0 C15 CAP, 0603 1µF 20% 10V X5R OPTION TAIYO YUDEN LMK107BJ105MA-T OPTION

19 0 C18, C55, C56, C57, C58,

C62, C74 TO C77

CAP, 0603 OPTION OPTION

20 0 C59, C63, C66, C68 CAP, 0805 OPTION OPTION

21 0 C64 CAP, 0603 1000pF 10% 50V NP0 OPTION AVX 06035A102KAT2A OPTION

22 0 C69, C71, C72, C73 CAP, 150µF 20% 35V ALUM OPTION SANYO 35MV150WXV OPTION

23 1 C70 CAP, 0603 0.22µF 20% 10V X5R OPTION TAIYO YUDEN LMK107BJ224MA-T OPTION

24 0 R9, R13, R15, R23, R24 RES, 0603 51k 5% 1/10W OPTION AAC CR16-513JM OPTION

25 0 R21, R22, R36 RES, 0603 OPTION OPTION

26 0 COUT22 CAP, 470µF 20% 4V POSCAP OPTION SANYO POSCAP 4TPF470ML OPTION

27 1 COUT25 CAP, 470µF 20% 4V POSCAP SANYO POSCAP 4TPF470ML

28 1 R26 RES, 0603 OPTION OPTION

Hardware

1 6 JP1, JP2, JP3, JP4, JP5,

JP8

HEADER, 2PIN, 2mm SAMTEC TMM 102-02-L-S

2 2 JP6, JP7 HEADER, 3PIN, 2mm SAMTEC TMM-103-02-L-S

3 4 J1, J2, J3, J4 STUD, PRESS-FIT PEM KFH-032-10

4 2 J5, J6 CONN, BNC, 5 PINS CONNEX 112404

510 TP1 TO TP8, TP13, TP14 TURRET MILL MAX 2501-2-00-80-00-00-07-0

6 3 JP1, JP6, JP7 SHUNT, 2mm SAMTEC 2SN-BK-G

7 4 STANDOFF, SNAP ON KEYSTONE_8834

8 8 J1, J2, J3, J4 NUT, BRASS #10-32 ANY

9 4 J1, J2, J3, J4 WASHER, BRASS #10 ANY

10 4 J1, J2, J3, J4 LUG, RING KEYSTONE 310 PbF

dc1668bcf

DEMO MANUAL DC1668B-C

SCHEMATIC DIAGRAM

dc1668bcf

DEMO MANUAL DC1688B-C

SCHEMATIC DIAGRAM

dc1668bcf

DEMO MANUAL DC1668B-C

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

SCHEMATIC DIAGRAM

Indice

Altri manuali Linear Technology Scheda madre

Linear Technology

Linear Technology DC2358A Manuale utente

Linear Technology

Linear Technology LTC2270 Guida rapida alla configurazione

Linear Technology

Linear Technology DC2001A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2177A-C Guida rapida alla configurazione

Linear Technology

Linear Technology DC1763A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1332B Guida rapida alla configurazione

Linear Technology

Linear Technology DC512B Manuale utente

Linear Technology

Linear Technology DC1668A-C Guida rapida alla configurazione

Linear Technology

Linear Technology DC1281A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2347A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2257A Guida rapida alla configurazione

Linear Technology

Linear Technology DC102 Guida rapida alla configurazione

Linear Technology

Linear Technology DC2181A-A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1166A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1525A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1145B Guida rapida alla configurazione

Linear Technology

Linear Technology DC1552A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1513B Guida rapida alla configurazione

Linear Technology

Linear Technology Analog Devices DC1890A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2455A-B Guida rapida alla configurazione

Linear Technology

Linear Technology DC1812A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2073A Series Guida rapida alla configurazione

Linear Technology

Linear Technology DC1703A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2196A Guida rapida alla configurazione

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
