Linksys EG1032 Manuale utente

A Division of Cisco Systems, Inc.

Model No.

WIRED

Network Adapter

Gigabit

EG1032 v3

User Guide

10/100/1000

10/100/1000 Gigabit Network Adapter

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco

rights reserved. Other brands and product names are trademarks or registered trademarks of their respective

holders.

How to Use this User Guide

This User Guide to the Gigabit Network Adapter has been designed to make understanding networking with the

Gigabit Network Adapter easier than ever. Look for the following items when reading this guide:

In addition to these symbols, there are definitions for technical terms that are presented like this:

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like

this:

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

This exclamation point means there is a Caution or warning and is something

that could damage your property or the Gigabit Network Adapter.

word: definition.

This checkmark means there is a Note of interest and is something you

should pay special attention to while using the Gigabit Network Adapter.

This question mark provides you with a reminder about something

you might need to do while using the Gigabit Network Adapter.

Figure 0-1: Sample Figure Description

EG1032_V3-UG-50405 KL

WARNING: This product contains chemicals, including lead, known

to the State of California to cause cancer, and birth defects or other

reproductive harm. Wash hands after handling.

10/100/1000 Gigabit Network Adapter

Table of Contents

Chapter 1: Introduction 1

Welcome 1

What’s in this Guide? 1

Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter 3

Port and LEDs 3

Chapter 3: Installing the 10/100/1000 Gigabit Network Adapter in Your PC 4

Hardware Installation 4

Chapter 4: Installing the Driver for Windows XP 5

Overview 5

Installing the Driver 5

Uninstalling the Adapter 7

Chapter 5: Installing the Driver for Windows 2000 8

Overview 8

Installing the Driver 8

Uninstalling the Adapter 10

Chapter 6: Installing the Driver for Windows Millennium or 98SE 11

Overview 11

Installing the Driver 11

Uninstalling the Adapter 13

Chapter 7: Configuring the 10/100/1000 Gigabit Network Adapter in Windows XP or 2000 14

Overview 14

Accessing the Adapter’s Configuration 14

Adapter Configuration 14

Chapter 8: Configuring the 10/100/1000 Gigabit Network Adapter in Windows Millennium or 98SE 17

Overview 17

Accessing the Adapter’s Configuration 17

Adapter Configuration 17

Chapter 9: Using the EG1032 Instant Gigabit Network Adapter Diagnostic Utility 20

Overview 20

Installing the Diagnostic Utility 20

Using the Diagnostic Utility 22

10/100/1000 Gigabit Network Adapter

Appendix A: Troubleshooting 28

Common Problems and Solutions 28

Appendix B: Windows Help 32

Appendix C: Glossary 33

Appendix D: Specifications 36

Appendix E: Warranty Information 37

Appendix F: Regulatory Information 38

Appendix G: Contact Information 39

10/100/1000 Gigabit Network Adapter

List of Figures

Figure 2-1: Port and LEDs 3

Figure 3-1: Insert the Adapter into the PCI Slot 4

Figure 3-2: Set the Adapter Firmly in Place 4

Figure 3-3: Connect the Ethernet Network Cable 4

Figure 4-1: Welcome 5

Figure 4-2: Search This Location 5

Figure 4-3: Windows Logo Testing 5

Figure 4-4: Wizard Installing Driver 6

Figure 4-5: Driver Installation Complete 6

Figure 4-6: Device Manager for Windows XP 7

Figure 4-7: Confirm Device Removal 7

Figure 5-1: Welcome 8

Figure 5-2: Install Hardware Device Drivers 8

Figure 5-3: Locate Driver Files 8

Figure 5-4: Driver Location 9

Figure 5-5: Driver Files Search Results 9

Figure 5-6: Driver Installation Complete 9

Figure 5-7: Computer Management for Windows 2000 10

Figure 5-8: Confirm Device Removal 10

Figure 6-1: Add New Hardware Wizard 11

Figure 6-2: Enter Location of Driver 11

Figure 6-3: Driver Files Search Results 11

Figure 6-4: Driver Installation Complete 12

Figure 6-5: Restart Computer 12

Figure 6-6: Device Manager for Windows Me or 98SE 13

Figure 6-7: Confirm Device Removal 13

Figure 6-8: System Settings Change 13

Figure 7-1: Device Manager for Windows XP or 2000 14

10/100/1000 Gigabit Network Adapter

Figure 7-2: General Tab for Windows XP or 2000 14

Figure 7-3: Advanced Tab for Windows XP or 2000 15

Figure 7-4: Driver Tab for Windows XP 15

Figure 7-5: Resources Tab for Windows XP or 2000 16

Figure 7-6: Power Management Tab for Windows XP 16

Figure 8-1: Device Manager for Windows Me or 98SE 17

Figure 8-2: General Tab for Windows Me or 98SE 17

Figure 8-3: Driver Tab for Windows Me or 98SE 18

Figure 8-4: Resources Tab for Windows Me or 98SE 18

Figure 8-5: Power Management Tab for Windows Me or 98SE 19

Figure 9-1: Select Windows Operating System 20

Figure 9-2: Welcome Screen 20

Figure 9-3: Destination Location 21

Figure 9-4: InstallShield Wizard Complete 21

Figure 9-5: Power Management Tab for Windows Me or 98SE 21

Figure 9-1: The Utility’s Icon 22

Figure 9-2: The Utility’s menu 22

Figure 9-3: Opening the Utility from the Programs menu 22

Figure 9-4: The Utility’s General screen 22

Figure 9-5: The Utility’s VLAN screen 23

Figure 9-6: The Utility’s Driver screen 23

Figure 9-7: The Utility’s Driver - 802.1p/Q Tagging - screen 23

Figure 9-8: The Utility’s Driver - Flow Control - screen 24

Figure 9-9: The Utility’s Driver - Jumbo Frame - screen 24

Figure 9-10: The Utility’s Driver - Link Speed/Duplex Mode - screen 24

Figure 9-11: The Utility’s Driver - Network Address - screen 25

Figure 9-12: The Utility’s Driver - Offload Checksum - screen 25

Figure 9-13: The Utility’s Driver - Offload TCP_Large Send - screen 25

Figure 9-14: The Utility’s Diagnostics screen 26

Figure 9-15: The Utility’s Diagnostics - Send and Receive test - screen 26

10/100/1000 Gigabit Network Adapter

Figure 9-16: The Utility’s Statistics screen 26

Figure 9-17: The Utility’s Cable screen 27

Figure 9-18: The Utility’s Wake on LAN screen 27

Chapter 1: Introduction

Welcome

10/100/1000 Gigabit Network Adapter

Chapter 1: Introduction

Welcome

Thank you for choosing the 10/100/1000 Gigabit Network Adapter. Built to run the fastest video, publishing, and

database network applications, the Gigabit Network Adapter is a high performance network adapter for PCI local

bus computers. Boasting an incredible maximum data throughput of 1000 megabits-per-second in full duplex

mode, it includes a 10BaseT/100BaseTX/1000BaseTX port, which means that you can begin integrating Gigabit

now—even if you don't plan on upgrading to a 1000Mbps network right away.

The Gigabit Network Adapter is Windows Plug-and-Play compatible. Wake-On-LAN support is built in—you can

wake up your workstations from anywhere on the network! Built-in support for the widest range of PCI mother-

boards, networking hardware, and software means you don't have to worry about compatibility.

Use the instructions in this Guide to help you install the Gigabit Network Adapter in your PC, install its driver, and

configure it. These instructions should be all you need to get the most out of the Gigabit Network Adapter.

What’s in this Guide?

This user guide covers the steps for installing the Adapter, installing its driver, and configuring it.

• Chapter 1: Introduction

This chapter describes the Adapter’s applications and this User Guide.

• Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter

This chapter describes the physical features of the Adapter.

• Chapter 3: Installing the 10/100/1000 Gigabit Network Adapter in Your PC

This chapter instructs you on how to install the Adapter inside your PC.

• Chapter 4: Installing the Driver for Windows XP

This chapter explains how to install the Windows XP driver for the Adapter.

• Chapter 5: Installing the Driver for Windows 2000

This chapter explains how to install the Windows 2000 driver for the Adapter.

• Chapter 6: Installing the Driver for Windows Millennium or 98SE

This chapter explains how to install the Windows Millennium or 98SE driver for the Adapter.

Full duplex: the ability of a networking

device to receive and transmit data

simultaneously.

Chapter 1: Introduction

What’s in this Guide?

10/100/1000 Gigabit Network Adapter

• Chapter 7: Configuring the 10/100/1000 Gigabit Network Adapter in Windows XP or 2000

This chapter instruct you on how to configure the Adapter in Windows XP or 2000.

• Chapter 8: Configuring the 10/100/1000 Gigabit Network Adapter in Windows Millennium or 98SE

This chapter instruct you on how to configure the Adapter in Windows Millennium or 98SE.

• Appendix A: Troubleshooting

This appendix describes some potential problems and solutions regarding use of the Adapter.

• Appendix B: Windows Help

This appendix describes how you can use Windows Help for instructions about networking, such as installing

the TCP/IP protocol.

• Appendix C: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

• Appendix D: Specifications

This appendix provides the technical specifications for the Adapter.

• Appendix E: Warranty Information

This appendix supplies the warranty information for the Adapter.

• Appendix F: Regulatory Information

This appendix supplies the regulatory information regarding the Adapter.

• Appendix G: Contact Information

This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 2: Getting to Know the 10/100/1000 Gigabit Network Adapter

Port and LEDs

10/100/1000 Gigabit Network Adapter

Chapter 2: Getting to Know the 10/100/1000 Gigabit Network

Adapter

Port and LEDs

The Adapter’s port and LEDs are located on the metal panel.

RJ-45 Port The RJ-45 port is where you will connect your Ethernet network cable.

Gigabit LED Green. The Gigabit LED lights up when the Adapter is operating at 1000Mbps. If the Gigabit

LED is not lit and the PC is powered on, the Adapter has automatically determined that your

network is operating at a slower speed and adjusted accordingly.

Link/Act LED Orange. The Link/Act LED lights up when the Adapter is connected to a network. It flashes

when there is network activity.

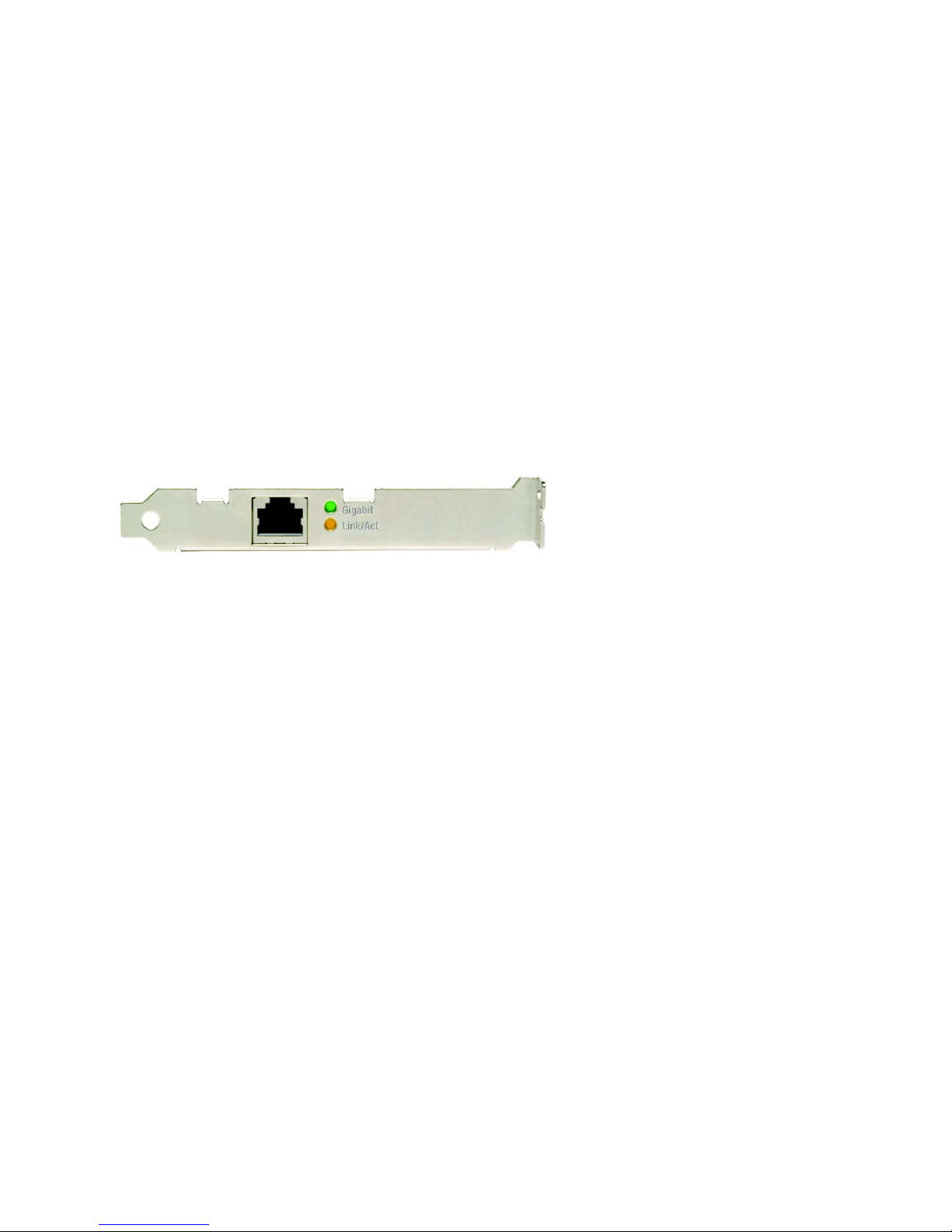

Figure 2-1: Port and LEDs
