LinQTab LQBBS Manuale utente

LinQ

Tab

LQBBS

LQBBS – Hi-Def Bluetooth Speaker User Manual

Please read this manual before operating your device, and keep it for future reference.

The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth

word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth

SIG.

microSD™ and the microSD logo are Trademarks of the SD Card Association.

Wi-Fi, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wireless

Fidelity Alliance, Inc.

Table of Contents

LQBBS – Hi-Def Bluetooth Speaker User Manual.....................................................................................................1

Copyright..............................................................................................................................................................2

Table of Contents......................................................................................................................................................3

General notices for use ..........................................................................................................................................4

Disclaimer.............................................................................................................................................................4

Box Contents ............................................................................................................................................................4

Getting Started..........................................................................................................................................................5

Product Specifications...........................................................................................................................................5

Battery Charging...................................................................................................................................................6

Flashing LED Definitions......................................................................................................................................6

Understanding your LQBBS Speakers .......................................................................................................................7

Speaker Buttons ....................................................................................................................................................8

Pairing your speakers with another device..............................................................................................................8

Customer service.....................................................................................................................................................10

General notices for use



This product is a highly advanced electronics device. Disassembly, customization or

repairs without the appropriate knowledge and precautions can leadto dangerous

situations with chance of damaging the product and causing serious personal injuries.

Avoid use in extreme conditions such as high or low temperatures, high humidity or

moist environments and around magnetic fields. Also avoid long-time exposure to

sunlight.

Only use the manufacturer permitted accessories to avoid damages to the product and

possibly warranty loss.

Please follow the relevant local environmental regulations to deal with obsolete

machines and accessories.

Use a protective folder to avoid extreme physical shocks to the device (i.e. of dropping).

Disclaimer



The screenshots in this manual are for reference only. They may be made on a device

with a different resolution or hardware configuration than yours and therefore can be

slightly different that the final product.

The manufacturer takes no responsibility for loss of information or data caused by

hardware or software failure. The user is responsible for performing timely backups of

important data.

Allinformation and images used inthis user manualare provided ‘as is’and aresubject

to change without notice.

The manufactureraccepts no liability for the information offered in this document.

Box Contents

LinQTab LQBBS Speakers

USB cables

Getting Started

Product Specifications

Model No. LQBBS – LinQTab Hi-Definition Portable Bluetooth Speakers

Main Features

Hi-Definition Bluetooth Speaker

Hex designed

Crystal-clear sound

Light Weight with Shock absorbing material

Loudspeaker Output 3W * 2

Speaker Specification Ω 40MM

Frequency Response 280HZ – 16KHz

Signal-to-Noise ≥95dB

Bluetooth Bluetooth V 4.0

Connectivity PC, Mobile and Tablets

Support A2DP, AVRCP, Headset, hands free profile

USB Micro USB

Working Range Up to 10 m

Working Time Up to 5 Hours

Microphone Built-in Microphone for phone calls

Audio Input 3.5 mm Audio Jack

Special Feature Super Bass in-built Sub Woofer

Controls Double function control: Volume, + Next - Previous and Call

Dimension 15.5cm(L) x 4.8cm(W) x 4.8cm(H) or 6.1"(L) x 1.9"(W) x 1.9"(H)

Weight 265 grams or 0.58 Lbs

Battery Lithium Ion

Color Black Speaker Unit

Warranty 6 months

The information contained in this document is subject to change without notice.

Battery Charging

Please make sure that the battery is fully charged before your first use. To charge the battery,

please connect the USB cable to your computer or wall adapter (sold separately) and insert the

other end into the USB interface of LQBBS.

Once the LQBBS speakers have been charged, please unplug from the charger.

Flashing LED Definitions

LED Color Meaning

Green Flashing In TF card MP3 mode

Green On TF card MP3 is paused or in AUX mode

Blue Flashing In Bluetooth mode

Alternating Red and Blue Bluetooth pairing

Red On Charging

Red Off Fully charged

Red Flashing Low Power

Understanding your LQBBS Speakers

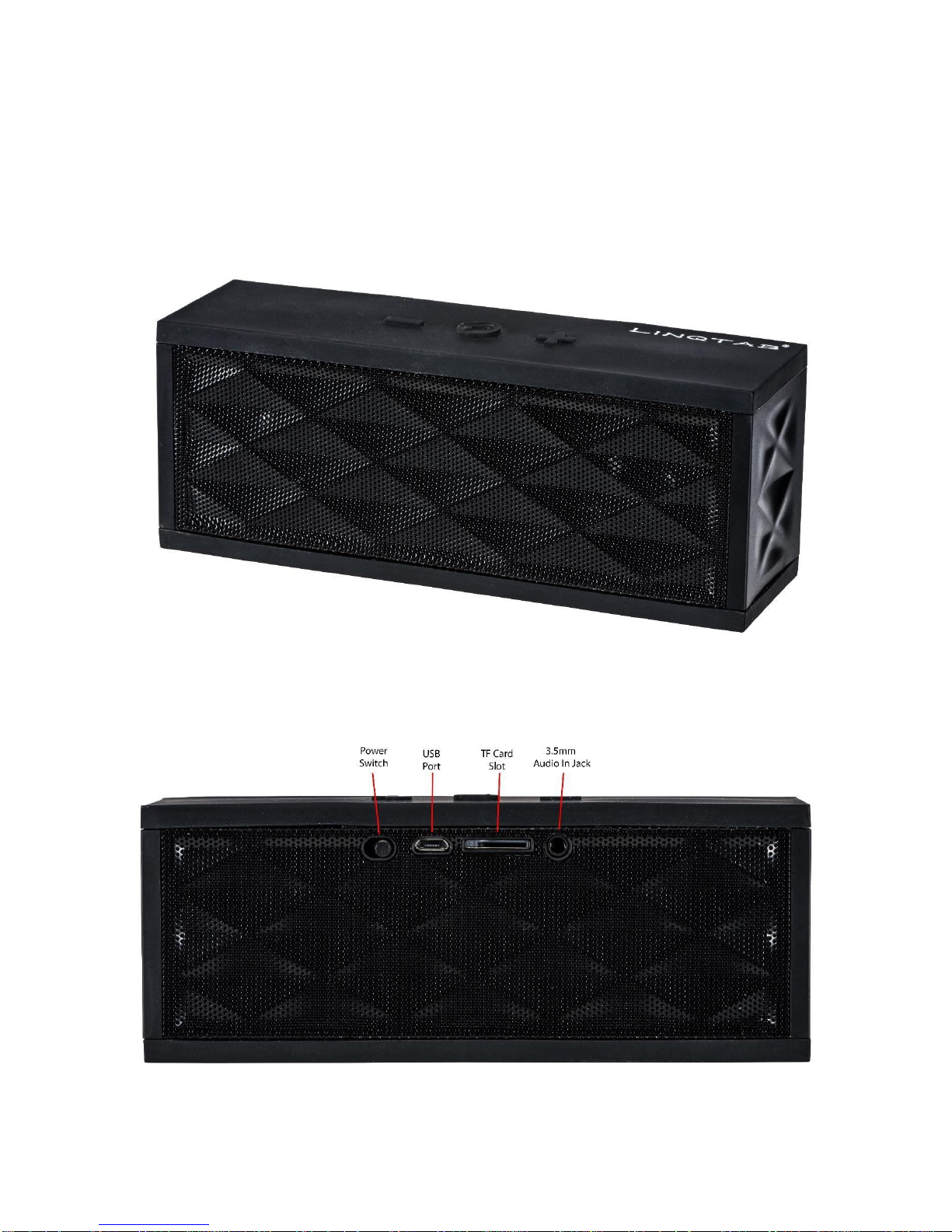

Front Views of speakers

Back View of speakers

Top View of speakers

Speaker Buttons

The buttons on the top of the speakers serve different purposes depending on the mode you

are using:

Icon Description

TF / Bluetooth Mode

Short Press: Previous Song

Long Press: Volume Down

TF Mode

Short Press: Play / Pause

Bluetooth Mode

ShortPress: Play /Pause/ Answer / End/ Cancel Dial / Pair

Double Click: Redial last number

Long Press: Reject call

TF / Aux Mode

Press: Switch between TF Card and Aux

TF / Bluetooth Mode

Short Press: Next Song

Long Press: Volume Up

Pairing your speakers with another device

1. Turn off your speakers

2. Switch the speakers on setting it to Bluetooth mode. You will see the blue LED flash 6 times.

3. On your mobile or other device search for Bluetooth devices

4. In the list of devices you will see LINQ-100 select it and connect

5. Enter Password or PIN 0000 and press “Yes” or “Confirm”

a. **Important: If the connection is successful, blue LEDwill flash. If the pairing is

unsuccessful, the LED alternate between red and blue. You will need to pair to your

device again.

Customer service

If you have any questions or suggestions, please contact us:

E-mail: contactus@exiomtech.com
