Lorex SG17LD800 Guida all'installazione

www.lorexcctv.com

LCD MONITOR / 8 CHANNEL

DVR COMBO

Overview - Audio

English Version 1.0

SERIES:

SG17LD800 & SG19LD800

Audio Overview

How many Audio Channels are available Listen-in Audio? ...................... 3

How do I enable Listen-In Audio, and how do I set the Listen-in channel? ................................. 3

How do I set up Network Audio (for use with the Remote Agent software)? ............................... 4

How many channels will have recorded Audio? .......................................................................... 4

If you have any additional questions or technical issues, please contact the Sentinel CCTV Help

desk for further assistance at 1-888-425-6739 (Option 1 - 1) or mail your questions to

[email protected]

How many Audio Channels are available Listen-in Audio?

How many Audio Channels are available Listen-in

Audio?

There are 8 available camera ports on the system - how many can be used for Listen-In audio,

and how many can be used to record sound?

How do I enable Listen-In Audio, and how do I set the Listen-in

channel?

Listen-In Audio is the ability to listen to live audio on ONE channel at a time, between channels

1~4. To listen to live audio on a channel:

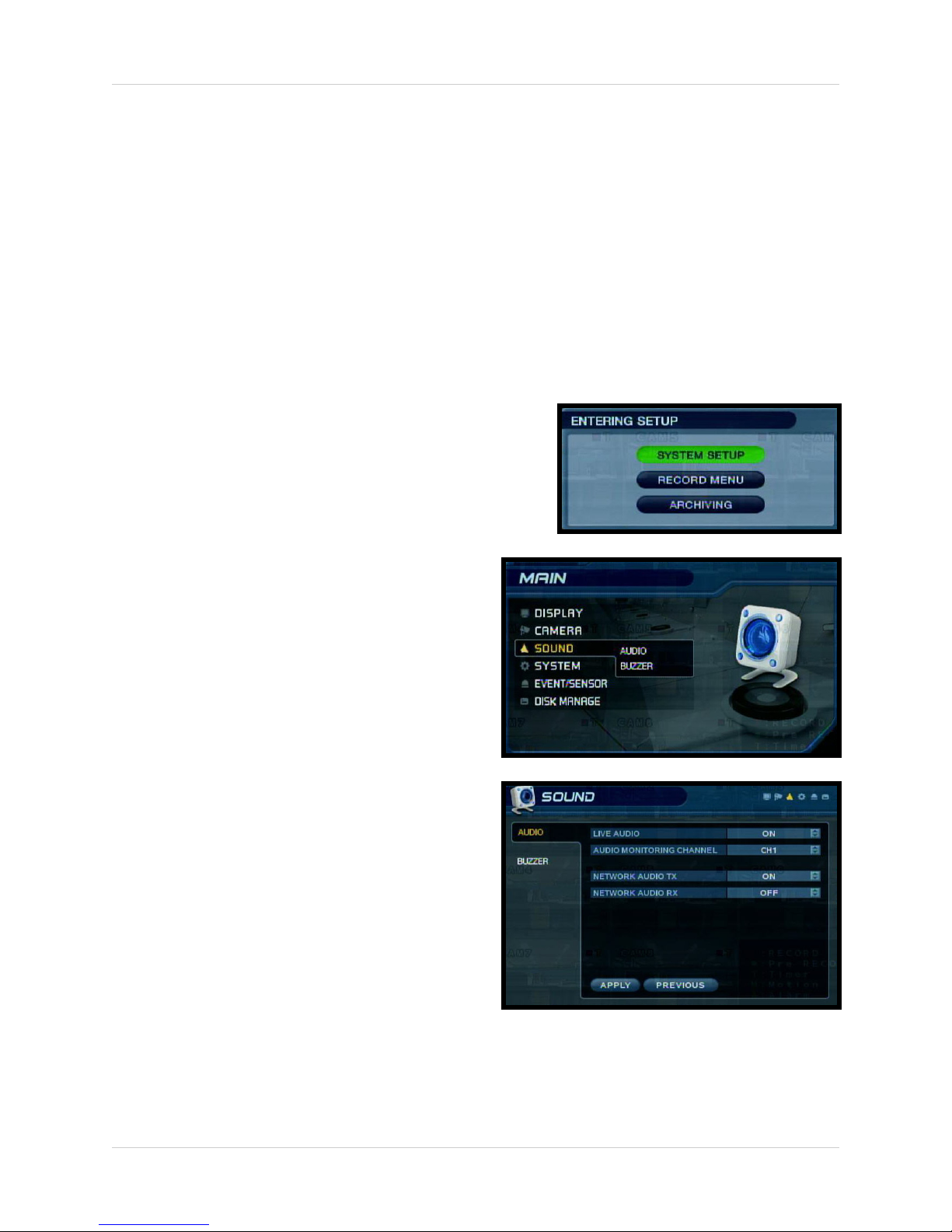

1. Enter MENU mode by pressing the MENU button

on the front panel of the system (or on the Remote

Control). Select the SYSTEM SETUP Option.

2. Select the SOUND menu from the MAIN

menu. Navigate using the up and down

arrows on the front panel (or remote

control). Highlight the selection in Green,

and press the ENTER button to enter the

SOUND Menu.

3. Select the AUDIO Option. Navigate using

the up and down arrows, and press the

ENTER key to select the AUDIO Option:

• Live Audio - Turns Live System Audio

(from the Audio on the terminal) to ON/

OFF.

• Audio Monitoring Channel - Select

the channel for Listen-in Audio

(Channels 1~4 ONLY).

NOTE: Once the LIVE AUDIO Feature has been set to ON, the Remote Control can be used

to select the Listen-In Audio Channel. Press the AUDIO SEL button on the Remote Control

to switch between Channels 1~4. An Audio Icon will appear onscreen next to the current

Live Audio Channel.

How many Audio Channels are available Listen-in Audio?

How do I set up Network Audio (for use with the Remote Agent

software)?

Setting the Network Audio Transmit and Receive to ON allows the system to send Audio data

through the network. Live listen-in audio can then be accessed using the Remote Agent software

(refer to your Remote Agent Manual for further information on this feature).

1. Enter MENU mode by pressing the MENU button

on the front panel of the system (or on the Remote

Control). Select the SYSTEM SETUP Option.

2. Select the SOUND menu from the MAIN

menu. Navigate using the up and down

arrows on the front panel (or remote

control). Highlight the selection in Green,

and press the ENTER button to enter the

SOUND Menu.

3. Select the AUDIO Option. Navigate using

the up and down arrows, and press the

ENTER key to select the AUDIO Option:

• Network Audio TX - Sets Network Audio

Transmission to ON

• Network Audio RX - Sets Network

Audio Receive to ON

How many channels will have recorded Audio?

Only the FIRST 4 CAMERAS will record audio (simultaneously). Recorded audio will be available

when the video playback is selected. Channels 5~8 do NOT record audio.
