FrameSaverrSLV 9126/9128

1-Slot Unit

Installation Instructions

Document Number 9128-A2-LN12-00

January 2000

Product Documentation Online

Complete documentation for this product is available at http://netcare-esight.com.

Before accessing any information, you must register with NetCare eSight first. Select

contract) or Warranty (to register your product for warranty coverage). Click Accept to

the Terms and Conditions. Fill out the registration form completely, and then click on

When you receive confirmation of your approved registration, log in by clicking on

To access the product documentation, select eSight Service Center, then click on

Product Content. Select FrameSaverrSLV, and click on Documentation. Select the

following document:

FrameSaver SLV 9126/9128 User’s Guide (9128-A2-LB20)

To order a paper copy: Within the U.S.A., call 1-800-727-2396; outside the U.S.A.,

call 1-727-530-8623.

Be sure to register your product’s warranty online. Follow the directions on the

enclosed Lucent warranty card.

Package Checklist

Verify that your package contains the following:

-FrameSaver SLV unit

-Power cord with desktop power transformer.

— 120 Vac power transformer for a FrameSaver 9128.

— 100–240 Vac power transformer for a FrameSaver 9126.

-T1 network cable

-DSX adapter if a FrameSaver 9126 (1 foot – 0.3048 meters)

-ISDN PRI or BRI cable, if applicable

-FrameSaver SLV 9126/9128 Quick Reference (Document No. 9128-A2-LL10)

Before You Begin

Make sure you have:

-A dedicated, grounded power outlet that is protected by a circuit breaker within

6 feet of the FrameSaver SLV (service level verifier) unit.

-A clean, well-lit, and ventilated site that is free from environmental extremes.

-One-to-two feet of clearance for cable connections.

-An asynchronous terminal or PC (personal computer).

-Configuration information for the FrameSaver unit being installed or replaced.

-Appropriate cables:

—DSX cable

—Data port cables

—COM port-to-terminal or COM port-to-PC cable

—Modem cable

See the User’s Guide for additional information on:

HTroubleshooting

HCables, Connectors, and Pin Assignments

HTechnical Specifications

Cables You May Need to Order

If connecting to a . . . Order a . . . Model/Feature

Number

T1 line interface/connector

(For use in Canada)T1 line interface cable,

RJ48C-to-CA81A 3100-F1-510

LAN Customer converter with a DB25

plug on one end and an 8-pin

modular jack on the other end, with

a custom 8-conductor cable and

LAN adapter

3100-F2-910

DSX-1 Cable DSX-1 Adapter Cable

RJ48C-to-DB15 9008-F1-560

Contact your sales representative to order cables.

Safety Instructions

Read the Important Safety Instructions and EMI Warnings beginning on page 19.

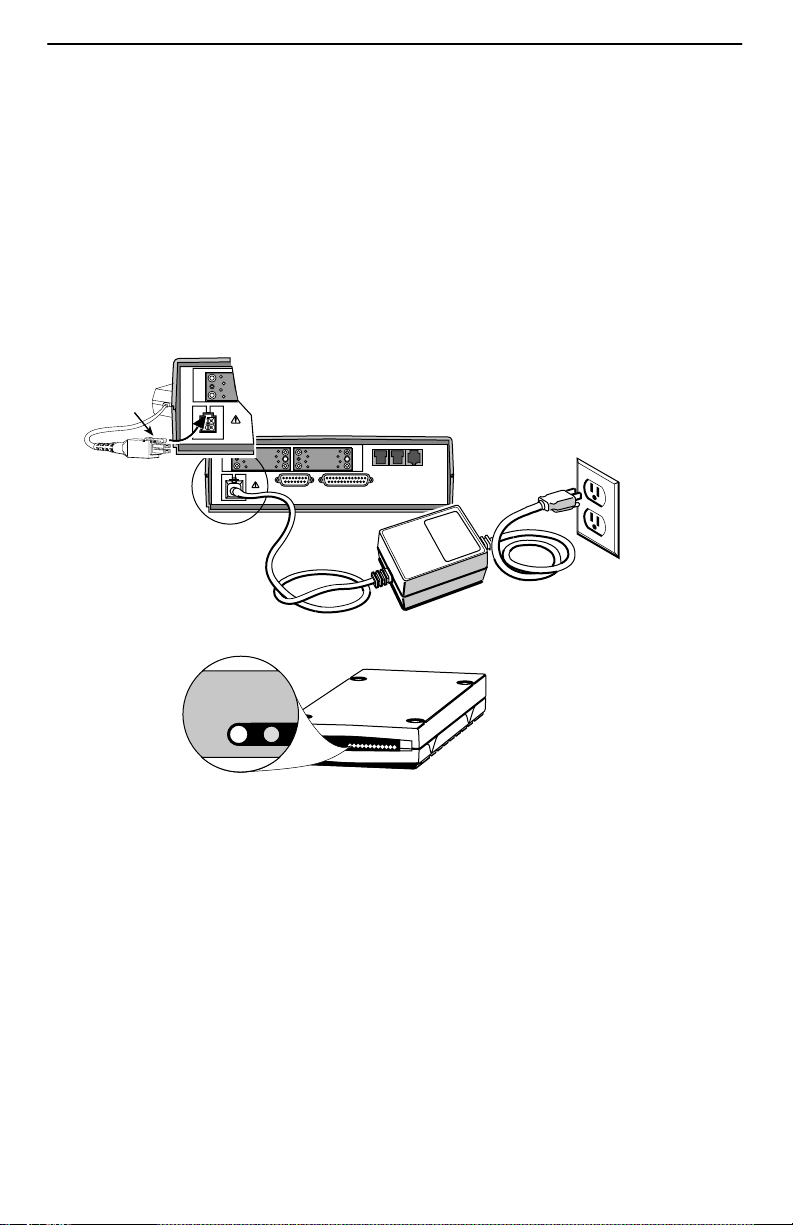

Installing the Power Supply and Cord

1. Insert the 4-prong plug into the POWER jack.

When inserting the plug at the rear of the FrameSaver unit, align the plug with the

notch above the POWER jack. Make sure the locking tab snaps securely into the

jack.

DSX COM

POWER

MODEM NET DBM

POWER

99-16629

Power Cord /

Transformer

Insert the 3-prong plug

into an ac outlet.

ALM

The front panel

OK LED lights.

3-Prong

Grounded

AC Outlet

Locking

Tab

4. Plug the power cord into the grounded power outlet.

Verification Check:

-Did any LEDs light?

–If yes, the FrameSaver unit has power.

–If no, refer to Troubleshooting in the User’s Guide.

Connecting the COM Port to an Asynchronous Terminal

The FrameSaver unit must first be directly connected to a VT100-compatible

asynchronous terminal or a PC providing VT100 terminal emulation to set up

access and management of the unit.

1. Configure the terminal or PC to be compatible with the FrameSaver unit:

–COM Port in use by your PC: COM1 or COM2.

–COM Port Baud Rate is set to 19.2 kbps.

–Character length is set to 8 data bits.

–Parity is set to none.

–Stop bit is set to 1.

–Flow Control is set to None.

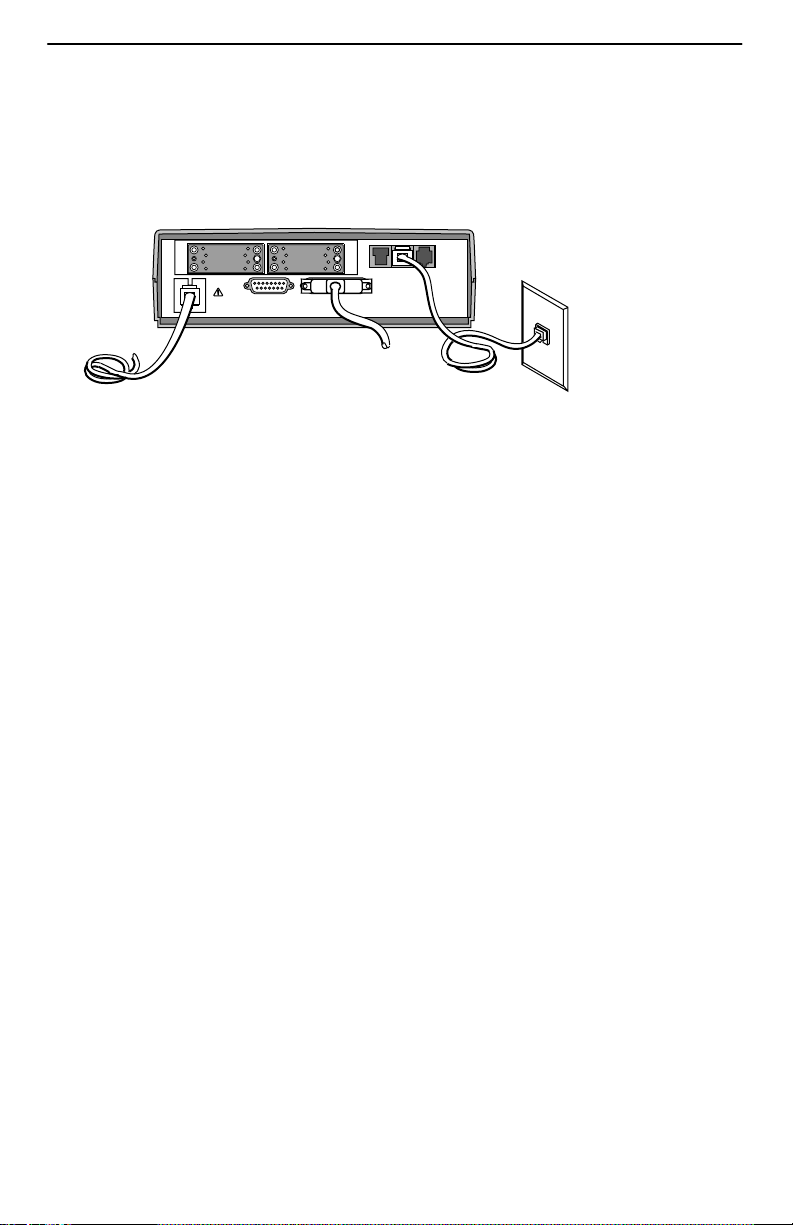

2. Insert the DB25 end of the EIA-232 cable into the FrameSaver unit’s COM port.

DSX COM

POWER

MODEM NET DBM

To Connect to a PC

or Async Terminal

COM

Port

99-16628

3. Insert the other end of the cable into the terminal or PC.

4. Tighten the screws on each side of the connector to secure them.

5. Press Enter on the keyboard (or Return, depending upon your keyboard) to display

the Main Menu.

Verification Check:

-Did the Main Menu appear on the asynchronous terminal?

–If so, continue with the installation.

–If not, recheck terminal and FrameSaver unit compatibility (see settings in

Step 1), or press the Enter key.

Refer to Troubleshooting in the User’s Guide for other possible explanations.

A Quick Guide to Configuration

The FrameSaver unit should operate using the default (factory-set) configuration

options, except for the changes specified in these installation instructions. Refer to the

following table for help navigating the menus.

Press the . . . To . . .

Esc key Go back one screen or menu level. To see a visual

representation of the menu levels, see Menu Hierarchy in

the Quick Reference.

Tab key, or

up (↑) and down (↓), or

left (←) and right (→), or

arrow keys

Move the cursor from one menu item to the next.

Enter or Return key Complete the menu or option selection.

Spacebar Display the next available setting when changing a

configuration option. All the available settings for an

option appears at the bottom of the screen.

As an example, follow these steps to go to the Configuration Edit/Display menu so you

can start setting up the unit.

To load a configuration for editing:

1. From the Main Menu, press the down arrow key twice so the cursor is on

Configuration.

2. Press Enter to display the Configuration menu. The Load Configuration From

menu appears.

3. Press Enter to select Current Configuration. The cursor is already on this selection.

The Configuration Edit/Display menu appears.

This sequence of steps would be shown as the menu selection sequence:

Main Menu →Configuration

To save a configuration option change:

1. Press Ctrl-a to switch to the screen function keys area at the bottom of the screen.

2. Type sor S(Save) and press Enter. The Save Configuration To menu appears.

3. Press Enter again to save your changes to the Current Configuration.

4. Press Esc until the Configuration Edit/Display menu reappears to continue

configuring the unit.

Press Ctrl-a, type m(MainMenu), and press Enter to return to the Main Menu.

The following sections guide you through installation and setup of the FrameSaver unit.

The FrameSaver unit is set to automatically configure the following:

HTime Slot Assignment

HAuto-Configuration

It is assumed that the unit is configured for factory default settings at the start of the

installation, and that the automatic configuration features will be used. See Time Slot

Assignment on page 7 and Automatic Configuration on page 9 for information about

these features.

Verifying that Self-Test Passed

To verify that the unit passed its self-test, go to the System and Test Status screen.

Main Menu →Status →System and Test Status

The results of the self-test appears directly under the screen title.

If any failure messages appear, reset the unit by disconnecting, then reconnecting the

power cord. The unit will perform the self-test again. If the failure reappears, call your

service representative for assistance.

Setting the System Clock

1. Select System Information.

Main Menu →Control →System Information

2. Move the cursor to the Date, then the Time field to enter:

–Date in the mm/dd/yyyy format (month/day/year)

–Time in the hh:mm format (hours:minutes)

3. Save the settings.

Assigning the Node IP Address

1. Set up the node.

Main Menu →Configuration →Management and Communication →Node IP

2. Minimally, enter the following options:

–Node IP Address

–Node Subnet Mask

3. Save the configuration.

Setting Up Physical Interfaces

1. Select each interface’s physical configuration options.

Configuration →Network →Physical

Configuration →Data Ports →Physical

Configuration →DSX-1 (if the DSX-1 interface will be used)

If installing a FrameSaver SLV NAM with an ISDN DBM, postpone configuring the

DBM interface until later.

2. Configure the Network and DSX-1 interfaces to match the network provider’s

settings. Be sure to enable the Interface Status option for these interfaces.

(The network interface is already enabled on a FrameSaver SLV NAM.)

Configure Data Ports to match the DTE’s settings. If Port-2 will be used, enable the

Port Status option for the port.

3. Save the configurations.

Setting Frame Relay Characteristics

When installing a FrameSaver SLV NAM, frame relay characteristics must be

configured for the network and data ports.

1. Select the interface’s frame relay configuration options.

Configuration →Network →Frame Relay

Configuration →Data Ports →Frame Relay

2. Configure each interface according to the local management interface (LMI) and

assigned line conditions supplied by the service provider.

3. Save the configurations.

Time Slot Assignment

FrameSaver SLV NAM frame relay (network) time slots are discovered automatically

when Time Slot Discovery is enabled (the default setting) on the Frame Relay

Network 1 Assignments screen. This feature can be disabled if you want to manually

configure time slots.

See Assigning Time Slots/Cross Connections in Configuration of the User’s Guide for

additional information about this feature.

Setting Up the Modem

The unit has an integral modem for remote management. It is already set up for dial-in

access to the unit, with Port Use set to Terminal.

If using the modem for dialed IP network connectivity (SNMP, Telnet, FTP, or

trap dial-out):

1. Select Modem Port.

Configuration →Management and Communication →Modem Port

2. Minimally, change Port Use to Net Link, and assign the interface’s IP Address and

Subnet Mask if it is different from the Node’s. Change Link Protocol to SLIP, if

necessary (PPP is the default setting).

3. Save the configuration.

Setting Up Call Directories if Trap Dial-Out Is Desired

1. Set up directory phone numbers.

Main Menu →Control →Modem Call Directories

2. Select Directory Number A (for Alarm).

3. Enter the phone number(s). Valid characters include:

–ASCII text

–B for blind dialing

–W for wait for dial tone

–P for pulse dialing unless B specified

–T for tone dialing unless B specified

–Space, underscore ( _ ), comma (,) for a 2-second pause, and dash (–)

readability characters

4. Save the phone number(s).

Setting Up Management

1. Select General SNMP Management.

Configuration →Management and Communication →

General SNMP Management

2. Minimally, set Name 1 Access to Read/Write.

3. Save the configuration.

Setting Up Local Management at the Central Site

1. Create a DLCI for the data port.

Configuration →Data Ports →DLCI Records

2. Save the configuration.

3. Create a Management PVC using the data port DLCI just created.

Configuration →Management and Communication →Management PVC

Minimally, enter the following options:

–Name for the management PVC

–Interface IP Address and Subnet Mask, if different from the Node’s

–Primary Link for this Management PVC (the user data port)

–Primary DLCI (i.e., the data port DLCI)

4. Save the configuration.

Automatic Configuration

The FrameSaver unit provides several automatic configuration features. Frame Relay

Discovery and configuration is one of these features.

Main Menu →Auto-Configuration

The default discovery mode is 1MPort. In this mode, for each DLCI discovered on the

network, a multiplexed network DLCI and a standard data port DLCI will be configured

and connected, and a Management PVC will be embedded in the network DLCI.

NOTE:

When auto-configuration creates a multiplexed DLCI, but a standard DLCI is

needed, change the DLCI to Standard from the network DLCI Records screen:

Configuration →Network →DLCI Records

Other modes can be selected. See Setting Up Automatic Configuration in Configuration

of the User’s Guide for information about other modes and how the Frame Relay

Discovery Mode can be changed.

No automatic configuration occurs until the network cable is connected. If you do not

want management links configured or automatic configuration, change the default

setting for the Frame Relay Discovery feature.

Connecting to the Network

1. Insert the 8-pin connector of the RJ48C network cable into the network interface.

2. Insert the other end of the cable into the RJ48C modular jack.

DSX COM

POWER

MODEM NET DBM

99-16630

RJ48C or

RJ48S

Jack

(FrameSaver 9128

Shown)

NOTE:

After connecting the network cable, wait a few minutes to allow

Auto-Configuration a chance to discover the frame relay characteristics

and DLCIs.

Verification Check:

-Check the Network LEDs. Is the Sig (signal) LED on, and are the OOF (out of

frame), and ALM (alarm) LEDs off? If so, the network interface is set up correctly

and is operational. If not, make sure both ends of the network cable are properly

seated and secured.

-Verify that the network physical options are configured correctly.

Main Menu →Configuration →Network →Physical

-Check Health and Status messages in the left column of the System and Test

Status screen to see the LMI status, to verify that LMI is up.

Main Menu →Status →System and Test Status

If LMI Down, Net1-FR1 appears for more than three minutes, or any other

network-related status message appears, refer to the status information in

Operation and Maintenance of the User’s Guide for possible reasons for the

messages and what can be done to resolve the problem.

If the unit does not have ISDN backup capability, proceed to Configuring SNMP Trap

Managers and Trap Dial-Out on page 13.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lucent Technologies Server

Lucent Technologies

Lucent Technologies MAX 6000 Manuale utente

Lucent Technologies

Lucent Technologies DEFINITY Guide Manuale utente

Lucent Technologies

Lucent Technologies Voice Terminal 8411 Manuale utente

Lucent Technologies

Lucent Technologies Brick Series Istruzioni per l'installazione

Lucent Technologies

Lucent Technologies Voice Terminal 8434DX Manuale utente

Lucent Technologies

Lucent Technologies PortMaster PM-2 Manuale

Lucent Technologies

Lucent Technologies Voice Terminal 8410 Manuale utente

Lucent Technologies

Lucent Technologies SLC ConnectReach Guida alla risoluzione dei problemi

Lucent Technologies

Lucent Technologies Stinger MRT 19 Manuale utente

Lucent Technologies

Lucent Technologies DEFINITY Guide Manuale utente

Lucent Technologies

Lucent Technologies CentreVu Sun Enterprise 3500 Manuale utente

Lucent Technologies

Lucent Technologies PortMaster 4 Manuale utente

Lucent Technologies

Lucent Technologies DEFINITY Enterprise Communications Server Manuale utente

Lucent Technologies

Lucent Technologies GuestWorks and DEFINITY Enterprise Communications... Manuale utente

Manuali Server popolari di altre marche

HP AlphaServer ES47 Manuale utente

Dell

Dell PowerEdge R410 Manuale utente

PowerNAS

PowerNAS CMA Manuale utente

Supero

Supero FatTwin F617R3-FT Manuale utente

MSI

MSI P1-109N-L70 Manuale utente

Dell

Dell PowerEdge XE9640 Manuale

Dell

Dell PS4100 Istruzioni di montaggio

EtroVISION

EtroVISION EV3151 Manuale utente

NEC

NEC Express5800/T110j Manuale utente

HP ProLiant Gen9 Manuale utente

Compaq

Compaq ProLiant 3000 Manuale

Dell

Dell PowerEdge 3YPMN Manuale utente

iRobo

iRobo IPC2U Manuale utente

Nortel

Nortel 1000 Con?guration guide Manuale utente

Asus

Asus AP7500 Manuale operativo e di manutenzione

Avid Technology

Avid Technology AirSpeed 5000 Manuale utente

HP Integrity rx2600 Guida all'installazione

Milestone

Milestone Husky IVO 350T Manuale utente
