MATSONIC MS7122A Manuale utente

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 5.0

October 11, 1999

MS7122AMS7122A

MS7122A

ISA/PCI AGP Mainboard with OnboardISA/PCI AGP Mainboard with Onboard

ISA/PCI AGP Mainboard with Onboard

PCI IDE and Super Multi-I/OPCI IDE and Super Multi-I/O

PCI IDE and Super Multi-I/O

MS7122A

Table of Contents

Section 1 Introduction

Components Checklist ....................................... 1-1

Overview

MS7122A Form-factor ...................................... 1-2

I/O Shield Connector......................................... 1-3

Power-On/Off (Remote).................................... 1-3

System Block Diagram ...................................... 1-4

Section 2 Features

MS7122A Features............................................ 2-1

Section 3 Installation

MS7122A Detailed Layout................................ 3-1

Easy Installation Procedure

Configure DIP Switch........................................ 3-3

SystemMemoryConfiguration .......................... 3-4

Device Connectors ............................................ 3-7

External Modem Ring-in Power On and

Keyboard Power On Function (KBPO) ............. 3-9

Section 4 Award BIOS Setup

BIOS Instructions .............................................. 4-1

Standard CMOS Setup....................................... 4-2

BIOS Features Setup ......................................... 4-3

Chipset Features Setup ...................................... 4-8

Power Management Setup ................................. 4-11

PNP/PCI Configuration ..................................... 4-15

Load Setup Defaults .......................................... 4-17

Integrated Peripherals........................................ 4-17

Sensor and CPU Speed Setup ............................ 4-22

MS7122A

Change Supervisor or User Password ............... 4-24

IDE HDD Auto Detection.................................. 4-25

Save & Exit Setup ............................................. 4-27

Exit Without Saving ........................................... 4-27

Section 5 Appendix

Appendix A

Memory Map ..................................................... A-1

I/O Map ............................................................. A-1

Timer & DMA Channels Map ........................... A-2

Interrupt Map..................................................... A-2

RTC & CMOS RAM Map ................................. A-3

Appendix B

POST Codes...................................................... A-4

Unexpected Errors............................................. A-7

Appendix C

Load Setup Defaults .......................................... A-9

Appendix D

GHOST 5.1 Quick User’s Guide ....................... A-11

MS7122A

Page Left Blank

Introduction

MS7122A

Page 1-1

Section 1

INTRODUCTION

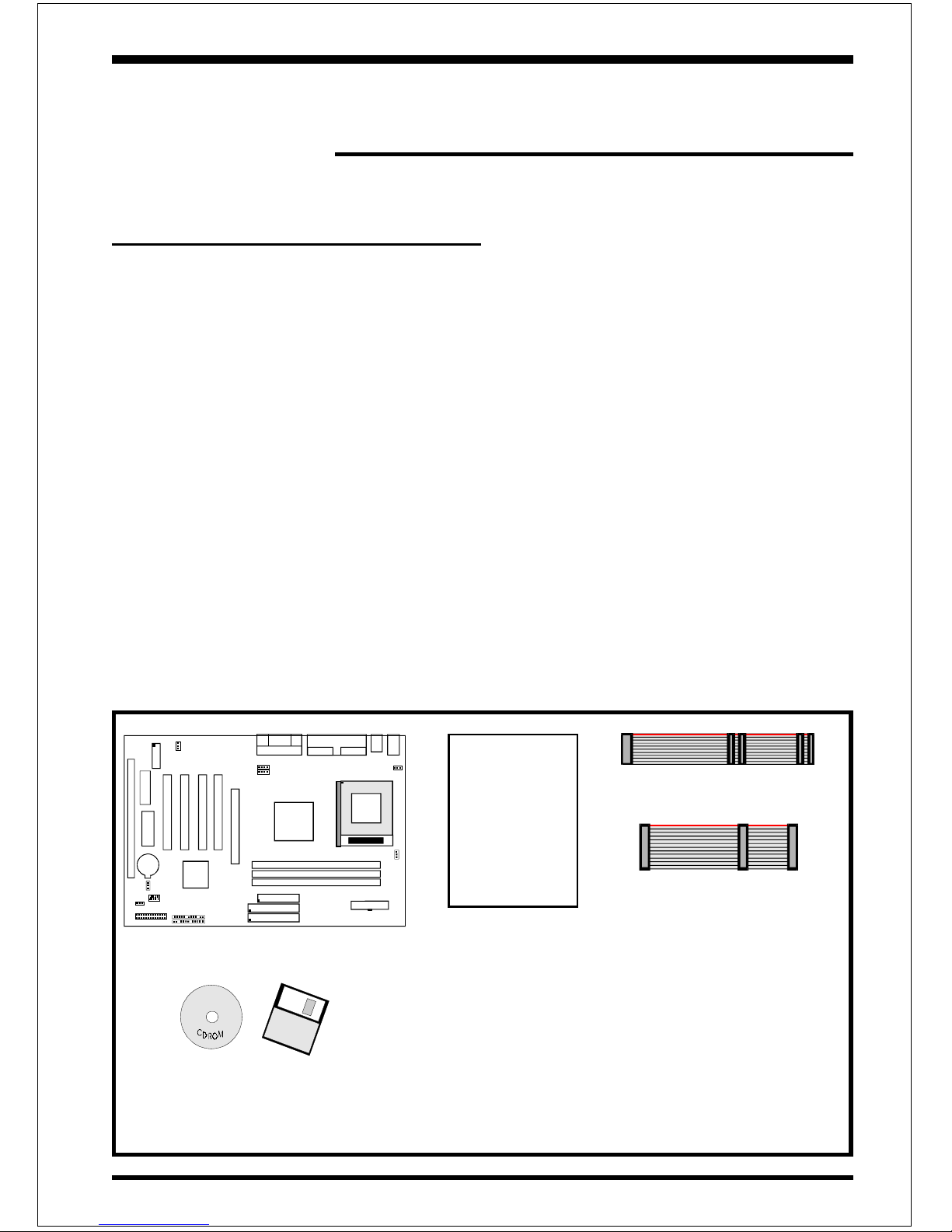

Components Checklist

üü

üA. (1) MS7122A mainboard

üü

üB. (1) MS7122A user’s manual

üü

üC. (1) Floppy ribbon cable

üü

üD. (1) Hard drive ribbon cables

üü

üE. (1) Driver and utility

USER’S

MANUAL

MS7122A

Introduction MS7122A

Page 1-2

MS7122A Form-Factor

The MS7122A is designed with ATX form factor - the new industry standard of

chassis. MicroATX form factor is essentially a Baby-AT baseboard rotated 90

degrees within the chassis enclosure and a new mounting configuration for the

power supply. With these changes the processor is relocated away from the

expansion slots, allowing them all to hold full length add-in cards. ATX defines a

double height aperture to the rear of the chassis which can be used to host a wide

range of onboard I/O. Only the size and position of this aperture is defined,

allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,

joystick, modem, LAN, etc.) to systems. This will help systems integrators

differentiate their products in the marketplace, and better meet your needs.

•By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors material cost of cables and add-in cards is

reduced.

•By reducing the number of cables and components in the system, manufac-

turing time and inventory holding costs are reduced and reliability will

increase.

•By using an optimized power supply, it's possible to reduce cooling costs and

lower acoustical noise. An ATX power supply, which has a side-mounted fan,

allows direct cooling of the processor and add-in cards making a secondary

fan or active heatsink unnecessary in most system applications.

Fulllength

slots

Expandable I/O

5 1/4"

Bay

3 1/2"

Bay

Figure 2: Summary of MicroATX chassis features

CPU located near

Power Supply

Single chassis

fan for

system

ATX

Power

Supply

ATX power

connector

Floppy / IDE

connectors

close to

peripheral

bays

Introduction

MS7122A

Page 1-3

ATX

POWERSUPPLY

MS7122A Board

Power-On/Off (Remote)

The MS7122A has a single 20-pin connector for ATX power supplies. For ATX

power supplies that support the Remote On/Off feature, this should be connected

to the systems front panel for system Power On/Off button. The systems power

On/Off button should be a momentary button that is normally open.

The MS7122A has been designed with “Soft Off" functions. You can turn Off the

system from one of two sources: The first is the front panel Power On/Off

button, and the other is the "Soft Off" function (coming from the MS7122A’s

onboard circuit controller) that can be controlled by the operating system. Win-

dows 95 will control this when the user clicks that they are ready to Shutdown the

system.

Figure 4: Simple ATX Power ON/OFF Controller

Case (chassis) Power

ON/OFF button (J 3)

J 3

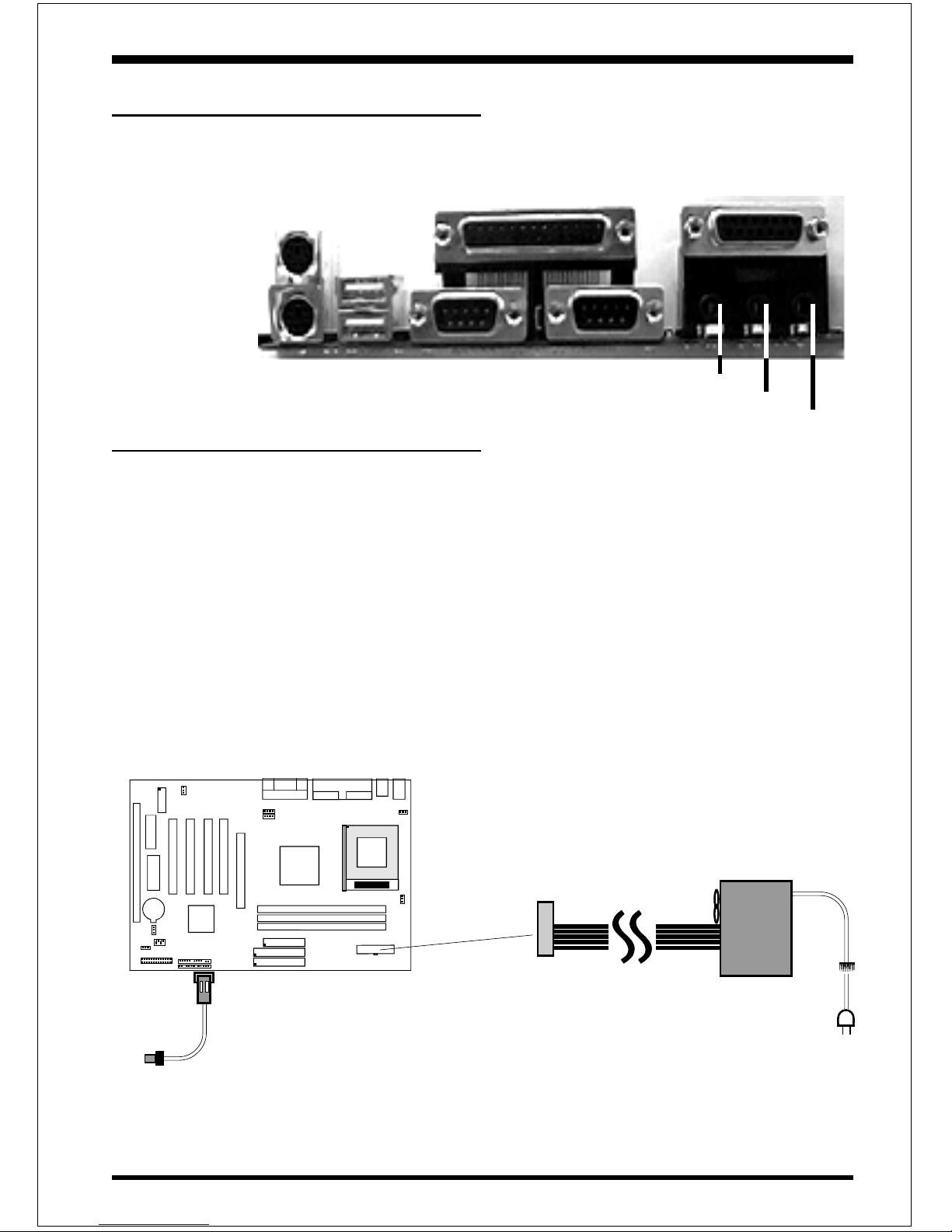

I/O Shield Connector

The MS7122A is equipped with an I/O back panel. Please use the appropriate I/

O shield (figure 3).

PS/2 Mouse

PS/2

KEYBOARD

USB port

COM1 COM2

parallel port

SpeakerLine_in

MIC

Figure 3: I/O back panel layout

Joystick/Midi port

Introduction MS7122A

Page 1-4

Figure 5: System Block Diagram

System Block Diagram

PAC

PCI Bridge

and memory

controller

VT82C693

VT82C686A

I/O Bridge

100/66MHz

66MHz

Pentium II

socket 370

Processor

USB 0,1 USB 2,3

FeaturesMS7122A

Page 2-1

Section 2

FEATURES

MS7122A Features:

•MS7122A is based on the Mendocino Processor operating at 300 ~

466MHz on PGA370. The board is configured by an ESSJ (Easy-Setting-

Single-Jumper) to match your CPU clock speed.

•Designed with VIA Apollo Pro PCIset.

•Supports up to 768MB of DRAM (minimum of 8 MB) on board (please

see Section 3-2).

•MS7122A will support Error Checking and Correcting (ECC) when using

parity SDRAM memory modules. This will detect multiple bit errors and

correct 1-bit memory errors.

•Supports (1) 16 bit ISA slots, (4) 32 bit PCI slots, (1) AGP slot, (1) AMR

slot and provides (2) independent high performance PCI IDE interfaces

capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices.

The MS7122A supports (4) PCI Bus Master slots and a jumperless PCI

INT# control scheme which reduces configuration confusion when plugging

in PCI card(s).

•Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary

IDE interfaces.

•Designed with on chip Multi I/O: (1) floppy port, (1) parallel port (EPP,

ECP), and (2) serial ports (16550 Fast UART).

Note: Japanese “Floppy 3 mode” is also supported

•Features Award Plug & Play BIOS. With Flash Memory you can always

upgrade to the current BIOS as they are released.

•MS7122A utilizes a Lithium battery which provides environmental protec

tion and longer battery life.

•Supports the (4) Universal Serial Bus (USB) Ports. The onboard

VT82C686A chip provides the means for connecting PC peripherals such

as; keyboards, joysticks, telephones, and modems.

Features MS7122A

Page 2-2

•Built-in ATX 20-pin power supply connector.

•Software power-down when using Windows®95/98.

•Supports ring-in feature (remote power-on through external modem,

allows system to be turned on remotely).

• Resume by Alarm - Allows your system to turn on at a preselected time.

• Power Loss Recovery - In the event of a power outtage your system will

automatically turn itself back on without user intervention.

•Supports CPU Hardware sleep and SMM (System Management Mode).

• Supports Keyboard power ON function (KBPO).

• Built-in WOL (Wake-up On Lan) Connector.

• Built-in AC97 PCI Audio.
