MATSONIC MS7157C Manuale utente

Safety Compliance

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

measures:

!Reorient or relocate the receiving antenna.

!Increase the separation between the equipment and the receiver.

!Connect the equipment onto an outlet on a circuit different from that

to which the receiver is connected.

!Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cable must be

employed with this equipment to insure compliance with the pertinent RF

emission limits governing this device. Changes or modifications not

expressly approved by the system’s manufacturer could void the user’s

authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject

to the following conditions:

!This device may not cause harmful interference, and

!This device must accept any interference received, including

interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian

Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Réglement sur le matériel brouilieur du Canada.

Important Information

This publication, including all photographs, illustrations and software, is

Neither this manual, nor any of the material contained herein, may be

reproduced without the express written consent of the manufacturer.

Disclaimer

The information in this document is subject to change without notice. The

manufacturer makes no representations or warranties with respect to the

contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Further, the

manufacturer reserves the right to revise this publication and to make

changes from time to time in the content hereof without obligation of the

manufacturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft

Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered

trademarks of Intel Corporation.

VGA, OS/2, PS/2 are registered trademarks of International Business

Machines.

AMD, K5, K6 are registered trademarks of Advanced Micro Devices Inc.

Cyrix, M1 are registered trademarks of Cyrix Corporation.

Other product names used in this manual are the properties of their

respective owners and are acknowledged.

Version 1.0

Contents

Chapter 1: Introduction ..............................................1

Welcome.......................................................................1

About the Manual..........................................................2

Checklist........................................................................3

Standard Items-------------------------------------------------3

Optional Items--------------------------------------------------3

Recommendations........................................................3

Features........................................................................4

Chapter 2: Installation ................................................8

Quick Installation Table.................................................8

Quick Jumper Setting Reference..................................9

Before You Begin..........................................................13

Static Electricity------------------------------------------------13

Choosing a Case ----------------------------------------------13

How to Set Jumpers ------------------------------------------14

Preparing the Mainboard...............................................15

Mainboard Guide ----------------------------------------------15

I/O Ports Side View -------------------------------------------17

Check the Jumper Settings ---------------------------------18

Install the Mainboard in the Case--------------------------23

Connecting Power, Chassis Fan, and Panel------------24

Install Other Hardware..................................................26

Install the Processor------------------------------------------26

Installing a Socket-370 Processor-------------------------27

Install the Memory Modules---------------------------------29

Install a Hard Disk Drive and CD-ROM ------------------30

Installing a Floppy Diskette Drive--------------------------33

Using the Expansion Slots ----------------------------------34

Add-in Card Options------------------------------------------36

Install Options and Extension Brackets------------------37

External Connector Color Coding -------------------------40

Chapter 3: Setup .........................................................41

About the Setup Utility...................................................41

Starting the Setup Utility------------------------------------- 41

How to Flash a New BIOS ---------------------------------- 43

Standard CMOS Features Option.................................44

Advanced BIOS Features Setup Option.......................46

Advanced Chipset Features Option..............................48

Integrated Peripherals Option.......................................51

Power Management Setup Option................................54

PNP/PCI Configuration Option......................................69

PCI Health Status Option..............................................60

Frequency / Voltage Control Option..............................61

Load Fail-Safe Defaults Option.....................................62

Load Optimized Defaults Option...................................62

Set Supervisor and User Passwords ............................62

Save And Exit Setup Option..........................................63

Exit Without Saving Option ...........................................63

Chapter 4: Software....................................................64

About the Software........................................................64

Folders for this Mainboard ............................................64

Running the Support CD-ROM .....................................66

Utility Folder Installation Notes .....................................66

CMI8X38 Folder Installation Notes ...............................67

Audio Software------------------------------------------------- 67

Modem Driver and Software-------------------------------- 68

Peripheral Folder Installation Notes..............................68

VIA Folder Installation Notes.........................................68

Mainboard (MS7157C) Installation Notes.....................79

Appendix 1: Quick Jumper Setting Reference.........70

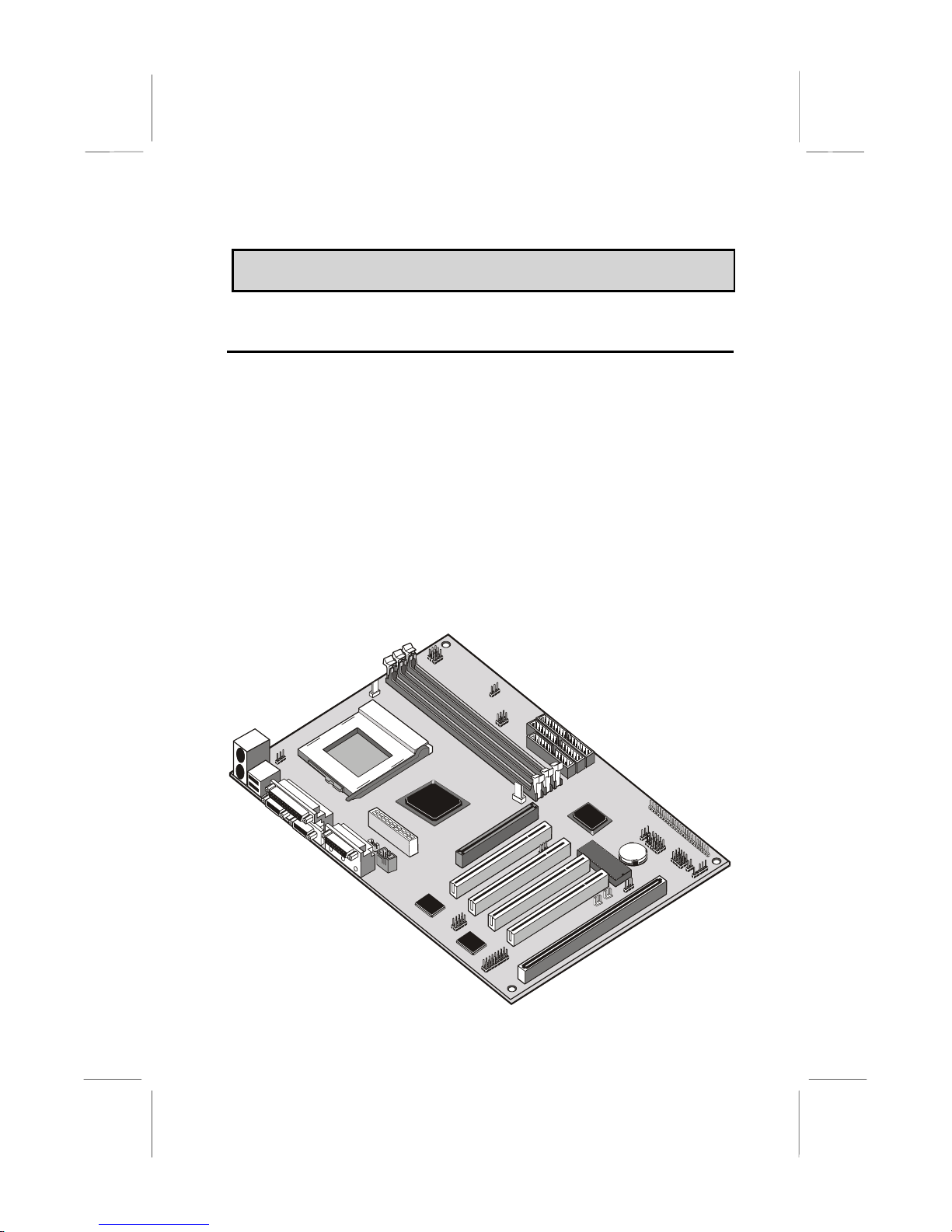

Welcome

Congratulations on purchasing the MS7157C mainboard. This

mainboard features the latest VIA VT82C694X/VT82C596B chipset. The

mainboard features a FC-PGA (Plastic Pin Grid Array) processor socket.

This feature means that you can install the mainboard with a PGA

Intel Celeron or Cyrix Joshua processor, or an FC-PGA Intel

Coppermine processor.

The MS7157C is a full-sized ATX mainboard that uses a 4-layer printed

circuit board and measures 304mm by 200mm.. The board includes a

built-in sound system, 6 expansion slots including an AGP graphics slot,

and a full set of I/O ports. Using this mainboard, you can create the exact

system you need. The supported processors cover a wide range of

price/performance points so that you can build a system for high

performance or low cost.

This chapter contains the following information:

!About the Manual explains how the information in this manual is

organized

!Checklist comprises a list of the standard and optional components

that are shipped with this mainboard

!Recommendations lists some Do’s and Don’ts from the

manufacturer to help ensure reliability and performance from this

product

!Features highlights the functions and components that make this

one of the best value mainboards on the market

About the Manual

The manual consists of the following chapters:

Introduction

Use the Introduction Chapter to learn about the features of the

mainboard, and the checklist of items that are shipped with the package.

Installation

Use the Installation Chapter to learn how to install the mainboard and

get your system up and running.

Setup

Use the Setup Chapter to configure the mainboard for optimum

performance.

Software

Use the Software Chapter to learn how to use the software drivers and

support programs that are provided with this mainboard.

Checklist

Compare the contents of your mainboard package with the standard

checklist below. If any item is missing or appears damaged, please

contact the vendor of your mainboard package.

Standard Items

"1 x MS7157C Mainboard

"1 x Cable/Bracket Pack

Diskette drive ribbon cable

DMA 66 IDE drive ribbon cable

"This User’s Manual

"Software Support CD-ROM Disc

Optional Items

♦V.90 Fax/modem module

Recommendations

This mainboard automatically determines the CPU clock frequency and

system bus frequency for the kind of processor that you install. You may

be able to change these automatic settings by making changes to

jumpers on the mainboard, or changing the settings in the system setup

utility. We strongly recommend that you do not overclock the mainboard

to run processors or other components faster than their rated speed.

Overclocking components can adversely affect the reliability of the

system and introduce errors into your system. Overclocking can

permanently damage the mainboard by generating excess heat in

components that are run beyond the rated limits.

Components on this mainboard can be damaged by discharges of static

electricity. Handle the board carefully holding it by the edges. Don’t flex

or stress the circuit board. Keep the board in its static-proof packing until

you are ready to install it. Follow the static guidelines given at the

beginning of chapter 2.

Features

The key features of this mainboard are the advanced VIA VT82C694X/

VT82C596B chipset, and the FC-PGA processor support so that you can

install a wide range of Intel Celeron, Cyrix Joshua, or Intel Coppermine

processors. You can use this board to develop a low-cost value system,

with very comprehensive features.

Support PGA Intel Celeron/Cyrix Joshua and FC-PGA Intel

Coppermine Processor

This mainboard supports three kinds of processors: PGA Intel Celeron

and Cyrix PGA Joshua processors, and FC-PGA Intel Coppermine

processors.

The new generation PGA Celeron processors ship in the familiar square

plastic package, and they install in a Zero Insertion Force (ZIF) socket

called a Socket-370. The new Celeron processors are close to Pentium-

II performance because they include a level-2 cache memory of 128K.

However, they operate over a 66 MHz system bus and they currently

ship at clock speeds of up to 533 MHz.

The new Cyrix PGA Joshua processors also fit into the Socket-370. The

Joshua will include a 256K on-chip L2 cache, which runs at full

processor speed. It is the first non-Intel chip to plug into the same socket

as a Celeron. The Cyrix Joshua runs over a 100 and 133 MHz system

bus.

The FC-PGA Coppermine processor operates over a 66, 100 or 133

MHz system bus. The FC-PGA Coppermine ships with clock speeds

running from 500 MHz through to 750 MHz.

Assemblers can choose the processor they need to meet performance or

price targets. You can configure the system for any of the supported

processor clock speeds using the BIOS setup utility. It is not necessary

to set switches or jumpers.

Three DIMM Memory Slots

The board has three DIMM slots for the installation of 168-pin, 3.3V

standard or registered SDRAM (Synchronous Dynamic Random Access

Memory) memory modules. The system supports memory that has built-

in error correction (EC), error correction code (ECC), or has no error

correction.

The DIMM slots support PC-100 (100 MHz) and PC-133 (133 MHz)

memory modules. You can install one, two or three modules. Each

memory module can hold a maximum capacity of 512 MB of standard

SDRAM chips so maximum memory capacity is 1.5 GB.

The VIA chipset on this board supports an asynchronous memory bus

architecture, and provides option of 66/100, 100/66, 100/133 or 133/100

MHz CPU and memory bus combinations.

Optimized Chipset

This board uses the VIA VT82C694X/VT82C596B chipset. The

VT82C694X forms the north bridge and supports system buses of 66,

100 and 133 MHz. It is AGP Rev. 1 compliant and supports 3.3v AGP

devices operating over a 66/133 MHz bus. The memory bus supports the

fastest access (X-1-1-1) for both 66, 100 and 133 MHz operation. The

board is compliant with PCI Rev.2.1 operating at 33 MHz Four PCI Bus

masters are supported.

The south bridge is provided by the VT82C596B. This chip supports

ACPI (Advanced Configuration and Power Interface) Rev 1.0, onboard

PCI IDE channels, USB ports, and a System Management Bus for OS

control and configuration of devices.

This new VIA chipset is designed to lower cost of performance, by

offering a cheap solution to using the latest range of processors, while

offering a clear upgrade path to the future generation of 133 MHz

processor types. This chipset makes the evolutionary move from PC100

to PC133, increasing the speed of the system and memory buses from

100 MHz to 133 MHz. The 133 MHz memory interface also opens the

door to a wide range of PC133 memory devices now on the market.

This latest VIA chipset supports asynchronous memory bus architecture,

and provides the option of 66/100, 100/66, 100/133 and 133/100 MHz

CPU and memory bus combinations. By supporting 66/100/133 CPU bus

and memory settings, this chipset is a highly scaleable choice for end

users building Celeron or Joshua level systems, and allows for a wide

range of cost-effective system design options.

Built-in PCI 3D Sound

The CMI 8738 is a single chip solution for PCI-bus 3D audio. The chip

provides Sound Blaster 16-bit-compatible audio, plus support for

Microsoft’s DirectSound 3D specification and Aureal A3D interface. The

sound ports include jacks for speakers, microphone and stereo in, and a

game/MIDI port. The audio system supports full duplex operation and

drivers are available for WIN 95/98/2000 and WIN NT 4.0. The audio

system can output sound to 4 loudspeakers and also supports SPDIF

24-bit digital sound input and output.

Optional Built-in Communications

The mainboard has an integrated fax/modem connector. As an option,

you can purchase a fax/modem extension bracket which connects the

line and telephone RJII sockets to the board. The fax/modem supports

the V.90 protocol that allows transmissions at up to 56Kbps and is fully

compatible with earlier transmission and error correction standards. It

supports automatic fall back and caller ID.

Expansion Options

Although this is an ATX board, it has a generous allocation of

expansions slots. One AGP slot is available for the installation of an

Accelerated Graphics Port graphics adapter. Four 32-bit PCI slots can

be used by PCI expansion cards. One legacy 8/16-bit ISA slot can be

used by ISA cards.

Integrated I/O

The board has a comprehensive set of integrated I/O ports. The I/O port

array features PS/2 keyboard and mouse ports, a parallel port, two USB

ports, two serial ports, a monitor port, a game/MIDI port, and three audio

jacks. Optionally, you can use the built-in mainboard header to add in an

infrared port. The mainboard has two PCI-IDE channels and a floppy

disk drive interface.

Hardware Monitoring

The mainboard is installed with an integrated hardware monitoring

system (GL520SM). Using this system and the monitoring software

supplied with the board, users and system administrators can monitor

critical parameters such as the CPU temperature, the fan speeds and so

on. Hardware monitoring helps maintain the system and reduce

maintenance costs and downtime.

Keyboard Power On Feature

Using the system BIOS setup program, you can configure the system to

turn on using a keyboard-typed password. A green keyboard is not

required.

Indice

Altri manuali MATSONIC Scheda madre

MATSONIC

MATSONIC MS6380SG Manuale utente

MATSONIC

MATSONIC MS8318E Series Manuale utente

MATSONIC

MATSONIC MS7080SG Manuale utente

MATSONIC

MATSONIC MS-5120 Manuale utente

MATSONIC

MATSONIC MS7191SM Manuale utente

MATSONIC

MATSONIC MS9077C Manuale utente

MATSONIC

MATSONIC EM-5900V Manuale utente

MATSONIC

MATSONIC MS9027C Manuale utente

MATSONIC

MATSONIC MS8127C Manuale utente

MATSONIC

MATSONIC MS9147C Series Manuale utente

MATSONIC

MATSONIC MS7122A Manuale utente

MATSONIC

MATSONIC MS8177C Series Manuale utente

MATSONIC

MATSONIC MS9307C Series Manuale utente

MATSONIC

MATSONIC MS9007C Manuale utente

MATSONIC

MATSONIC MS9118E Series Manuale utente

MATSONIC

MATSONIC MS7101C Manuale utente

MATSONIC

MATSONIC MS7308E Series Manuale utente

MATSONIC

MATSONIC MS9357E Series Manuale utente

MATSONIC

MATSONIC MS9107C Manuale utente

MATSONIC

MATSONIC MS7177CT Manuale utente

MATSONIC

MATSONIC MS6393E Manuale utente

MATSONIC

MATSONIC MS7167D Manuale utente

MATSONIC

MATSONIC MS7057CT Manuale utente

MATSONIC

MATSONIC MS8147C Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
