MAVEN RF SERIES

Thank you for purchasing a Maven™ RF Series Laser Rangefinder. With this purchase you

have told the world that quality, performance, and personality mean more to you than

big-brand marketing. Included here are instructions for getting your rangefinder ready for

your first adventure. Rig it up, get out there and have some fun, then let us know all about

your journey. We love hearing your stories as much we love making great products. Keep us

in the loop at [email protected].

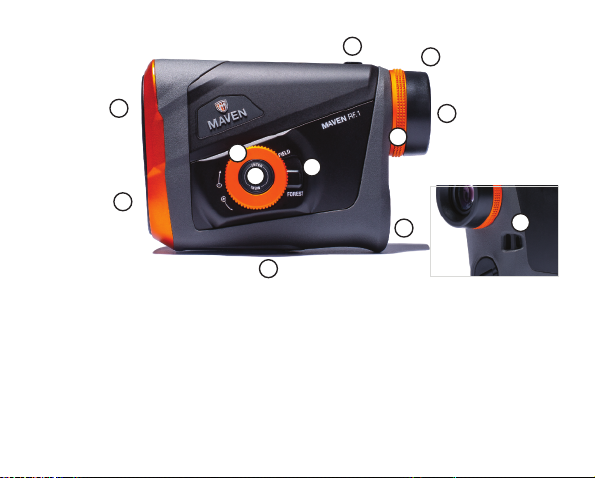

A. POWER / FIRE Button

B. Twist-up Eyecup

C. Ocular Lens

D. Diopter Focus

E. Laser Emission Aperture

F. Laser Receiving Aperture

G. Menu Dial

H. Field / Forest Lever

I. MENU / ENTER Button

J. Battery Compartment

K. Tripod Mount

L. Lanyard Lug

PARTS OF THE RANGEFINDER:

Your RF.1 rangefinder comes with a battery already installed.

Before using:

1. Open the battery cap by lifting the battery door tab and

twisting the door counter clock-wise.

2. Remove and discard the plastic insert sitting on top of the

battery.

3. The CR2 battery is already in place.

4. Reinstall battery cap and thread on by twisting clockwise.

POWERING UP:

Once the battery is installed and the 4 steps are completed, press and release the

POWER button. The display will light up to show the unit is on and ready for ranging.

The laser will power down automatically after 10 seconds of non-use.

FIRING THE LASER:

To fire the laser, simply look through the ocular lens, press and release the POWER

button once to turn it on, align the reticle over the object you want distance to, and

press again to fire. Within the display is a “Firing Indicator” letting you know the laser

is firing. At extended distances holding FIRE button might be required.

FOCUS:

Adjust the diopter focus until the image is sharp.

GETTING STARTED:

ADJUSTING THE EYECUP:

The eyecup on the RF.1 twists in and out so any user can see the full field of view and

enjoy comfortable viewing and ranging with or without glasses. For best viewing without

glasses we recommend twisting the eyecup such that it is fully extended. For best

viewing with glasses, twist the eyecup down.

REPLACING BATTERY:

To replace the battery, remove the battery cap by

lifting the battery tab. Twist counter clock-wise to

open the battery compartment and insert CR2

battery with positive end facing outwards. Once

installed, reinstall battery cap and ensure it is

threaded tightly.

A. Angle Compensated/Line

of Sight Indicator

(Menu only)

B. Angle Compensated/Line

of Sight Indicator (Display)

C. Degree of Angle (LOS only)

D. Aiming Reticle

E. Unit of Measure Indicator

F. Field/Forest Indicator

G. Scan Indicator

H. Battery Life Indicator

I. Firing Indicator

J. Distance Display

B F

Maximum Range (Reﬂective) 4500 yds*

Accuracy up to 0.5 yds to 300 yds**

*Highly reflective targets will be acquired more quickly while less reflective targets may take longer to acquire

**Accuracy validation completed to a 2ft x 2ft white target at a distance of 300 YDS

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.

RF.1 DISPLAY

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.

ABOUT THE DISPLAY:

MENU & NAVIGATION:

-continued on next page

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.

ADJUSTING DISPLAY BRIGHTNESS:

With the unit on, rotate the Menu Dial clockwise to decrease brightness and counterclock-

wise to increase brightness (in the menu this displays as BR1-5).

ANGLE MODE:

The RF.1 provides you the ability to measure and display either Line of Sight (LOS) or Angle

Compensated distance (COMP). Angle compensated distance is an automatic calculation

using the line of sight distance and factors in the degree of elevation angle.

When in Line of Sight Mode and unit is on: “LOS” indicator will be visible in bottom of

display.

When in Angle Compensation Mode and unit is on: “COMP” indicator will be visible in

bottom of display.

To change Angle Mode:

With RF.1 on, press the MENU/ ENTER button. The current Mode will be displayed at the top

of the display as either ANGLE COMPENSATED or LINE OF SIGHT.

To change, rotate the MENU Dial until the desired mode is displayed and then press the

MENU /ENTER button.

Exit by pressing the FIRE button. Angle Mode selected will be displayed within bottom of

display as “LOS” or “COMP”.

DEGREE OF ANGLE:

Displays from -90 to +90 degrees. This indicator will only display angle in Line of Sight

mode.

AIMING RETICLE:

Choose from four reticle options (Diamond, Crosshair, Dot, and Crosshair with Diamond).

To change Reticle:

With RF.1 on, press the MENU / ENTER button and continue doing so until the current reticle

is displayed.

To change, rotate the Menu Dial until the desired reticle is displayed and then press the

MENU / ENTER button.

Exit by pressing the FIRE button

UNIT OF MEASURE:

The RF.1 provides distance measurements in yards or meters.

To change unit of measure:

With RF.1 on, press the MENU / ENTER button and cycle through until the current Unit of

Measure is displayed.

-continued on next page

To change, rotate the Menu Dial until the desired unit of measure is displayed and then

press the MENU / ENTER button. Exit by pressing the FIRE button.

FIELD / FOREST LEVER:

This lever allows you to easily and quickly select for your application and

environmental setting.

Field – Move the lever to “Field” when you want to acquire small, hard to hit targets and

ignore larger objects in the background (e.g. target in front of trees). Displayed

as FLD.

Forest – Move the lever to “Forest” when you want to acquire distance to objects located

behind trees, bushes, or thicket; or when in rainy or snowy conditions (e.g. target behind

cover). Displayed as FOR.

SCAN INDICATOR:

With the laser on, press and hold the FIRE button, scan back and forth to various objects;

while doing so, watch for changes in the measurement number displayed as you move the

aiming reticle across targeted objects. This is a quick way to get an accurate reading on

multiple objects. This will be indicated as SCAN within the display.

BATTERY LIFE INDICATOR:

Within the display, the Battery Life Indicator shows how much battery charge is remaining.

The Battery Indicator will display the first time POWER button is pressed and will also

display in the MENU. If Battery Indicator blinks - battery needs to be replaced and the unit

will not be operable.

points for recycling provided by the communities. For you, this is free of charge. Further

information about the subject is available at your community administration, your local waste

collection company, or in the store where you purchased this equipment.

SAFETY AND PRECAUTIONS

Do not stare into beam or view directly without laser eye protection. Staring continuously into

beam for prolonged periods of time could cause harm to your eyes. If used properly, this

device is safe for your eyes and laser eye protection is not needed.

-Use the correct battery (CR2) and proper battery orientation.

-Do not look at sun.

-Do not activate buttons while aiming at eye or looking into objective lenses.

FDA SAFETY

Class 1 laser product in accordance with IEC 60825-1: Edition 3 2014-05.

Complies with 21 CFR 1040.10 and 1040.11 for laser products except for deviations pursuant

to Laser Notice No. 50, dated June 24, 2007.

CAUTION:

There are no user controls, adjustments or procedures. Performance of procedures other than

those specified herein may result in access to invisible laser light.

This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment generates, uses and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

· Consult the dealer or an experienced radio/TV technician for help.

The device does not contain any user-serviceable parts. Repairs should only be made by

Maven or Authorized Maven agent. Unauthorized repairs or modifications could result in

permanent damage to the equipment and will void your warranty and your authority to operate

this device under Part 15 regulations. The shielded interface cable which is provided must be

used with the equipment in order to comply with the limits for a digital device pursuant to

Subpart B of Part 15 of FCC Rules.

DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT:

(Applicable in the EU and other European countries with separate collection systems)

This equipment contains electric and/or electronic parts and must therefore not be disposed

of as normal household waste. Instead, it should be disposed at the respective collection

1. Unlike mankind, not all objects are created equal.

a. Some objects are more reflective than others.

b. Larger and more reflective objects are easier to detect.

c. Objects that are lighter in color are generally easier to acquire than dark objects.

2. Rain, snow and fog are not a laser’s friend.

a. This type of precipitation hinders ranging performance. In these conditions laser

will produce a more accurate reading in Forest mode.

b. Ranging in cloudy conditions can improve ranging performance; bright sunshine

can decrease ranging performance.

c. Ranging over a reflective body of water can cause inaccurate readings.

d. Flat and perpendicular surfaces reflect better than curved or angled surfaces.

3. Can’t get a reading (horizontal hash marks instead of distance)?

a. Press and hold the FIRE button while holding the reticle on the target. Ensure that the

FIRE button is not released before a distance is displayed.

b. Use the SCAN feature and technique. With the laser on, view through the eyepiece

and align the aiming reticle onto the object and press and hold the FIRE button and

move the laser slowly over the object until distance is displayed.

NOTE:

The RF.1 is designed to reach highly reflective targets out to 4500 yards. If a reading is not

displayed, target may not be within the distance threshold, or the size, color, and reflectivity

needed to provide an accurate reading.

CLEANING:

1. Remove as much dust and dirt as possible from the lenses with ablower or bristled

brush.

2. Apply a few drops of lens cleaning solution to a lens tissue or microfiber cleaning

cloth. Ensure that the cleaning cloth is free from dirt and grit so as not to scratch the

lenses. NEVER use a t-shirt, facial tissue or heavy cotton cloth on your lenses as they

can scratch the lenses.

3. Using a circular motion, gently remove oil, fingerprints, and grime from the lens

surface, working from the center outward.

4. For cleaning and disinfecting surfaces other than glass, spray a microfiber cloth with

Lysol spray and wipe down product or use a disinfectant wipe (e.g. Lysol, Clorox,

CaviWipes).

STORAGE:

When your RF.1 is not in use for over 3 months, we recommend removing the battery and

storing your RF.1 in a dry location at room temperature.

FCC REQUIREMENTS:

This device complies with Part 15 of the FCC interference limits for Class B digital devices

FOR HOME OR OFFICE USE. These limits are designed to provide reasonable protection

against harmful interference in a residential installation, and are more stringent than

“outdoor” requirements. Operation of this device is subject to the following conditions; (1)

RANGEFINDING TIPS:

Altri manuali per RF Series

Indice

Altri manuali Maven Strumento di misura

Maven

Maven RF Series Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
