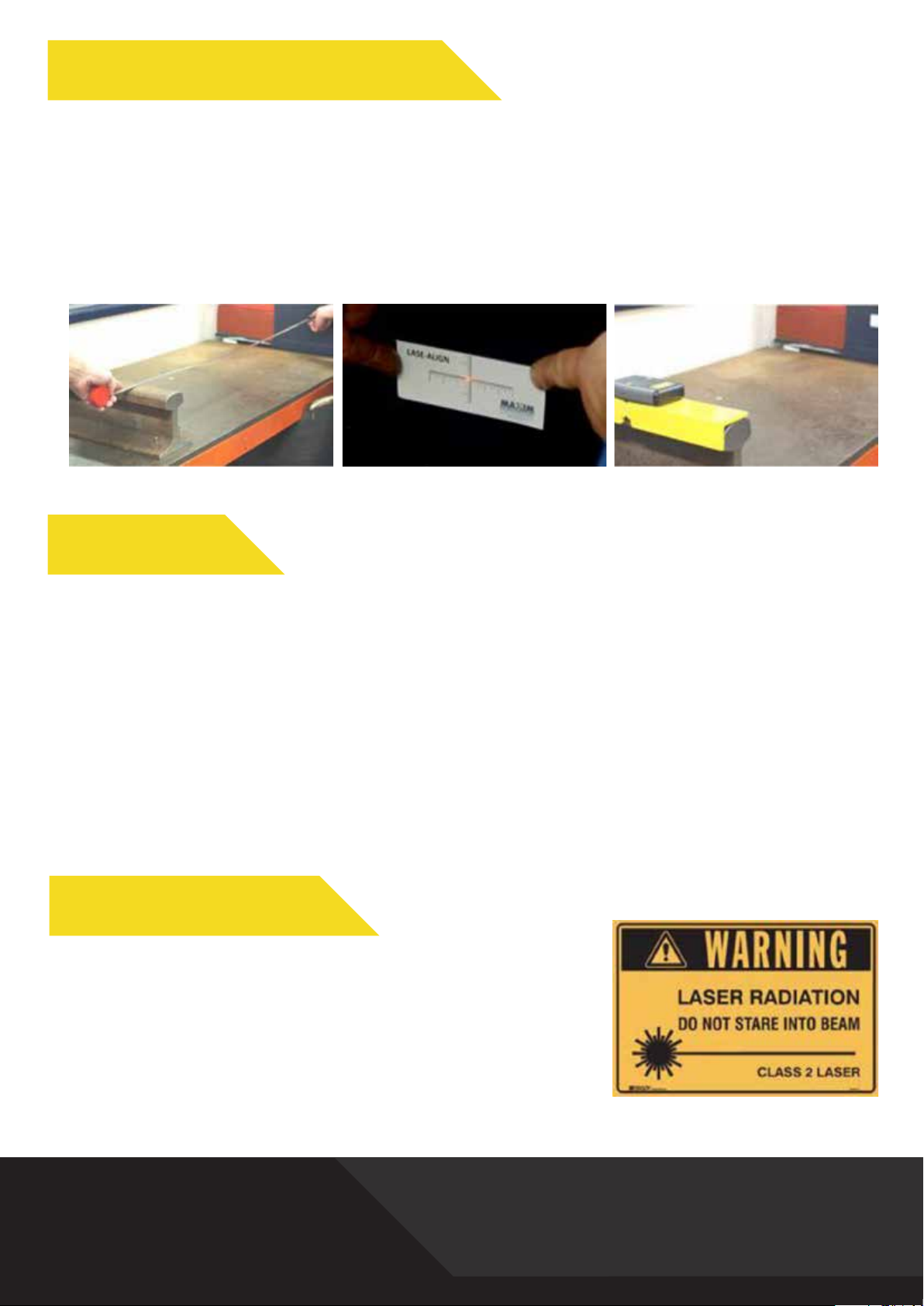

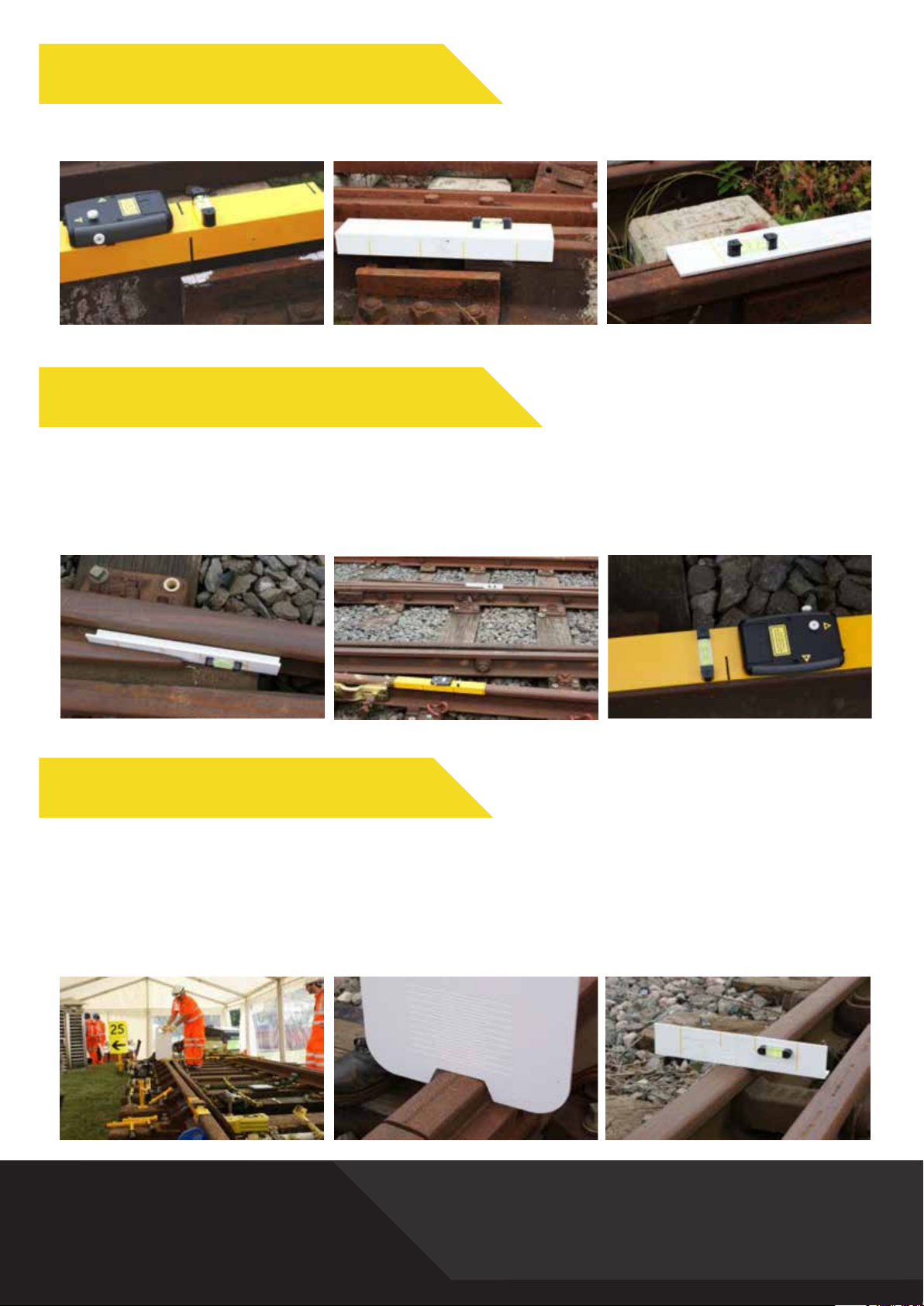

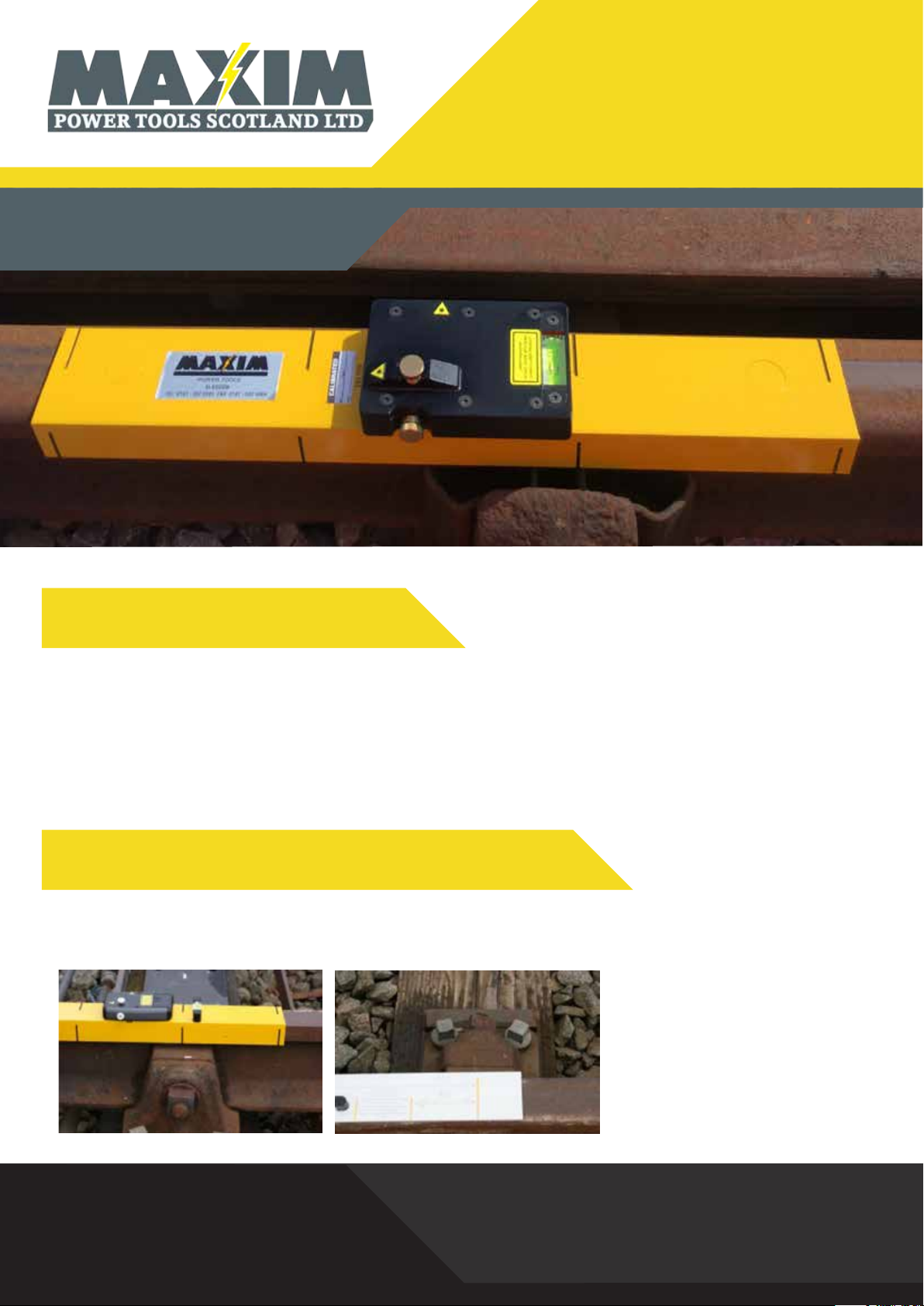

Lase-Align Calibration
Securely fix a short piece of new rail to the floor or fixed bench parallel to and 1435mm away from a vertical face such as a
wall.
Make a vertical permanent mark or cut on the side of the rail head which is facing the wall at its centre.
Place Lase-Align on rail, aligning the notch with the mark on the rail head and switch on the laser pointing towards the wall.
Fix the self-adhesive target supplied to the wall with the red dot positioned exactly on the centre cross of the target.
Before use, the gauge can be checked for accuracyon the calibration rail. Check fixed laser to ensure that it is within the
required field of accuracy.
Safety
NEVER look directly at the laser beam
NEVER shine the laser at anything other than the rail faces and
particularly not towards another person.
NEVER point the laser towards oncoming trains or vehicles as the
light can obscure the drivers vision.
ALWAYS switch off the lasers when not in use
ALWAYS return the gauge to its protective case when not in use
Part Numbers
Lase-Align Kit 039 / 127033
Lase-Align 039 / 127030
Small Target 039 / 127031
Large Target 039 / 127032
