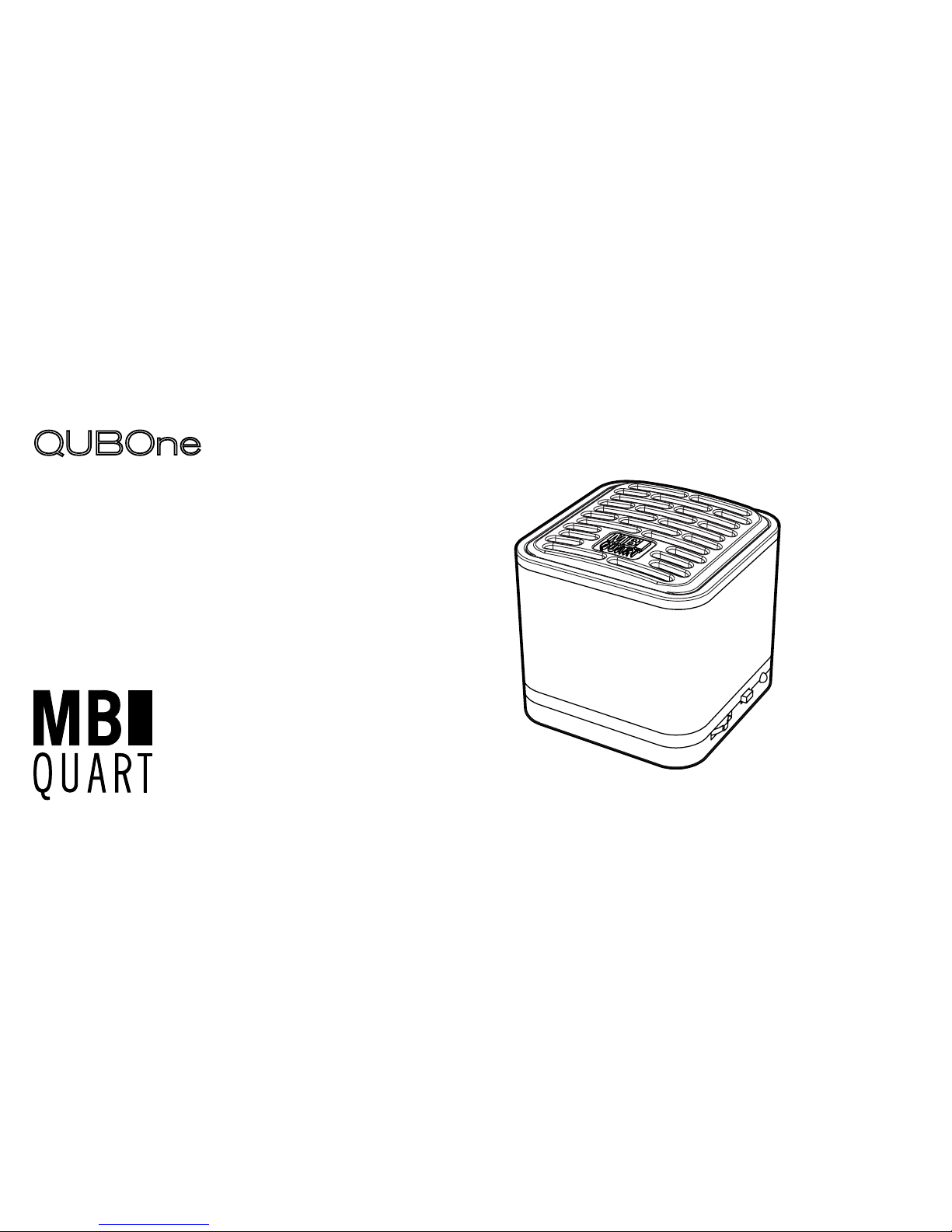

MB QUART QUBOne Manuale utente

QUBOne

BluetoothTM Speaker

CONTENTS

Important Safety Instructions

Controls

Power Switch

Charging

Bluetooth Connection

Auxiliary Input

Receiving and Making Calls

Specications

Page 3

7-8

IMPORTANT SAFETY INSTRUCTIONS

• Read, follow and keep these instructions.

• Do not use this product near water or wet surfaces.

• Clean only with a dry cloth.

• Do not expose to extreme high or low temperatures.

• Only use the supplied cables for charging and playback.

CONTROLS

Power Switch

Rotate and hold: volume up\down

Rotate and release: track +\-

Push and release: play \ pause

Pairing LED

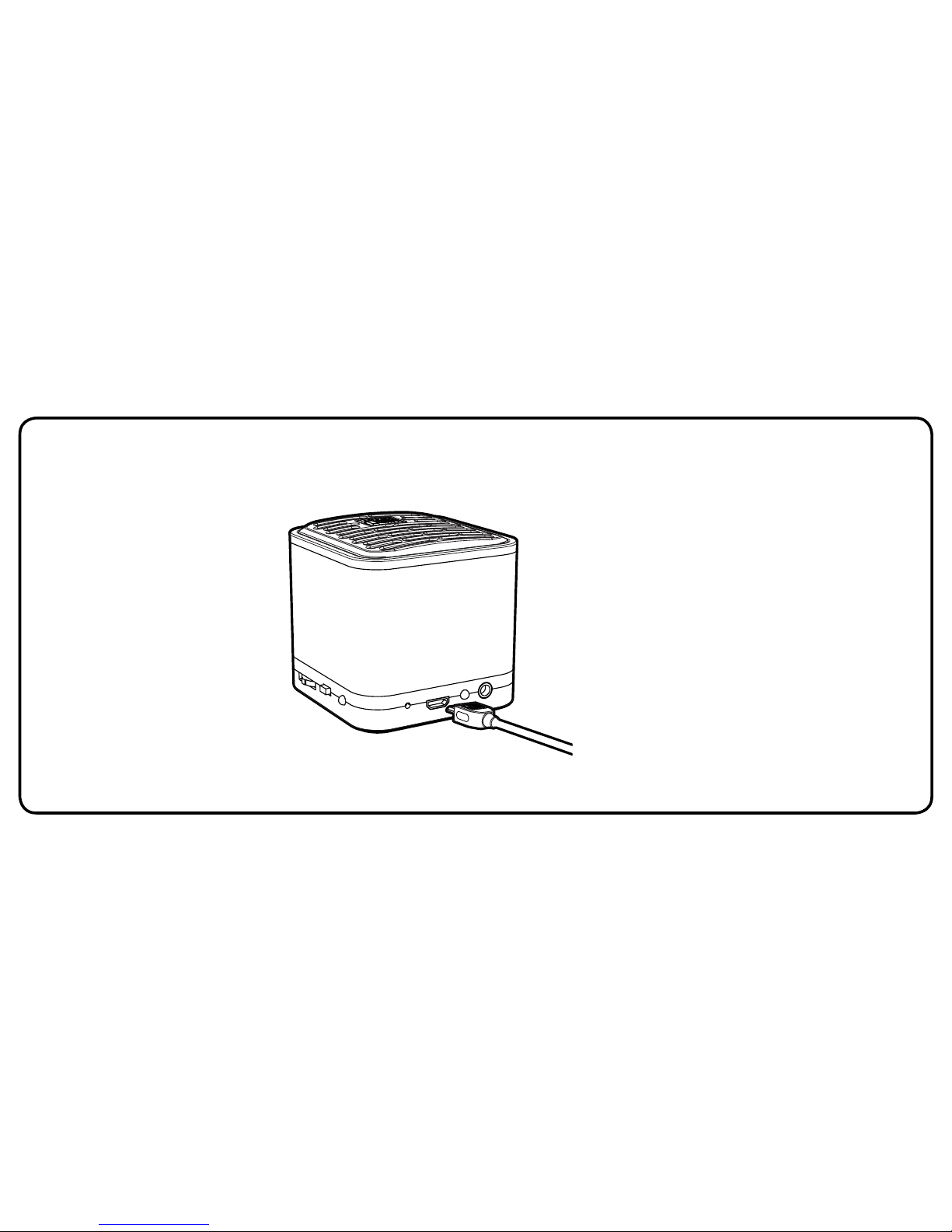

CHARGING

Thersttimeyouuse

your Bluetooth speaker,

please charge it for at

least 1.5 hours. During

therstcharge,donot

turn on the device.

Using the supplied USB cable

connect to a USB power source

(eg. a computer).

While charging, the yellow

LED on the rear of the unit will

illuminate.

When fully charged, the yellow

LED will turn off.

Aftertherstcharge,youcanplay

and charge at the same time.

BLUETOOTH CONNECTION

When the speaker is turned on, you should hear a voice prompt and the blue pairing LED

onthesideofthedevicewillashquicklyindicatingthatpairingmodeisactivatedandit

issearchingforaBluetoothsource.TheblueLEDwillashslowlywhenitisattemptingto

connect to the device it was paired to last.

Go to the Bluetooth menu of your source device and connect to QUBOne from the list of

devices. If asked for a code, enter 0000.

Oncetheconnectionisachieved,thepairingLEDwillstopashingandthespeakerwill

emit two short beeps.

You are now connected and can play from your source.

Make sure that no other source in range is connected. Only one connection can be made

at a time, The speaker may automatically connect to a source it has been paired with in the

past.

Turn off the speaker, then on again. Try pairing again.

Make sure the source is Bluetooth compatible and that the Bluetooth is activated.

Review your source device documentation for Bluetooth pairing instructions.

TROUBLE CONNECTING?

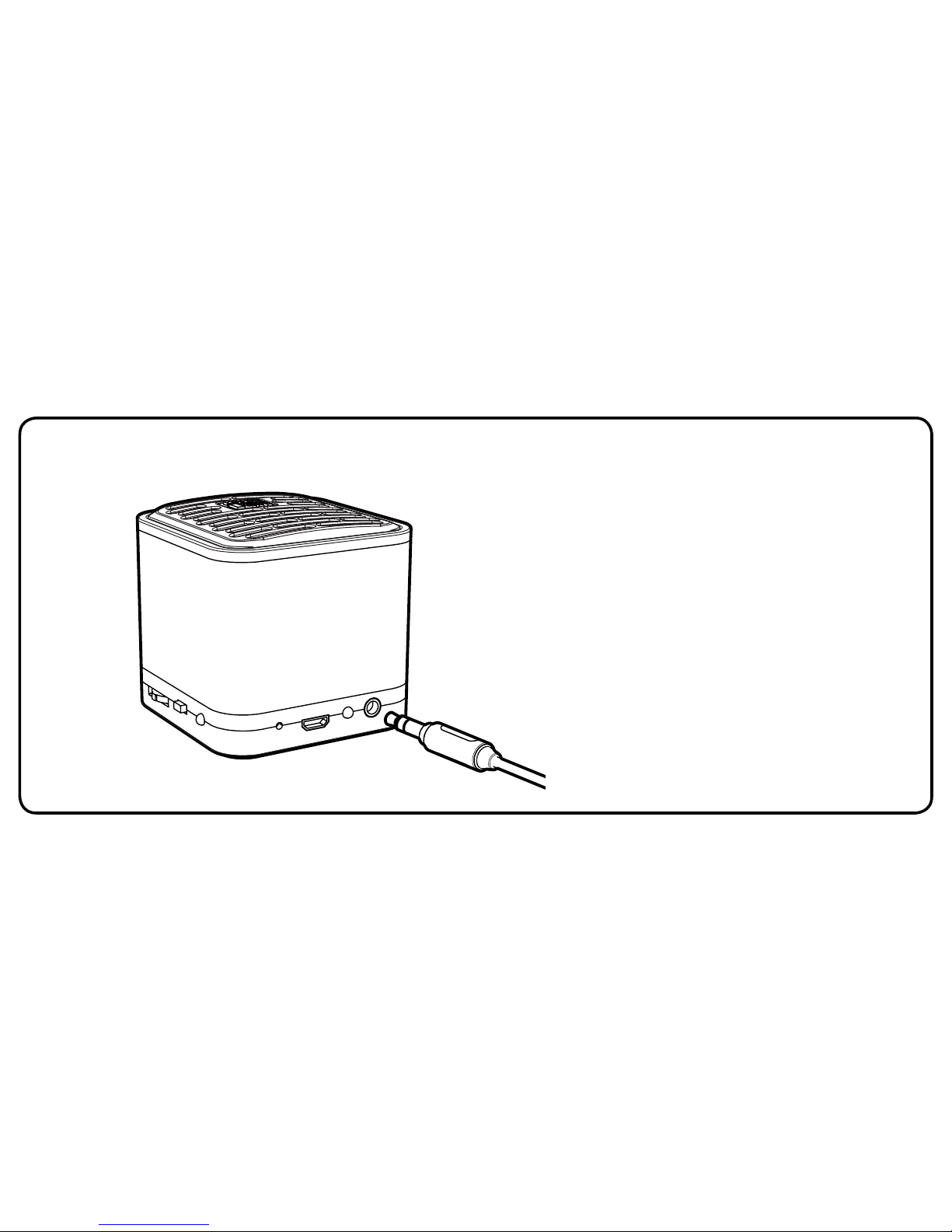

AUXILIARY INPUT CONNECTION

Insert the supplied 3.5mm cable

into the speaker’s AUX input. The

pairing LED will illuminate when

this connection is made.

Connect the other end to the

output of your source device.

You can now play your content.

The Bluetooth will be disabled

anytime a 3.5mm cable is inserted

into the AUX input.

RECEIVING AND MAKING CALLS

Your speaker will allow you to make hands free calls provided your phone is connected via Bluetooth.

The AUX connection cannot be used for this function.

To make a call: Use the phone as normal, select the Bluetooth speaker when prompted.

To receive a call: Either push the PLAY/PAUSE button on the side of the speaker or answer the call

with the phone making sure to select the Bluetooth speaker when prompted.

Ending a call: Either push the PLAY/PAUSE button on the side of the speaker or hang up using the

phone as you normally would.

SPECIFICATIONS

Active Drivers:

Passive Drivers:

AmplierPower:

FrequencyResponse:

Battery Type:

Battery Capacity:

1 x 40mm (1.57 Inches)

3.2 Watts

85Hz - 17KHz

Lithium-ion Polymer

850mAh

Play Time:

Recharge Time:

BluetoothProles:

Bluetooth Range:

Dimensions:

Weight:

3 to 5 Hours

1.5 Hours

HFP-A2DP/ARVCP

10 meters in open space

60 x 60 x 59 (mm)

280 grams
