INSTALLATION INSTRUCTIONS FOR PART 99-1003
1-800-221-0932
©COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
www.metraonline.com
99-1003
KIT FEATURES
•DIN Radio Provision
A) Radio Housing #1 • B) Radio Housing #2 • C) Mounting Brackets • D) (4) Captive Studs
•E) (4) Pal Nuts
KIT COMPONENTS
APPLICATIONS
KIA
Rio 2001
Sephia 1995-2001
Spectra 2000-2001
Sportage 1995-2003
AB
Panel Removal Tool • Cutting Tool • Phillips Screwdriver
TOOLS REQUIRED:
CD
E
WIRING AND ANTENNA CONNECTIONS
(Sold Separately)
•70-1003 - KIA Harness 1995-02
•Antenna Adapter N/R
Dash Disassembly
-KiaRio2001 .................................................. .1
-Sephia1995-1997...............................................2
-Sephia1998-2001...............................................3
-Spectra2000-2001...............................................3
-Sportage1995-1997.............................................4
-Sportage1998-2000.............................................5
-Sportage 2001-2003 . . . . . . . ......................................6
Kit Assembly
-Kit Assembly Preparation .........................................7
-DIN Radio Provision .............................................8
Final Assembly ..........................................9
TABLE OF CONTENTS
99-1003
*Note:
Refer also to the instructions included with the aftermarket radio.
99-1003 DASH DISASSEMBLY

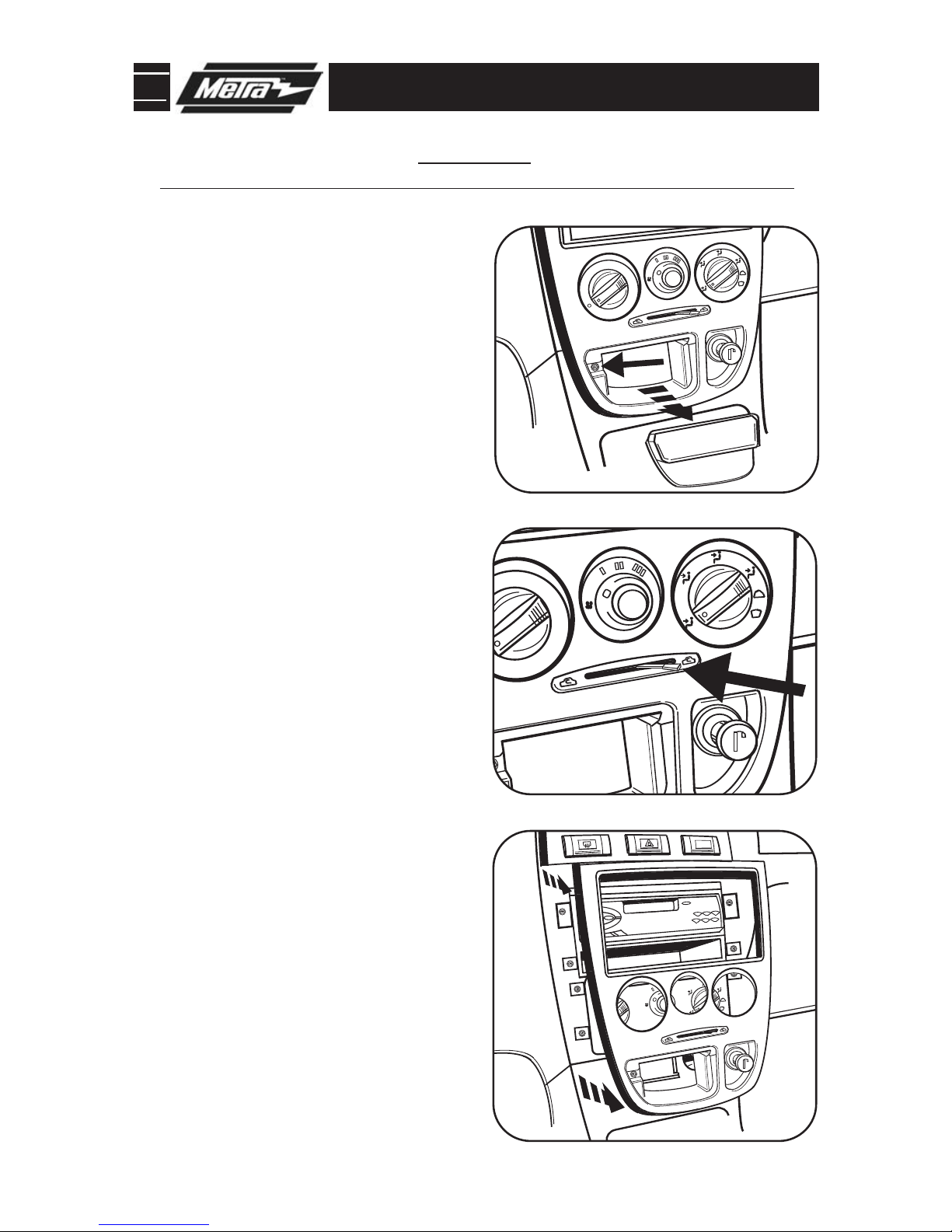

RIO 2001
A
B
1
Disconnect the negative battery-
terminal to prevent an accidental
short circuit.
1
Remove ashtray and (1) Phillips
head screw inside ashtray cavity.
(Figure A)
2
Remove knob from climate control
slide lever.
(Figure B)
3
Unsnap and remove radio/climate
control trim panel.
(Figure C)
4
5
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
Continue to kit preparation.
A/C
OFF
C
A/
OFF
A/C
OFF
*
Note: Refer also to the instructions included with the aftermarket radio.
2
99-1003 DASH DISASSEMBLY
SEPHIA 1995-1997
Remove plastic screw cover to the
left of the coin tray and remove the
Phillips head screw from behind
cover.
2
Remove switch blank to the far
right of the switchpanel and
remove the Phillips head screw
from behind switch blank.
3
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
5
Unclip and remove dash trim
panel.
4
Continue to kit preparation.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
3
99-1003 DASH DISASSEMBLY
SEPHIA 1998-2001
SPECTRA 2000-2001
Remove (1) Phillips head screw
from above instrument cluster.
2
Unclip and remove dash trim
panel.
3
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
4
Continue to kit preparation.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
4
99-1003 DASH DISASSEMBLY
SPORTAGE 1995-1997
Remove ashtray and (2) Phillips
head screws inside ashtray cavity.
2
Unclip and remove dash trim panel.
3
Remove (4) Phillips head screws
securing the radio.Unplug and
remove the radio.
4
Continue to kit preparation.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
5
99-1003 DASH DISASSEMBLY
SPORTAGE 1998-2000
Unclip and remove dash trim panel.
2
Remove (4) Phillips head screws
securing the radio. Unplug and
remove the radio.
3
Continue to kit preparation.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
6
99-1003 DASH DISASSEMBLY
SPORTAGE 2001-2003
Unclip and remove climate con-
trol/vent trim panel.
(Figure A)
2
Remove screw covers from trim
panel below steering column and
remove screws from behind cov-
ers. Lower the trim panel (it is not
necessary to remove the panel).
(Figure B)
3
Remove (3) Phillips head screws
from bottom of steering column
housing and remove both upper
and lower sections of housing.
4
Remove (1) Phillips head screw
from outside left edge of dash and
(2) Phillips head screws from near
hood release.
(Figure C)
5
Loosen nut behind hood release
and remove lower left side dash
trim.
(Figure C)
6
Remove (4) Phillips head screws
from instrument trim panel and
remove panel.
(Figure D)
7
Remove (4) Phillips head screws
securing the radio.Unplug and
remove the radio.
8
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Disconnect the negative battery
terminal to prevent an accidental
short circuit.
1
A
B
C
D
7
99-1003 KIT PREPARATION
KIT ASSEMBLY PREPARATION
RIO 2001
SEPHIA 1995-1997
SEPHIA 1998-2001
SPECTRA2000-2001
Continue to kit assembly.
*
Note: Refer also to the instructions included with the aftermarket radio.
Cut and remove mounting tabs “B”
from Radio Housing #2. (The tabs can
be identified by the letter stamped on
the back of each tab.)
(Figure A)
Cut and remove mounting tabs “A” from
Radio Housing #2 and the mounting
brackets. (The tabs can be identified by
the letter stamped on the back of each
tab.) Locate the scored line on the back
of the radio housing and break away
the bottom portion of the housing as
shown.
(Figure C)
SPORT
AGE 1998-2003
Cut and remove mounting tabs “A” from
Radio Housing #1. Cut and remove tabs
“B” from the mounting brackets. (The
tabs can be identified by the letter
stamped on the back of each tab.)
(Figure D)
Cut and remove mounting tabs “B”
from Radio Housing #1. (The tabs can
be identified by the letter stamped on
the back of each tab.)
(Figure B)
"B"
"B"
B
"A"
"A"
"B"
"B"
"B"
"B"
D
"B"
"B"
A
"A"
"A"
"A"
"A"
"A"
"A"
C
SPORTAGE 1995-1997
99-1003 KIT ASSEMBLY
DIN MOUNT RADIO
*
Note: Refer also to the instructions included with the aftermarket radio.
8
B
A
C
Slide the radio into the DIN
cage/housing assembly until it
snaps into place.
(Figure C)
2
Continue to final assembly.
Slide the DIN cage into the radio
housing and secure by bending the
metal locking tabs outward.
(Figure B)
1
NOTE: For Sportage 1995-97 and
1998-03 secure the Mounting
Brackets to the Radio Housing with
(4) Captive Studs and (4) Pal Nuts.
(Figure A)
